Model Whirlpool 4YET20DKAN01 REFRIGERATOR – Common Parts & Diagrams

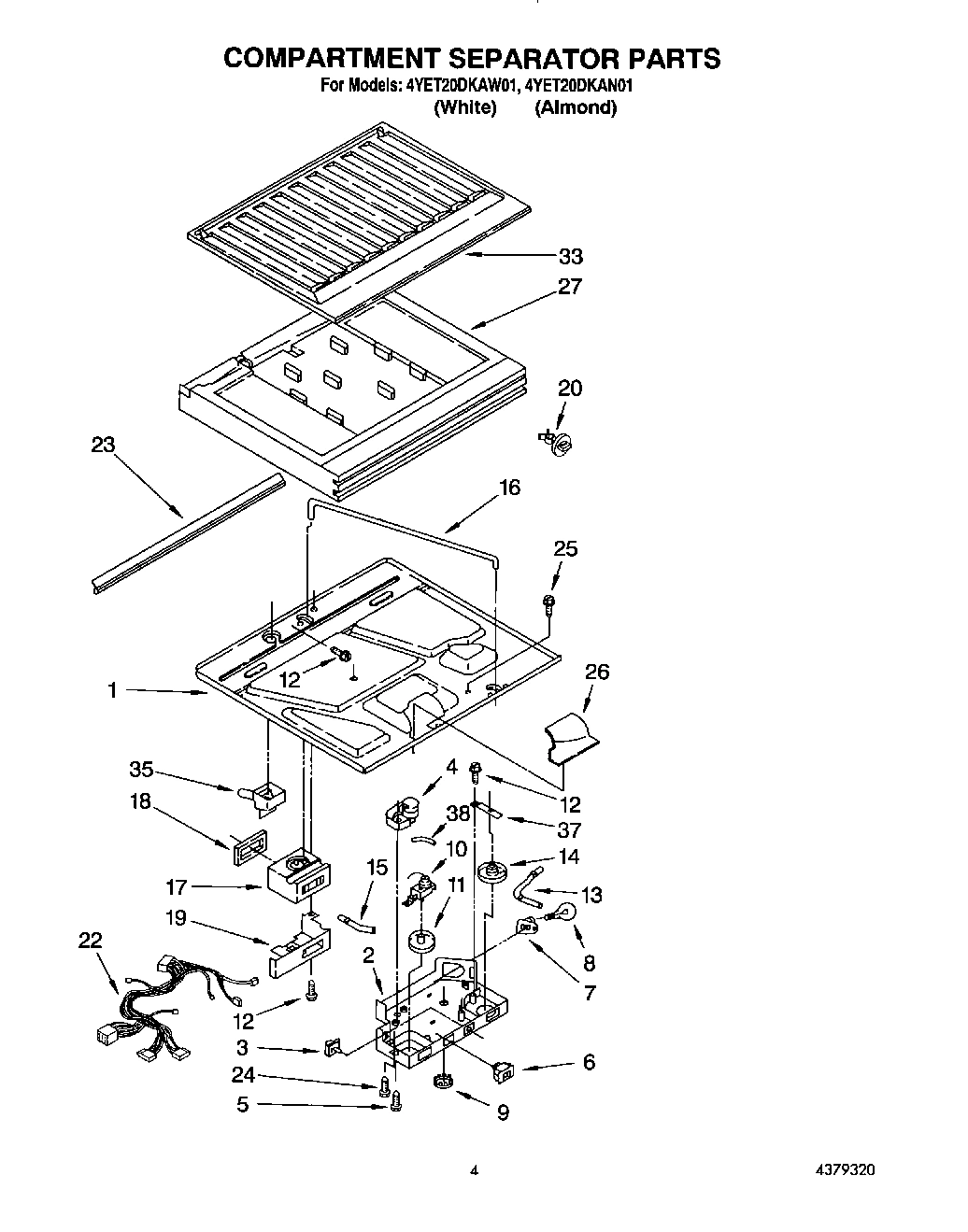

03 - COMPARTMENT SEPARATOR

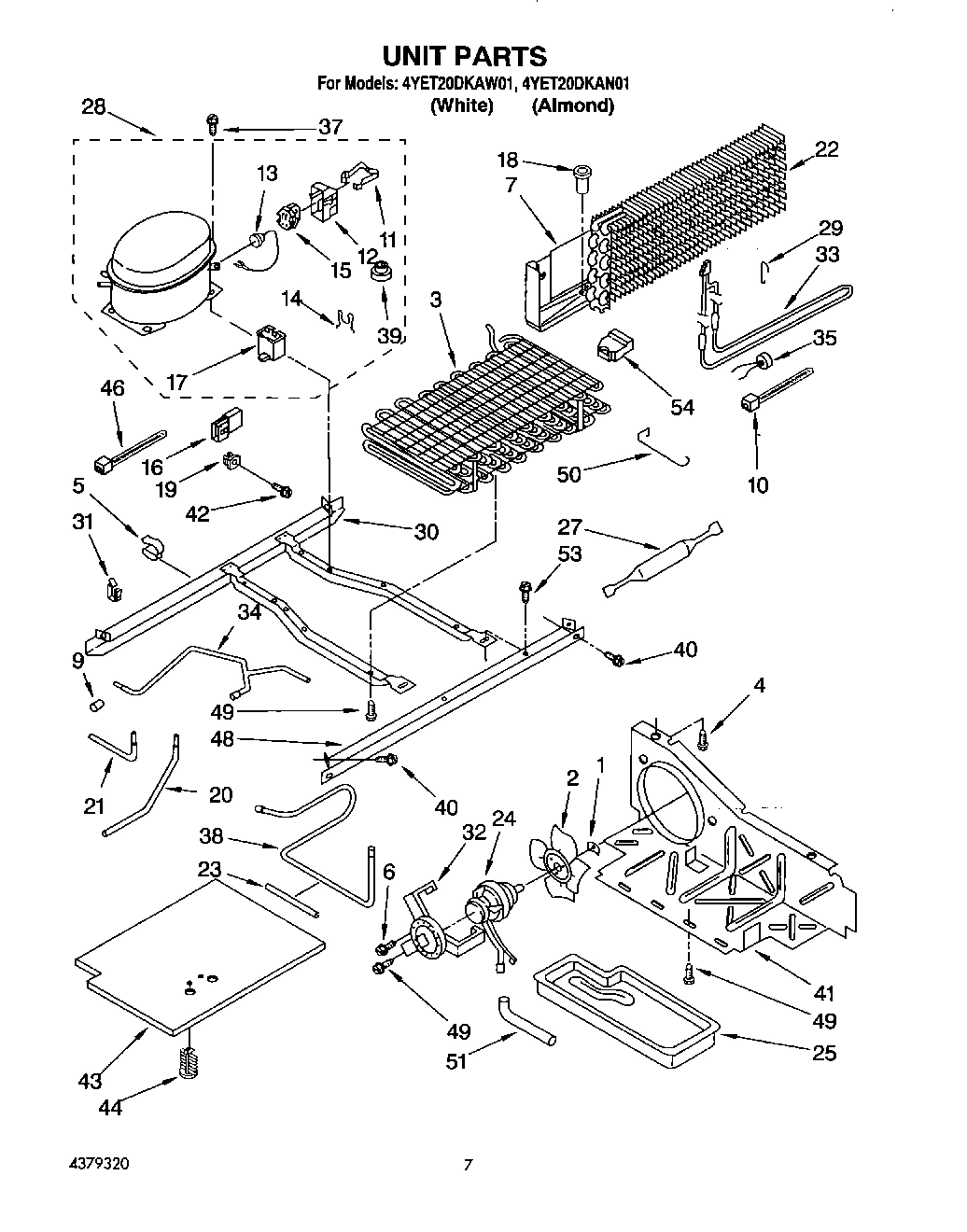

05 - UNIT

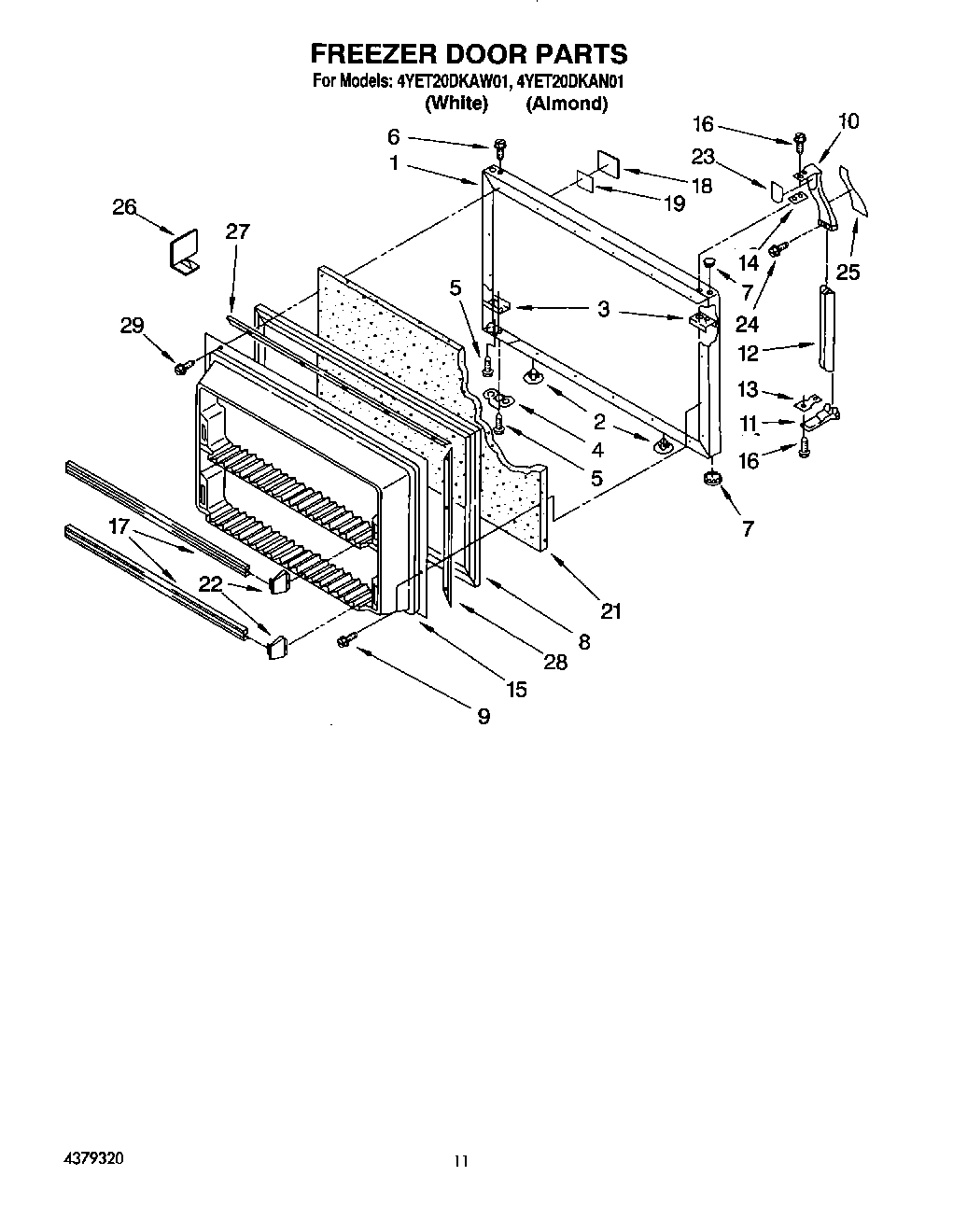

07 - FREEZER DOOR

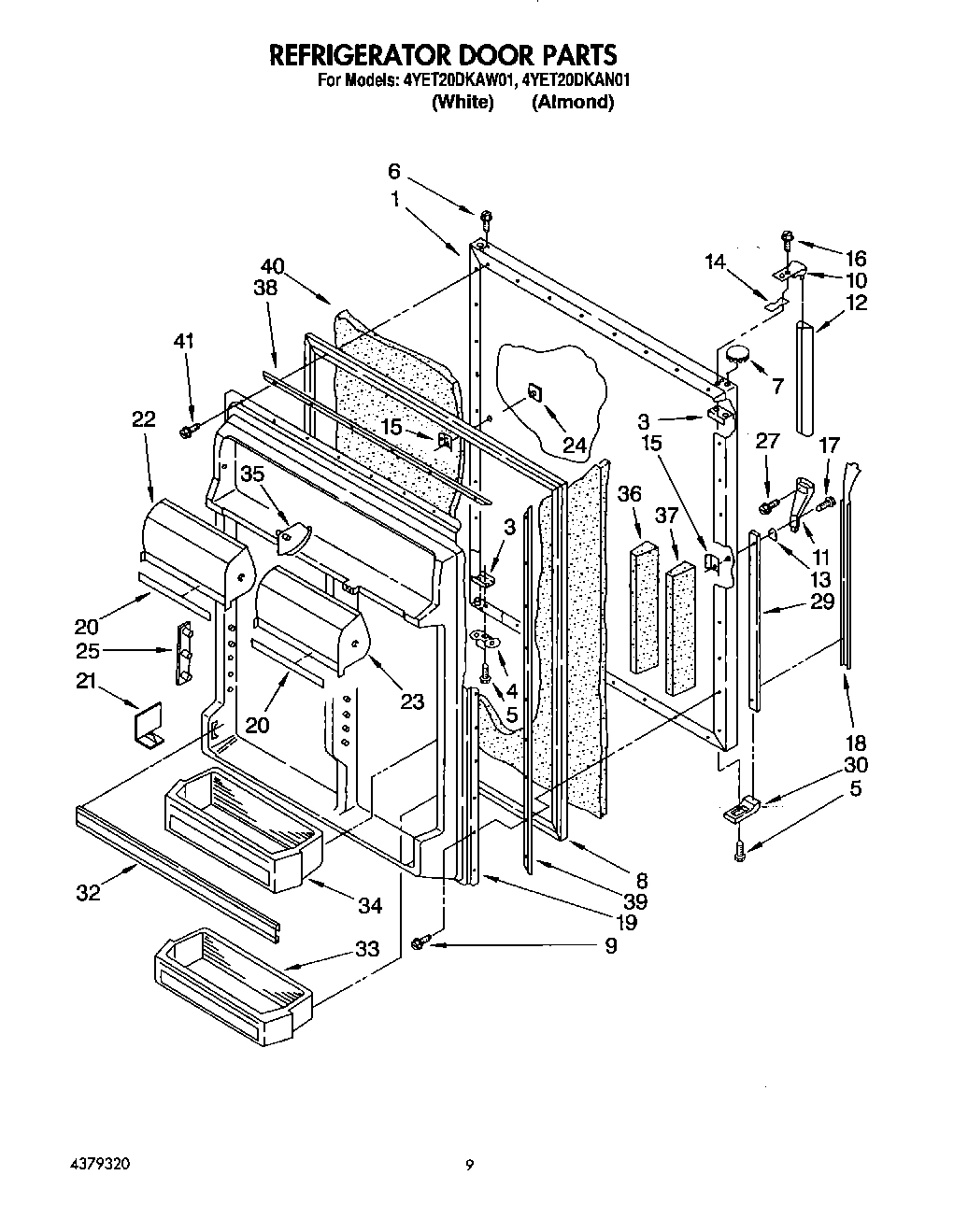

06 - REFRIGERATOR DOOR

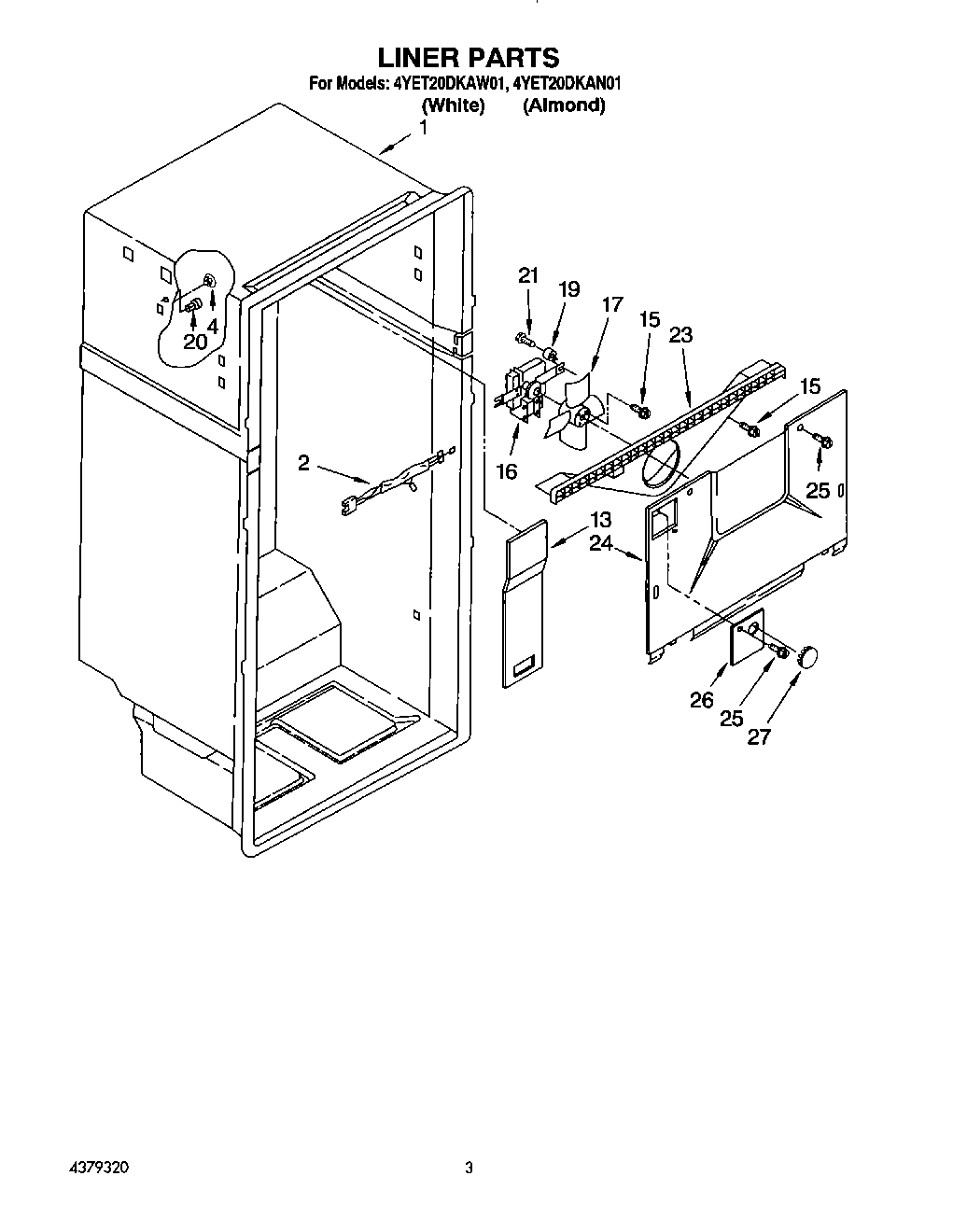

02 - LINER

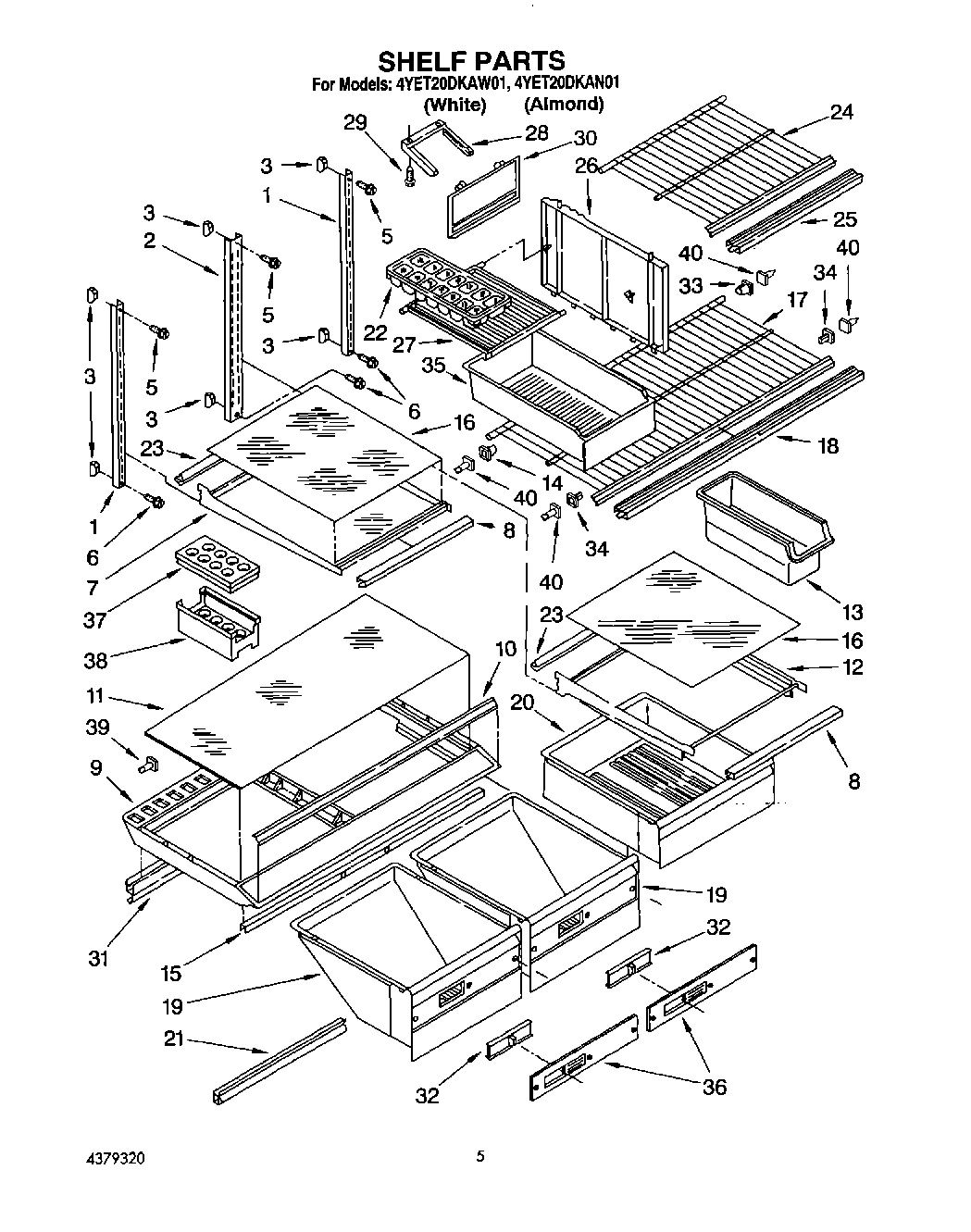

04 - SHELF, LIT/OPTIONAL

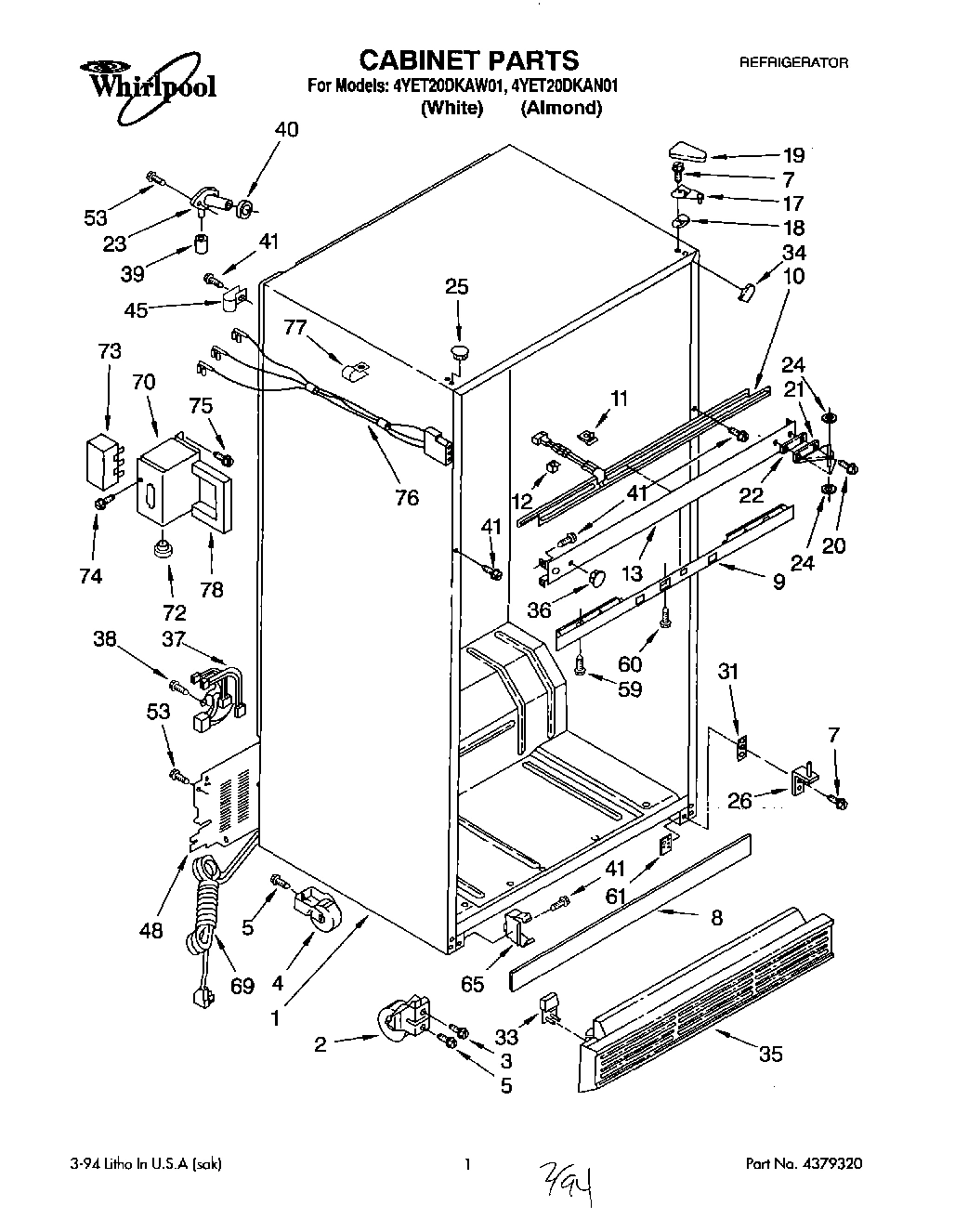

01 - CABINET
Common parts from model Whirlpool 4YET20DKAN01 REFRIGERATOR
WPL LIT2166557 WPL LIT2166557 Contact Us For Availability
WPL LIT2166579 WPL LIT2166579 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 40) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 40) WPL 1122658 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI15066A1 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI15065A9 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Screw, WPL 489345 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever WPL 1120435 Contact Us For Availability
8
Trim, Shelf WPL 2148526 Contact Us For Availability
8
Deck Rail Cover WPL 2172708 Contact Us For Availability
9
Control, Front Cover WPL 2166554 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
10
Trim, Crisper Cover WPL 2172711 Contact Us For Availability
10
Heater, Mullion WPL 2158635 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Glass, Crisper Cover WPL 1124553 Contact Us For Availability
11
Clip, Mullion (4) WPL 1129018 Contact Us For Availability
12
Handle, Center (White) WPL 2162586 Contact Us For Availability
12
Handle, Center (Almond Model) WPL 2162693 Contact Us For Availability
12
Handle, Center (White) WPL 2150150 Contact Us For Availability
12
Handle Center (Almond) WPL 943068 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1122729 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
13
Cover, Air Duct WPL 2157410 Contact Us For Availability
13
Center Rail WPL 2172705 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Motor, Fan WPL 2169114 Contact Us For Availability
16
Shelf, Glass (5) WPL 1124551 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2148555 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
18
Nameplate (White Model Only) WPL 2166552 Contact Us For Availability
18
Nameplate (Almond Model Only) WPL 2166564 Contact Us For Availability
18
Insert, Handle (White) WPL 2150153 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2150154 Contact Us For Availability
18
Trim, Shelf Front WPL 2148535 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Interior Door Panel WPL 1126757 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 2162717 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
20
Trim, Door Compartment (2) WPL 1122750 Contact Us For Availability
20
Grommet (4) WPL 1110779 Contact Us For Availability
20
Pan, Meat WPL 2166616 Contact Us For Availability
21
Divider, Door Shelf WPL 2152335 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Crisper Gasket, Front (2) WPL 1116512 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Compartment Door, Left Side WPL 2148809 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
23
Compartment Door, Right Side WPL 2148807 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Reflector, Shelf WPL 1106768 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 2157428 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 1106822 Contact Us For Availability
25
Insert, Handle (White) WPL 1108828 Contact Us For Availability
25
Insert, Handle (Almond) WPL 1108830 Contact Us For Availability
25
Pin Plate (8) WPL 1116986 Contact Us For Availability
25
Trim, Shelf WPL 2148537 Contact Us For Availability
25
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
26
Divider, Door Shelf (2) WPL 1123293 Contact Us For Availability
26
Divider WPL 1127416 Contact Us For Availability
27
Screw, 6-20 x 3/8 WPL 489022 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Shelf, Ice Compartment WPL 1106624 Contact Us For Availability
28
Gasket Retainer, Side (2) WPL 1122553 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 14, 15 WPL 2162439 Contact Us For Availability
28
Slide, Ice Compartment WPL 1106817 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
29
Retainer, Insert WPL 935871 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
30
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
30
Door, Ice Compartment WPL 2166545 Contact Us For Availability
31
Crisper Gasket, Rear (2) WPL 1105653 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Trim, Door Shelf WPL 2148551 Contact Us For Availability
32
Slide, Humidity Control WPL 2148524 Contact Us For Availability
33
Heater, Defrost WPL 2158987 Contact Us For Availability
33
Bin, Door Shelf (2) WPL 2148549 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
34
Tube, Discharge Assembly WPL 2154087 Contact Us For Availability
34
Bin, Door Shelf (Deep) (2) WPL 2148550 Contact Us For Availability
34
Shelf Stud WPL 946356 Contact Us For Availability
34
Filler, Wrap Corner (2) (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (2) (Almond) WPL 1118059 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
36
Door Dike, Center WPL 1122711 Contact Us For Availability
36
Crisper, Pan Front WPL 2166547 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
37
Door Dike, Side (2) WPL 1122709 Contact Us For Availability
37
Egg Container, Top WPL 1107388 Contact Us For Availability
37
Wiring Assembly, Intermediate WPL 2165296 Contact Us For Availability
38
Tube, Suction WPL 2154038 Contact Us For Availability
38
Gasket Retainer, Top & Bottom WPL 1122552 Contact Us For Availability
38
Egg Container, Bottom WPL 1107384 Contact Us For Availability
39
Grommet WPL 2162067 Contact Us For Availability
39
Gasket Retainer, Side (2) WPL 1122551 Contact Us For Availability
40
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
Torx Key WPL 1117510 Contact Us For Availability
40
Enamel, xGolden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
40
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
40
Leveler, xEnamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
40
WPL 542639 WPL 542639 Contact Us For Availability
40
WPL 799833 WPL 799833 Contact Us For Availability
40
WPL 946355 WPL 946355 Contact Us For Availability
40
WPL 978883 WPL 978883 Contact Us For Availability
41
Air, Baffle WPL 1127938 Contact Us For Availability
43
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cover, Unit WPL 2160521 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
54
Support, Evaporator (R.S.) WPL 1118805 Contact Us For Availability
54
Support-Evaporator (L.S.) WPL 2159708 Contact Us For Availability
54
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
69
Service Cord WPL 1129332 Contact Us For Availability
70
Enclosure, Term. WPL 2158579 Contact Us For Availability
72
Bushing WPL 1129449 Contact Us For Availability
73
Terminal Block WPL 1129346 Contact Us For Availability
74
Screw WPL 489346 Contact Us For Availability
76
Wiring Assy. Terminal Block WPL 2165297 Contact Us For Availability
78
Gasket WPL 2167227 Contact Us For Availability
× ![]()
