Model Whirlpool 4YET18PKAW00 REFRIGERATOR – Common Parts & Diagrams

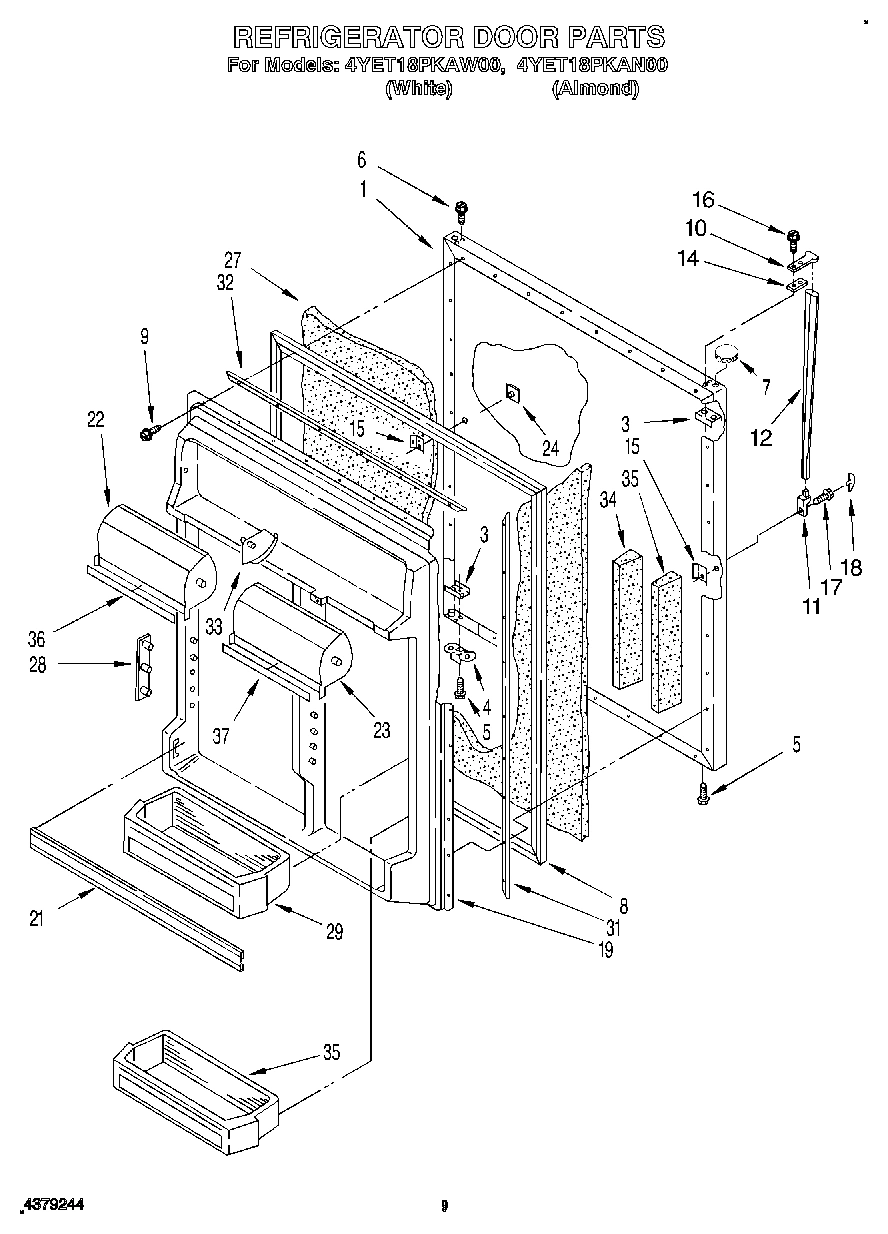

07 - REFRIGERATOR DOOR, LIT/OPTIONAL

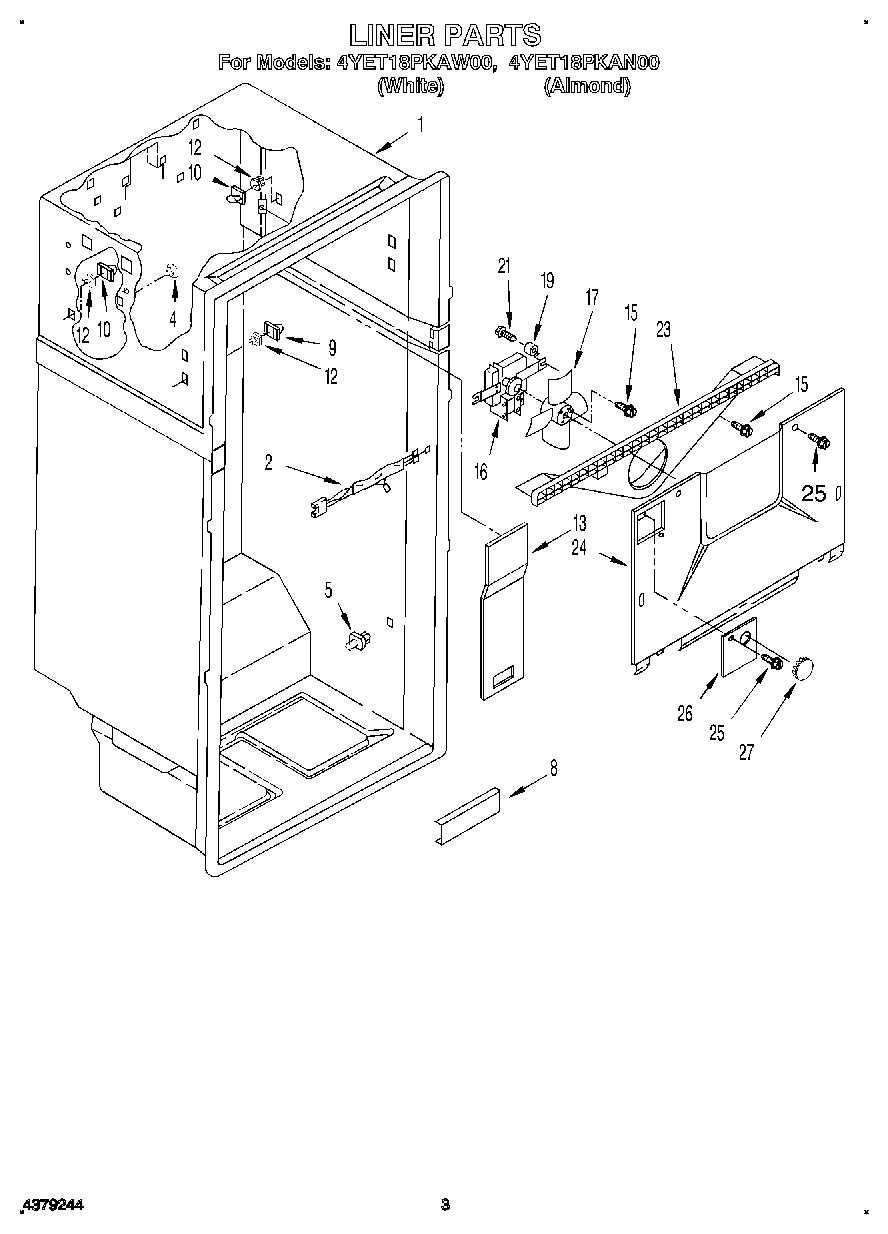

02 - LINER

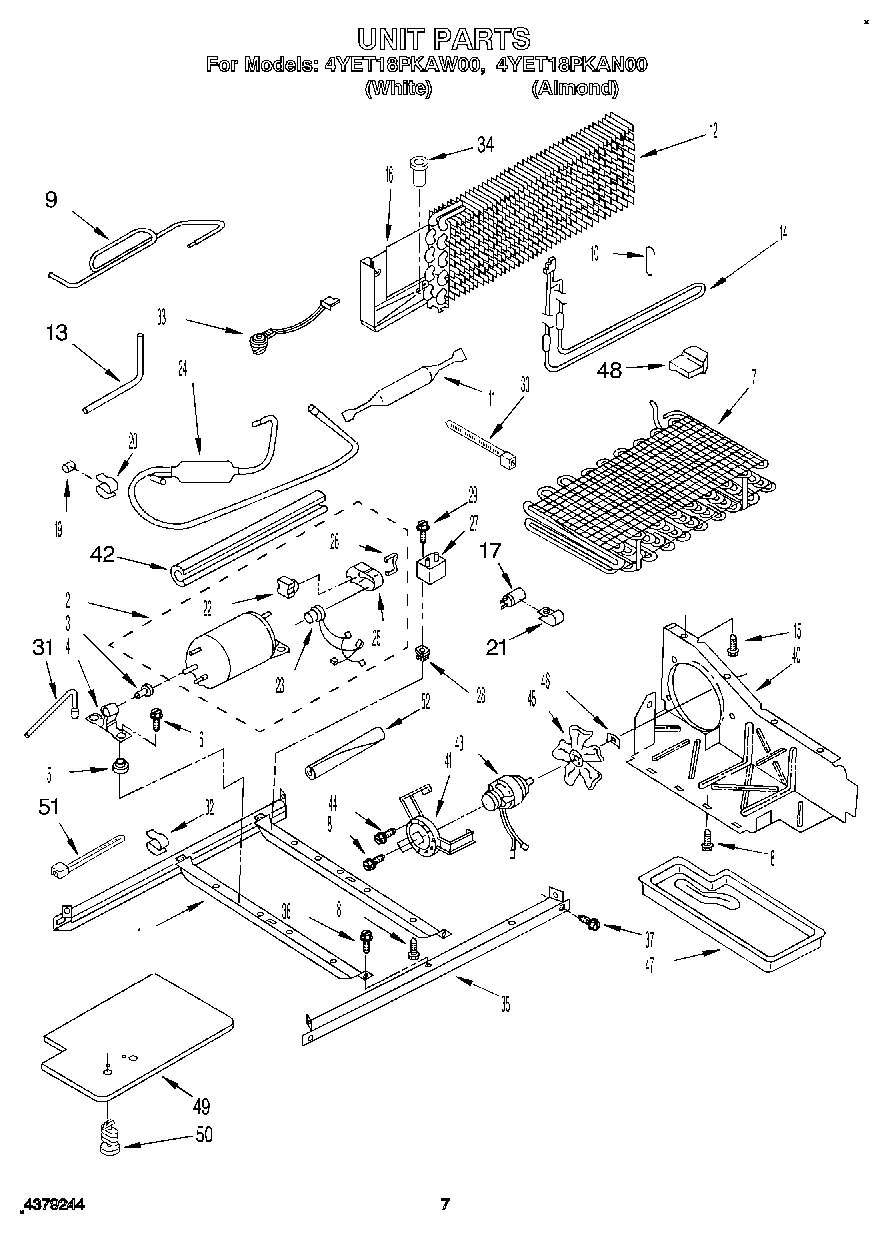

06 - UNIT

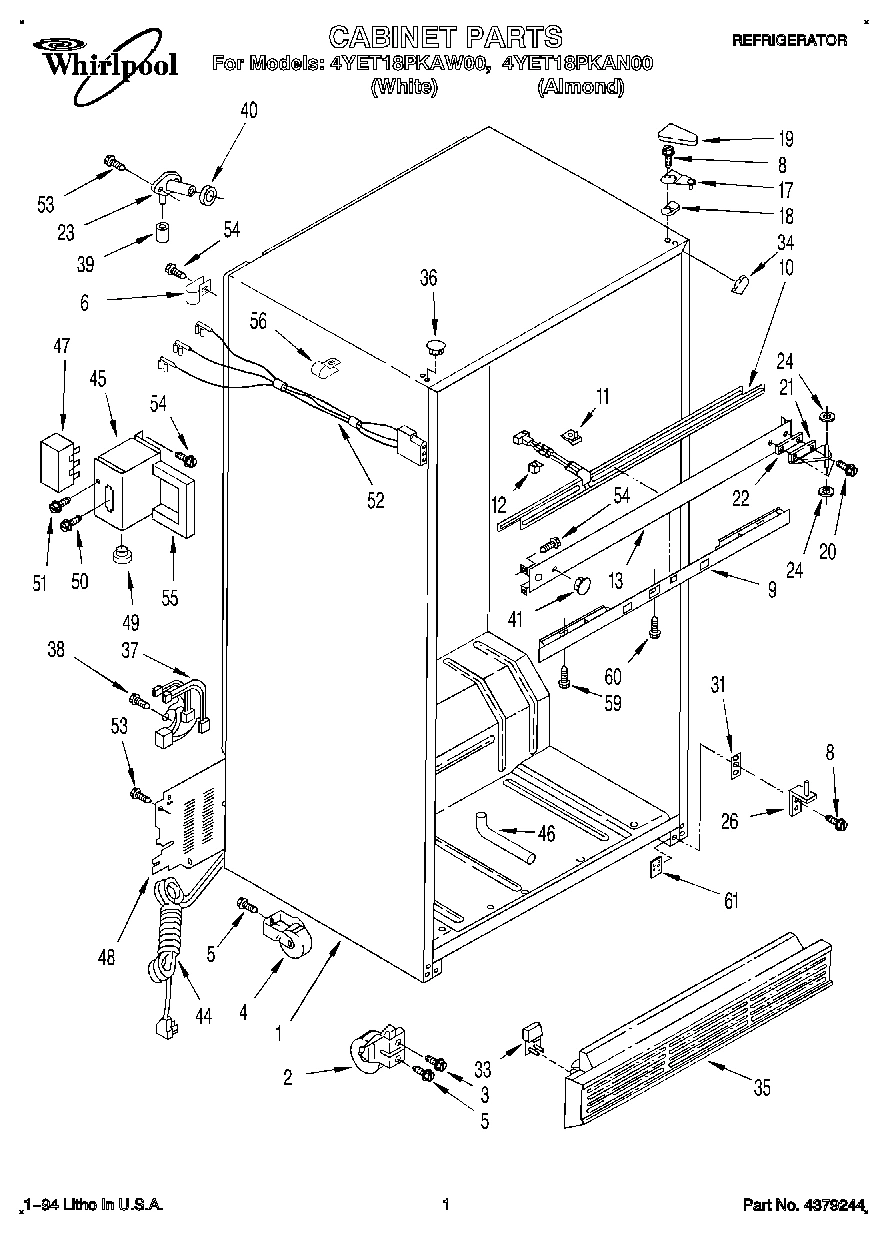

01 - CABINET

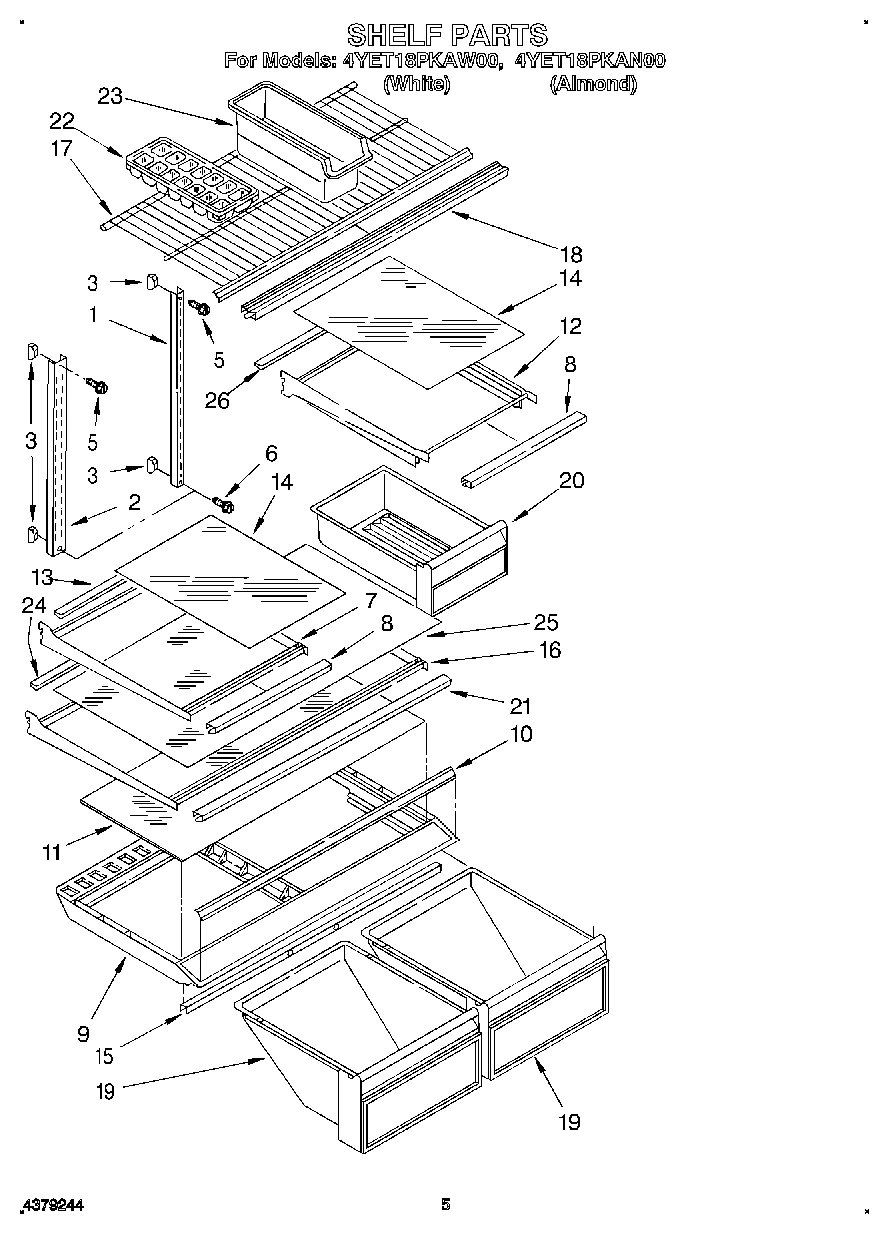

04 - SHELF

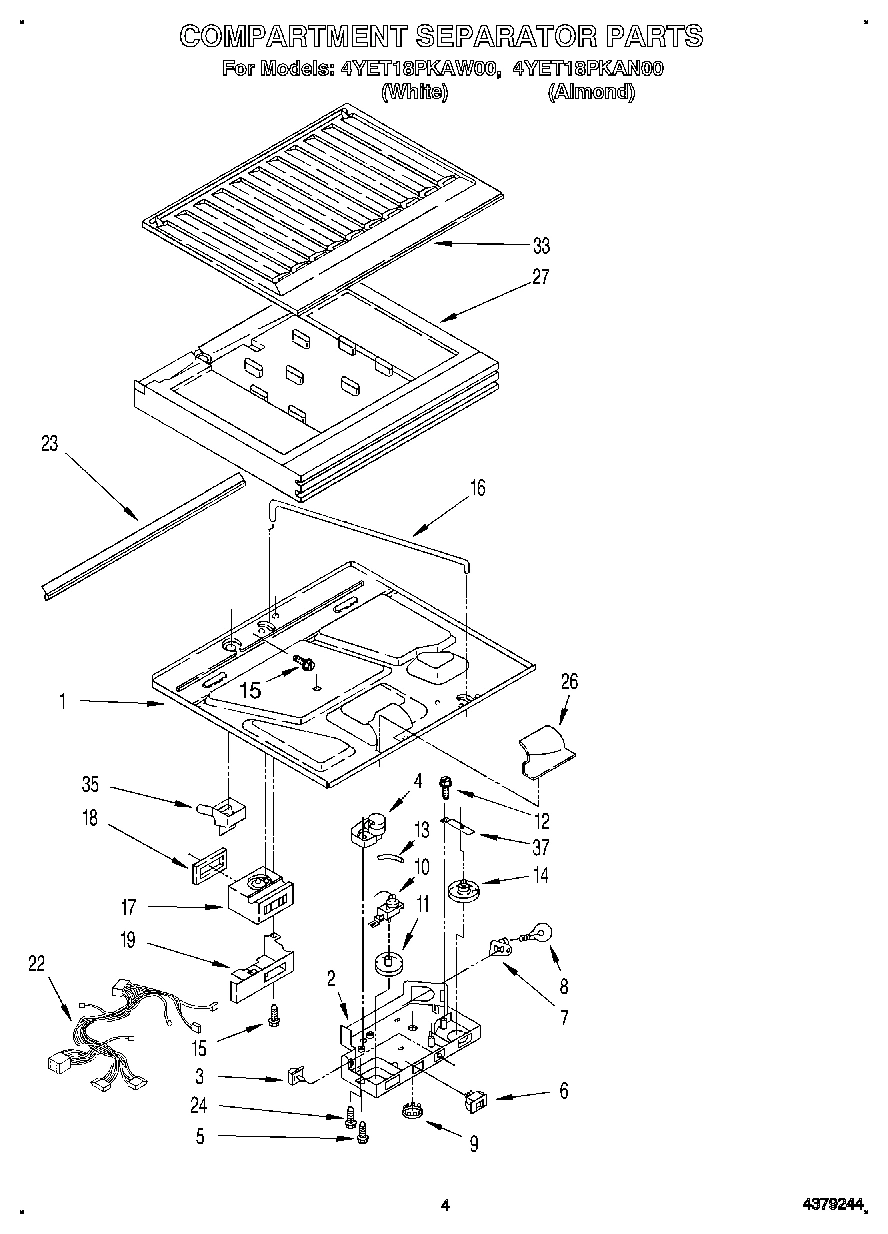

03 - COMPARTMENT SEPARATOR

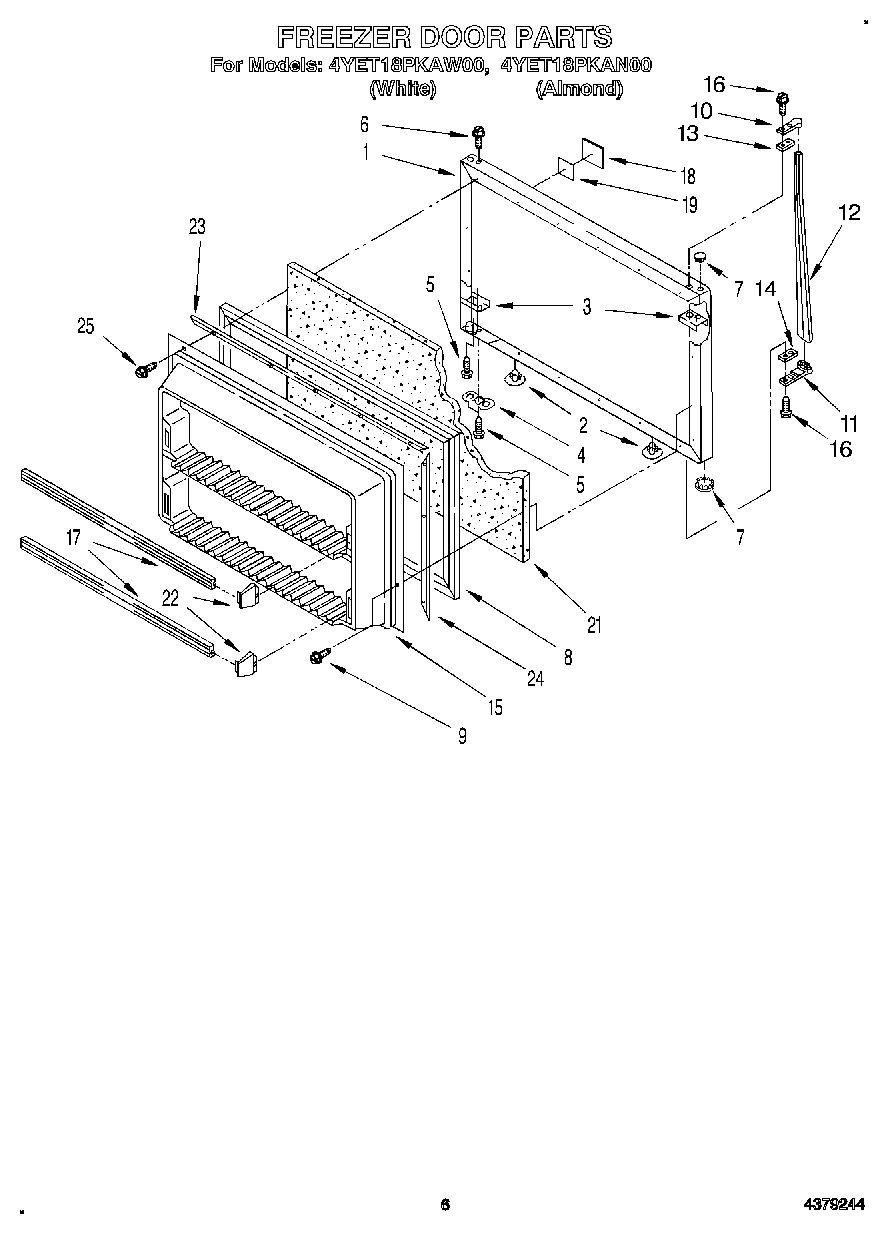

05 - FREEZER DOOR
Common parts from model Whirlpool 4YET18PKAW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Unit, Frame WPL 2159747 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI15029A9 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1116561 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2157708 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2157711 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Compressor Kit Includes Items (22, 23, 25, 26 WPL 2154785 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Box, Control WPL 2151992 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Grommet, Compressor (4) WPL 1105200 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
6
Screw WPL 489334 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
7
Shelf, Cantilever WPL 1116693 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Trim, Shelf WPL 1118121 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1116592 Contact Us For Availability
9
Tube, Discharge WPL 2158994 Contact Us For Availability
9
Control, Front Cover WPL 2166577 Contact Us For Availability
9
Crisper Cover WPL 2148047 Contact Us For Availability
10
Support, Heater WPL 2149120 Contact Us For Availability
10
Heater, Mullion WPL 2158623 Contact Us For Availability
10
Trim, Crisper Cover WPL 2172712 Contact Us For Availability
11
Clip, Center Rail (3) WPL 1129018 Contact Us For Availability
11
Glass, Crisper Cover WPL 1116715 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
12
Support Stud (4) WPL 946355 Contact Us For Availability
12
Evaporator WPL 2153977 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1116703 Contact Us For Availability
12
Handle, Center (Almond) WPL 2159623 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Cover, Air Duct WPL 2153966 Contact Us For Availability
13
Tube, Condenser To Heat Loop WPL 2154031 Contact Us For Availability
13
Center Rail WPL 2172701 Contact Us For Availability
13
Reflector, Shelf WPL 1116701 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Heater, Defrost WPL 2158986 Contact Us For Availability
14
Glass, Meat Cover WPL 1116699 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
15
Interior Door Panel WPL 1116610 Contact Us For Availability
16
Motor, Fan WPL 2169114 Contact Us For Availability
16
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
16
Shelf, Full Cantilever WPL 1116688 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
17
Capacitor, Start WPL 2154784 Contact Us For Availability
17
Shelf, Freezer WPL 1116722 Contact Us For Availability
17
Air Diffuser Assembly WPL 2160771 Contact Us For Availability
17
Trim, Door Shelf WPL 2162574 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Trim, Shelf Front WPL 1118112 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Nameplate (White Model) WPL 2166575 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2166586 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Pan, Crisper WPL 2166571 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
20
Pan, Meat WPL 2166572 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Clamp, Capacitor WPL 2158553 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Trim, Full Shelf WPL 2148050 Contact Us For Availability
22
Relay WPL 2154783 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2158621 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
23
Overload WPL 2158554 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159733 Contact Us For Availability
23
Retainer, Gasket Top & Bottom (2) WPL 1115137 Contact Us For Availability
24
Evaporator Cover WPL 2151668 Contact Us For Availability
24
Muffler WPL 2154033 Contact Us For Availability
24
Reflector, Shelf WPL 1116691 Contact Us For Availability
24
Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability
25
Terminal Cover WPL 1105221 Contact Us For Availability
25
Glass, Shelf-Full WPL 1116690 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
26
Retainer, Glass Shelf WPL 1118119 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Running Capacitor WPL 2154717 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
31
Tube, Process WPL 2154090 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
32
Clip, Wire WPL 548745 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2157398 Contact Us For Availability
34
Drain Cup WPL 2172811 Contact Us For Availability
34
Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
35
Grille WPL 1118079 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
37
WPL 479502 WPL 479502 Contact Us For Availability
37
WPL 799344 WPL 799344 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2165296 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
40
Air, Baffle WPL 2154102 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162062 Contact Us For Availability
41
Hole Plug (White) WPL 1129062 Contact Us For Availability
41
Hole Plug (Almond) WPL 1129063 Contact Us For Availability
44
Service Cord WPL 1129332 Contact Us For Availability
45
Fan Blade WPL 1115135 Contact Us For Availability
45
Enclosure, Term. WPL 2158579 Contact Us For Availability
46
Fitting, Drain WPL 2154118 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
47
Terminal Block WPL 1129346 Contact Us For Availability
48
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
48
Cover, Unit WPL 2160519 Contact Us For Availability
49
Cover, Unit Bottom WPL 2160517 Contact Us For Availability
49
Bushing WPL 1129449 Contact Us For Availability
51
Screw WPL 489346 Contact Us For Availability
52
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
52
Sleeve WPL 2159751 Contact Us For Availability
52
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
52
Wiring Assy. Terminal Block WPL 2165297 Contact Us For Availability
55
Gasket WPL 2167227 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
