Model Whirlpool 4XACM23DD0 AIR CONDITIONER – Common Parts & Diagrams

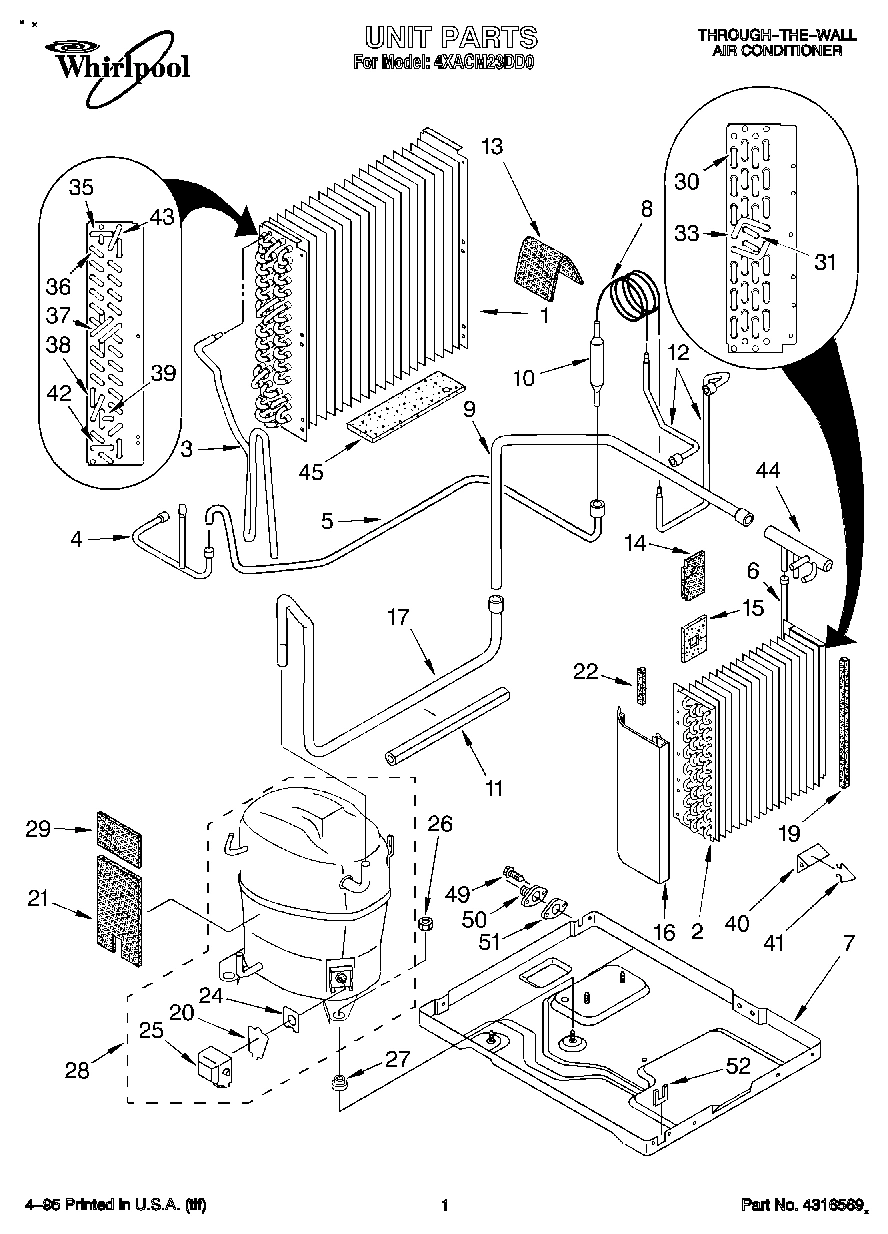

01 - UNIT, LITERATURE

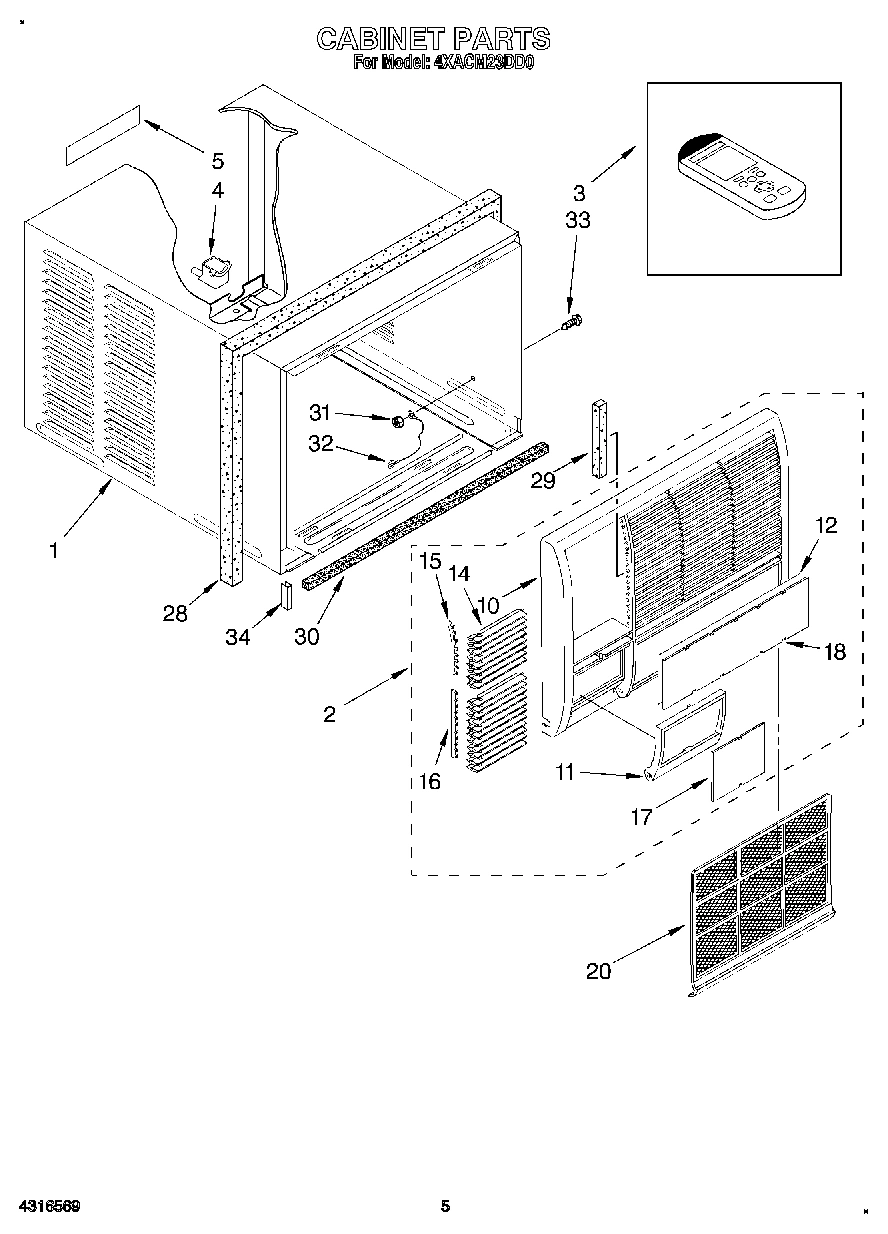

03 - CABINET

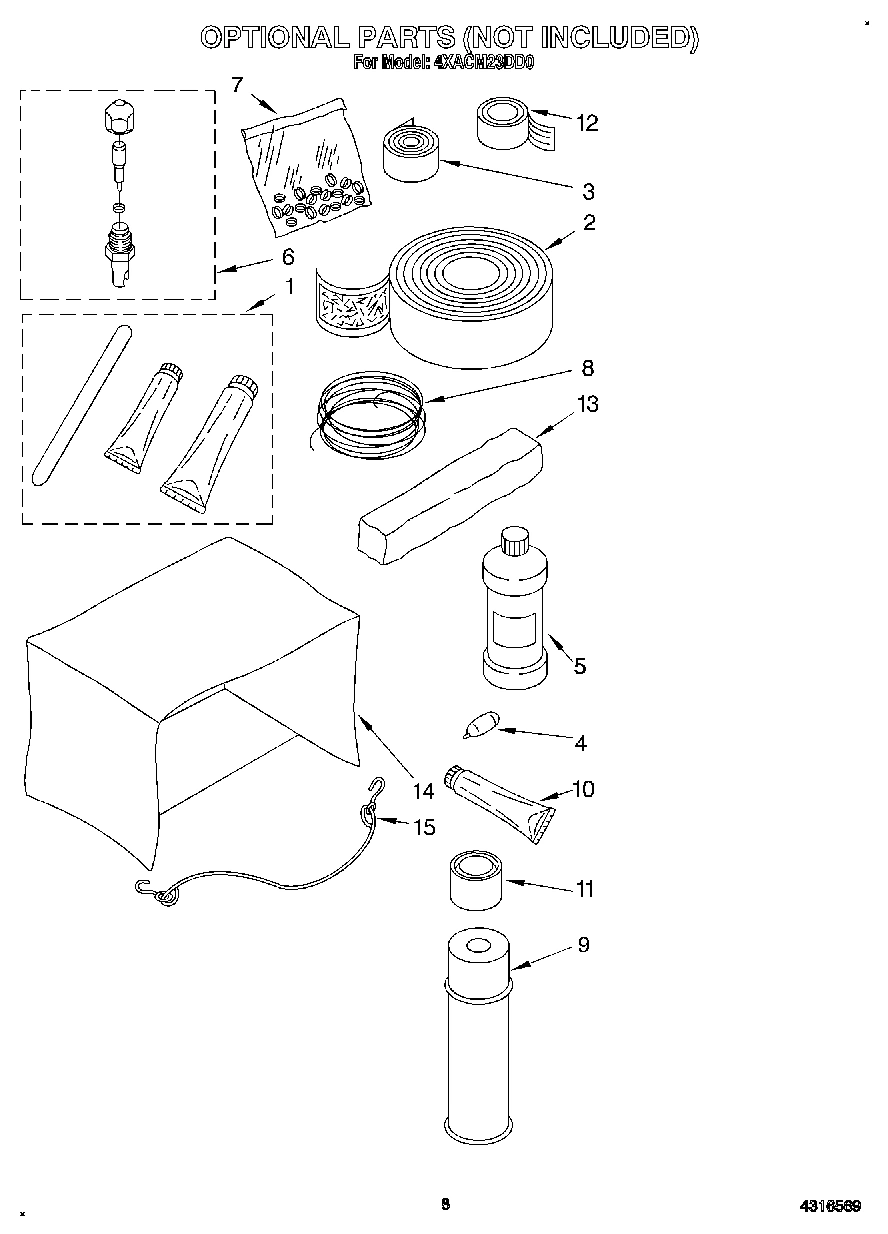

05 - OPTIONAL

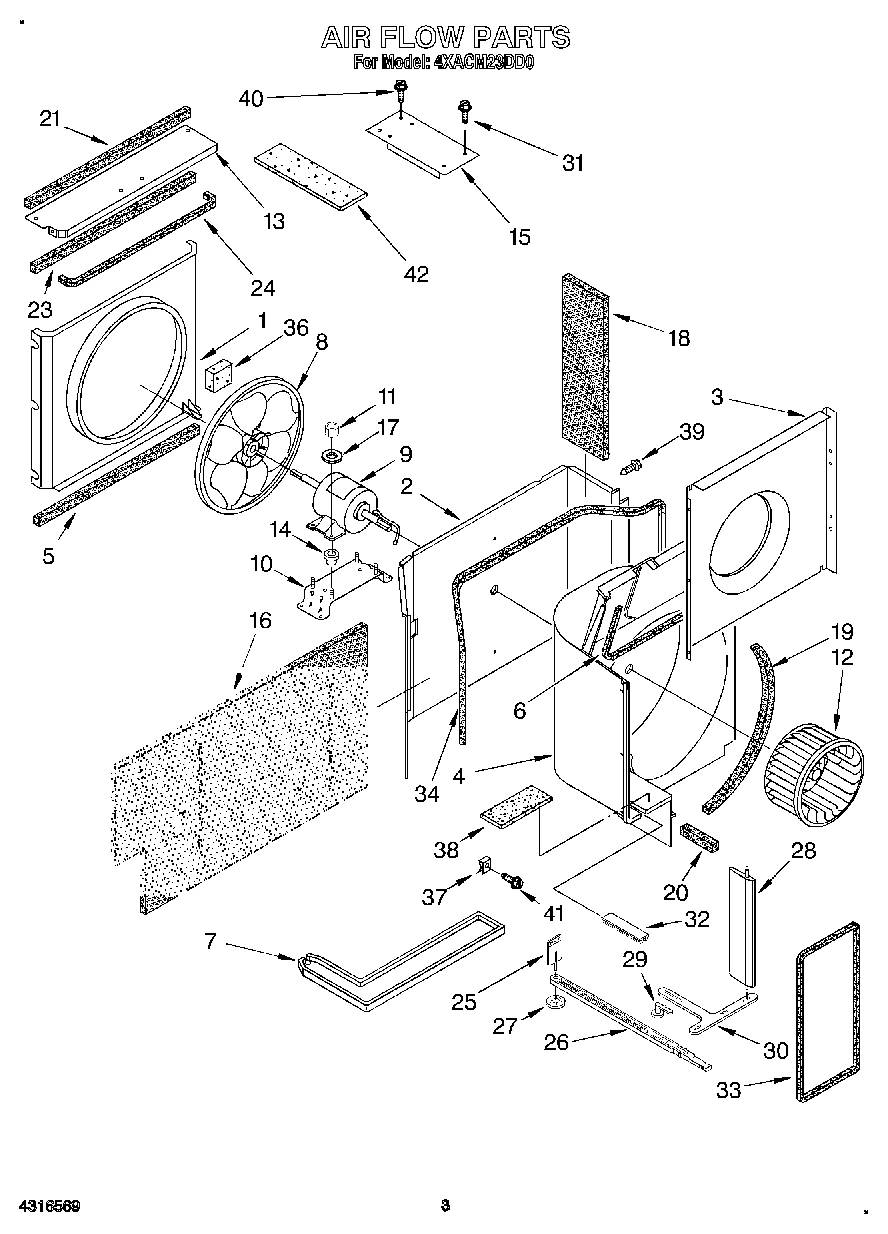

02 - AIR FLOW

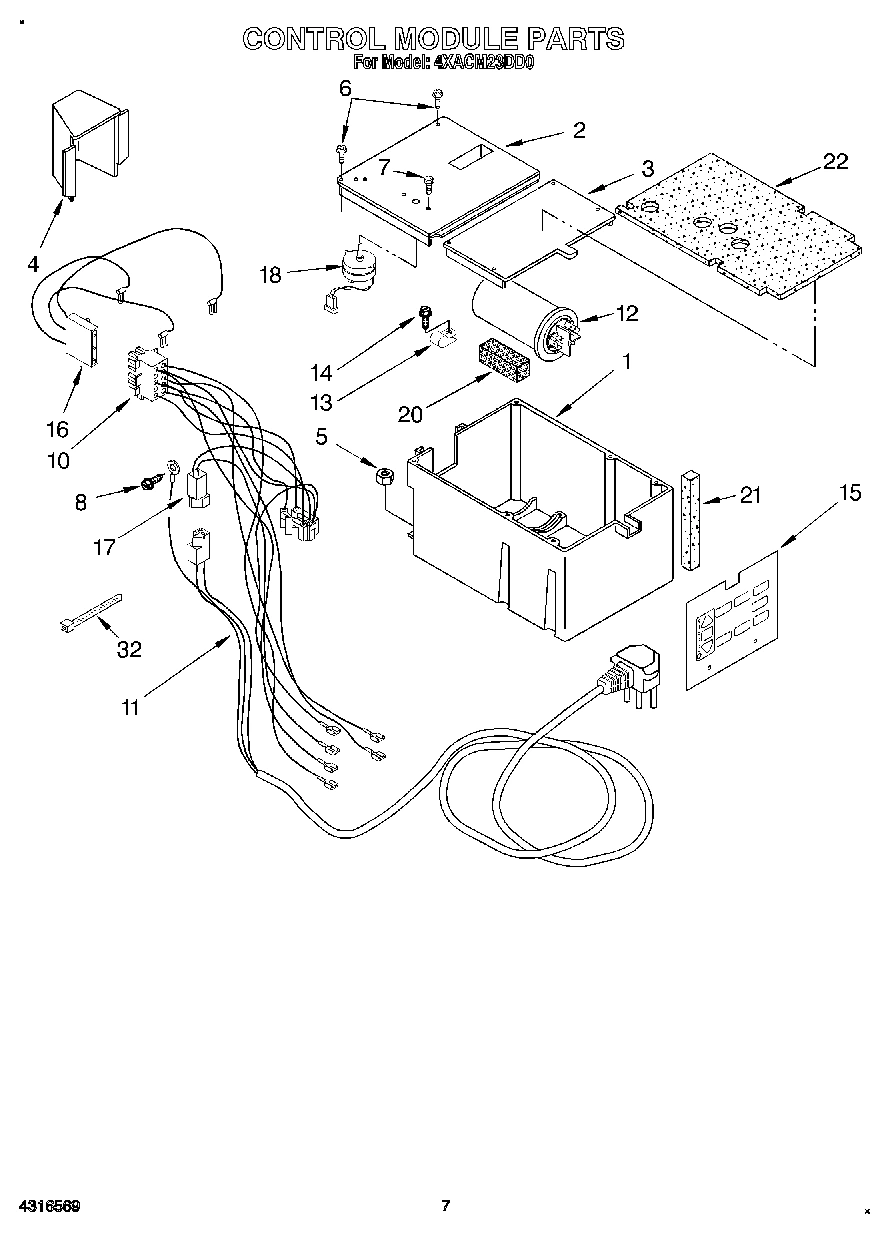

04 - CONTROL MODULE
Common parts from model Whirlpool 4XACM23DD0 AIR CONDITIONER
1
Cabinet WPL 1180468 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Shroud, Condenser WPL 1180257 Contact Us For Availability
1
Housing, Controls (Not Serviceable) WPL ARI140799A Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Front (Complete) WPL 1180274 Contact Us For Availability
2
Wall, Dividing WPL 1180245 Contact Us For Availability
2
Lid, Capacitor WPL 1180175 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Remote, Deluxe WPL 1181139 Contact Us For Availability
3
Shroud, Evaporator WPL 1180252 Contact Us For Availability
3
Lid, Controls WPL 1180440 Contact Us For Availability
4
Cup, Drip WPL 1180061 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Housing, Air WPL 1180250 Contact Us For Availability
4
Shield, Rain WPL 1180332 Contact Us For Availability
5
Label, Cabinet WPL 1180604 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Seal WPL 1180826 Contact Us For Availability
5
Nut, Hex 5MM WPL 1180008 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Screw (Tamper- Resistant) WPL 1180780 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Pan, Drain WPL 1180286 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Blade, Fan WPL 1180260 Contact Us For Availability
8
Screw, Ground WPL 1181070 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Motor, Fan WPL 1180308 Contact Us For Availability
10
Frame, Front WPL 1180275 Contact Us For Availability
10
Bracket, Motor Mount WPL 1180248 Contact Us For Availability
10
Harness, Wiring 10 Pin (Not Serviceable) WPL ARI140800A Contact Us For Availability
11
Dampener WPL 1162321 Contact Us For Availability
11
Door, Control WPL 1180196 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Cable, Appliance WPL 1180313 Contact Us For Availability
12
Tube, Inlet (Row 3) WPL 1180510 Contact Us For Availability
12
Tube, Inlet (Row 4) WPL 1180511 Contact Us For Availability
12
Tube, Inlet (Top Row 4) WPL 1180999 Contact Us For Availability
12
Tube, Inlet (Top Row 3) WPL 1181056 Contact Us For Availability
12
Paper, Decorative (Control Door) WPL 1180354 Contact Us For Availability
12
Paper, Decorative (Front) WPL 1180390 Contact Us For Availability
12
Wheel, Blower WPL 1180702 Contact Us For Availability
12
Capacitor WPL 1163756 Contact Us For Availability
13
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
13
Cover, Condenser Top WPL 1180330 Contact Us For Availability
13
Relief, Strain WPL 1180752 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Seal, Suction Tube WPL 1181062 Contact Us For Availability
14
Screw No.8 WPL 1180668 Contact Us For Availability
14
Louver, Horizontal (19 Required) WPL 1180195 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Grommet, Fan Motor WPL 1180408 Contact Us For Availability
15
Seal, Inlet Tube WPL 1181064 Contact Us For Availability
15
Link, Horizontal Louver (Top) WPL 1180423 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Support, Unit WPL 1180298 Contact Us For Availability
15
Overlay (English) WPL 1181137 Contact Us For Availability
16
Cover, Hair Pin WPL 1180289 Contact Us For Availability
16
Link, Horizontal Louver (Bottom) WPL 1180281 Contact Us For Availability
16
Insulation, Dividing Wall WPL 1180962 Contact Us For Availability
16
Harness, Wiring (Compressor) WPL 1180325 Contact Us For Availability
17
Tube, Suction (Compressor) WPL 1180611 Contact Us For Availability
17
Cover, Clear (Control Door) WPL 1180366 Contact Us For Availability
17
Washer, Bonded WPL 1180415 Contact Us For Availability
17
Harness, Appliance Cable (Not Serviceable) WPL ARI140801A Contact Us For Availability
18
Cover, Clear WPL 1180283 Contact Us For Availability
18
Insulation (Side) WPL 1180963 Contact Us For Availability
18
Motor, Air Swing (Not included in Complete As WPL 1180355 Contact Us For Availability
20
Retainer, Terminal Cover WPL 1161083 Contact Us For Availability
20
Filter WPL 1180276 Contact Us For Availability
20
Seal WPL 1180636 Contact Us For Availability
20
Sealer, Foam WPL 1180340 Contact Us For Availability
21
Seal (Compressor) WPL 1180858 Contact Us For Availability
22
Seal (Cover) WPL 1180971 Contact Us For Availability
22
Seal, Control Box WPL 1180418 Contact Us For Availability
23
Seal WPL 1180389 Contact Us For Availability
24
Gasket, Terminal Cover WPL 1161082 Contact Us For Availability
24
Seal, Condenser Top Cover WPL 1180259 Contact Us For Availability
25
Cover, Terminal WPL 1161076 Contact Us For Availability
25
Door, Exhaust WPL 1180465 Contact Us For Availability
26
Nut, 8MM WPL 1180339 Contact Us For Availability
26
Linkage, Exhaust Door WPL 1180410 Contact Us For Availability
27
Grommet, Compressor Mounting WPL 1165973 Contact Us For Availability
27
Retainer, Linkage WPL 1180411 Contact Us For Availability
28
Compressor WPL 1180931 Contact Us For Availability
28
Seal, Insulation WPL 1180704 Contact Us For Availability
28
Louver, Verticle (3) WPL 1180296 Contact Us For Availability
29
Pad, Dampening WPL 1180840 Contact Us For Availability
29
Seal, Front (Right Side) WPL 1180968 Contact Us For Availability
29
Seal, Front (Left Side) WPL 1180970 Contact Us For Availability
29
Crank, Verticle Louver WPL 1180180 Contact Us For Availability
30
Bend, Return (24 Required) WPL 855199 Contact Us For Availability
30
Seal, Cabinet (Side) (2) WPL 1181061 Contact Us For Availability
30
Link, Verticle Louver WPL 1180181 Contact Us For Availability
31
Screw 3/8 WPL 1161561 Contact Us For Availability
32
Wire, Ground WPL 1180417 Contact Us For Availability
32
Cover, Slot WPL 1180400 Contact Us For Availability
32
Control Box (Complete) WPL 1180208 Contact Us For Availability
33
Tube, Crossover (2) WPL 1180994 Contact Us For Availability
34
Guard, Edge WPL 1180634 Contact Us For Availability
35
Bend, Return (3-Way) WPL 1156107 Contact Us For Availability
36
Bend, Return (22 Required) WPL 708532 Contact Us For Availability
36
Seal, Condenser Shroud (Bottom) WPL 1180637 Contact Us For Availability
37
Bend, Return (2 Required) WPL 1156329 Contact Us For Availability
37
Clip, Mounting WPL 1157140 Contact Us For Availability
38
Bend, Return (3 Required) WPL 708531 Contact Us For Availability
38
Seal, Louver WPL 1180932 Contact Us For Availability
39
Bend, Return (3-Way) WPL 1158685 Contact Us For Availability
40
Anticipator WPL 1164141 Contact Us For Availability
40
Screw No.8 x 1 WPL 1180816 Contact Us For Availability
41
Clip, Anticipator WPL 475577 Contact Us For Availability
42
Bend, Return (1) WPL 1156533 Contact Us For Availability
42
Seal, Condensate WPL 1181015 Contact Us For Availability
43
Bend, Return (2) WPL 1158407 Contact Us For Availability
44
Manifold, Suction WPL 1180993 Contact Us For Availability
45
Deflector, Water (Foam) WPL 1180926 Contact Us For Availability
50
Drain Plug WPL 1163502 Contact Us For Availability
51
Gasket, Drain Plug WPL 1164093 Contact Us For Availability
52
Protector, Cord WPL 1180387 Contact Us For Availability
× ![]()
