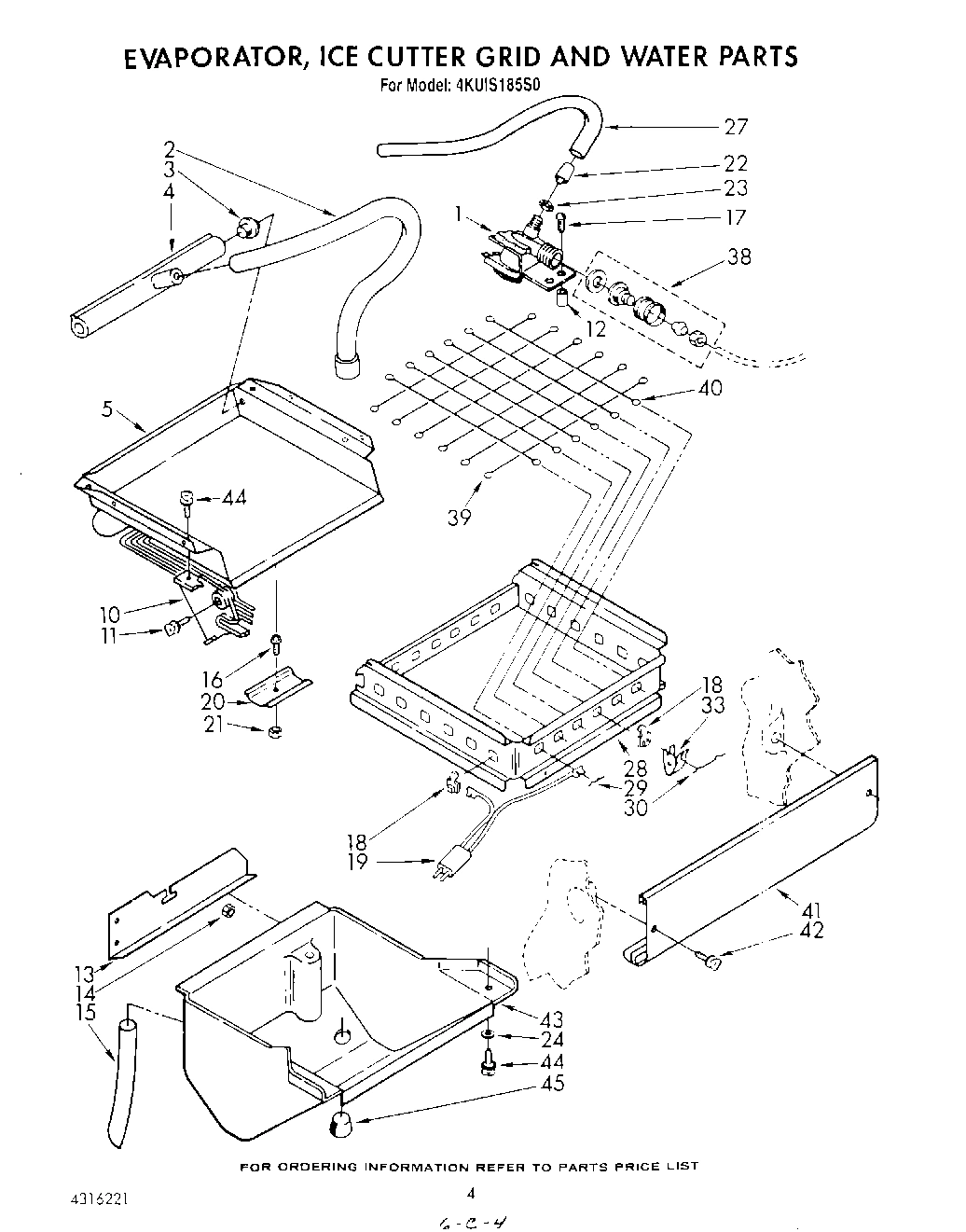

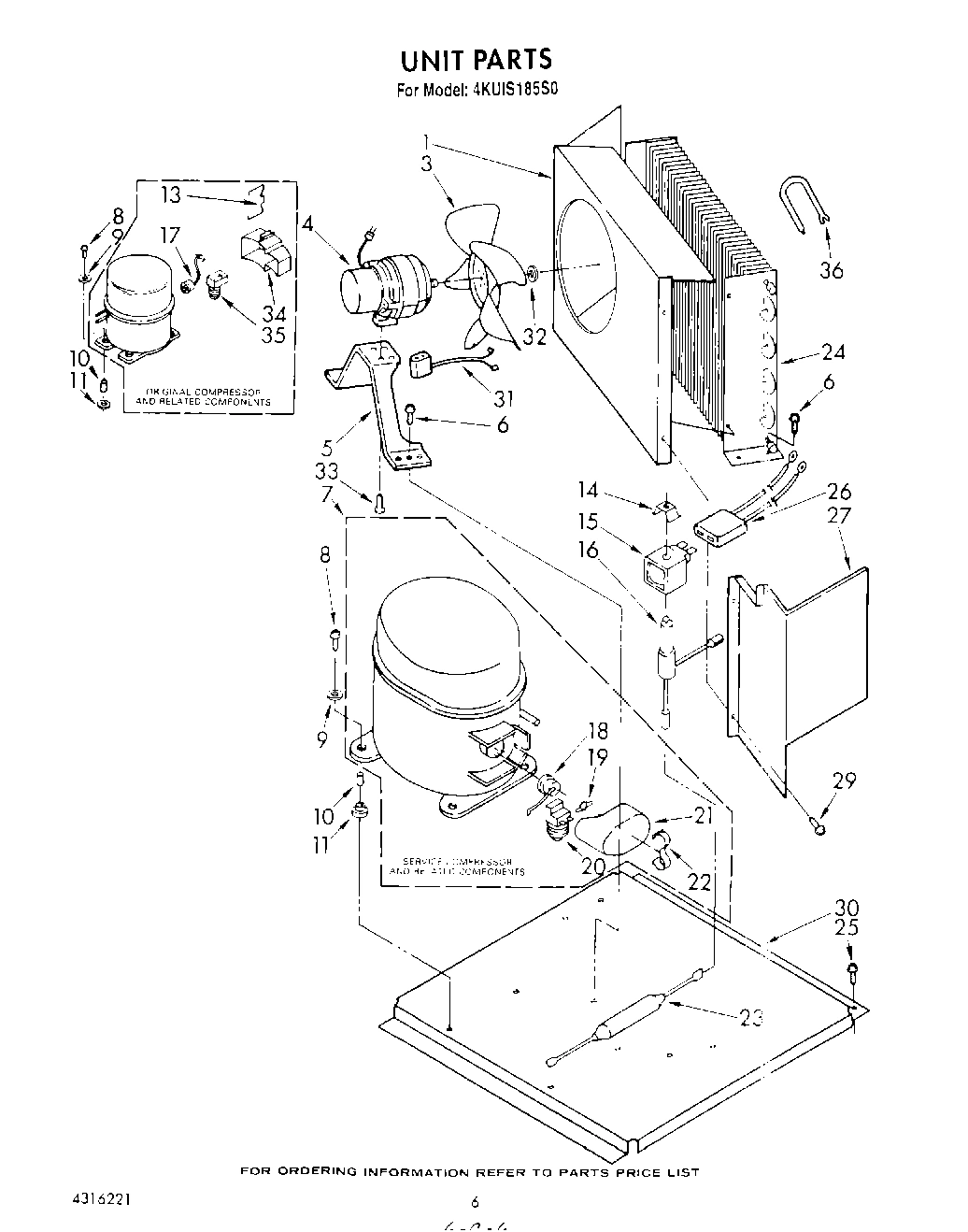

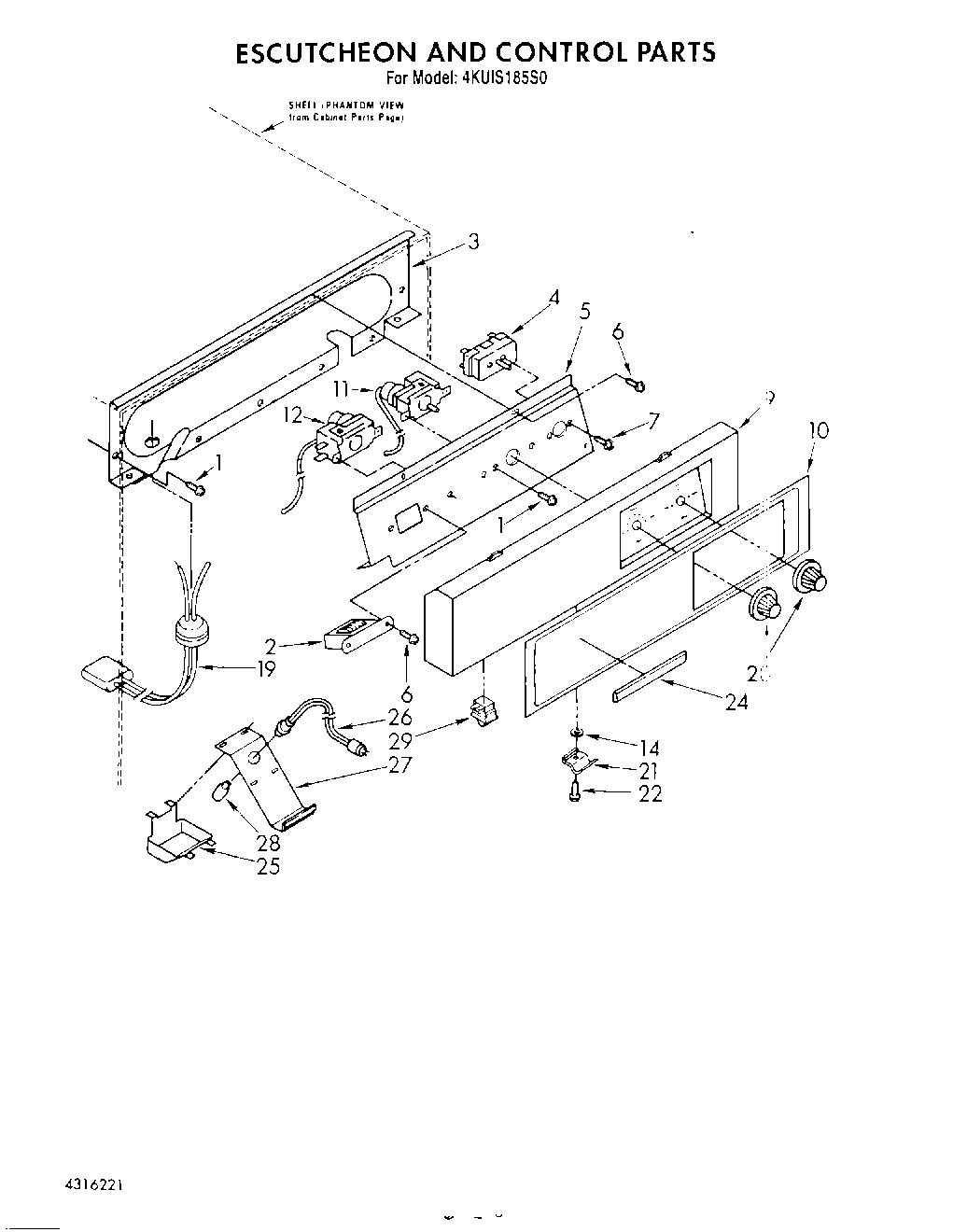

Model Whirlpool 4KUIS185S0 ICE MACHINE – Common Parts &amp; Diagrams

1

Screw, WPL 681036 Contact Us For Availability

1

Plug, Pump WPL 569434 Contact Us For Availability

1

Shroud WPL 757955 Contact Us For Availability

1

Valve, Complete Water WPL 757433 Contact Us For Availability

2

Front, Shell WPL 758652 Contact Us For Availability

2

Cover, Plug WPL 756124 Contact Us For Availability

2

Tube, Plastic WPL 585856 Contact Us For Availability

2

Transformer WPL 758414 Contact Us For Availability

3

Door, Inner Bin WPL 756330 Contact Us For Availability

3

Screw, 8-18 x 3/4 WPL 681391 Contact Us For Availability

3

Plug (2) WPL 758597 Contact Us For Availability

3

Escutcheon, Panel WPL 756664 Contact Us For Availability

4

Liner, Door WPL 758655 Contact Us For Availability

4

Housing, Motor WPL 593702 Contact Us For Availability

4

Motor, Fan WPL 593363 Contact Us For Availability

4

Dispenser, Water WPL 585813 Contact Us For Availability

4

Switch, Service WPL 593139 Contact Us For Availability

5

Plug, Hinge WPL 593192 Contact Us For Availability

5

Blade, Fan WPL 587096 Contact Us For Availability

5

Bracket WPL 560817 Contact Us For Availability

5

Evaporator WPL 758028 Contact Us For Availability

5

Bracket, Control WPL 756341 Contact Us For Availability

6

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

6

Strip, Tapping (2) WPL 593104 Contact Us For Availability

6

Motor, Pump WPL 756950 Contact Us For Availability

6

Screw, 1/4-20 x 1/2 (5) WPL 681305 Contact Us For Availability

7

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

7

Trim, Door (2) WPL 758748 Contact Us For Availability

7

Washer WPL 593060 Contact Us For Availability

7

Compressor WPL 485780 Contact Us For Availability

8

Rail, R.S. WPL 593184 Contact Us For Availability

8

Rail, L.S. WPL 593185 Contact Us For Availability

8

Bracket, Pump WPL 756122 Contact Us For Availability

8

Screw (4) WPL 680233 Contact Us For Availability

9

Screw, 8-32 x 1/2 (6) WPL 681459 Contact Us For Availability

9

Grommet (2) WPL 596016 Contact Us For Availability

9

Washer (4) WPL 595230 Contact Us For Availability

9

Escutcheon WPL 758569 Contact Us For Availability

Thumbscrew WPL 680930 Contact Us For Availability

Sleeve WPL 593229 Contact Us For Availability

Sleeve (4) WPL 585564 Contact Us For Availability

Bracket, Grid Mounting (2) WPL 756564 Contact Us For Availability

Decal, Escutcheon WPL 758726 Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

Thermostat, Evaporator WPL 598235 Contact Us For Availability

Grommet (4) WPL 596355 Contact Us For Availability

Thumbscrew WPL 681611 Contact Us For Availability

WP756782 Whirlpool Refrigerator Pump Backorder WPL WP756782 $245.36

Liner (Includes Illus. 17, 18, 19, 20 & 21) WPL 756350 Contact Us For Availability

Spacer, (2) Water Valve WPL 758737 Contact Us For Availability

Thermostat, Bin Control WPL 759141 Contact Us For Availability

Gasket, Bottom WPL 758921 Contact Us For Availability

Pump, Assembly WPL 583518 Contact Us For Availability

Clamp (Used W/Original Compressor) WPL 938384 Contact Us For Availability

Shelf, Water Pan WPL 585853 Contact Us For Availability

Clamp (2) WPL 596023 Contact Us For Availability

Impeller (Includes Retaining Ring 15) WPL 569513 Contact Us For Availability

Clamp, Coil Retainer WPL 564234 Contact Us For Availability

Nut, Acorn (3) WPL 681770 Contact Us For Availability

Washer, WPL 681245 Contact Us For Availability

Gasket WPL 756663 Contact Us For Availability

Ring, Retaining WPL 681301 Contact Us For Availability

Coil, Solenoid WPL 587970 Contact Us For Availability

Hose, Overflow WPL 593369 Contact Us For Availability

16

Valve, Body WPL 598086 Contact Us For Availability

16

Screw, 10-32 x 1/2 WPL 596037 Contact Us For Availability

17

Grommet WPL 596807 Contact Us For Availability

17

Overload (Used W/Original Compressor) WPL 758638 Contact Us For Availability

17

Screw, 1/4 x 20 x 1 3/4 WPL 681688 Contact Us For Availability

18

Washer WPL 758492 Contact Us For Availability

18

Overload (Used W/Service Compressor) WPL 549478 Contact Us For Availability

18

Insulator (38) WPL 598277 Contact Us For Availability

Nut, 1/4 Hex WPL 681542 Contact Us For Availability

Spring (Used W/Service Compressor) WPL 549086 Contact Us For Availability

Cord, Grid WPL 587639 Contact Us For Availability

Harness, Grid WPL 758567 Contact Us For Availability

Pocket, Handle WPL 758752 Contact Us For Availability

Relay (Used W/Service Compressor) WPL 549337 Contact Us For Availability

Clamp WPL 587662 Contact Us For Availability

Knob (2) WPL 758711 Contact Us For Availability

Stud (2) WPL 758220 Contact Us For Availability

Case (Used W/Service Compressor) WPL 549336 Contact Us For Availability

Nut, Hex 10-32 WPL 681676 Contact Us For Availability

Latch WPL 759007 Contact Us For Availability

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

Well, Bin Thermostat WPL 593183 Contact Us For Availability

Strap, Bale (Used W/Service Compressor) WPL 549342 Contact Us For Availability

Screw, 8-32 x 1/2 WPL 595142 Contact Us For Availability

23

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

23

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

23

Clip, Panel (12) WPL 596812 Contact Us For Availability

24

Handle, Recessed WPL 758622 Contact Us For Availability

24

Condenser WPL 756299 Contact Us For Availability

24

Nameplate WPL 1107298 Contact Us For Availability

Panel, Exterior (Toast & Platinum) WPL 758740 Contact Us For Availability

Panel, Exterior (Almond & Harvest Gold) WPL 758745 Contact Us For Availability

Panel, Exterior (White & Black) WPL 758746 Contact Us For Availability

Screw, WPL 680811 Contact Us For Availability

Shield Clamp WPL 758489 Contact Us For Availability

26

Harness, Coil WPL 587971 Contact Us For Availability

26

Harness Clamp WPL 758488 Contact Us For Availability

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

Screw, 8-32 x 3/8 WPL 489016 Contact Us For Availability

Deflector, Front WPL 758811 Contact Us For Availability

Bracket Clamp WPL 758490 Contact Us For Availability

28

Connector, Hose WPL 593577 Contact Us For Availability

28

Frame, Grid (Not A Service Item) WPL 758458 Contact Us For Availability

28

Light Bulb WPL 745362 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

W11420408 Whirlpool Refrigerator Ice Scoop In Stock WPL W11420408 $7.27

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

Pin (17) WPL 587111 Contact Us For Availability

30

Base, Unit WPL 758810 Contact Us For Availability

30

Pin (4) WPL 587112 Contact Us For Availability

31

Plug, Fan Motor WPL 585219 Contact Us For Availability

32

Washer, Conical (Included With Fan Motor) WPL 681650 Contact Us For Availability

33

Screw, 8-36 x 1/2 (Included With Fan Motor) WPL 681656 Contact Us For Availability

33

Clip (19) WPL 759021 Contact Us For Availability

34

Cover, Terminal (Used W/Original Compressor) WPL 1108115 Contact Us For Availability

35

Well Nut (3) WPL 596715 Contact Us For Availability

35

Relay, Start (Used W/Original Compressor) WPL 758637 Contact Us For Availability

36

Trim, Door (Lower) WPL 758400 Contact Us For Availability

36

Accumulator WPL 756298 Contact Us For Availability

37

Insulation, Door WPL 758608 Contact Us For Availability

38

Screw WPL 681196 Contact Us For Availability

38

Adapter (Supplied In Literature Package) WPL 533238 Contact Us For Availability

39

Support, Front Panel WPL 758718 Contact Us For Availability

39

Wire, Grid Cutter (9) WPL 587503 Contact Us For Availability

40

White & Black Panel WPL 758720 Contact Us For Availability

40

Wire, Grid Cutter (10) WPL 587504 Contact Us For Availability

41

Toast & Platinum Panel WPL 758721 Contact Us For Availability

41

Panel, Grid WPL 593171 Contact Us For Availability

42

Almond & Harvest Gold Panel WPL 758722 Contact Us For Availability

42

Thumbscrew, 10-32 x 3/4 WPL 681534 Contact Us For Availability

43

Grille Font, Panel WPL 758769 Contact Us For Availability

43

Pan WPL 756659 Contact Us For Availability

44

Thumbscrew, 10 x 1/2 WPL 681419 Contact Us For Availability

44

Trim Front, Panel (Top & Bottom) WPL 758717 Contact Us For Availability

45

Trim Front, Panel (Side) WPL 758714 Contact Us For Availability

45

Stopper, Water Pan WPL 593572 Contact Us For Availability

47

Filler, Panel WPL 758770 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

Ice Deflector Kit WPL 702354 Contact Us For Availability

Grid Assembly Complete (Standard Cube) WPL 758469 Contact Us For Availability

Grid Assembly Complete (Cubelets 3/4 x 3/4) WPL 758470 Contact Us For Availability

Panel, Iner WPL 758771 Contact Us For Availability

Leg Kit WPL 876649 Contact Us For Availability
