Model Whirlpool 4KUCC151T0 COMPACTOR – Common Parts & Diagrams

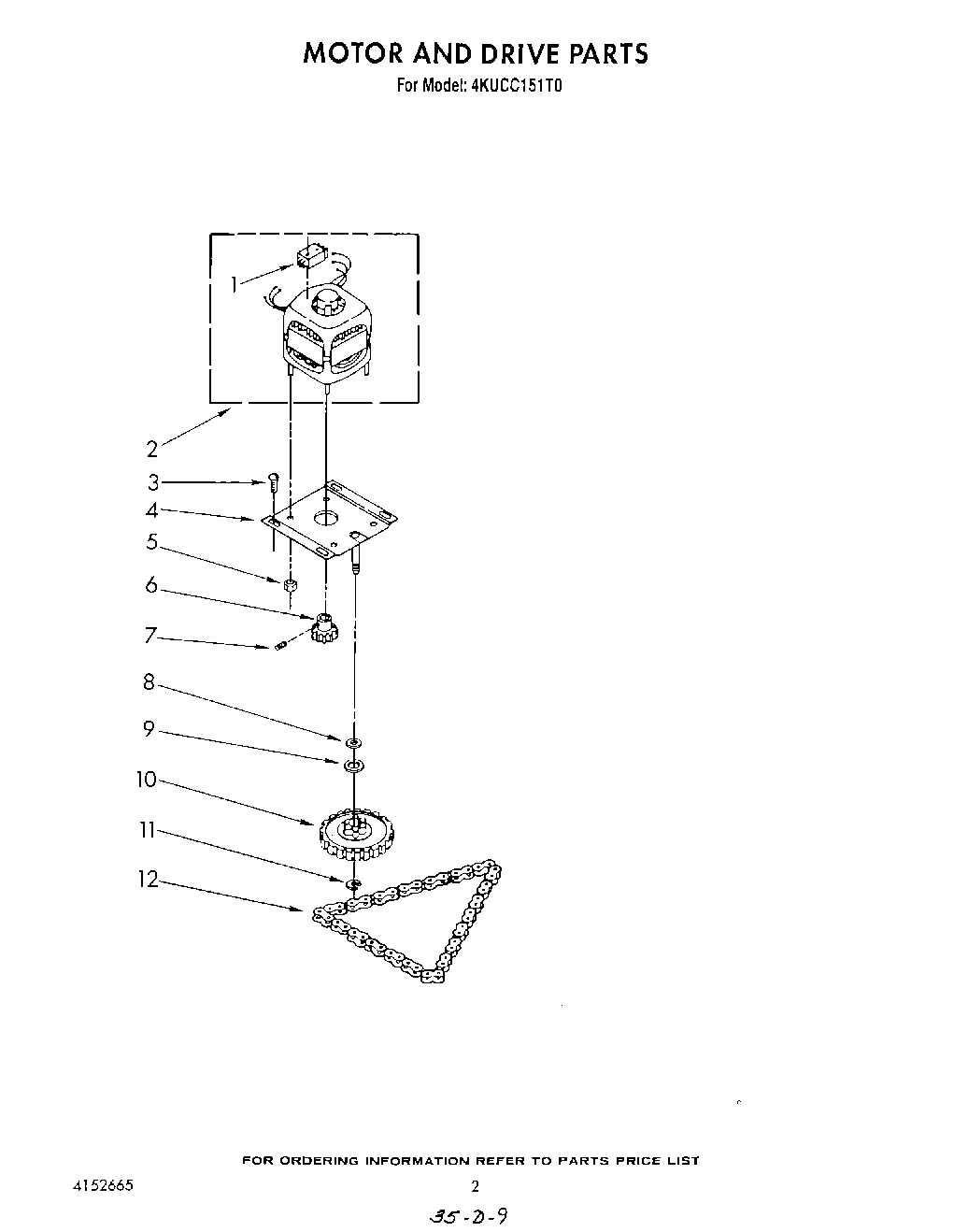

02 - MOTOR AND DRIVE , LIT/OPTIONAL

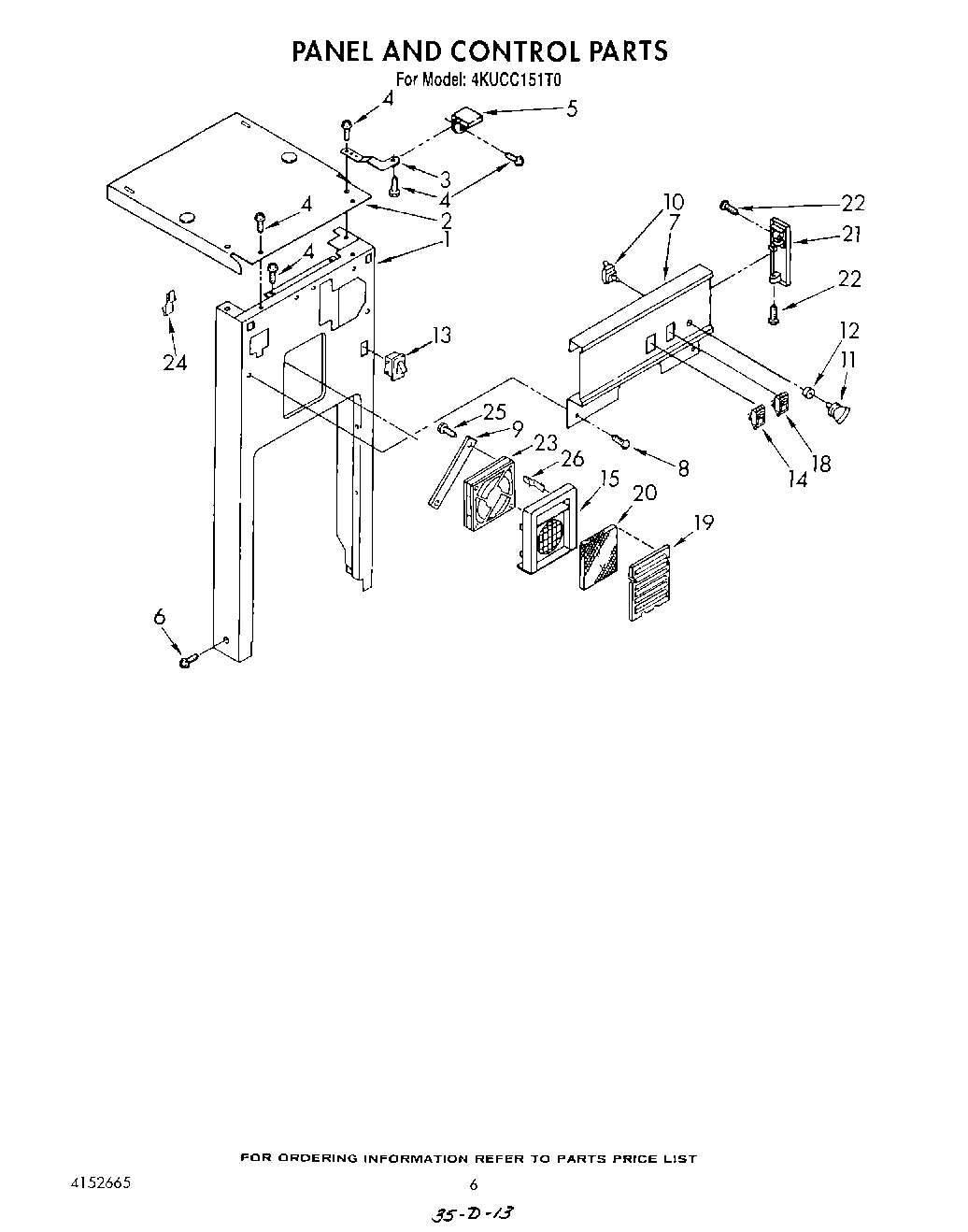

06 - PANEL AND CONTROL

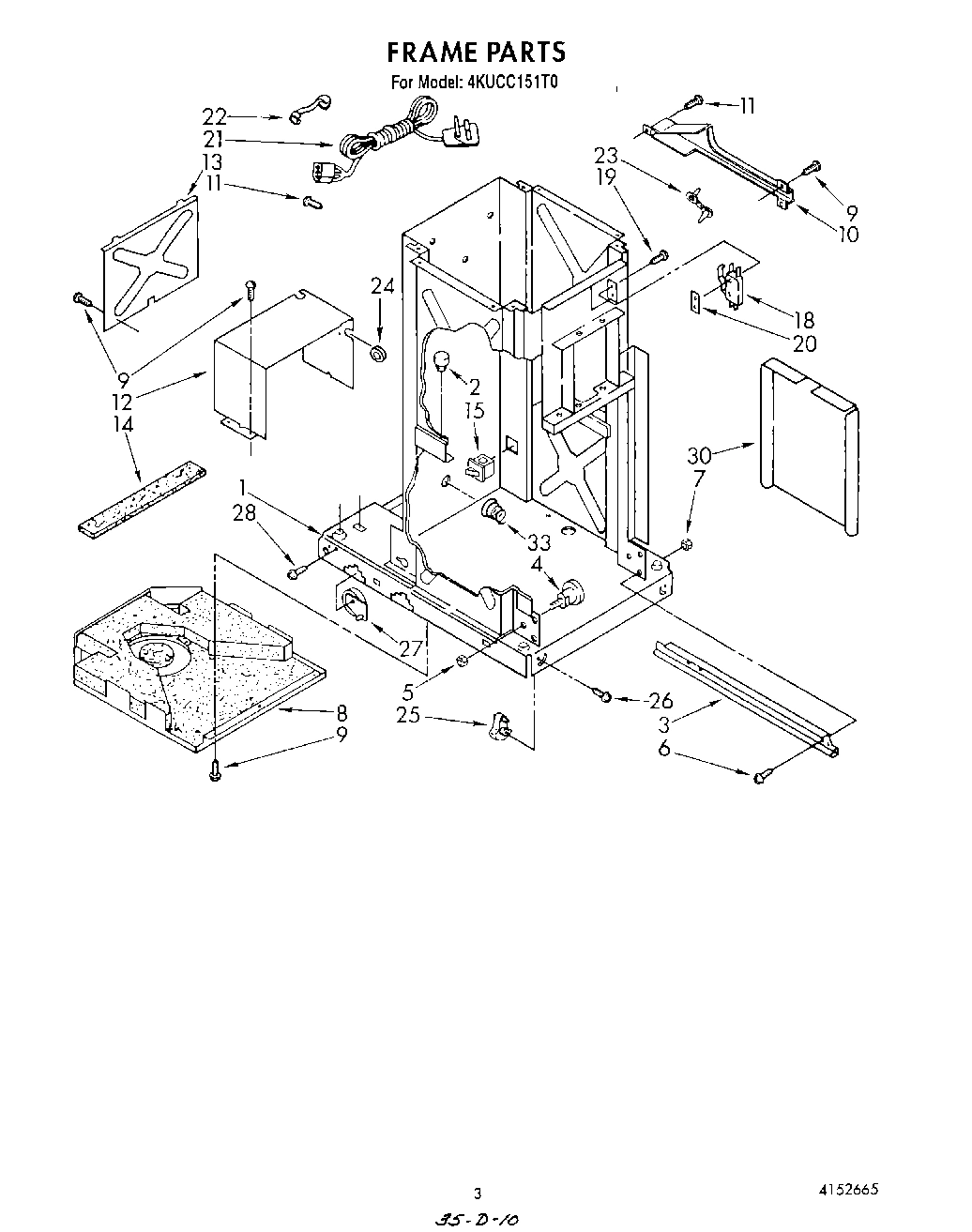

03 - FRAME

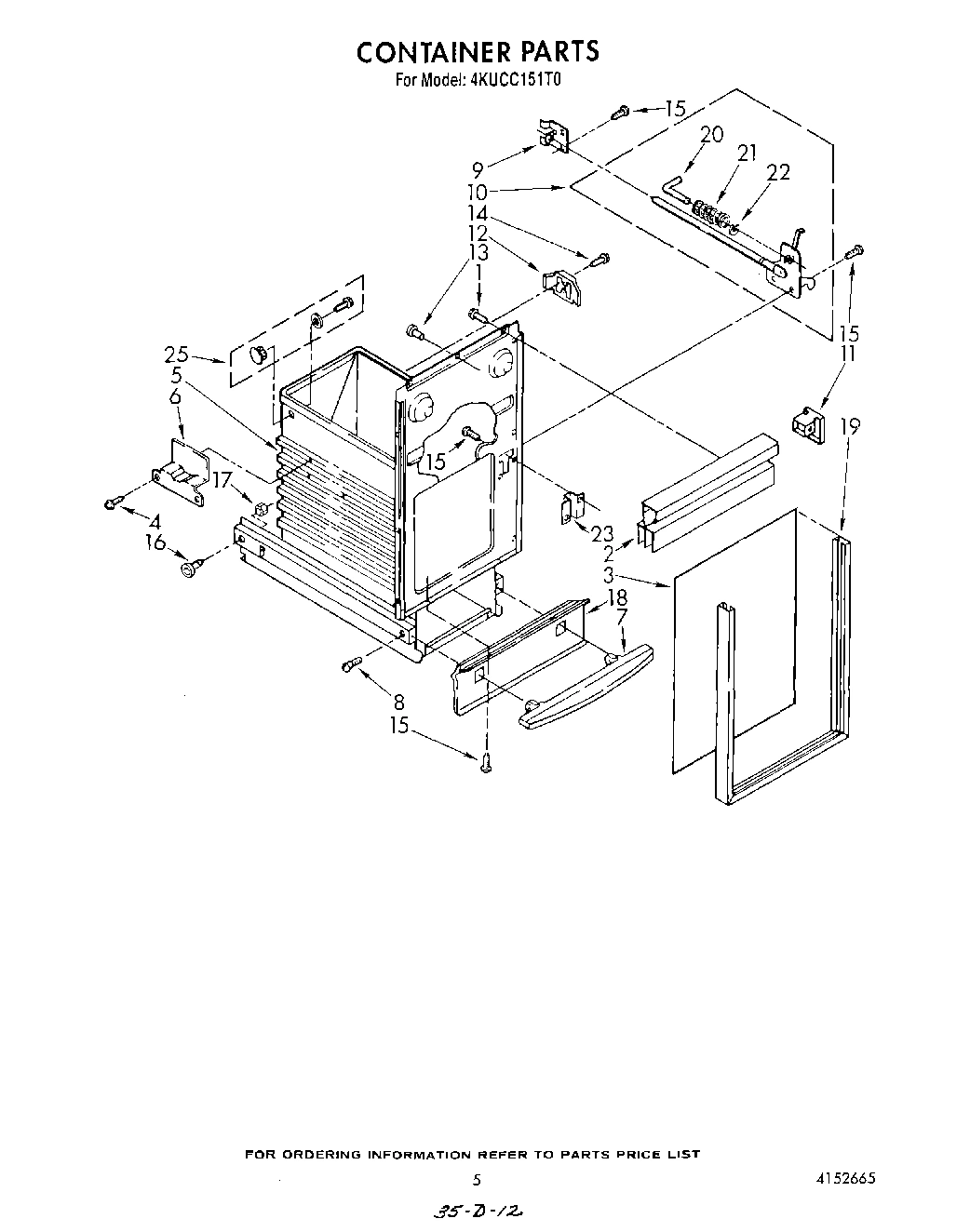

05 - CONTAINER

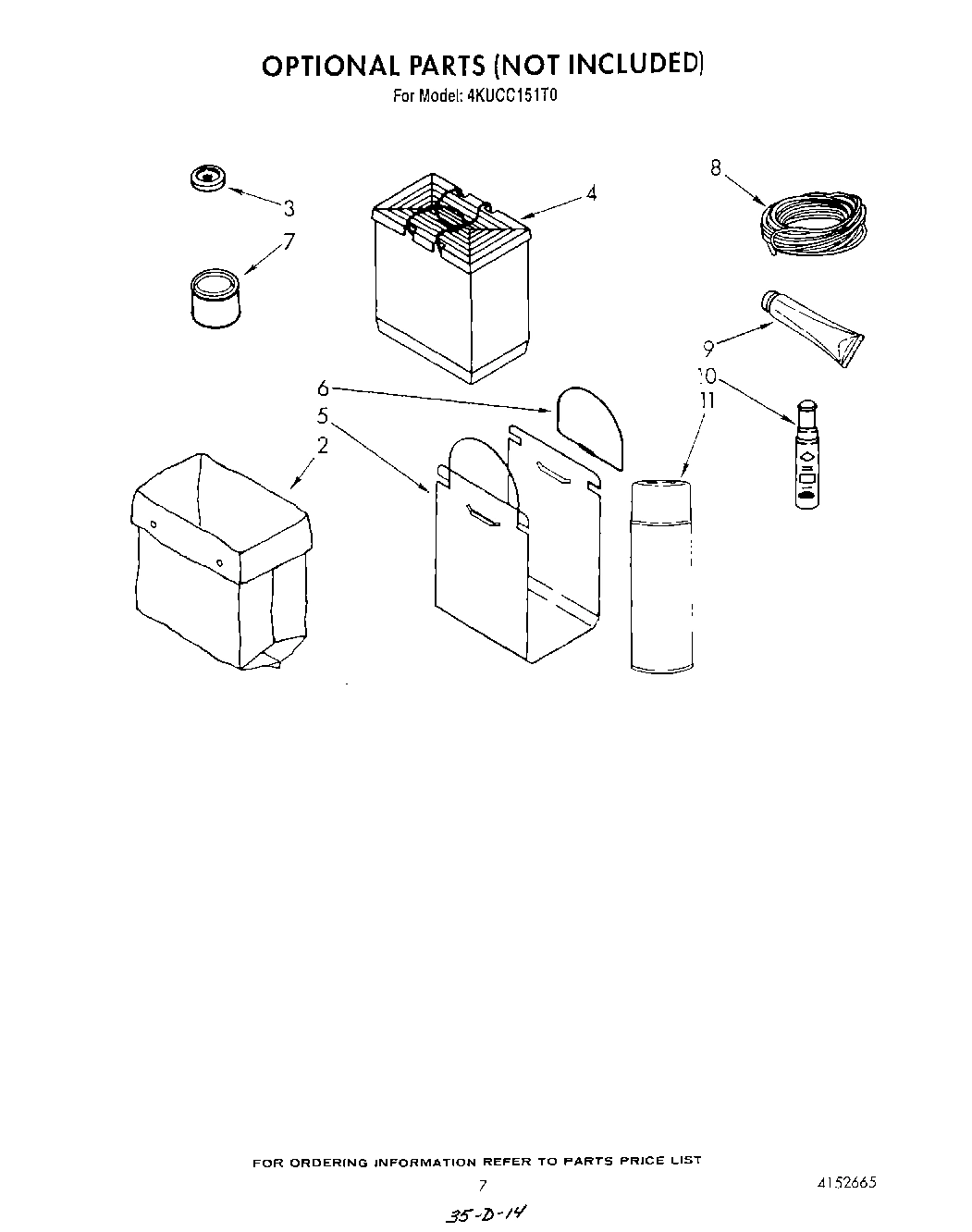

07 - LIT/OPTIONAL

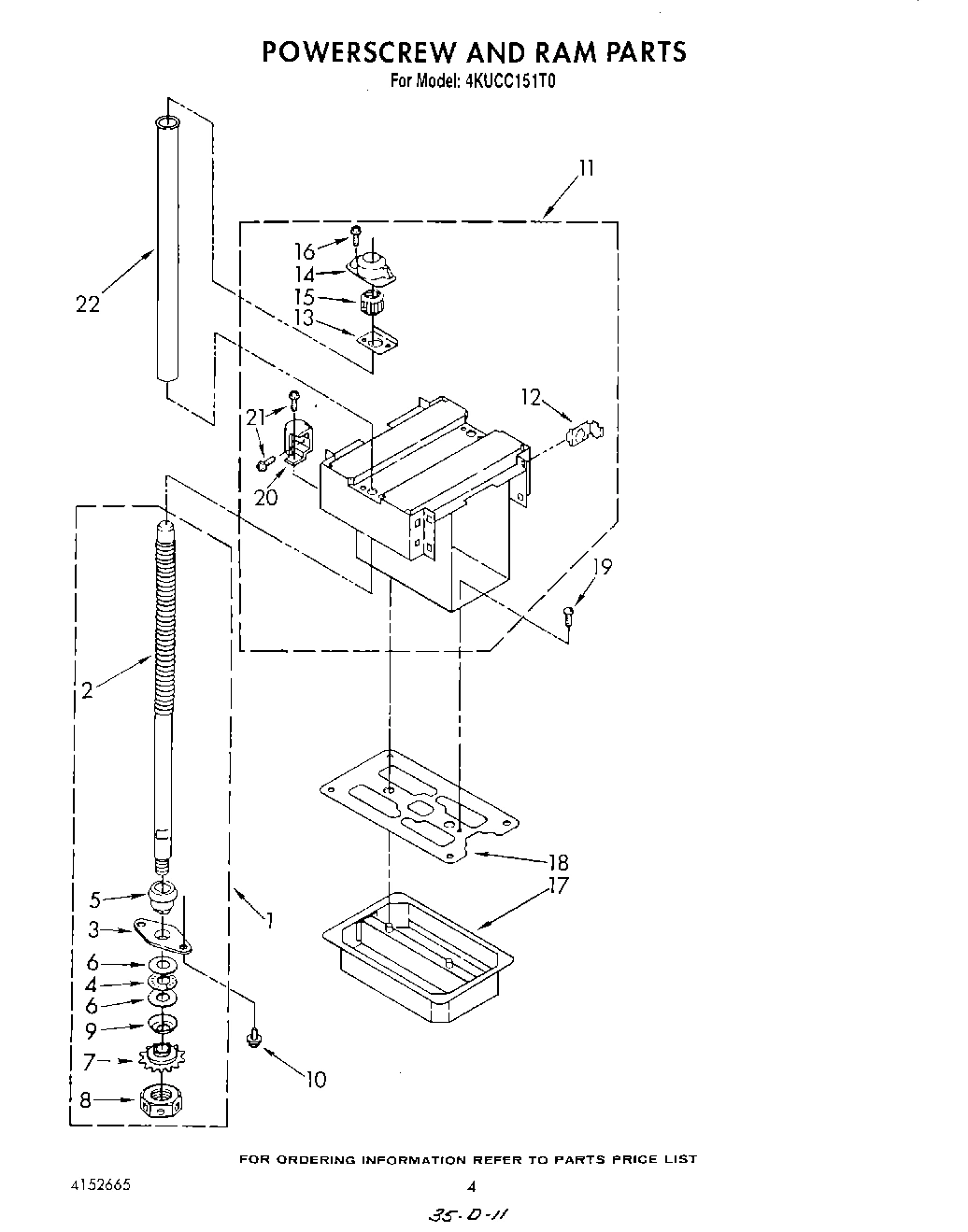

04 - POWER SCREW AND RAM
Common parts from model Whirlpool 4KUCC151T0 COMPACTOR
1
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
2
Handle, Container WPL 4151451 Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI14453A5 Contact Us For Availability
3
Panel, Container (Harvest Gold & Almond) WPL 4151462 Contact Us For Availability
3
Panel, Container (White & Black) WPL 4151463 Contact Us For Availability
3
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
4
Trash, Container (Reusable) WPL 882653 Contact Us For Availability
5
Container Assembly WPL 882666 Contact Us For Availability
6
Retainer, Bag (2) WPL 776523 Contact Us For Availability
7
Nut, 6-32 (4) WPL 776188 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
10
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
10
Screw, 10-24 x 3/4 (4) WPL 775071 Contact Us For Availability
11
End Cap, Handle (R.H.) WPL 4151454 Contact Us For Availability
11
End Cap, Handle (L.H.) WPL 4151455 Contact Us For Availability
11
Paint, Spray 13 Oz. (Golden Wheat) WPL 261890 Contact Us For Availability
11
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
11
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
11
Ram Assembly WPL 780019 Contact Us For Availability
12
Cover, Motor WPL 608849 Contact Us For Availability
12
Pad, Ram (8) WPL 777758 Contact Us For Availability
13
Plate, Motor Cover WPL 780441 Contact Us For Availability
13
Bumper, Container (2) WPL 775785 Contact Us For Availability
13
Plate, Doubler (2) WPL 608733 Contact Us For Availability
14
Barrier, Glass WPL 776780 Contact Us For Availability
14
Screw (2) WPL 4149395 Contact Us For Availability
14
Retainer, Nut (2) WPL 780036 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
19
Trim, Container (Front) WPL 4151460 Contact Us For Availability
20
Plate, Nut WPL 777850 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
21
Cord, Power WPL 778575 Contact Us For Availability
22
Bushing, Cord WPL 776119 Contact Us For Availability
22
Protector, Powerscrew (2) WPL 780413 Contact Us For Availability
23
Clamp, Wire WPL 777035 Contact Us For Availability
24
Grommet, Motor Cover WPL 776118 Contact Us For Availability
25
Leveler, Front (2) WPL 780082 Contact Us For Availability
25
Retainer, Bag (Contains 4 Each) WPL 4147703 Contact Us For Availability
26
Screw, 10-16 x 3/4 (2) WPL 780125 Contact Us For Availability
27
Wheel, Leveler (R.H. Rear) WPL 780139 Contact Us For Availability
30
Insulation, Inner Panel WPL 780412 Contact Us For Availability
× ![]()
