Model Whirlpool 4KN15E1XSL1 5 QT. STAND MIXER – Common Parts & Diagrams
02 - CASE, GEARING AND PLANETARY UNIT
01 - COLOR VARIATION PARTS

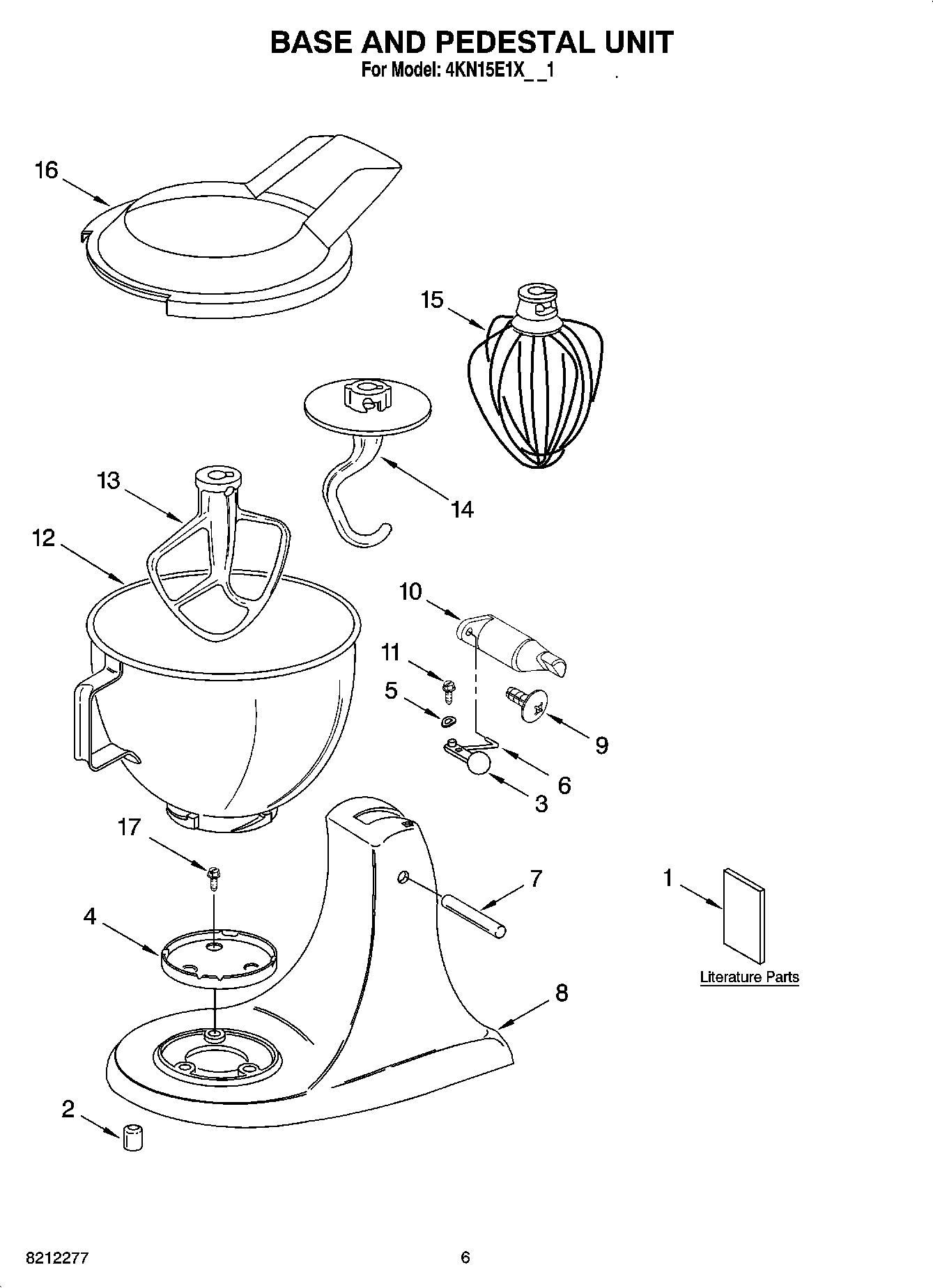

03 - BASE AND PEDESTAL UNIT, OPTIONAL PARTS
Common parts from model Whirlpool 4KN15E1XSL1 5 QT. STAND MIXER
Food Tray (FT) WPL 4162838 Contact Us For Availability
CAN OPENER (CO) WPL 4164747 Contact Us For Availability
JUICER (JE) WPL 4164748 Contact Us For Availability
FOOD GRINDER (FG-A) WPL 4164749 Contact Us For Availability
ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) WPL 4164750 Contact Us For Availability
PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PA WPL 4164768 Contact Us For Availability
FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FV WPL 4164774 Contact Us For Availability
FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A WPL 4164775 Contact Us For Availability
MIXER ATTACHMENT PAK (INCLUDES FOOD GRINDER ( WPL 4164778 Contact Us For Availability
SAUSAGE STUFFER KIT (SSA) WPL 4164803 Contact Us For Availability
PASTA MAKER PLATES (SNPA) WPL 4164824 Contact Us For Availability
Grain Mill, KGMA WPL 8211924 Contact Us For Availability
Ice Cream Maker, KICA0WH0 WPL 9707963 Contact Us For Availability
Following Parts Not Illustrated WPL ARI13937A3 Contact Us For Availability
1
Use & Care Guide (Repair Parts List) WPL 8212277 Contact Us For Availability
1
Use & Care Guide (Canada) WPL 9709234 Contact Us For Availability
1
LITERATURE PARTS WPL ARI13935A4 Contact Us For Availability
2
Foot, Rubber (5) WPL 115792 Contact Us For Availability
3
Lever, Latch (Grey) WPL 9706185 Contact Us For Availability
3
Lever, Latch (Black) WPL 9709284 Contact Us For Availability
4
Lower Gearcase (Licorice) WPL 9708546 Contact Us For Availability
4
Lower Gearcase (Silver) WPL 9709720 Contact Us For Availability
4
Screw Cap WPL 9703554 Contact Us For Availability
5
Pedestal and Foot Assembly (Meringue) WPL 9708525 Contact Us For Availability
5
Pedestal and Foot Assembly (Licorice) WPL 9708549 Contact Us For Availability
5
Pedestal and Foot Assembly (Silver) WPL 9709723 Contact Us For Availability
6
Link, Latch WPL 9706803 Contact Us For Availability
7
Pin, Hinge WPL 9703583 Contact Us For Availability
8
Pedestal and Foot Assembly WPL ARI13936A5 Contact Us For Availability
10
Cam, Headlock WPL 9708306 Contact Us For Availability
12
Bowl (5 Qt) WPL 9707956 Contact Us For Availability
17
SCREW WPL 3400020 Contact Us For Availability
× ![]()
