Model Whirlpool 4KN15C1XWH1 5 QT. STAND MIXER – Common Parts & Diagrams

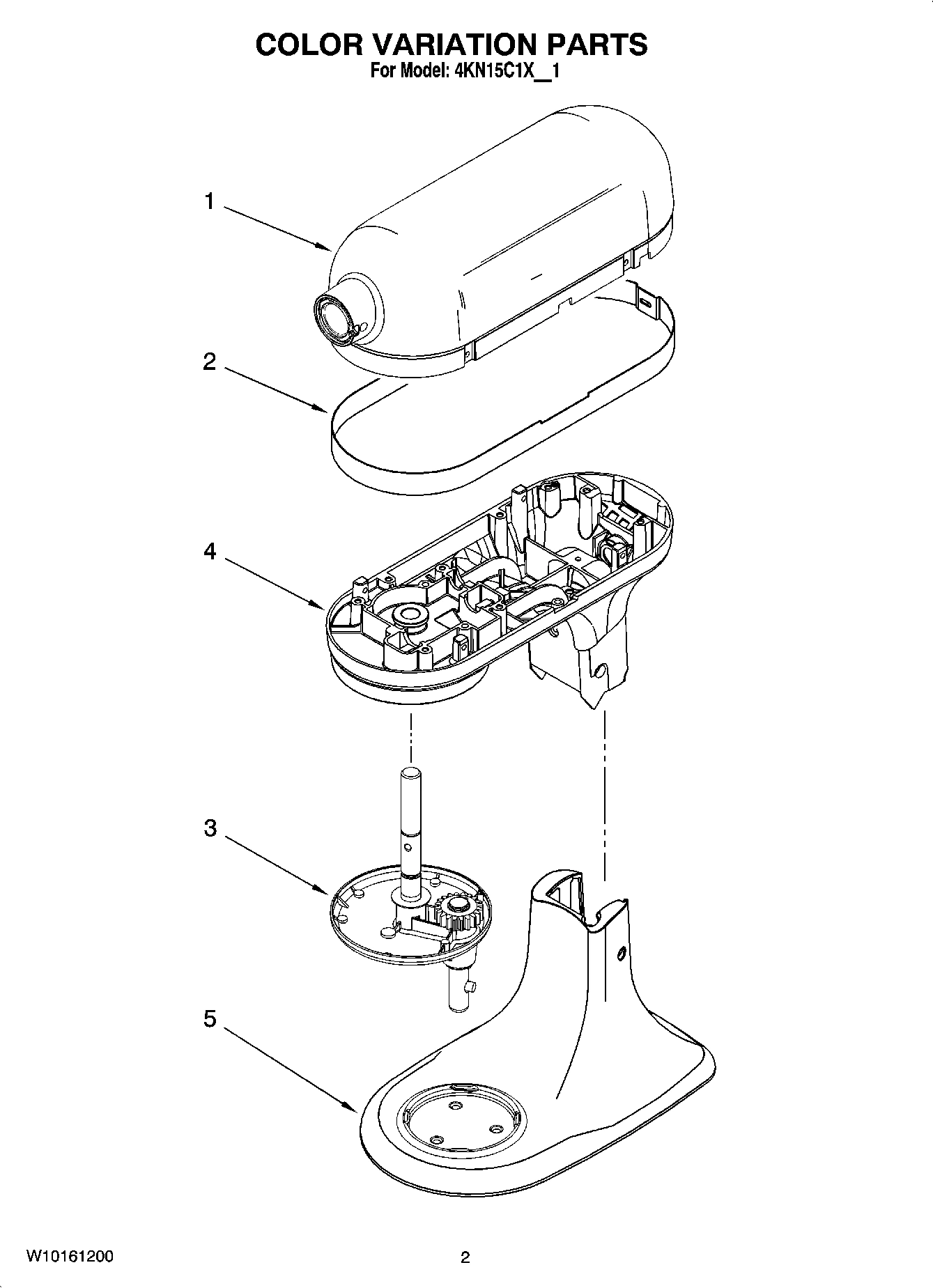

01 - COLOR VARIATION PARTS

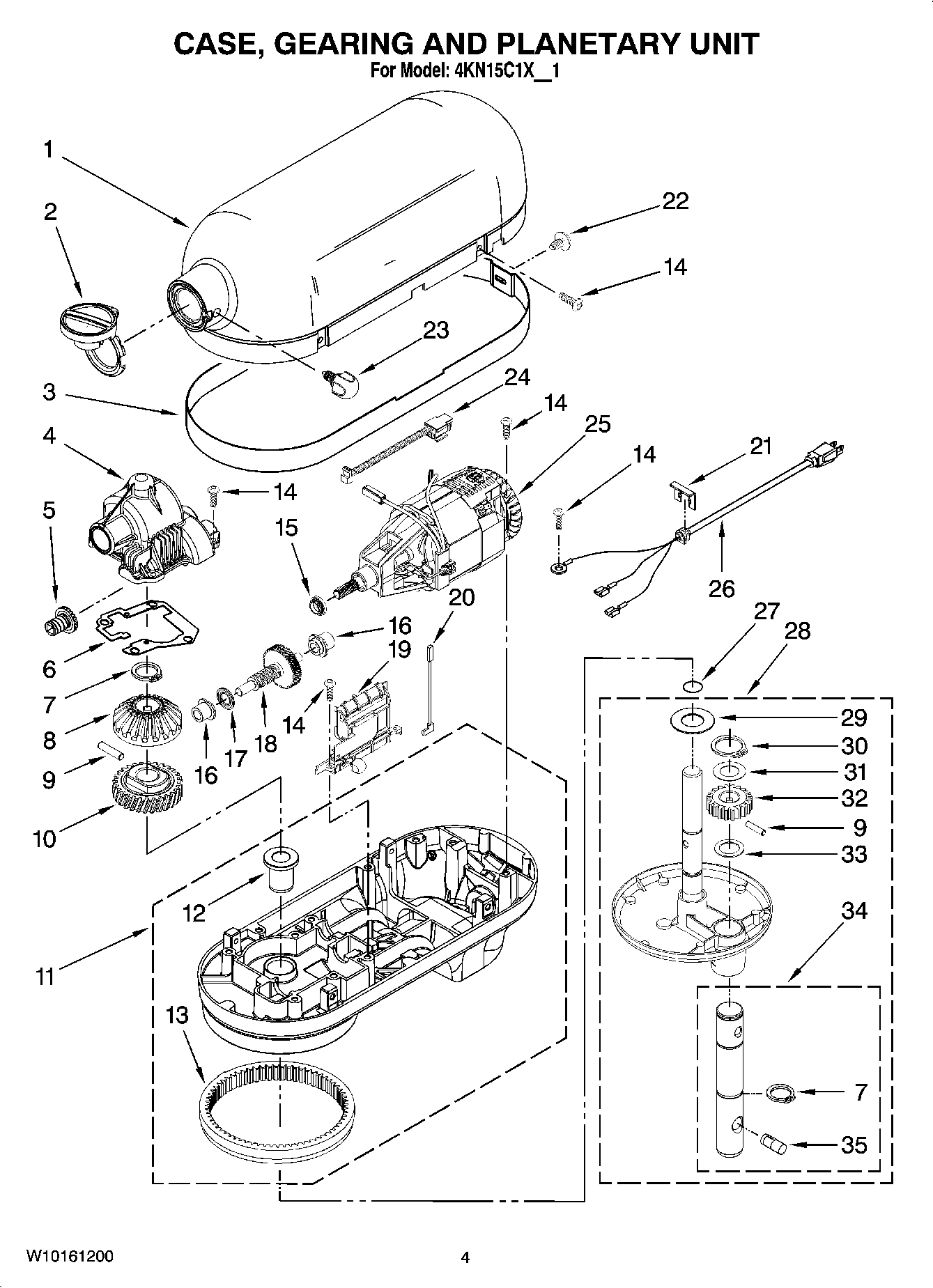

02 - CASE, GEARING AND PLANETARY UNIT

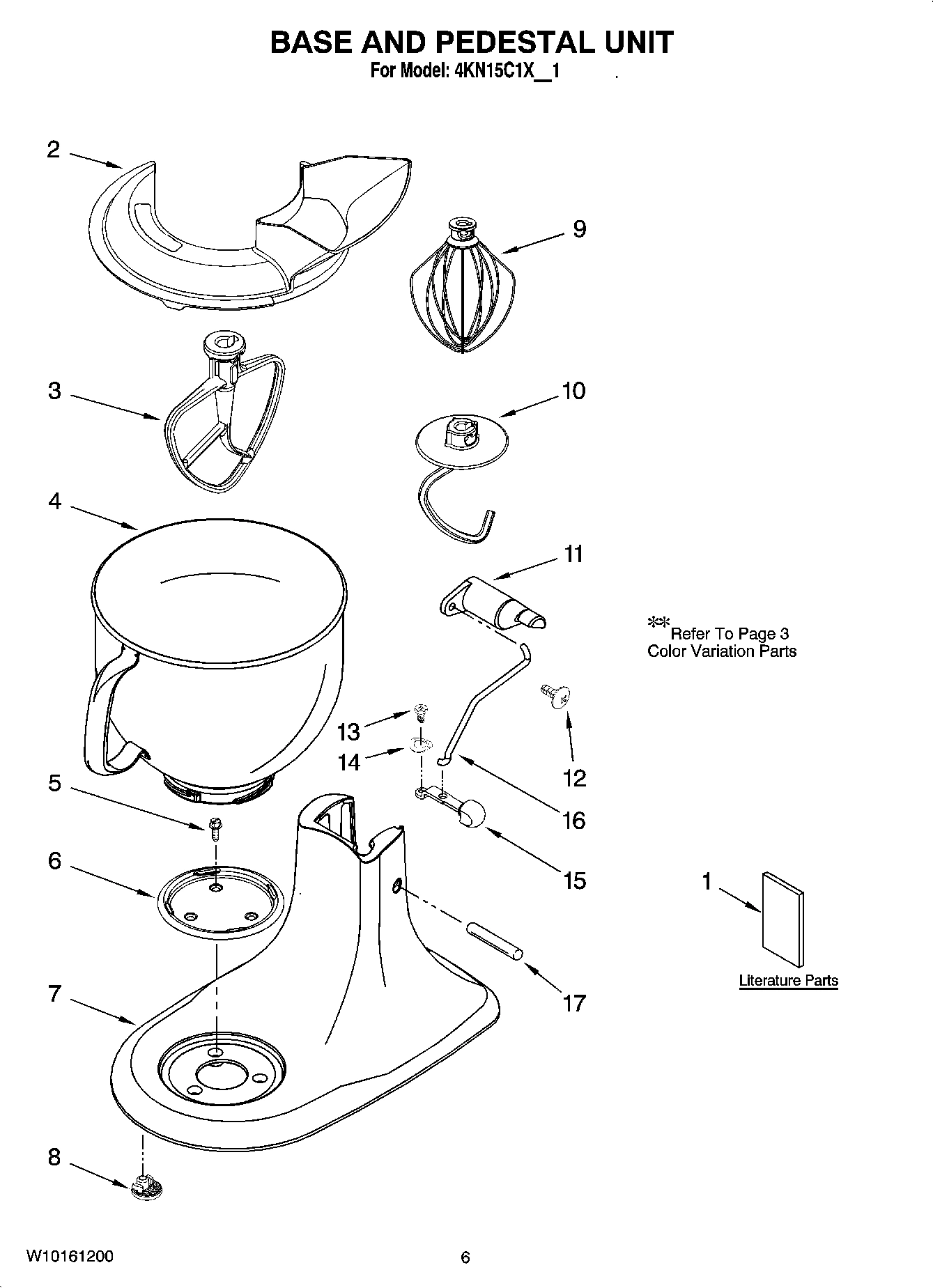

03 - BASE AND PEDESTAL UNIT, OPTIONAL PARTS
Common parts from model Whirlpool 4KN15C1XWH1 5 QT. STAND MIXER
Food Tray (FT) WPL 4162838 Contact Us For Availability
CAN OPENER (CO) WPL 4164747 Contact Us For Availability
JUICER (JE) WPL 4164748 Contact Us For Availability
FOOD GRINDER (FG-A) WPL 4164749 Contact Us For Availability
ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) WPL 4164750 Contact Us For Availability
PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PA WPL 4164768 Contact Us For Availability
FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FV WPL 4164774 Contact Us For Availability
FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A WPL 4164775 Contact Us For Availability
MIXER ATTACHMENT PAK (INCLUDES FOOD GRINDER ( WPL 4164778 Contact Us For Availability
SAUSAGE STUFFER KIT (SSA) WPL 4164803 Contact Us For Availability
PASTA MAKER PLATES (SNPA) WPL 4164824 Contact Us For Availability
Grain Mill, KGMA WPL 8211924 Contact Us For Availability
Ice Cream Maker (KICA0WH0) WPL 8212519 Contact Us For Availability
Following Parts Not Illustrated WPL ARI13874A7 Contact Us For Availability
1
Use & Care Guide (Canada, Bilingual) WPL W10150043 Contact Us For Availability
1
Repair Parts List WPL W10161200 Contact Us For Availability
4
Bowl (5 Qt) WPL 9707956 Contact Us For Availability
5
SCREW WPL 3400020 Contact Us For Availability
6
Cap, Screw WPL 9703554 Contact Us For Availability
7
Pedestal & Foot WPL ARI13873A8 Contact Us For Availability
11
Cam, Headlock WPL 9708306 Contact Us For Availability
15
Lever, Latch (Black) WPL 9709284 Contact Us For Availability
15
Lever, Latch (Grey) WPL 9709285 Contact Us For Availability
16
Link, Latch WPL 9706803 Contact Us For Availability
17
Pin, Hinge WPL 9703583 Contact Us For Availability
× ![]()
