Model Maytag 4KMEDX505BW0 ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET
02 - TOP AND CONSOLE PARTS

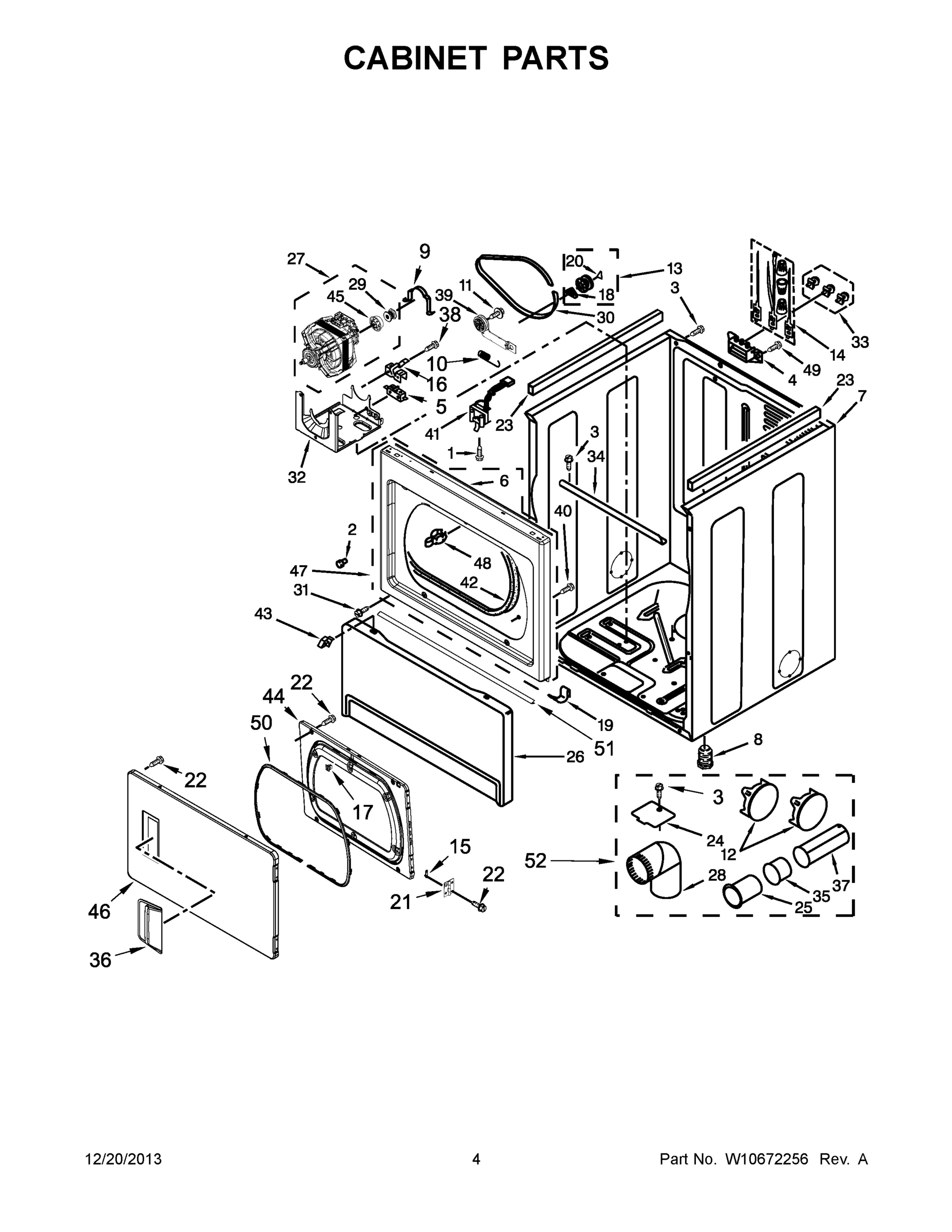

03 - CABINET PARTS

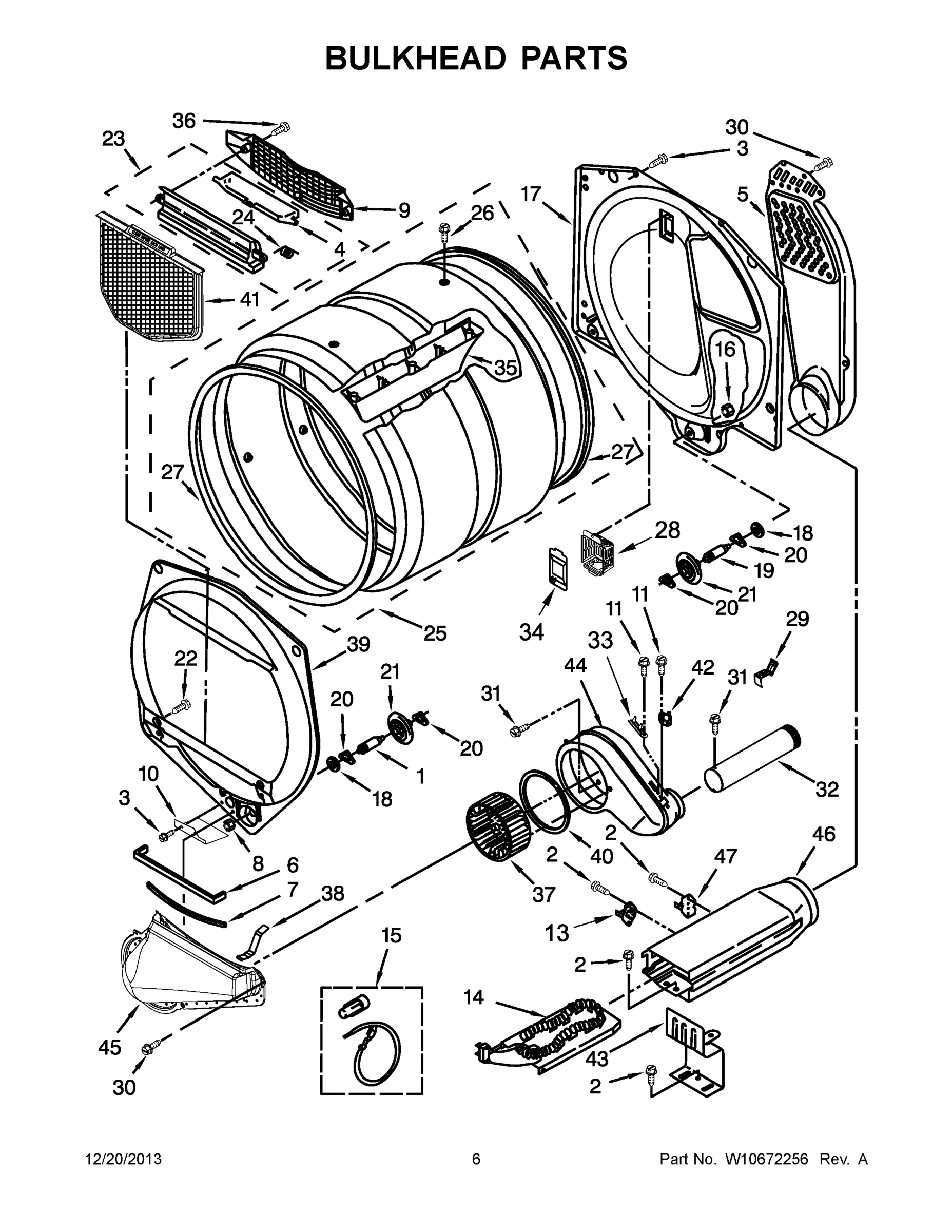

04 - BULKHEAD PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 4KMEDX505BW0 ELECTRIC DRYER
1
MAY W10629448 MAY W10629448 Contact Us For Availability
1
MAY W10629455 MAY W10629455 Contact Us For Availability
1
MAY W10631595 MAY W10631595 Contact Us For Availability
1
SCREW MAY 697773 Contact Us For Availability
1
SHAFT, DRUM ROLLER RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
2
MAY W10121161 MAY W10121161 Contact Us For Availability
2
MAY 693152 MAY 693152 Contact Us For Availability
2
SCREW MAY 90767 Contact Us For Availability
3
SCREW MAY 3390647 Contact Us For Availability
4
MAY W10601020 MAY W10601020 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY W10181925 MAY W10181925 Contact Us For Availability
5
ASSEMBLY, TIMER (60 HZ.) MAY 3979617 Contact Us For Availability
5
MAY 8318457 MAY 8318457 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
6
SCREW MAY 3390631 Contact Us For Availability
6
Seal, Foam MAY 8318396 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
MAY 3952439 MAY 3952439 Contact Us For Availability
7
MAY W10547697 MAY W10547697 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
9
Switch, Temperature MAY 3399639 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
MAY W10181926 MAY W10181926 Contact Us For Availability
10
MAY W10112668 MAY W10112668 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
MAY W10128629 MAY W10128629 Contact Us For Availability
11
MAY W10598015 MAY W10598015 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
12
MAY 8312709 MAY 8312709 Contact Us For Availability
12
PLUG, MULTIVENT (MIDNIGHT GREY) MAY W10404617 Contact Us For Availability
12
MAY 359625 MAY 359625 Contact Us For Availability
13
MAY 3348629 MAY 3348629 Contact Us For Availability
13
MAY W10468057 MAY W10468057 Contact Us For Availability
13
THERMOSTAT HL-295/215 MAY 3391914 Contact Us For Availability
14
CLIP, SPRING MAY 8536939 Contact Us For Availability
14
MAY 279318 MAY 279318 Contact Us For Availability
14
MAY 3387747 MAY 3387747 Contact Us For Availability
15
ASSEMBLY, CONTROL KNOB (GREY) MAY W10317455 Contact Us For Availability
15
PLUG, HINGE SCREW (WHITE) MAY W10191265 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
16
ASSEMBLY, TIMER KNOB (GREY) MAY W10317454 Contact Us For Availability
16
MAY W10083220 MAY W10083220 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
MAY 8559781 MAY 8559781 Contact Us For Availability
17
ASSEMBLY, DOOR CATCH MAY 3392538 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
18
END CAP (RIGHT) (WHITE) MAY W10193821 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
END CAP (LEFT) (WHITE) MAY W10193824 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
MAY W10323734 MAY W10323734 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
20
MAY W10121334 MAY W10121334 Contact Us For Availability
21
CLIP, SPRING MAY 688805 Contact Us For Availability
21
ASSEMBLY, HINGE & PIN (SILVER) MAY W10279703 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
MAY W10599164 MAY W10599164 Contact Us For Availability
22
MAY 342055 MAY 342055 Contact Us For Availability
22
SCREW MAY 3387230 Contact Us For Availability
23
SEAL, FOAM MAY W10336128 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10181928 Contact Us For Availability
24
MAY W10354249 MAY W10354249 Contact Us For Availability
24
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
25
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
25
MAY W10545923 MAY W10545923 Contact Us For Availability
26
Toe Panel (Includes Item. 2) (White) MAY 697215 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY W10489550 MAY W10489550 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
ELBOW MAY 49026 Contact Us For Availability
28
MAY 8578825 MAY 8578825 Contact Us For Availability
29
MAY 3389729 MAY 3389729 Contact Us For Availability
29
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
30
Screw MAY 8533971 Contact Us For Availability
30
MAY W10112954 MAY W10112954 Contact Us For Availability
31
Screw MAY 693995 Contact Us For Availability
31
Screw MAY 489463 Contact Us For Availability
32
MAY 3387118 MAY 3387118 Contact Us For Availability
32
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
33
MAY 279393 MAY 279393 Contact Us For Availability
33
LIMITER, THERMAL (192F) MAY W10167627 Contact Us For Availability
34
MAY W10236068 MAY W10236068 Contact Us For Availability
34
MAY 3402841 MAY 3402841 Contact Us For Availability
35
PIPE, EXHAUST (SHORT) MAY W10331278 Contact Us For Availability
35
Baffle, Drum MAY 697693 Contact Us For Availability
36
MAY W10116360 MAY W10116360 Contact Us For Availability
36
SCREW MAY 3357011 Contact Us For Availability
37
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
37
MAY W10349492 MAY W10349492 Contact Us For Availability
38
SCREW MAY 343641 Contact Us For Availability
38
MAY W10345456 MAY W10345456 Contact Us For Availability
39
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
39
MAY 697557 MAY 697557 Contact Us For Availability
40
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
41
MAY W10237959 MAY W10237959 Contact Us For Availability
41
MAY W10596627 MAY W10596627 Contact Us For Availability
42
MAY 3387242 MAY 3387242 Contact Us For Availability
42
MAY W10168174 MAY W10168174 Contact Us For Availability
43
Retainer MAY 3388229 Contact Us For Availability
43
MAY 8066099 MAY 8066099 Contact Us For Availability
44
MAY W10323061 MAY W10323061 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
45
MAY 3393657 MAY 3393657 Contact Us For Availability
45
MAY 8066168 MAY 8066168 Contact Us For Availability
46
MAY W10322546 MAY W10322546 Contact Us For Availability
46
ASSEMBLY, WELD HEATER BOX MAY 3392537 Contact Us For Availability
47
PANEL, UPPER FRONT (WHITE) MAY W10193554 Contact Us For Availability
47
MAY 8318314 MAY 8318314 Contact Us For Availability
48
MAY 696144 MAY 696144 Contact Us For Availability
49
MAY 3393008 MAY 3393008 Contact Us For Availability
50
MAY 3390735 MAY 3390735 Contact Us For Availability
51
MAY W10576519 MAY W10576519 Contact Us For Availability
52
DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) MAY W10186596 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 279948 Contact Us For Availability
NI
MAY 3406839 MAY 3406839 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER VENT TESTING) MAY 8522199 Contact Us For Availability
× ![]()
