Model Whirlpool 4KHWS160AL8 HOT WATER DISPENSER – Common Parts & Diagrams

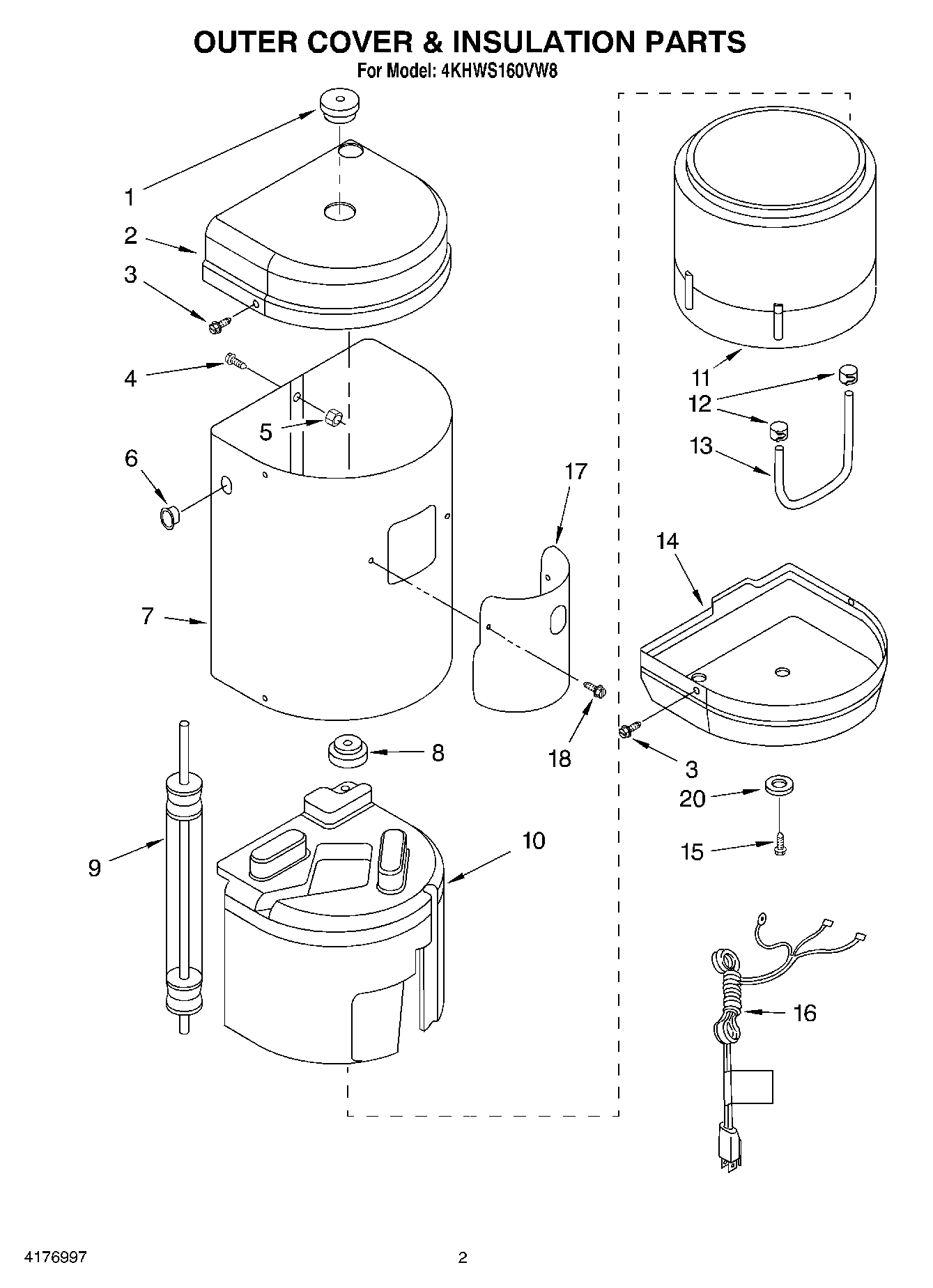

02 - OUTER COVER & INSULATION, LITERATURE

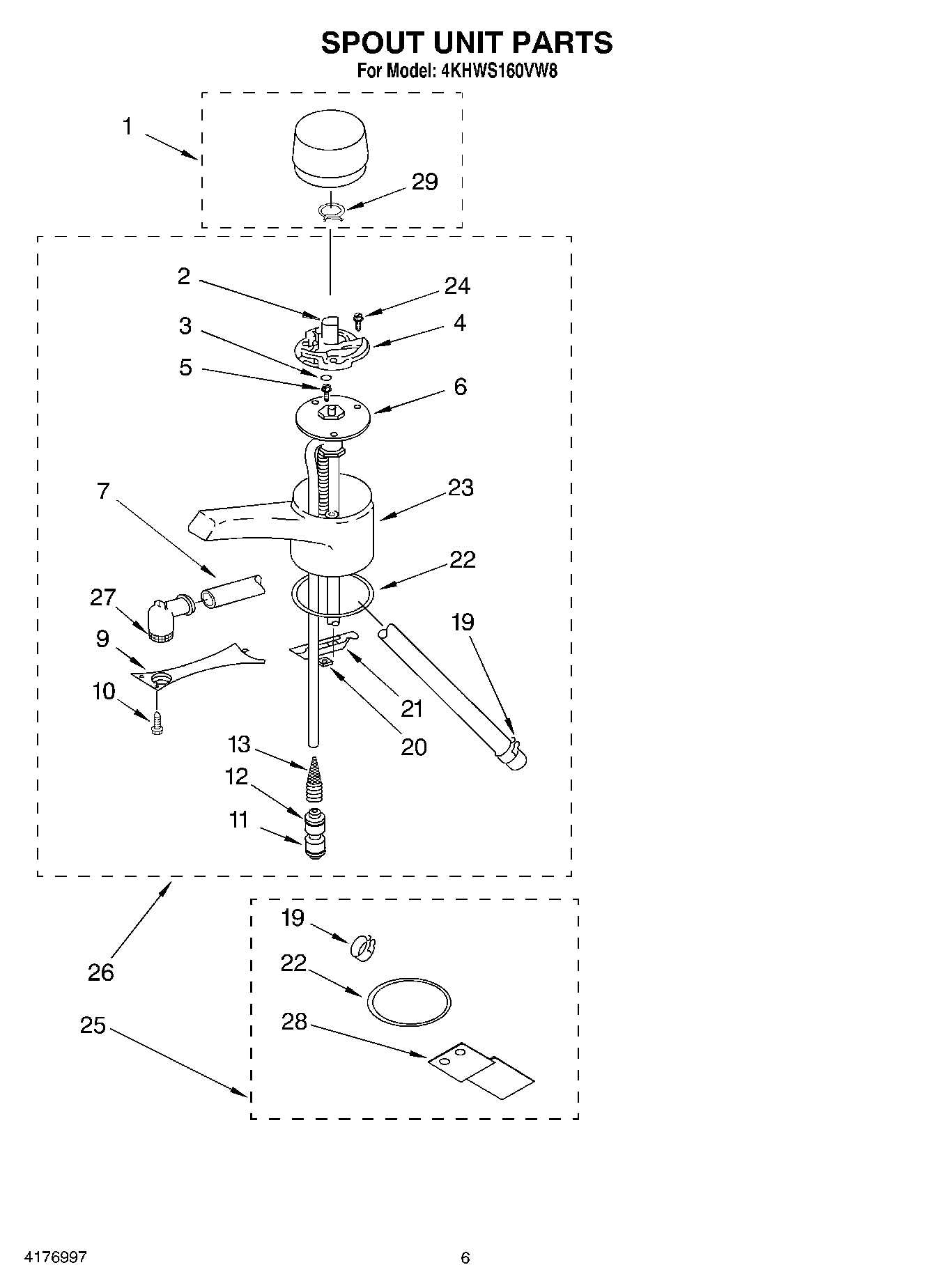

04 - SPOUT UNIT
01 - FRONT COVER
03 - UPPER AND LOWER TANK SHELL
Common parts from model Whirlpool 4KHWS160AL8 HOT WATER DISPENSER
1
Knob (Black) WPL 3193047 Contact Us For Availability
1
Knob (White) WPL 3193048 Contact Us For Availability
1
Knob (Almond) WPL 3193049 Contact Us For Availability
1
Ground Wire WPL 3192080 Contact Us For Availability
2
Hub, Valve Drive WPL 3192270 Contact Us For Availability
3
Spring, Compression WPL 3192262 Contact Us For Availability
4
Cam WPL 3192137 Contact Us For Availability
6
Strain Releif, Power Cord WPL 3191431 Contact Us For Availability
6
Mechanical Valve (Includes Illus. 13 & 14) WPL 3192899 Contact Us For Availability
6
Nut, Heating Element (Included in item No.9) WPL ARI13846A4 Contact Us For Availability
7
Shell WPL 3193265 Contact Us For Availability
7
Tube (3/8`` I.D.) WPL 4161917 Contact Us For Availability
7
Shell, Tank Upper WPL 3193068 Contact Us For Availability
8
``O``, Ring WPL 4159825 Contact Us For Availability
8
Molded Bushing WPL 4161910 Contact Us For Availability
9
Displacer WPL 3192964 Contact Us For Availability
9
Plate, Spout WPL 4162837 Contact Us For Availability
9
Element, Heating (Includes item No.6) WPL 3191376 Contact Us For Availability
10
Insulation, Top WPL 3192296 Contact Us For Availability
10
Screw, Self Tapping (No.4-20 X 5/16``) Phil. WPL 3400403 Contact Us For Availability
10
O-Ring WPL 4159824 Contact Us For Availability
11
Insulation, Bottom WPL 3191429 Contact Us For Availability
11
Deflector WPL 4176126 Contact Us For Availability
12
Nut, Mounting WPL 4159072 Contact Us For Availability
12
Clamp, Hose WPL 4161148 Contact Us For Availability
12
Cover, Collet WPL 3191385 Contact Us For Availability
13
Hose, Clear WPL 3191437 Contact Us For Availability
13
Screen, Inlet WPL 3193133 Contact Us For Availability
13
Shell, Tank Lower WPL 3193069 Contact Us For Availability
14
Cap, Bottom WPL 3192426 Contact Us For Availability
14
Thermostat WPL 3191423 Contact Us For Availability
15
Screw, 8-32X.5 (stainless) WPL 3192294 Contact Us For Availability
16
Cord, Power WPL 3192352 Contact Us For Availability
16
Knob, Thermostat WPL 3192538 Contact Us For Availability
17
Fuse, Thermal WPL 3193190 Contact Us For Availability
17
Front Cover WPL 3192317 Contact Us For Availability
19
Clamp, Tube (3/8`` Tubing) WPL 4161147 Contact Us For Availability
20
O-Ring WPL 3192295 Contact Us For Availability
20
Machine Nut 1/4-20 Sq. WPL 4159067 Contact Us For Availability
21
Bracket, Spout Mounting WPL 4162384 Contact Us For Availability
22
Seal, Sink WPL 4162831 Contact Us For Availability
23
Spout Body (Chrome) WPL 3193336 Contact Us For Availability
23
Spout Body (White) WPL 3193337 Contact Us For Availability
23
Spout Body (Almond) WPL 3193338 Contact Us For Availability
25
Installation Kit WPL 3191594 Contact Us For Availability
26
Spout Assembly (Chrome) WPL 3193134 Contact Us For Availability
26
Spout Assembly (White) WPL 3193135 Contact Us For Availability
26
Spout Assembly (Almond) WPL 3193136 Contact Us For Availability
27
Flow Screen WPL 4161255 Contact Us For Availability
28
Bracket, Mounting WPL 4162589 Contact Us For Availability
29
Clamp, Hose WPL 3177799 Contact Us For Availability
× ![]()
