Model Whirlpool 4KFP740CR0 9-CUP FOOD PROCESSOR – Common Parts & Diagrams

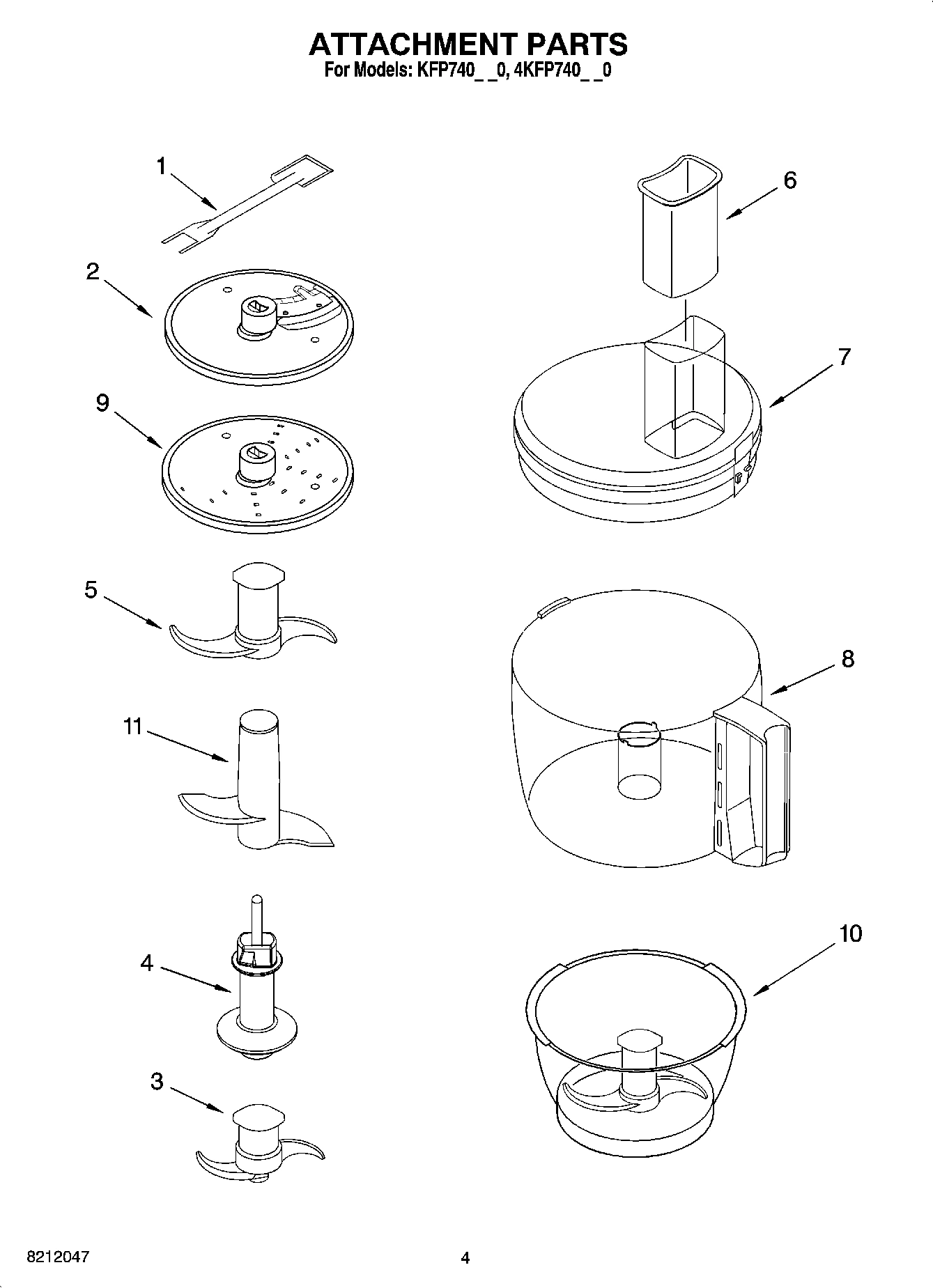

02 - ATTACHMENT PARTS

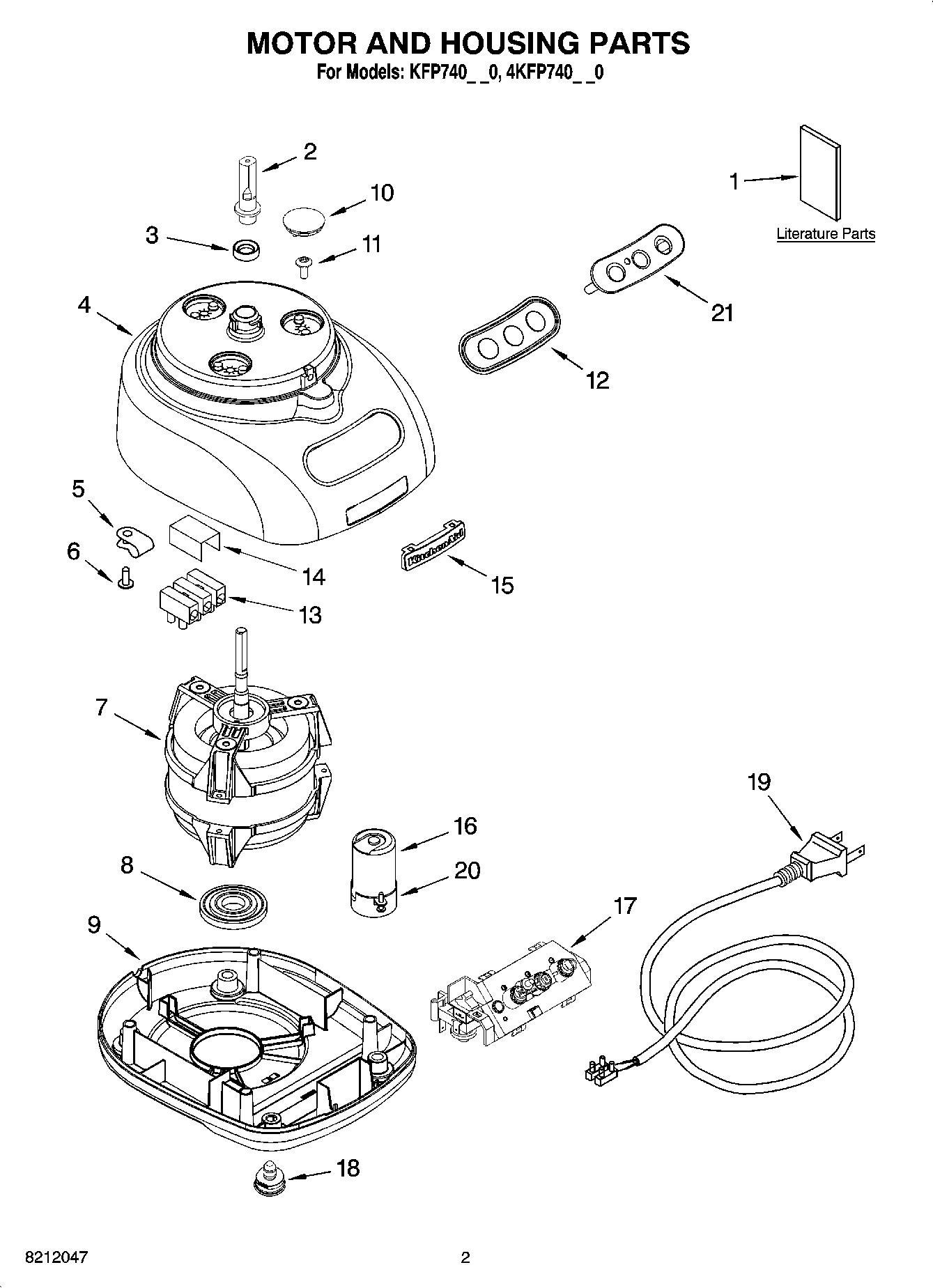

01 - MOTOR AND HOUSING PARTS
Common parts from model Whirlpool 4KFP740CR0 9-CUP FOOD PROCESSOR
Disc, Slicing (4 mm) WPL 8211930 Contact Us For Availability
Disc, Slicing 6 mm WPL 8211931 Contact Us For Availability
Disc, Shredding 2 mm WPL 8211932 Contact Us For Availability
Disc, Shredding (6 mm) WPL 8211934 Contact Us For Availability
Disc, Julienne WPL 8211935 Contact Us For Availability
Disc, Grating Parmesan/Ice WPL 8211936 Contact Us For Availability
Disc, Cutting French Fry WPL 8211937 Contact Us For Availability
Rack, Disc WPL 8211938 Contact Us For Availability
Citrus Extractor WPL 8212025 Contact Us For Availability
Accessory Box WPL 8212034 Contact Us For Availability
OPTIONAL PARTS NOT ILLUSTRATED WPL ARI13740A7 Contact Us For Availability
1
Repair Parts List WPL 8212047 Contact Us For Availability
1
Use & Care Guide WPL 8212048 Contact Us For Availability
2
Sleeve, Motor Shaft WPL 8211850 Contact Us For Availability
2
Disc, Slicing (2 mm) WPL 8211929 Contact Us For Availability
3
Mini Blade WPL 8212012 Contact Us For Availability
3
Seal, Oil WPL 8211828 Contact Us For Availability
4
Adapter, Shaft & Disc WPL 8211858 Contact Us For Availability
4
Housing, Motor (White) WPL 8211818 Contact Us For Availability
4
Housing, Motor (Chrome) WPL 8211822 Contact Us For Availability
5
Blade, Multipurpose WPL 8212013 Contact Us For Availability
6
Pusher, Food WPL 8212035 Contact Us For Availability
6
Screw, Clamp WPL 8211731 Contact Us For Availability
7
Cover, Work Bowl WPL 8212029 Contact Us For Availability
7
Motor, Die Cast WPL 8211837 Contact Us For Availability
8
Bowl, Work (White) WPL 8211939 Contact Us For Availability
8
Bowl, Work (Black) WPL 8212044 Contact Us For Availability
8
Grommet, Motor WPL 8211843 Contact Us For Availability
9
Disc, Shredding (4 mm) WPL 8211933 Contact Us For Availability
9
Base, Housing (White) WPL 8212183 Contact Us For Availability
9
Base, Housing (Black) WPL 8212190 Contact Us For Availability
10
Bowl, Mini WPL 8211926 Contact Us For Availability
10
Cover, Screw (White) WPL 8211824 Contact Us For Availability
10
Cover, Screw (Black) WPL 8211827 Contact Us For Availability
11
Blade, Dough WPL 8212015 Contact Us For Availability
11
Screw, Motor Locking WPL 8211829 Contact Us For Availability
12
Bezel, Switch Panel WPL 8211848 Contact Us For Availability
13
Terminal Block WPL 8211605 Contact Us For Availability
14
Cover, Terminal WPL 8211852 Contact Us For Availability
15
Nameplate WPL 8211842 Contact Us For Availability
16
Capacitor WPL 8211608 Contact Us For Availability
17
Relay & Switch Assembly WPL 8212011 Contact Us For Availability
18
Foot (White) WPL 8211844 Contact Us For Availability
18
Foot (Black) WPL 8211845 Contact Us For Availability
19
Cord, Power (Black) WPL 8211857 Contact Us For Availability
20
Clip, Capacitor WPL 8211607 Contact Us For Availability
21
Overlay & Cover (Black) WPL 8211846 Contact Us For Availability
21
Overlay & Cover (Silver) WPL 8211847 Contact Us For Availability
× ![]()
