Model Whirlpool 4KFP720BU1 7-CUP FOOD PROCESSOR – Common Parts & Diagrams

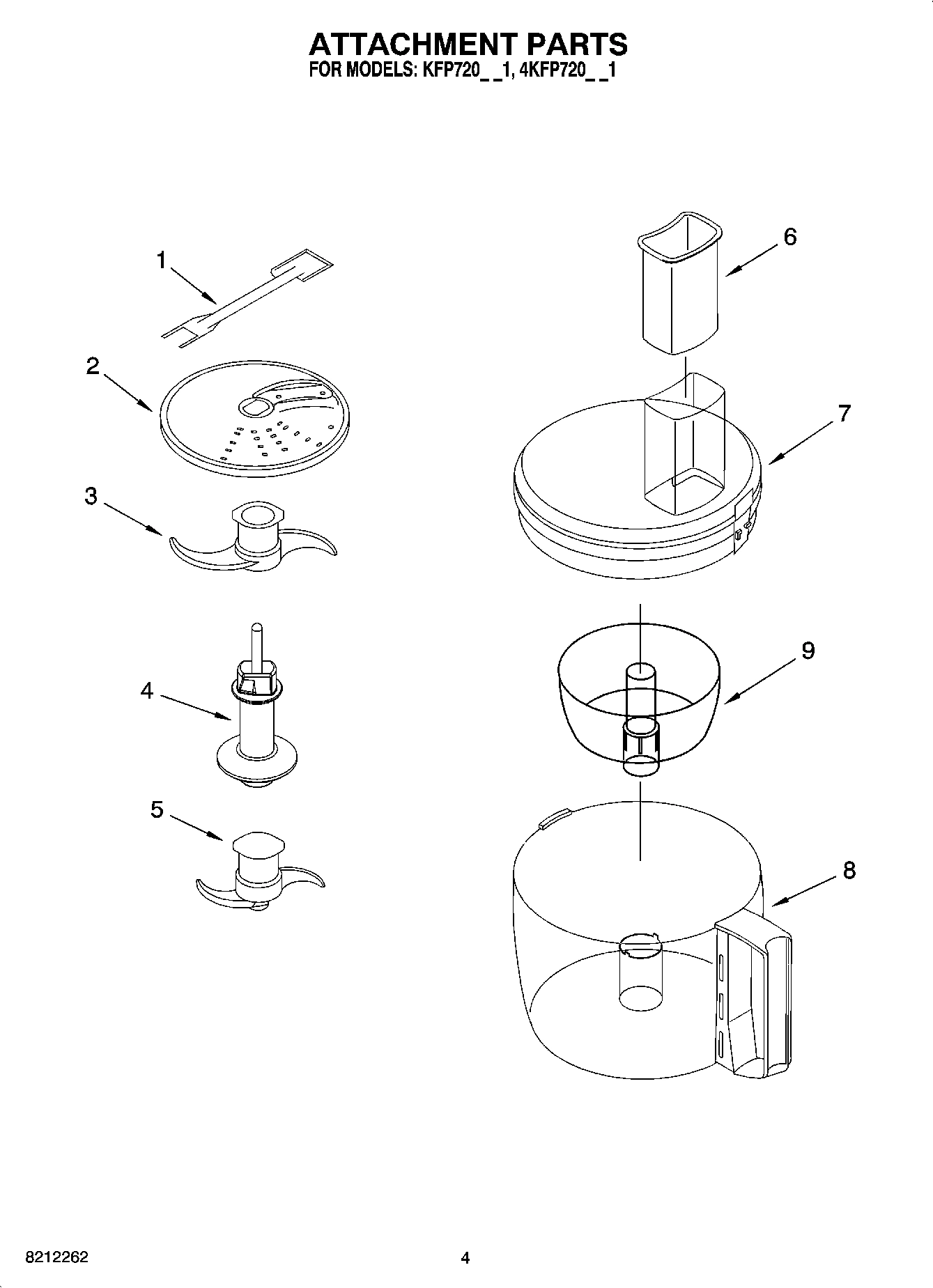

02 - ATTACHMENT PARTS

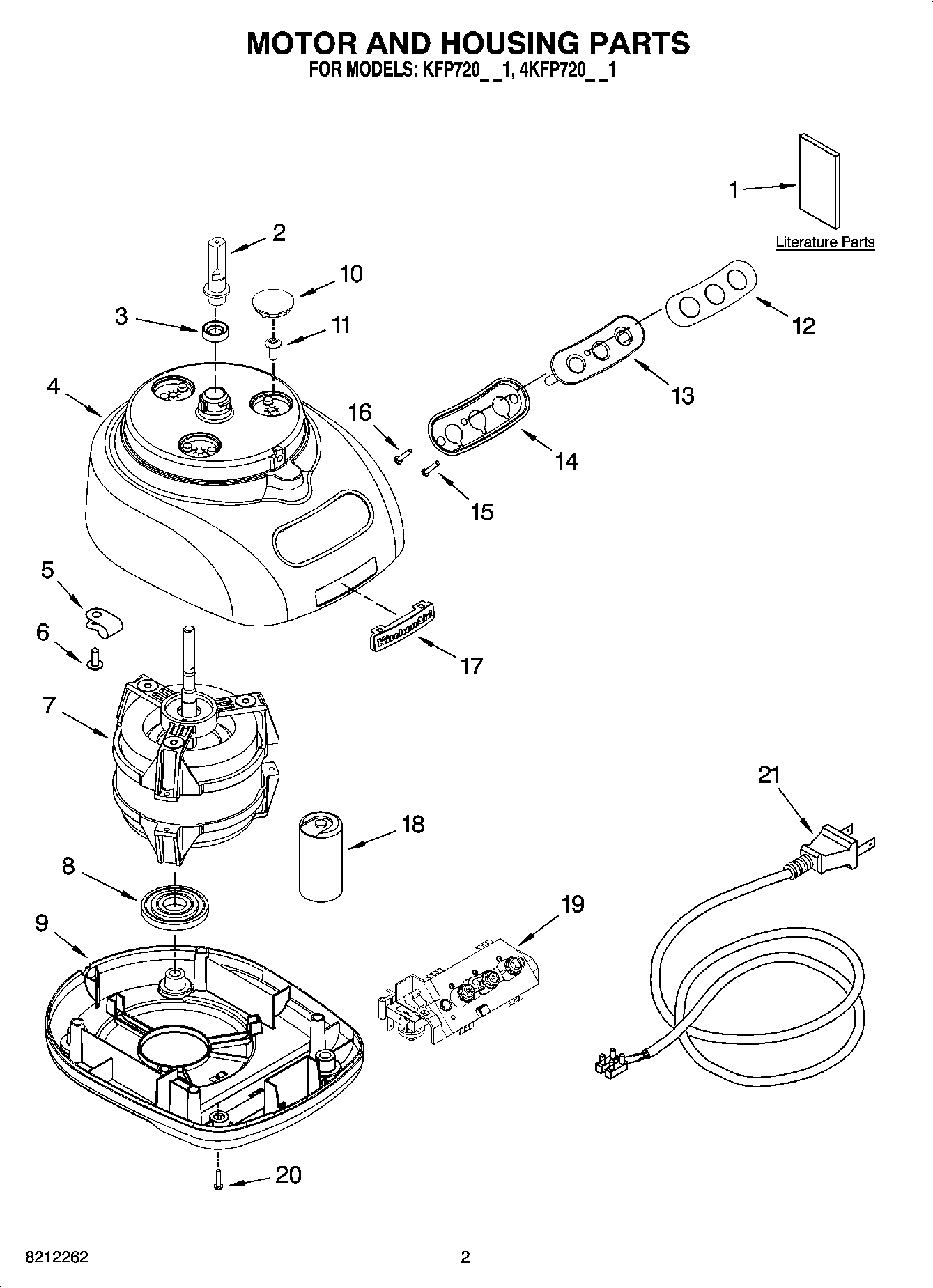

01 - MOTOR AND HOUSING PARTS
Common parts from model Whirlpool 4KFP720BU1 7-CUP FOOD PROCESSOR
1
Repair Parts List WPL 8212262 Contact Us For Availability
1
Use & Care Guide Trilingual WPL 8212299 Contact Us For Availability
2
Disc, Slicing 2mm & Grating 4mm WPL 8211897 Contact Us For Availability
2
Sleeve, Motor Shaft WPL 8211816 Contact Us For Availability
3
Mini Blade WPL 8211902 Contact Us For Availability
4
Adapter, Shaft & Disc WPL 8211900 Contact Us For Availability
4
Housing, Motor (White) WPL 8211805 Contact Us For Availability
4
Housing, Motor (Empire Red) WPL 8211807 Contact Us For Availability
4
Housing, Motor (Cobalt Blue) WPL 8211808 Contact Us For Availability
4
Housing, Motor (Blue Willow) WPL 8212297 Contact Us For Availability
5
Blade, Multi WPL 8211903 Contact Us For Availability
6
Pusher, Food (White) WPL 8211892 Contact Us For Availability
6
Pusher, Food (Empire Red) WPL 8211893 Contact Us For Availability
6
Pusher, Food (Cobalt Blue) WPL 8211895 Contact Us For Availability
6
Pusher, Food (Blue Willow) WPL 8212315 Contact Us For Availability
6
Screw, Clamp WPL 8211871 Contact Us For Availability
7
Cover, Work Bowl WPL 8211891 Contact Us For Availability
7
Motor WPL 8211813 Contact Us For Availability
8
Bowl, Work (White) WPL 8211906 Contact Us For Availability
8
Bowl, Work (Cobalt Blue) WPL 8211890 Contact Us For Availability
8
Bowl, Work (Empire Red) WPL 8211907 Contact Us For Availability
8
Bowl, Work (Onyx Black) WPL 8211908 Contact Us For Availability
8
Bowl, Work (Blue Willow) WPL 8212314 Contact Us For Availability
8
Grommet, Motor WPL 8211814 Contact Us For Availability
9
Lid, Mini Bowl WPL 8211896 Contact Us For Availability
9
Bowl, Mini WPL 8211905 Contact Us For Availability
9
Base, Housing (White) WPL 8211801 Contact Us For Availability
9
Base, Housing (Empire Red) WPL 8211802 Contact Us For Availability
9
Base, Housing (Cobalt Blue) WPL 8211803 Contact Us For Availability
9
Base, Housing (Onyx Black) WPL 8211804 Contact Us For Availability
9
Base, Housing (Blue Willow) WPL 8212296 Contact Us For Availability
10
Cover, Screw (White) WPL 8212298 Contact Us For Availability
10
Cover, Screw (Blue Willow) WPL 8212310 Contact Us For Availability
10
Cover, Screw (Empire Red) WPL 8212311 Contact Us For Availability
10
Cover, Screw (Cobalt Blue) WPL 8212312 Contact Us For Availability
11
Screw, Motor Locking WPL 8211811 Contact Us For Availability
13
Bezel, Switch Panel WPL 8211884 Contact Us For Availability
15
Screw, Torx WPL 8211870 Contact Us For Availability
16
Screw, Switch Panel WPL 8211812 Contact Us For Availability
17
Nameplate WPL 8211876 Contact Us For Availability
18
Capacitor WPL 8211608 Contact Us For Availability
19
Relay & Switch Assembly WPL 8211879 Contact Us For Availability
20
Foot, Black WPL 8211772 Contact Us For Availability
× ![]()
