Model Whirlpool 4KFP710WH0 FOOD PROCESSOR 7 Cup – Common Parts & Diagrams

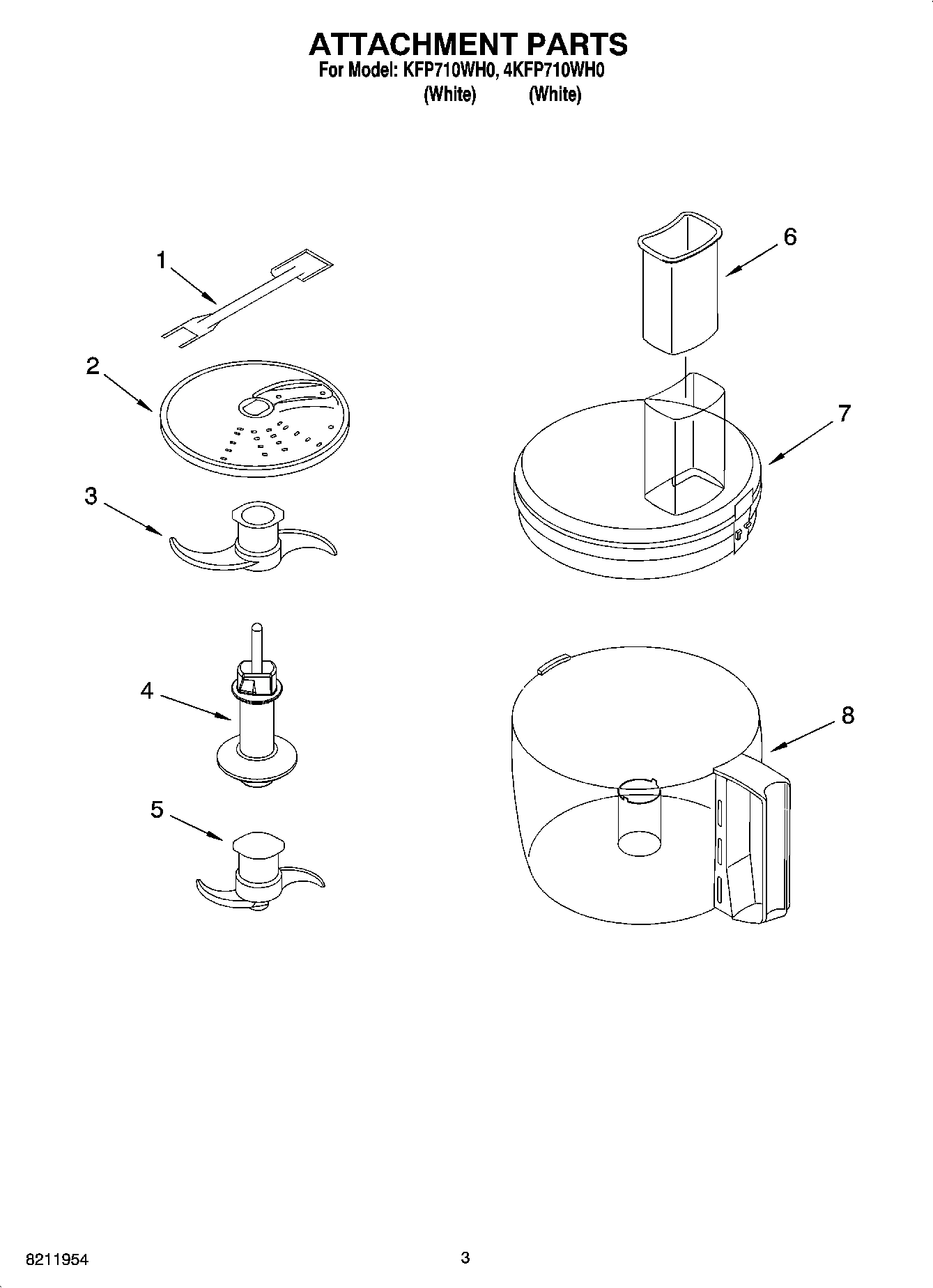

02 - ATTACHMENT PARTS

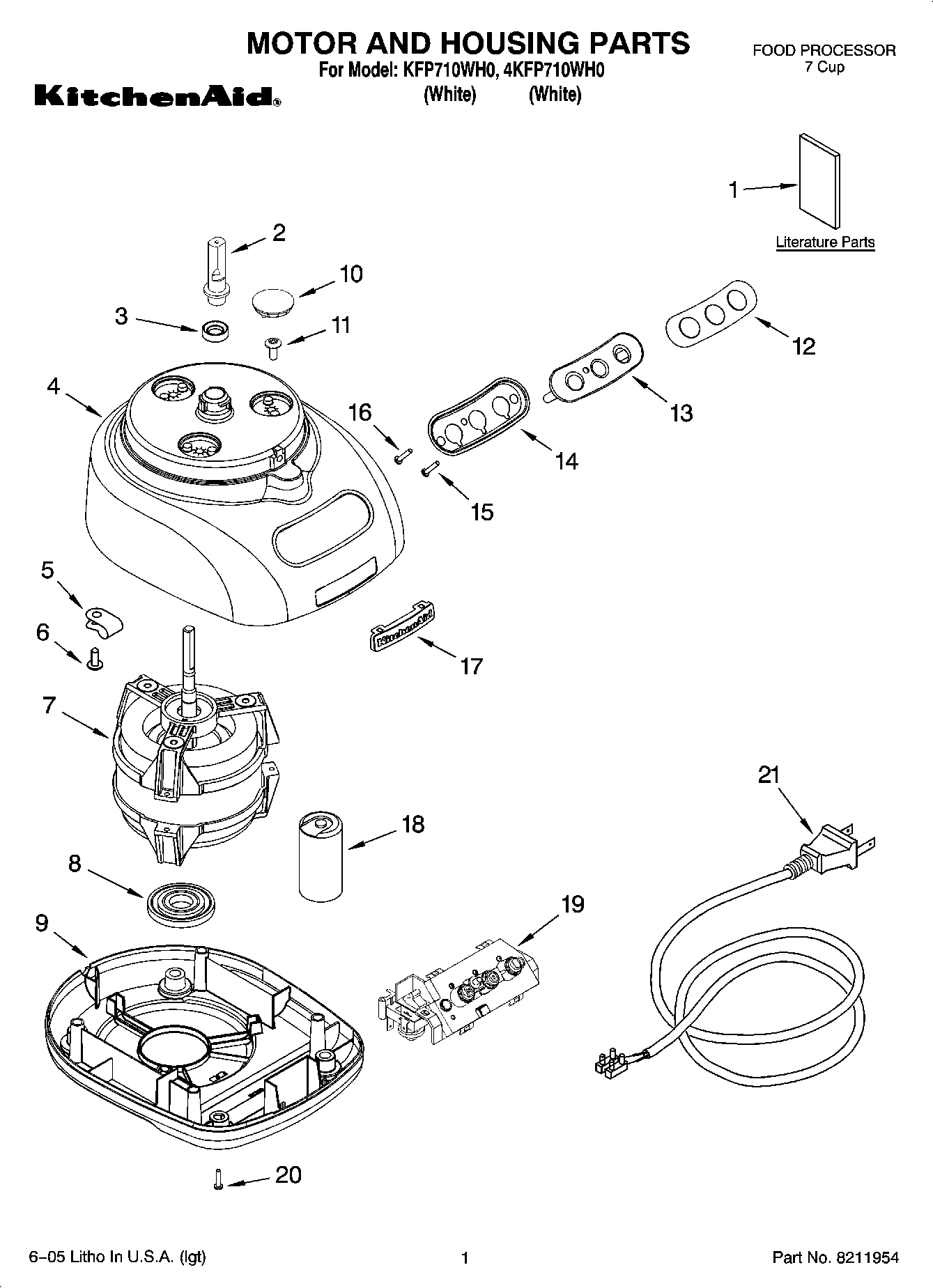

01 - MOTOR AND HOUSING PARTS
Common parts from model Whirlpool 4KFP710WH0 FOOD PROCESSOR 7 Cup
1
Use & Care Guide WPL 8211901 Contact Us For Availability
1
Repair Parts List (4) WPL 821195 Contact Us For Availability
2
Disc, Slicing 2mm & Grating 4mm WPL 8211897 Contact Us For Availability
2
Sleeve, Motor Shaft WPL 8211816 Contact Us For Availability
3
Mini Blade WPL 8211902 Contact Us For Availability
3
Seal, Oil WPL 8211817 Contact Us For Availability
4
Adapter, Shaft & Disc WPL 8211900 Contact Us For Availability
4
Housing, Motor WPL 8211806 Contact Us For Availability
5
Blade WPL 8211903 Contact Us For Availability
6
Pusher, Food WPL 8211892 Contact Us For Availability
6
Screw, Clamp WPL 8211871 Contact Us For Availability
7
Cover, Work Bowl WPL 8211891 Contact Us For Availability
7
Motor WPL 8211813 Contact Us For Availability
8
Bowl, Work WPL 8211906 Contact Us For Availability
8
Grommet, Motor WPL 8211814 Contact Us For Availability
9
Base, Housing WPL 8211801 Contact Us For Availability
10
Cover, Screw WPL 8211810 Contact Us For Availability
11
Screw, Motor Locking WPL 8211811 Contact Us For Availability
13
Bezel, Switch Panel WPL 8211884 Contact Us For Availability
15
Screw, Torx WPL 8211870 Contact Us For Availability
16
Screw, Switch Panel WPL 8211812 Contact Us For Availability
17
Nameplate WPL 8211876 Contact Us For Availability
18
Capacitor WPL 8211608 Contact Us For Availability
19
Relay & Switch Assembly WPL 8211879 Contact Us For Availability
20
Foot WPL 8211772 Contact Us For Availability
× ![]()
