  • Whirlpool 4KBDS250T5

Model Whirlpool 4KBDS250T5 DISPOSER – Common Parts & Diagrams

Guide, Use And Care
Guide, Use And Care WPL LIT4211429 Contact Us For Availability
View on Model
Instructions, Installation (English)
Instructions, Installation (English) WPL LIT4211430 Contact Us For Availability
View on Model
Instructions, Installation (French)
Instructions, Installation (French) WPL LIT4211431 Contact Us For Availability
View on Model
Repair Parts List
Repair Parts List WPL LIT8174302 Contact Us For Availability
View on Model

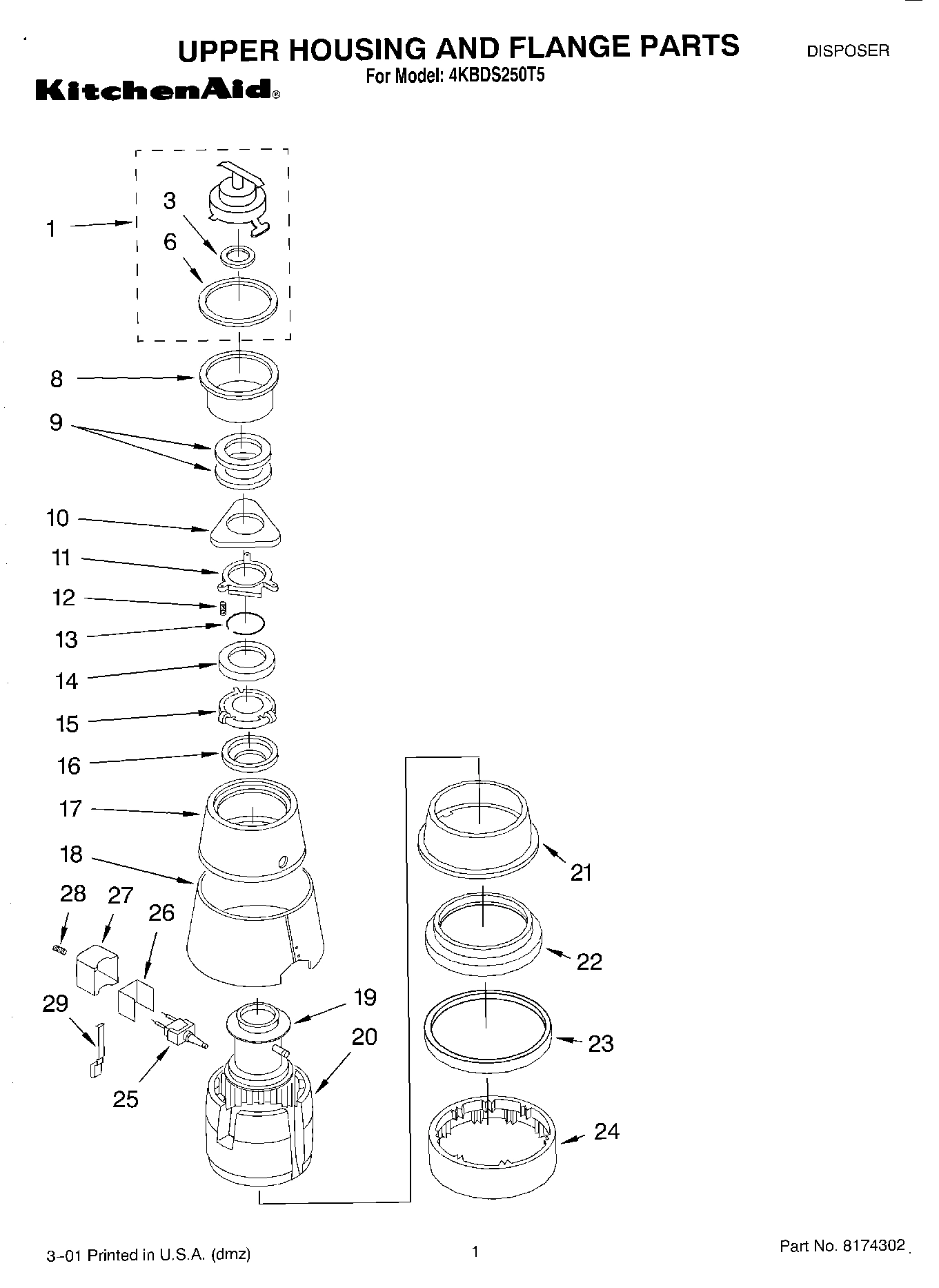

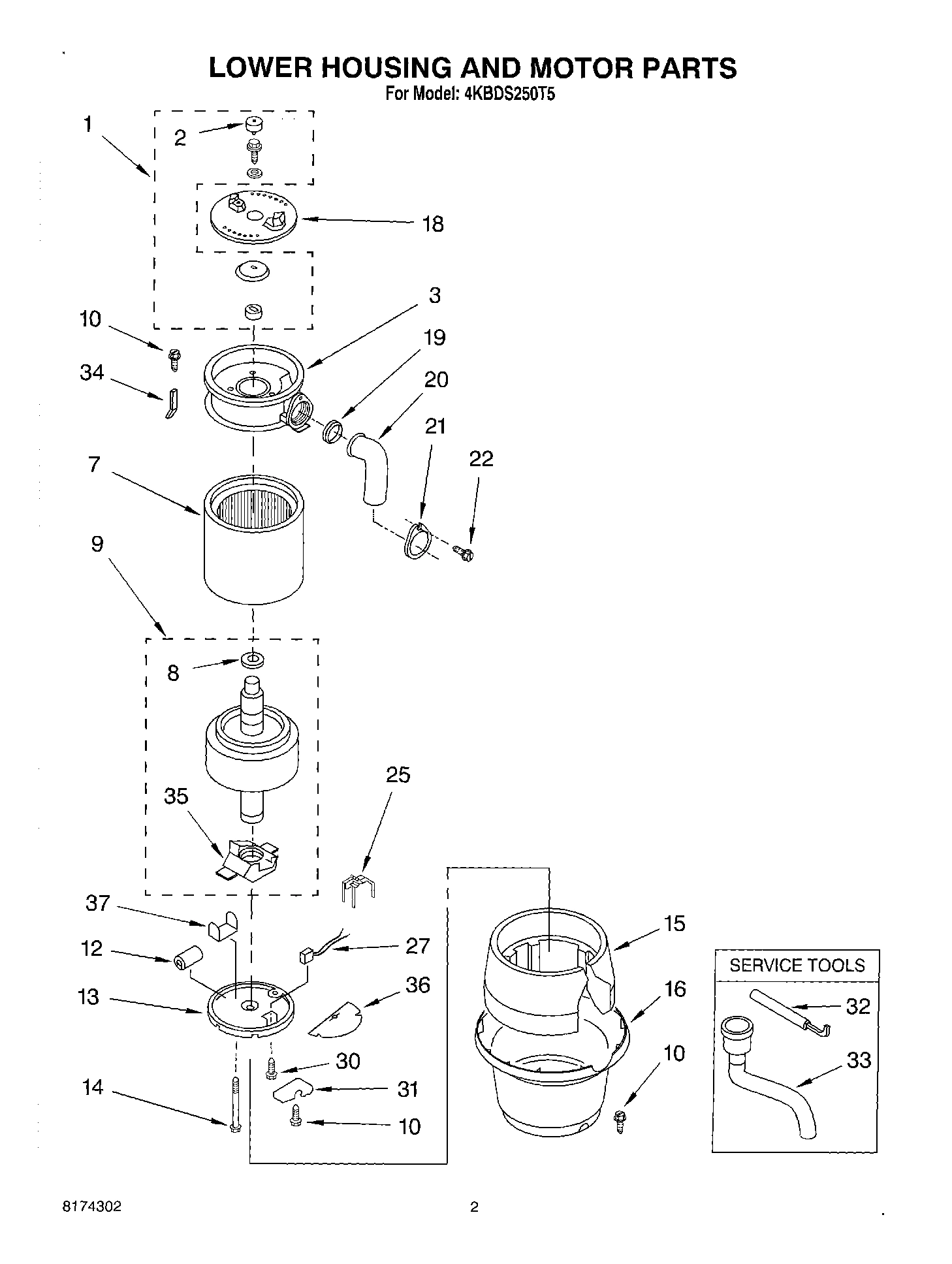

1
Stopper Assembly
Stopper Assembly WPL 4211409 Contact Us For Availability
View on Model
6
Gasket, Stopper (Outer)
Gasket, Stopper (Outer) WPL 4211410 Contact Us For Availability
View on Model
9
Rotor & Shaft Assembly (Includes 8 & 35)
Rotor & Shaft Assembly (Includes 8 & 35) WPL 4211632 Contact Us For Availability
View on Model
12
Capacitor
Capacitor WPL 4211385 Contact Us For Availability
View on Model
13
End Frame, Assembly (Lower)
End Frame, Assembly (Lower) WPL 4211635 Contact Us For Availability
View on Model
14
Bolt, Thru (2)
Bolt, Thru (2) WPL 4211348 Contact Us For Availability
View on Model
14
Gasket, Mounting
Gasket, Mounting WPL 4211411 Contact Us For Availability
View on Model
15
Insulation, Bottom
Insulation, Bottom WPL 4211393 Contact Us For Availability
View on Model
15
Flange, Body
Flange, Body WPL 4211308 Contact Us For Availability
View on Model
16
Trim, Shell Assembly
Trim, Shell Assembly WPL 8174300 Contact Us For Availability
View on Model
16
Gasket, Body
Gasket, Body WPL 4211359 Contact Us For Availability
View on Model
17
Shell Assembly, Trim (Top)
Shell Assembly, Trim (Top) WPL 4211443 Contact Us For Availability
View on Model
18
Shredder Assembly, Rotating
Shredder Assembly, Rotating WPL 4211631 Contact Us For Availability
View on Model
18
Band Assembly, Trim
Band Assembly, Trim WPL 4211413 Contact Us For Availability
View on Model
19
Gasket, Tailpipe
Gasket, Tailpipe WPL 4211344 Contact Us For Availability
View on Model
19
Container, Body Assembly (Includes Sound Insu
Container, Body Assembly (Includes Sound Insu WPL 8174295 Contact Us For Availability
View on Model
20
Insulation, Top
Insulation, Top WPL 8174296 Contact Us For Availability
View on Model
21
Flange, Tailpipe
Flange, Tailpipe WPL 4211345 Contact Us For Availability
View on Model
21
Body, Lower
Body, Lower WPL 8174297 Contact Us For Availability
View on Model
22
Gasket, Shredder
Gasket, Shredder WPL 4211365 Contact Us For Availability
View on Model
23
Insulation, Sound
Insulation, Sound WPL 4211366 Contact Us For Availability
View on Model
24
Shredder, Stationary
Shredder, Stationary WPL 4211630 Contact Us For Availability
View on Model
25
Switch Assembly, Start & Reverse
Switch Assembly, Start & Reverse WPL 4211633 Contact Us For Availability
View on Model
25
Switch, Pushbutton
Switch, Pushbutton WPL 4211415 Contact Us For Availability
View on Model
26
Insulation, Switch Cover
Insulation, Switch Cover WPL 4211416 Contact Us For Availability
View on Model
27
Overload, Protector
Overload, Protector WPL 8174298 Contact Us For Availability
View on Model
27
Cover, Switch
Cover, Switch WPL 4211417 Contact Us For Availability
View on Model
28
Screw
Screw WPL 4211418 Contact Us For Availability
View on Model
29
Bracket, Wire Cover
Bracket, Wire Cover WPL 4211419 Contact Us For Availability
View on Model
30
Screw, Ground
Screw, Ground WPL 4211330 Contact Us For Availability
View on Model
31
Cover, Terminal
Cover, Terminal WPL 4211611 Contact Us For Availability
View on Model
34
Shield, Wire Cover
Shield, Wire Cover WPL 4211422 Contact Us For Availability
View on Model
36
Shield, Wire
Shield, Wire WPL 4211326 Contact Us For Availability
View on Model
37
Clip, Capacitor
Clip, Capacitor WPL 8174299 Contact Us For Availability
View on Model
