Model Maytag 4KAER7685EW1 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams

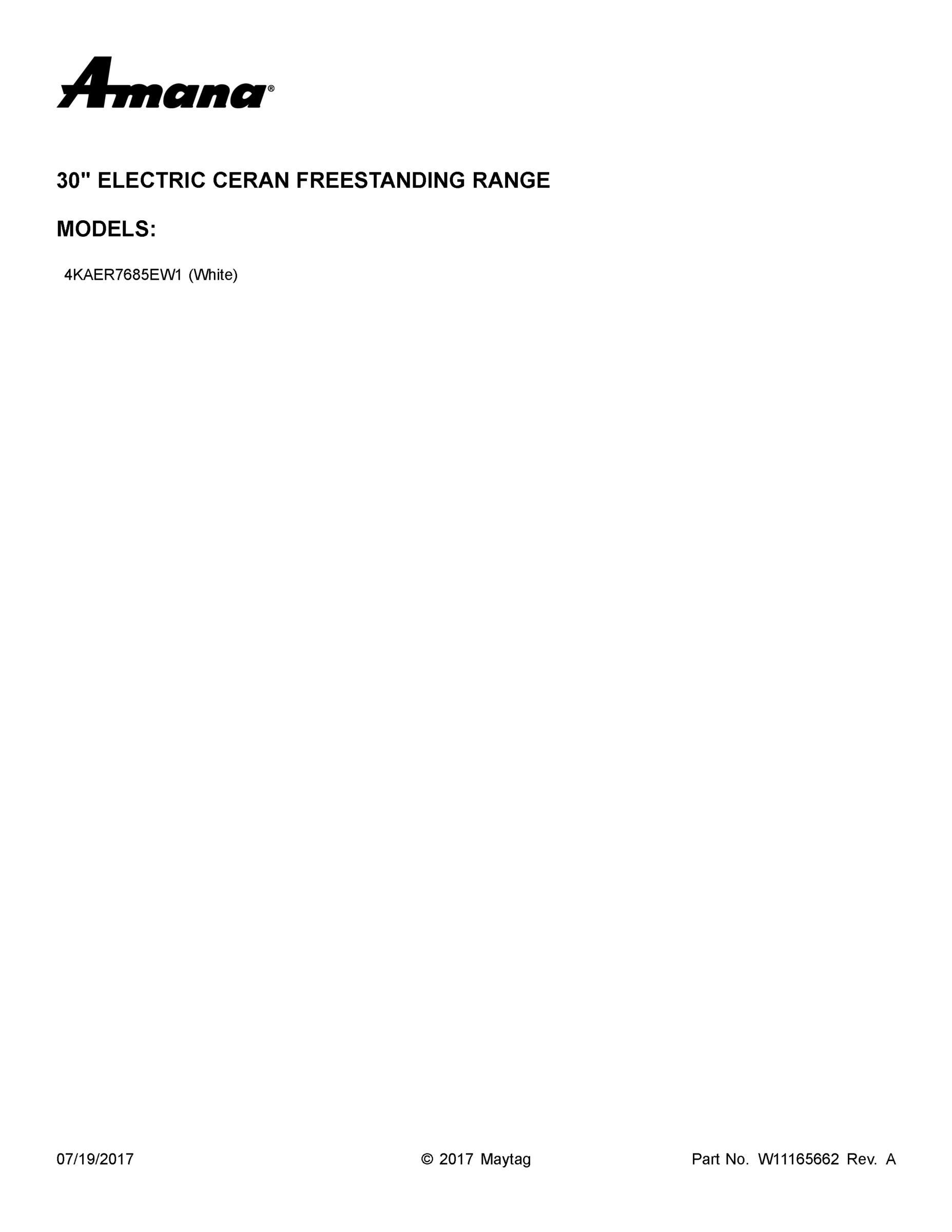

01 - COVER SHEET

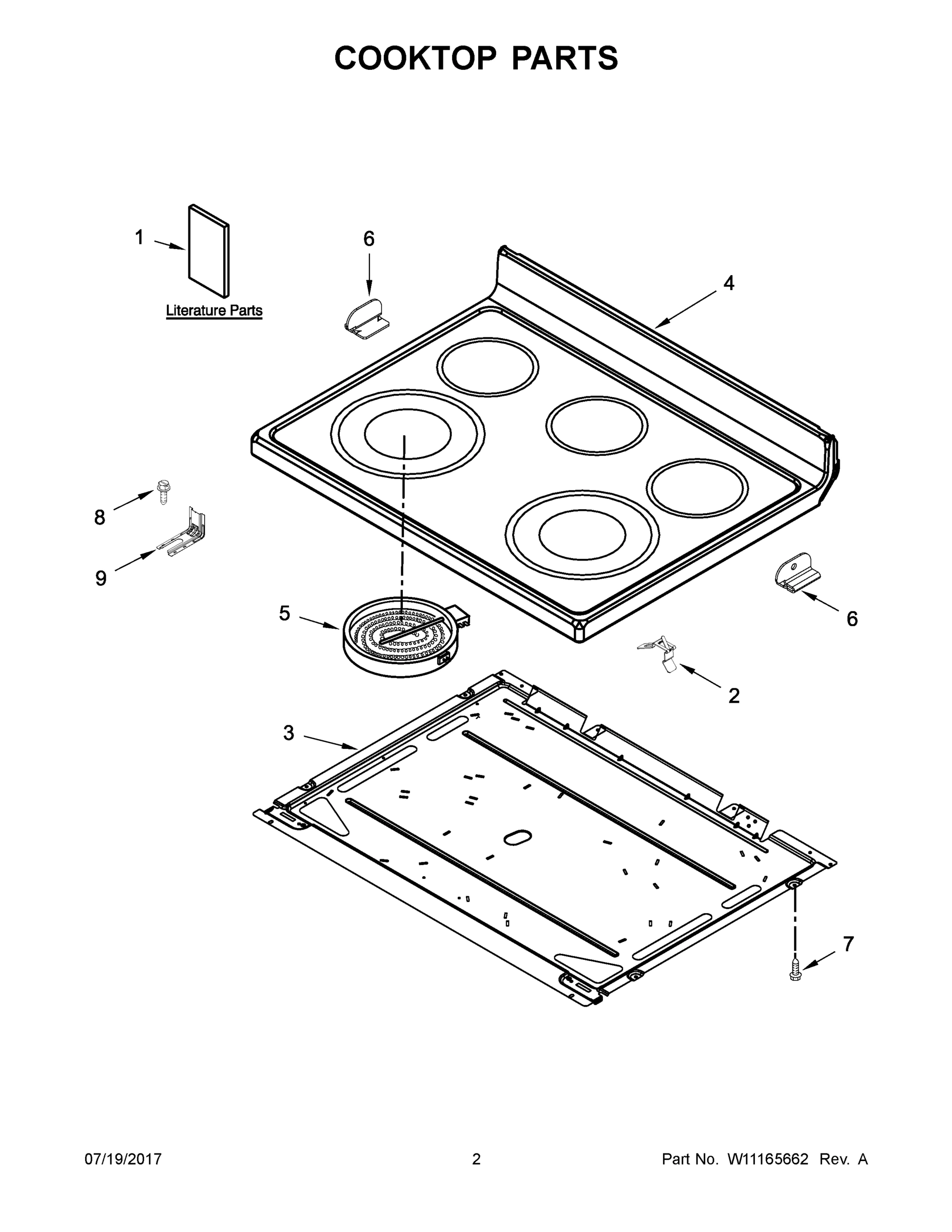

02 - COOKTOP PARTS
03 - CONTROL PANEL PARTS
04 - CHASSIS PARTS
05 - DOOR PARTS
06 - DRAWER PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag 4KAER7685EW1 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
ENDCAP (WHITE (LEFT)) MAY W10184433 Contact Us For Availability
1
TUBE, VENT MAY W10134285 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
GLIDE, DRAWER REAR MAY W10674708 Contact Us For Availability
1A
USE AND CARE GUIDE (ARABIC) MAY W10771751 Contact Us For Availability
1A
ENDCAP (WHITE (RIGHT)) MAY W10184434 Contact Us For Availability
1B
TECH SHEET (ENGLISH) MAY W10716151 Contact Us For Availability
1C
TECH SHEET (ARABIC) MAY W10720111 Contact Us For Availability
1D
TEMPLATE, ANTI TIP (ENGLISH/FRENCH) MAY 9757143 Contact Us For Availability
1E
TEMPLATE, ANTI-TIP (ENGLISH/SPANISH) MAY 9757142 Contact Us For Availability
1F
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
2
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
2
BRACKET, CONSOLE MOUNTING MAY W10525121 Contact Us For Availability
2
CLIP, OVEN SUPPORT MAY W10404688 Contact Us For Availability
2
SCREW MAY W10168559 Contact Us For Availability
2
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
3
PAN, RADIANT ELEMENT MAY W10691223 Contact Us For Availability
3
PANEL, CONTROL (WHITE) MAY W10772083 Contact Us For Availability
3
PANEL, SIDE (WHITE) MAY W10575396 Contact Us For Availability
3
HANDLE, DOOR (WHITE) MAY W10323588 Contact Us For Availability
3
BRACKET, MOUNTING DRAWER MAY W10462912 Contact Us For Availability
4
COOKTOP (WHITE) MAY W10720823 Contact Us For Availability
4
SWITCH, INFINITE (RIGHT FRONT) MAY 3148954 Contact Us For Availability
4
SCREW MAY 3196560 Contact Us For Availability
4
LINER, DOOR MAY 9761344 Contact Us For Availability
4
RIVET, PUSH (WHITE) MAY 3196814 Contact Us For Availability
4A
SWITCH, INFINITE (RIGHT REAR AND LEFT REAR) MAY 3148951 Contact Us For Availability
4B
SWITCH, INFINITE (DUAL) (LEFT FRONT) MAY W10434452 Contact Us For Availability
5
ELEMENT (3000W) (LEFT FRONT) MAY W10711900 Contact Us For Availability
5
CLIP, SPRING MAY 3196200 Contact Us For Availability
5
SEAL, DOOR MAY W10658354 Contact Us For Availability
5
STRAP, DOOR MAY W10544179 Contact Us For Availability
5
PANEL, DRAWER FRONT (WHITE) MAY 8053339 Contact Us For Availability
5A
ELEMENT (2500W) (RIGHT FRONT) MAY 8273992 Contact Us For Availability
5B
ELEMENT (1200W) (RIGHT REAR AND LEFT REAR) MAY 8273994 Contact Us For Availability
5C
ELEMENT, WARM ZONE (CENTER REAR) MAY W10799047 Contact Us For Availability
6
BRACKET, COOKTOP (LEFT) MAY W10607641 Contact Us For Availability
6
LENS, INDICATOR MAY 3196068 Contact Us For Availability
6
SCREW MAY 3196165 Contact Us For Availability
6
ELEMENT, BAKE MAY 9755770 Contact Us For Availability
6
GLASS, INNER MAY 9758162 Contact Us For Availability
6A
BRACKET, COOKTOP (RIGHT) MAY W10607642 Contact Us For Availability
7
KNOB, INFINITE (WHITE) MAY 9761962 Contact Us For Availability
7
ELEMENT, BROIL MAY 9757340 Contact Us For Availability
7
FRAME, GLASS MAY W10316950 Contact Us For Availability
8
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
8
SHIELD, HEAT MAY W10134247 Contact Us For Availability
8
ASSEMBLY, DOOR LATCH (FRONT) MAY 9761013 Contact Us For Availability
8
INSULATION, DOOR STRIP MAY W10278991 Contact Us For Availability
9
BRACKET, ANTI-TIP MAY W10306542 Contact Us For Availability
9
BRACKET, CONTROL MAY W10695491 Contact Us For Availability
9
FUSE, THERMAL MAY 3196548 Contact Us For Availability
9
RETAINER, INSULATION MAY 9761357 Contact Us For Availability
10
COVER, UPPER REAR MAY 8272473 Contact Us For Availability
10
NUT MAY 3400968 Contact Us For Availability
10
HINGE, ACTIVE (WITH SPRING) MAY W10299224 Contact Us For Availability
11
CONTROL, RANGE (LCC 95) (WHITE) MAY W10887919 Contact Us For Availability
11
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
11
GLASS, OUTER (WHITE) MAY W10118454 Contact Us For Availability
12
SHIELD, HEAT MAY W10134125 Contact Us For Availability
12
TRIM, SIDE (WHITE (LEFT)) MAY 8523172 Contact Us For Availability
12A
TRIM, SIDE (WHITE (RIGHT)) MAY 8523166 Contact Us For Availability
13
BUTTON, KEEP WARM (WHITE) MAY 9757492 Contact Us For Availability
13
TRAY, INSULATION MAY W10134121 Contact Us For Availability
13
SCREW MAY W10327235 Contact Us For Availability
14
SCREW MAY 3400882 Contact Us For Availability
14
TRIM, LOWER (WHITE) MAY 8523175 Contact Us For Availability
15
BEZEL, KEEP WARM (WHITE) MAY W10217760 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
SCREW MAY W10031790 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
16
FOOT, LEVELING MAY W10058460 Contact Us For Availability
16
SCREW MAY W10031780 Contact Us For Availability
17
SWITCH, WARM ZONE MAY 8272820 Contact Us For Availability
17
GLIDE, DRAWER FRONT MAY W10674705 Contact Us For Availability
17
SCREW MAY W10200660 Contact Us For Availability
18
LIGHT, INDICATOR (125V) MAY 8523265 Contact Us For Availability
18
CLIP, PANEL MAY W10137382 Contact Us For Availability
18
ROD, DOOR SWITCH MAY 9757239 Contact Us For Availability
19
CLIP, SPRING STEEL MAY W10183541 Contact Us For Availability
19
HINGE, DOOR (PASSIVE) MAY W10299227 Contact Us For Availability
20
BRACKET, SERVICE MAY 3186034 Contact Us For Availability
21
TRAY, HIDDEN BAKE MAY W10183712 Contact Us For Availability
22
BACK, MAIN MAY W10289149 Contact Us For Availability
23
SWITCH, DOOR MAY W10627802 Contact Us For Availability
24
ASSEMBLY, LIGHT MAY W10454648 Contact Us For Availability
25
BULB, OVEN LIGHT MAY 311255 Contact Us For Availability
26
SCREEN, VENT MAY 9761301 Contact Us For Availability
27
SENSOR, OVEN MAY W10181986 Contact Us For Availability
28
COVER, TERMINAL BLOCK MAY W10326122 Contact Us For Availability
29
SCREW MAY 3196169 Contact Us For Availability
30
SCREW MAY 3400016 Contact Us For Availability
31
SCREW MAY 3196172 Contact Us For Availability
32
ROD, LATCH MAY W10078380 Contact Us For Availability
33
SCREW MAY W10067840 Contact Us For Availability
34
ASSEMBLY, DOOR LATCH (REAR) MAY W10107820 Contact Us For Availability
35
SCREW MAY 3196174 Contact Us For Availability
36
COUNTERWEIGHT MAY W10910404 Contact Us For Availability
37
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
38
RACK, OVEN MAY W10268578 Contact Us For Availability
39
BLOCK, TERMINAL MAY W10245259 Contact Us For Availability
41
SCREW MAY W11034869 Contact Us For Availability
NI
CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, SENSOR MAY W10084660 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP RIGHT) MAY W10261085 Contact Us For Availability
NI
HARNESS, WARM ZONE MAY W10278580 Contact Us For Availability
NI
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP LEFT) MAY W10349661 Contact Us For Availability
NI
HARNESS, HIDDEN BAKE MAY W10465644 Contact Us For Availability
NI
HARNESS, MAIN MAY W10744973 Contact Us For Availability
NI
INSULATION, BACK MAY W10326347 Contact Us For Availability
NI
INSULATION, FLUE MAY W10333344 Contact Us For Availability
NI
CARD, INSULATOR MAY W10646923 Contact Us For Availability
NI
INSULATION, WRAP MAY W10774939 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GLASS MAY 3184478 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
× ![]()
