Model Maytag 4KAER5500AW0 ELECTRIC RANGE – Common Parts & Diagrams

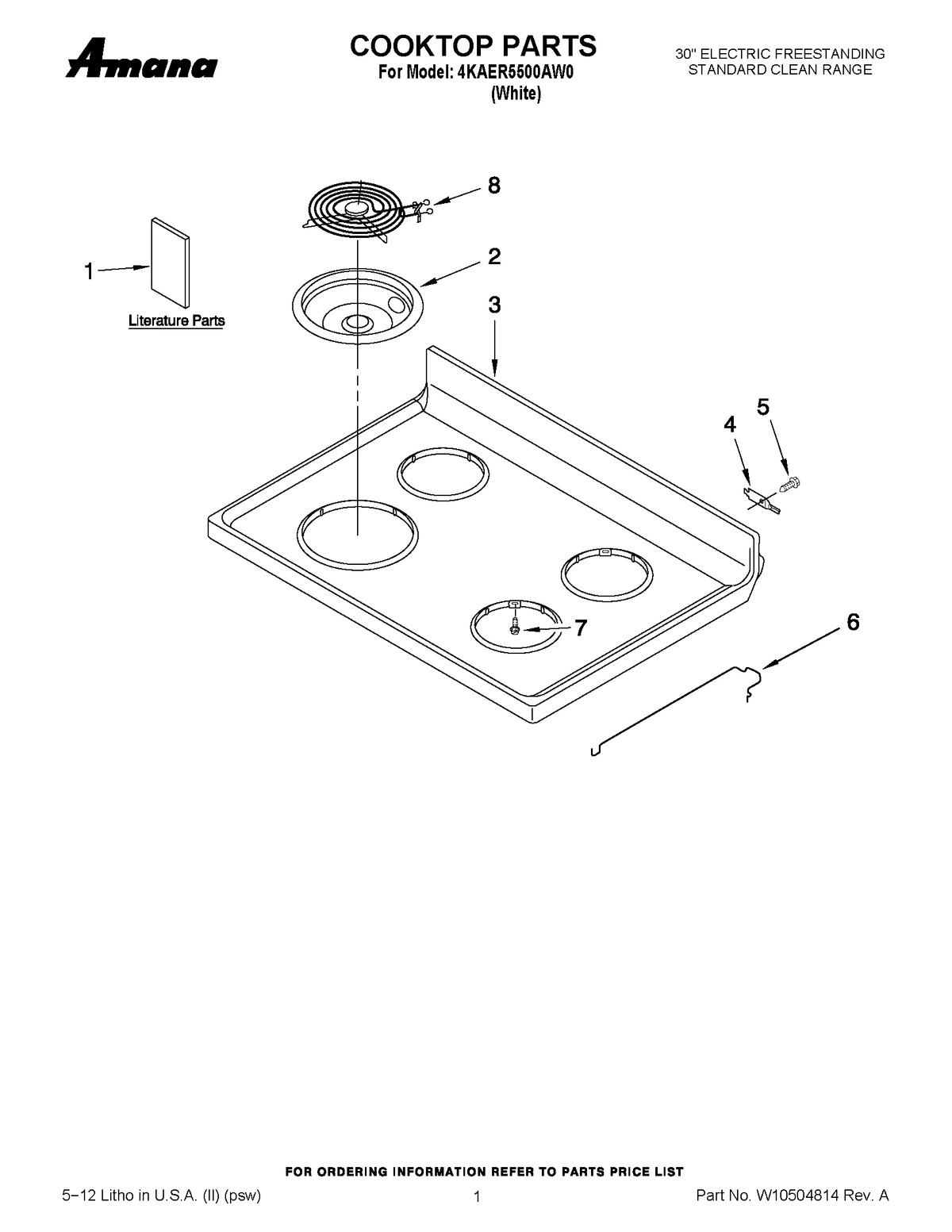

01 - COOKTOP PARTS

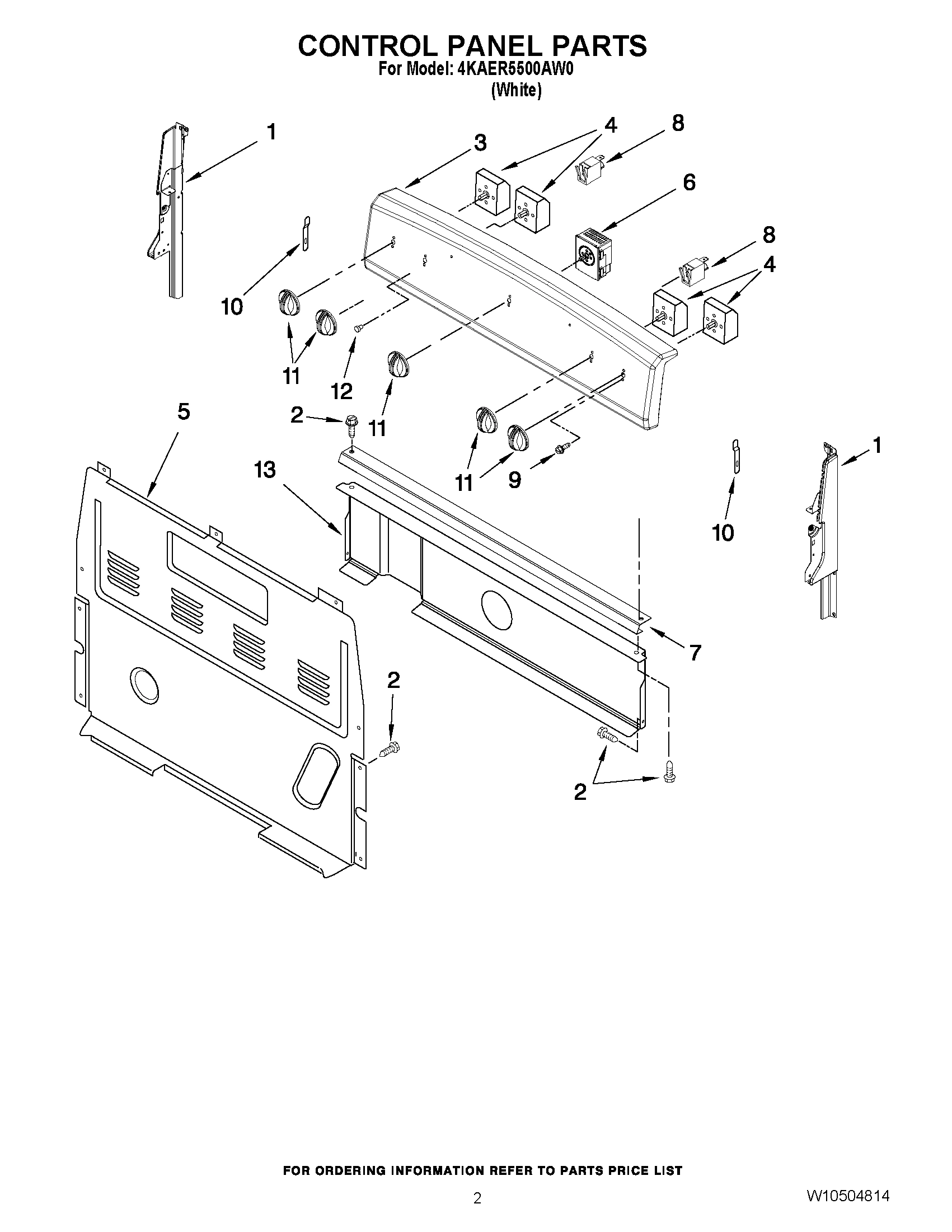

02 - CONTROL PANEL PARTS

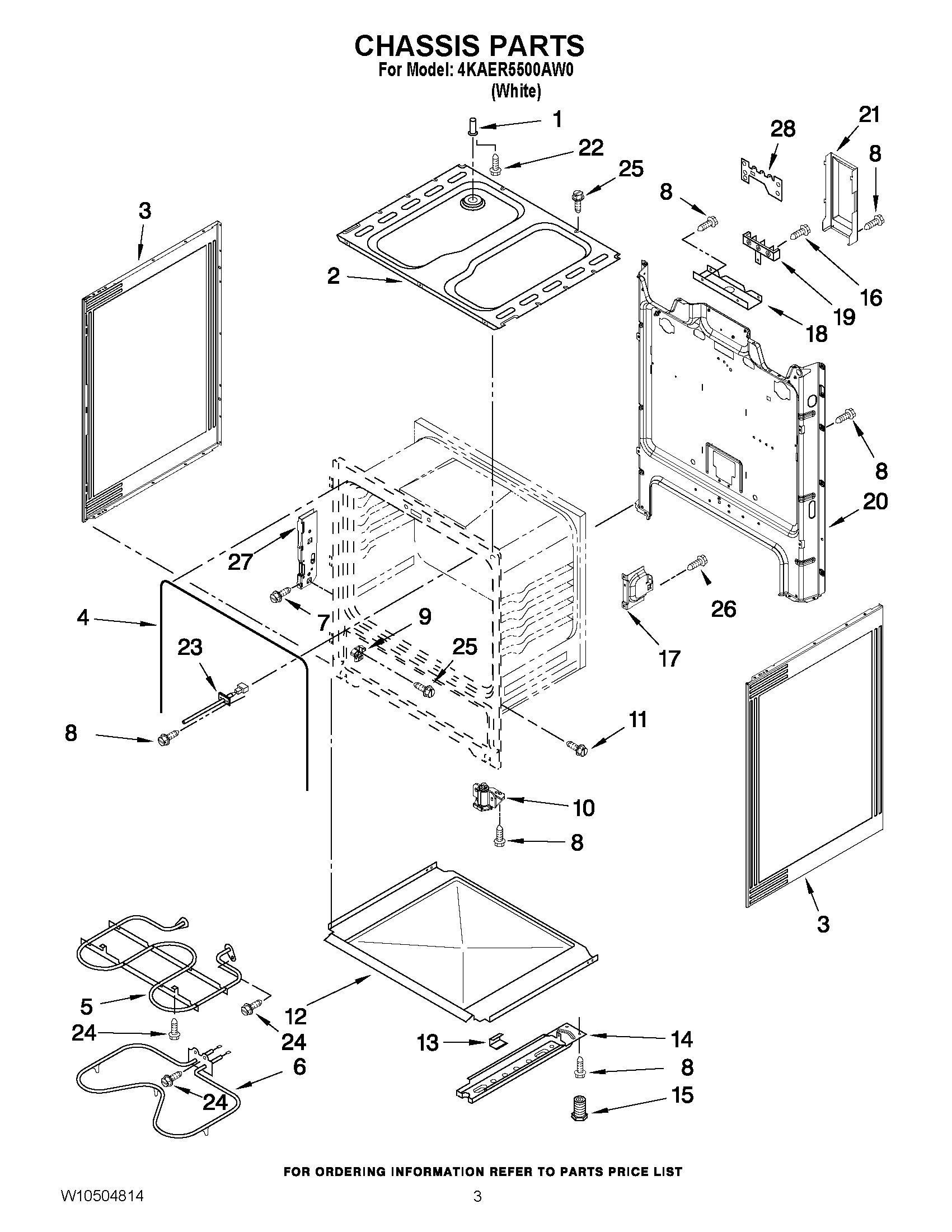

03 - CHASSIS PARTS

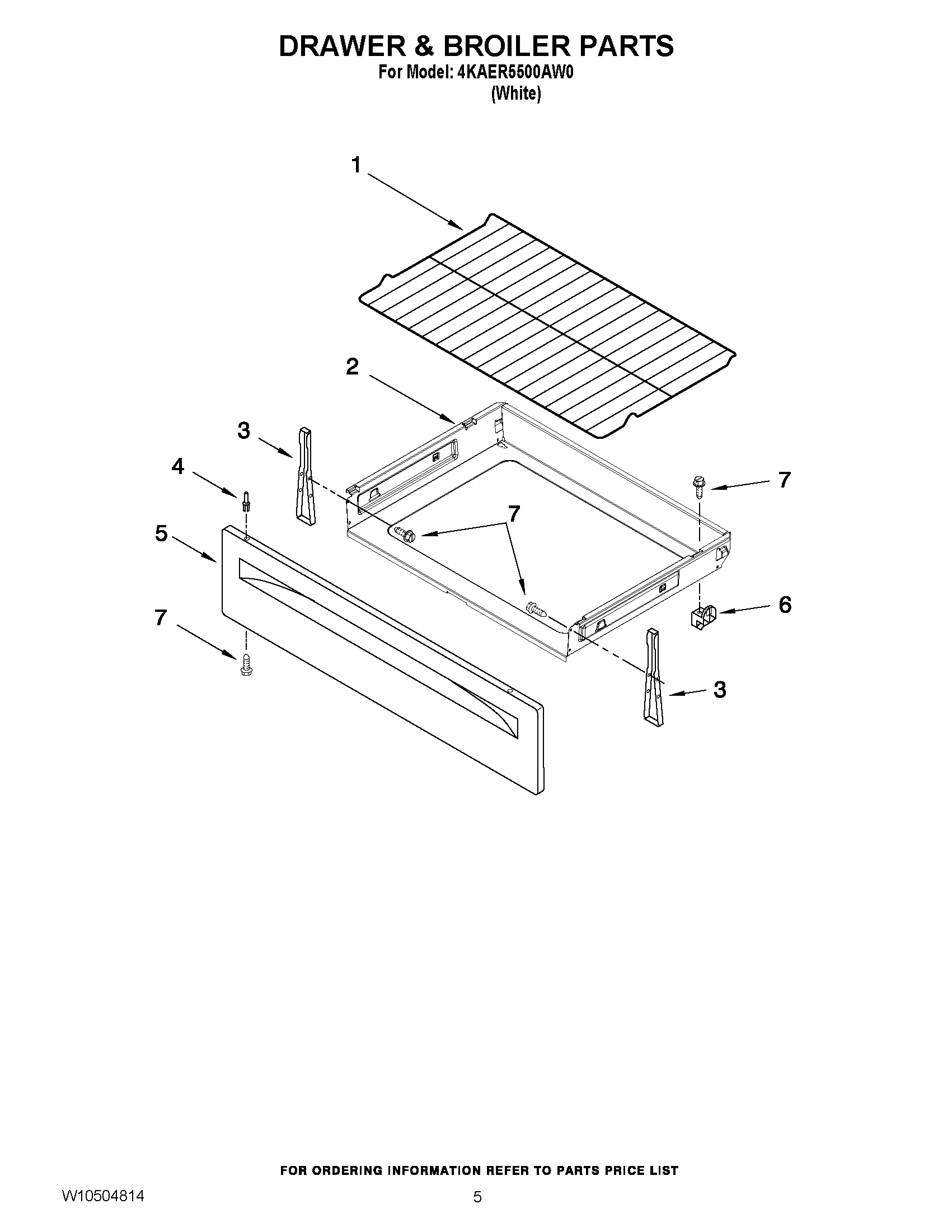

04 - DRAWER & BROILER PARTS

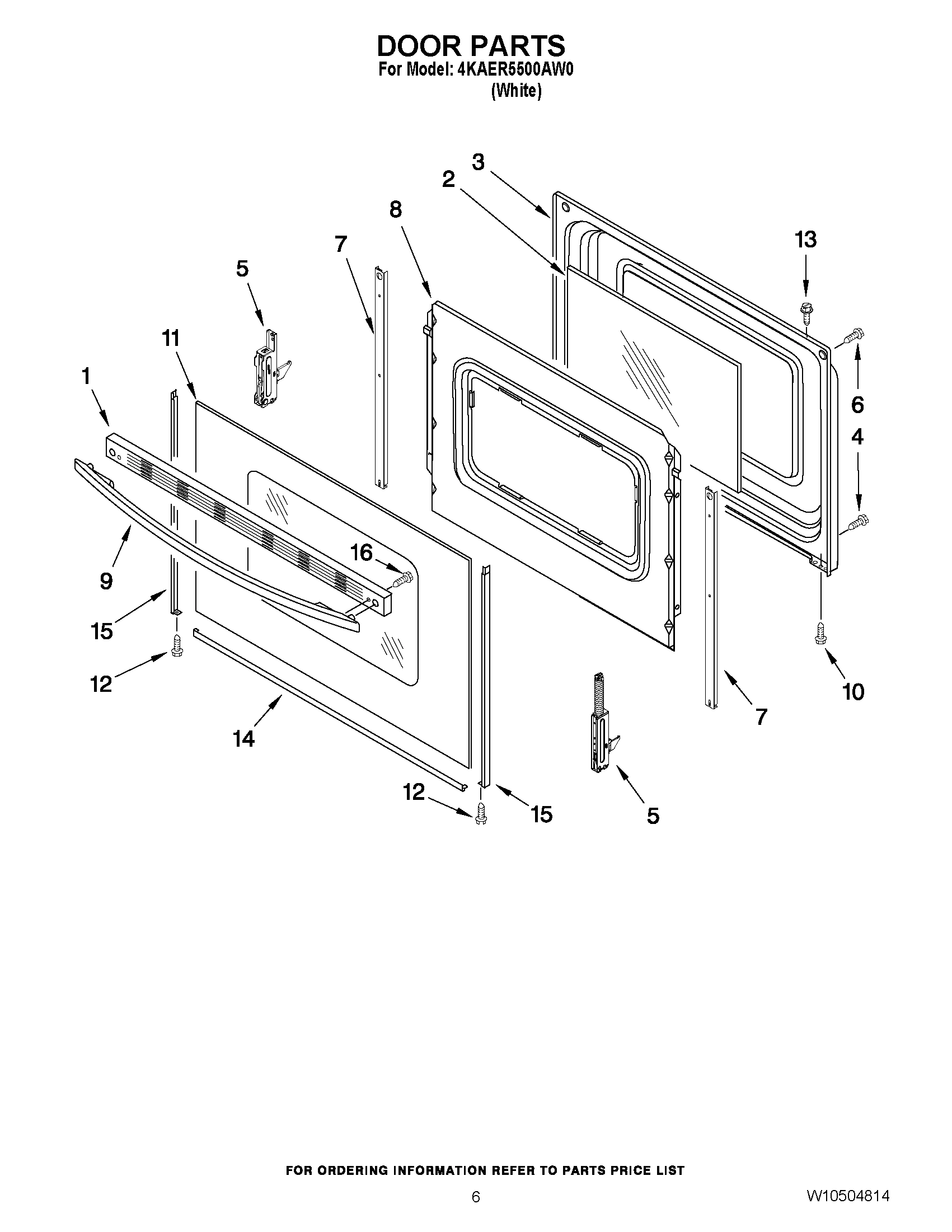

05 - DOOR PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag 4KAER5500AW0 ELECTRIC RANGE
1
MAY W10394781 MAY W10394781 Contact Us For Availability
1
MAY W10394782 MAY W10394782 Contact Us For Availability
1
SHEET, TECH (ENGLISH) MAY W10394783 Contact Us For Availability
1
MAY W10464419 MAY W10464419 Contact Us For Availability
1
MAY W10464420 MAY W10464420 Contact Us For Availability
1
SHEET, TECH (ARABIC) MAY W10464421 Contact Us For Availability
1
ENDCAP (LEFT HAND) MAY W10184433 Contact Us For Availability
1
ENDCAP (RIGHT HAND) MAY W10184434 Contact Us For Availability
1
VENT TUBE MAY 3169143 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
TRIM, VENT MAY W10310920 Contact Us For Availability
2
BOWL, DRIP (8``) MAY W10196405 Contact Us For Availability
2
BOWL, DRIP (6``) MAY W10196406 Contact Us For Availability
2
MAY W10209613 MAY W10209613 Contact Us For Availability
2
MAY W10300032 MAY W10300032 Contact Us For Availability
2
MAY 9758162 MAY 9758162 Contact Us For Availability
3
COOKTOP MAY 3186231 Contact Us For Availability
3
MAY W10259290 MAY W10259290 Contact Us For Availability
3
PANEL, SIDE MAY W10322769 Contact Us For Availability
3
BRACKET, DRAWER MAY W10462912 Contact Us For Availability
3
MAY 9761344 MAY 9761344 Contact Us For Availability
4
MAY 3195060 MAY 3195060 Contact Us For Availability
4
SWITCH, INFINITE (USE W/ 6`` ELEMENT) MAY 3148951 Contact Us For Availability
4
SWITCH, INFINITE (USE W/ 8`` ELEMENT) MAY 3148953 Contact Us For Availability
4
Seal, Oven Door MAY W10129032 Contact Us For Availability
4
MAY W10031780 MAY W10031780 Contact Us For Availability
4
RIVET, PUSH MAY 3196814 Contact Us For Availability
5
MAY 8272473 MAY 8272473 Contact Us For Availability
5
ELEMENT, BROIL (3400W) MAY W10308476 Contact Us For Availability
5
PANEL, DRAWER FRNT MAY 8053339 Contact Us For Availability
5
HINGE (ACTIVE (W/SPRING)) MAY W10299225 Contact Us For Availability
5
HINGE (PASSIVE(NO SPRING)) MAY W10299227 Contact Us For Availability
6
ROD, SUPPORT MAY 3195812 Contact Us For Availability
6
CNTRL-ELEC ROC70 MAY W10466758 Contact Us For Availability
6
ELEMENT, BAKE (2400W) MAY W10308477 Contact Us For Availability
6
GLIDE, DRAWER MAY W10317899 Contact Us For Availability
6
MAY W10200660 MAY W10200660 Contact Us For Availability
7
MAY W10182322 MAY W10182322 Contact Us For Availability
7
STRAP, DOOR MAY W10113759 Contact Us For Availability
8
MAY 3196178 MAY 3196178 Contact Us For Availability
8
ELEMENT, SURFACE (8`` (1580/2100W)) MAY W10259867 Contact Us For Availability
8
ELEMENT, SURFACE (6`` (940/1250W)) MAY W10259870 Contact Us For Availability
8
INDICATOR, 250V MAY 8523266 Contact Us For Availability
8
MAY 9761501 MAY 9761501 Contact Us For Availability
9
MAY 3400882 MAY 3400882 Contact Us For Availability
9
GLIDE, DRAWER FRNT MAY W10317898 Contact Us For Availability
9
HANDLE, DOOR MAY W10144888 Contact Us For Availability
10
MAY 3196200 MAY 3196200 Contact Us For Availability
10
FOOT, FRONT MAY W10341186 Contact Us For Availability
10
MAY 3196160 MAY 3196160 Contact Us For Availability
11
KNOB MAY 9761962 Contact Us For Availability
11
MAY W10067840 MAY W10067840 Contact Us For Availability
11
GLASS, OUTER MAY W10118454 Contact Us For Availability
12
MAY 3196068 MAY 3196068 Contact Us For Availability
12
Tray, Insulation MAY 8054068 Contact Us For Availability
12
MAY 3196165 MAY 3196165 Contact Us For Availability
13
MAY W10134247 MAY W10134247 Contact Us For Availability
13
CLIP, PANEL SIDE MAY W10137382 Contact Us For Availability
13
MAY W10031790 MAY W10031790 Contact Us For Availability
14
ASSY, BASE RAIL (LEFT HAND) MAY W10390007 Contact Us For Availability
14
ASSY, BASE RAIL (RIGHT HAND) MAY W10390008 Contact Us For Availability
14
TRIM, LOWER MAY 8523175 Contact Us For Availability
15
FOOT, REAR MAY W10058460 Contact Us For Availability
15
TRIM, DOOR SIDE (RIGHT SIDE) MAY 8523166 Contact Us For Availability
15
TRIM, DOOR SIDE (LEFT SIDE) MAY 8523172 Contact Us For Availability
16
MAY 3400016 MAY 3400016 Contact Us For Availability
16
MAY W10178143 MAY W10178143 Contact Us For Availability
17
BRACKET, OVEN SUPPORT, LATCH MAY W10355173 Contact Us For Availability
18
MAY 3186034 MAY 3186034 Contact Us For Availability
19
MAY W10245259 MAY W10245259 Contact Us For Availability
20
MAY W10289149 MAY W10289149 Contact Us For Availability
21
MAY W10326122 MAY W10326122 Contact Us For Availability
22
MAY 3196567 MAY 3196567 Contact Us For Availability
23
SENSOR MAY W10181986 Contact Us For Availability
26
MAY 3196169 MAY 3196169 Contact Us For Availability
27
MAY W10289077 MAY W10289077 Contact Us For Availability
28
MAY W10451176 MAY W10451176 Contact Us For Availability
NI
SCREW, GRND-CKTOP MAY 3196154 Contact Us For Availability
NI
SCREW, GRND-BACK MAY 3196174 Contact Us For Availability
NI
MAY 8272611 MAY 8272611 Contact Us For Availability
NI
MAY 8273263 MAY 8273263 Contact Us For Availability
NI
KIT, BARE WIRE MAY W10281322 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PEIMER) (W MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
KIT, CANNING UNIT (COIL ELEM. MDLS.) MAY 242905 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
SCREW, GROUND MAY 3196173 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (ALMOND (UNCUT)) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 4392901 Contact Us For Availability
NI
PROCELAIN BROILER (PAN AND GRID) MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
PAN, BROILER MAY W10123240 Contact Us For Availability
NI
HARNESS, SURFACE UNITS MAY W10279107 Contact Us For Availability
NI
ANTI-TIP KIT MAY W10306542 Contact Us For Availability
NI
CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
HARNESS, MAIN MAY W10464026 Contact Us For Availability
× ![]()
