Model Maytag 4GMVWX500YW1 WASHER – Common Parts & Diagrams
01 - TOP AND CABINET PARTS

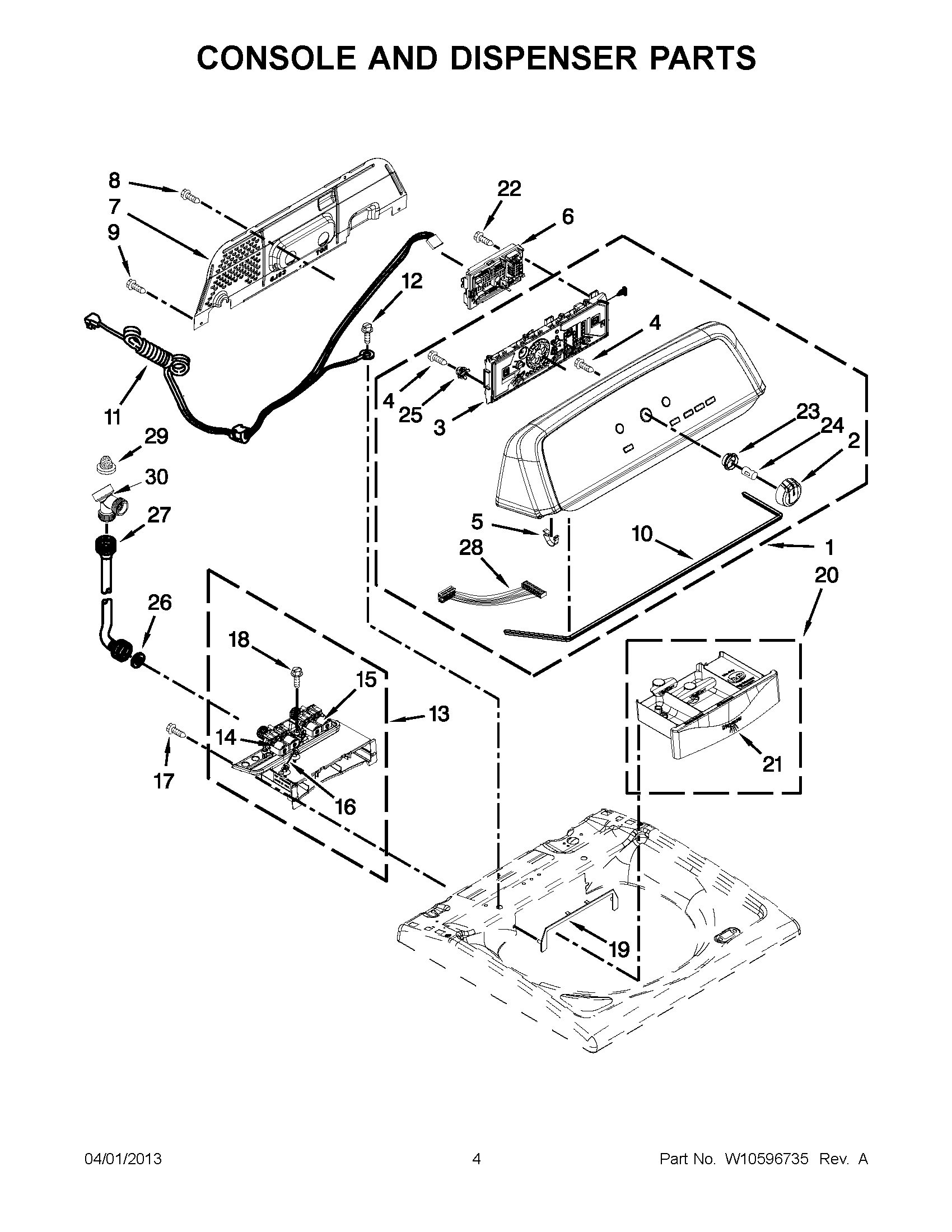

02 - CONSOLE AND DISPENSER PARTS

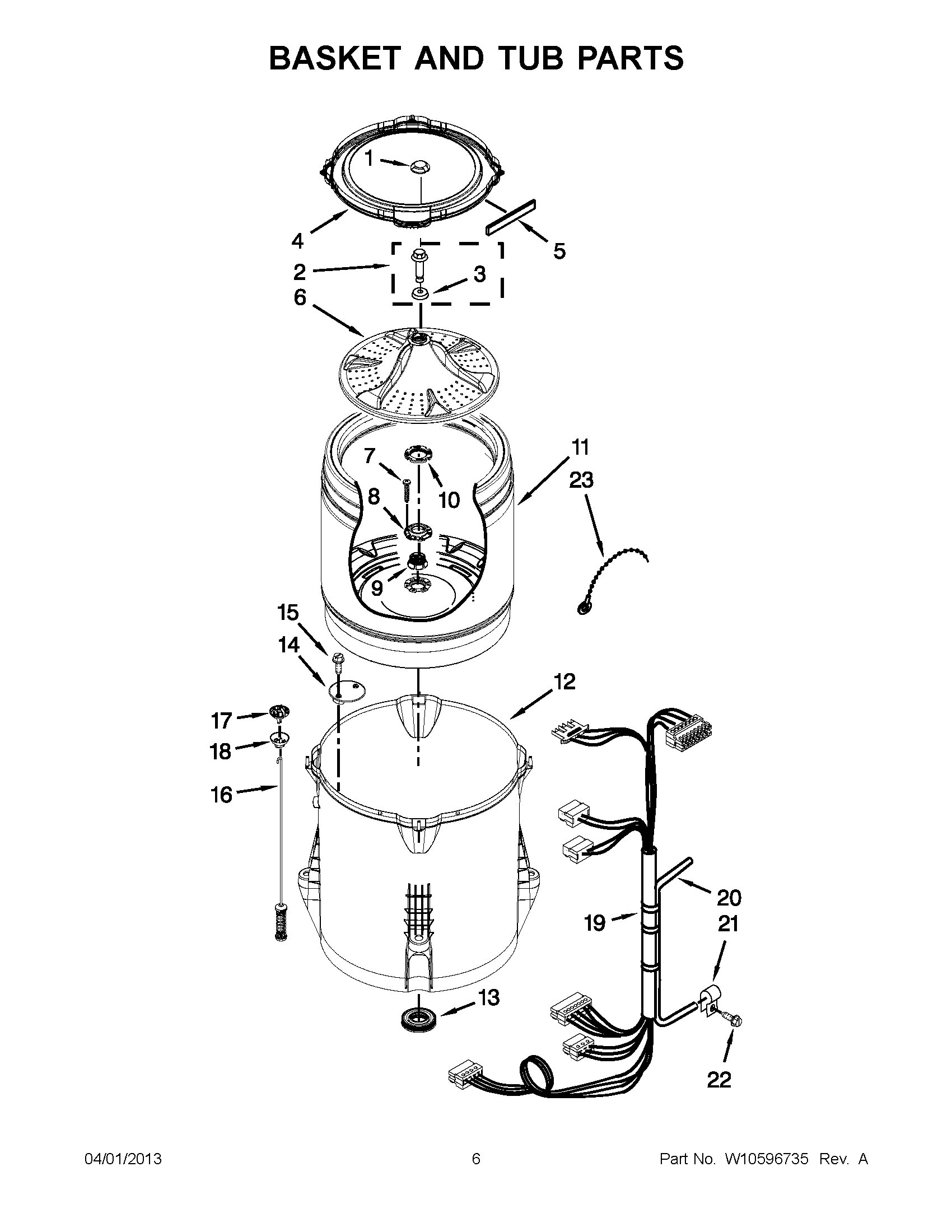

03 - BASKET AND TUB PARTS

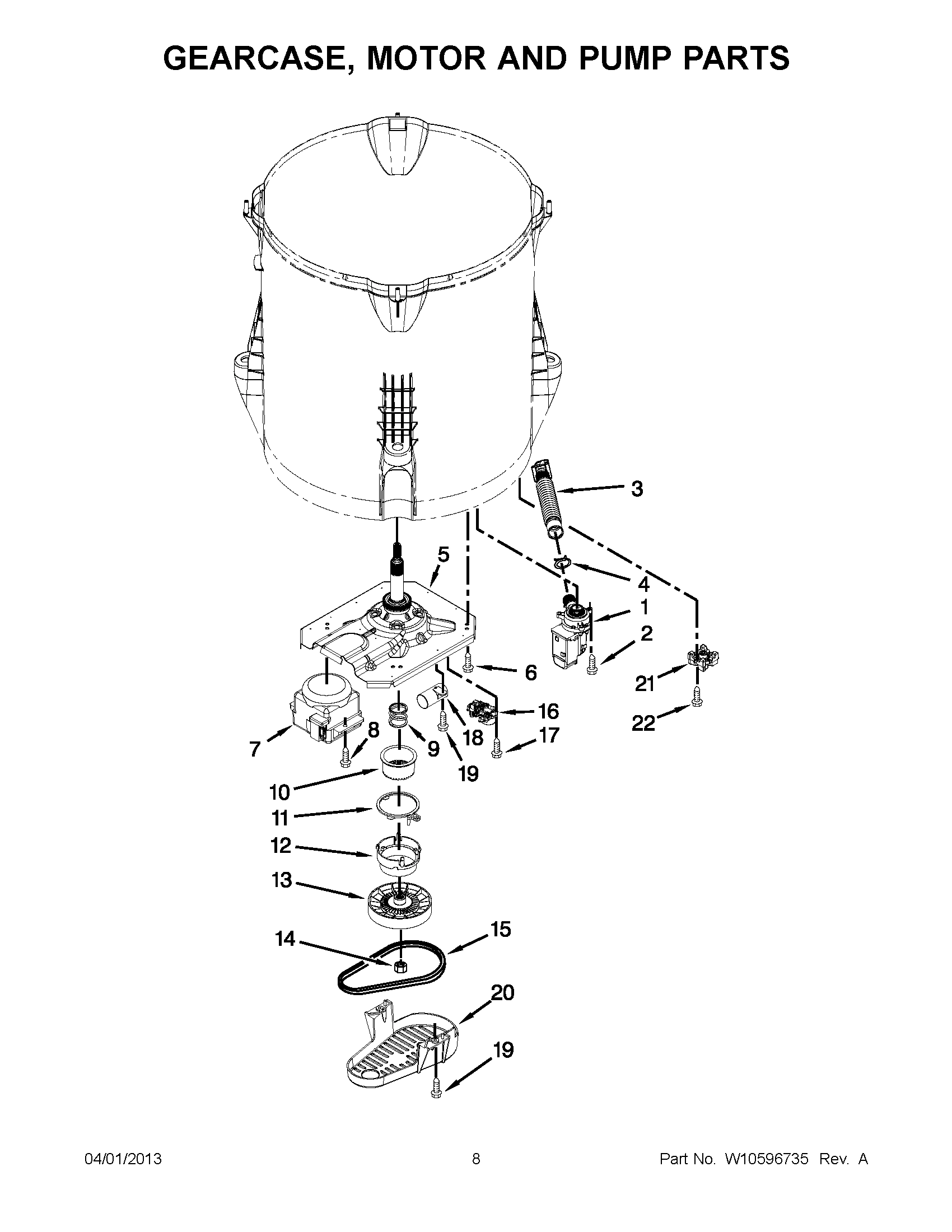

04 - GEARCASE, MOTOR AND PUMP PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 4GMVWX500YW1 WASHER
1
MAY W10492230 MAY W10492230 Contact Us For Availability
1
MAY W10549309 MAY W10549309 Contact Us For Availability
1
MAY W10549313 MAY W10549313 Contact Us For Availability
1
MAY W10460136 MAY W10460136 Contact Us For Availability
1
HINGE, SPRING ASSEMBLY MAY W10305251 Contact Us For Availability
1
MAY W10297344 MAY W10297344 Contact Us For Availability
2
TOP (WHITE) MAY W10238290 Contact Us For Availability
2
KNOB, CONTROL (CHROME) MAY W10251381 Contact Us For Availability
2
SCREW & WASHER MAY W10003790 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
LID & BUMPER ASSEMBLY (WHITE) MAY W10270565 Contact Us For Availability
3
MAY W10272630 MAY W10272630 Contact Us For Availability
3
MAY 3949550 MAY 3949550 Contact Us For Availability
3
MAY W10215091 MAY W10215091 Contact Us For Availability
4
BUMPER, LID MAY 9724509 Contact Us For Availability
4
MAY W10219342 MAY W10219342 Contact Us For Availability
4
TUB RING MAY W10215146 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
MAY W10295775 MAY W10295775 Contact Us For Availability
5
MAY 8312709 MAY 8312709 Contact Us For Availability
5
MAY W10205824 MAY W10205824 Contact Us For Availability
5
GEARCASE ASSEMBLY MAY W10524955 Contact Us For Availability
6
MAY W10294031 MAY W10294031 Contact Us For Availability
6
MAY W10480662 MAY W10480662 Contact Us For Availability
6
MAY W10215116 MAY W10215116 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
SCREW, LID HINGE MAY W10119828 Contact Us For Availability
7
MAY W10420984 MAY W10420984 Contact Us For Availability
7
SCREW MAY 8533953 Contact Us For Availability
7
MAY W10249630 MAY W10249630 Contact Us For Availability
8
MAY W10240513 MAY W10240513 Contact Us For Availability
8
SCREW MAY 3390647 Contact Us For Availability
8
HUB - DRIVEN, BASKET MAY W10291415 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
MAY 1157158 MAY 1157158 Contact Us For Availability
9
BLOCK, BASKET DRIVE MAY W10291416 Contact Us For Availability
9
SPRING, SPLUTCH MAY W10326374 Contact Us For Availability
10
MAY W10240977 MAY W10240977 Contact Us For Availability
10
MAY W10280079 MAY W10280079 Contact Us For Availability
10
NUT, SPANNER MAY W10291417 Contact Us For Availability
10
SLIDER, SPLUTCH MAY W10006352 Contact Us For Availability
11
MAY W10392041 MAY W10392041 Contact Us For Availability
11
MAY W10453573 MAY W10453573 Contact Us For Availability
11
BASKET ASSEMBLY MAY W10238268 Contact Us For Availability
11
CAM RING, SPLUTCH MAY W10006353 Contact Us For Availability
12
MAY W10293230 MAY W10293230 Contact Us For Availability
12
MAY W10293272 MAY W10293272 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
TUB MAY W10238301 Contact Us For Availability
12
CAM, SPLUTCH MAY W10006354 Contact Us For Availability
13
MAY 90016 MAY 90016 Contact Us For Availability
13
HOUSING ASSEMBLY - DISPENSER MAY W10287482 Contact Us For Availability
13
MAY W10006371 MAY W10006371 Contact Us For Availability
13
MAY W10006356 MAY W10006356 Contact Us For Availability
14
LOCK, LID MAY W10294102 Contact Us For Availability
14
MAY W10240976 MAY W10240976 Contact Us For Availability
14
MAY W10215093 MAY W10215093 Contact Us For Availability
14
MAY W10163336 MAY W10163336 Contact Us For Availability
15
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
15
MAY W10240975 MAY W10240975 Contact Us For Availability
15
SCREW (STAINLESS) MAY 8533928 Contact Us For Availability
15
MAY W10006384 MAY W10006384 Contact Us For Availability
16
MAY W10333228 MAY W10333228 Contact Us For Availability
16
MAY W10368547 MAY W10368547 Contact Us For Availability
16
MAY W10257085 MAY W10257085 Contact Us For Availability
16
MAY W10249623 MAY W10249623 Contact Us For Availability
17
MAY W10478060 MAY W10478060 Contact Us For Availability
17
SCREW, DISPENSER HOUSING MOUNTING MAY 3400061 Contact Us For Availability
17
BALL, SUSPENSION (SET OF 4 - INCLUDES SUSPENS MAY W10405423 Contact Us For Availability
17
SCREW MAY 9741052 Contact Us For Availability
18
MAY W10215098 MAY W10215098 Contact Us For Availability
18
SCREW MAY 97787 Contact Us For Availability
18
BUSHING - UPPER SUSPENSION (SET OF 4 - INCLUD MAY W10256551 Contact Us For Availability
18
MAY W10349182 MAY W10349182 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10512626 Contact Us For Availability
19
MAY W10240946 MAY W10240946 Contact Us For Availability
19
HARNESS, LOWER MAY W10328392 Contact Us For Availability
19
SCREW MAY 357640 Contact Us For Availability
20
MAY W10240960 MAY W10240960 Contact Us For Availability
20
MAY W10312655 MAY W10312655 Contact Us For Availability
20
MAY W10427633 MAY W10427633 Contact Us For Availability
21
MAY W10248088 MAY W10248088 Contact Us For Availability
21
MAY W10287478 MAY W10287478 Contact Us For Availability
21
CLAMP, CABLE MAY W10005430 Contact Us For Availability
21
MAY W10238318 MAY W10238318 Contact Us For Availability
22
MAY W10397994 MAY W10397994 Contact Us For Availability
22
SCREW MAY 9740848 Contact Us For Availability
22
SCREW MAY 8533943 Contact Us For Availability
22
SCREW MAY W10238319 Contact Us For Availability
23
PANEL, REAR MAY W10250884 Contact Us For Availability
23
MAY W10326923 MAY W10326923 Contact Us For Availability
23
MAY W10298887 MAY W10298887 Contact Us For Availability
24
CLIP, SPRING MAY 8536939 Contact Us For Availability
25
SCREW MAY W10142728 Contact Us For Availability
25
TENSIONER, FASCIA MAY W10274524 Contact Us For Availability
26
MAY W10215139 MAY W10215139 Contact Us For Availability
26
WASHER, HOSE ADAPTER MAY 3357450 Contact Us For Availability
27
MAY W10194210 MAY W10194210 Contact Us For Availability
27
MAY W10194211 MAY W10194211 Contact Us For Availability
28
MAY W10492808 MAY W10492808 Contact Us For Availability
28
CABLE, USER INTERFACE MAY W10285493 Contact Us For Availability
29
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
29
MAY 353362 MAY 353362 Contact Us For Availability
30
MAY W10280024 MAY W10280024 Contact Us For Availability
30
MAY W10269488 MAY W10269488 Contact Us For Availability
31
MAY 356138 MAY 356138 Contact Us For Availability
NI
(PARTS NOT SHOWN) MAY N\P Contact Us For Availability
NI
10A CORD LOCK MAY W10446855 Contact Us For Availability
NI
10A CORD ADAPTER (TYPE B) MAY W10475423 Contact Us For Availability
NI
MAY W10476820 MAY W10476820 Contact Us For Availability
NI
10A CORD ADAPTER (EUROPEAN) MAY W10476822 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
MAY 285835 MAY 285835 Contact Us For Availability
NI
WATER SYSTEM PARTS, 4` DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
MAY 3363920 MAY 3363920 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN PROTECTOR MAY 367031 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
ACCESSORY PARTS, AFFRESH ODOR REMOVER MAY W10135699 Contact Us For Availability
NI
MAY W10268217 MAY W10268217 Contact Us For Availability
× ![]()
