Model Maytag 4GMEDX500YW0 ELECTRIC DRYER – Common Parts & Diagrams

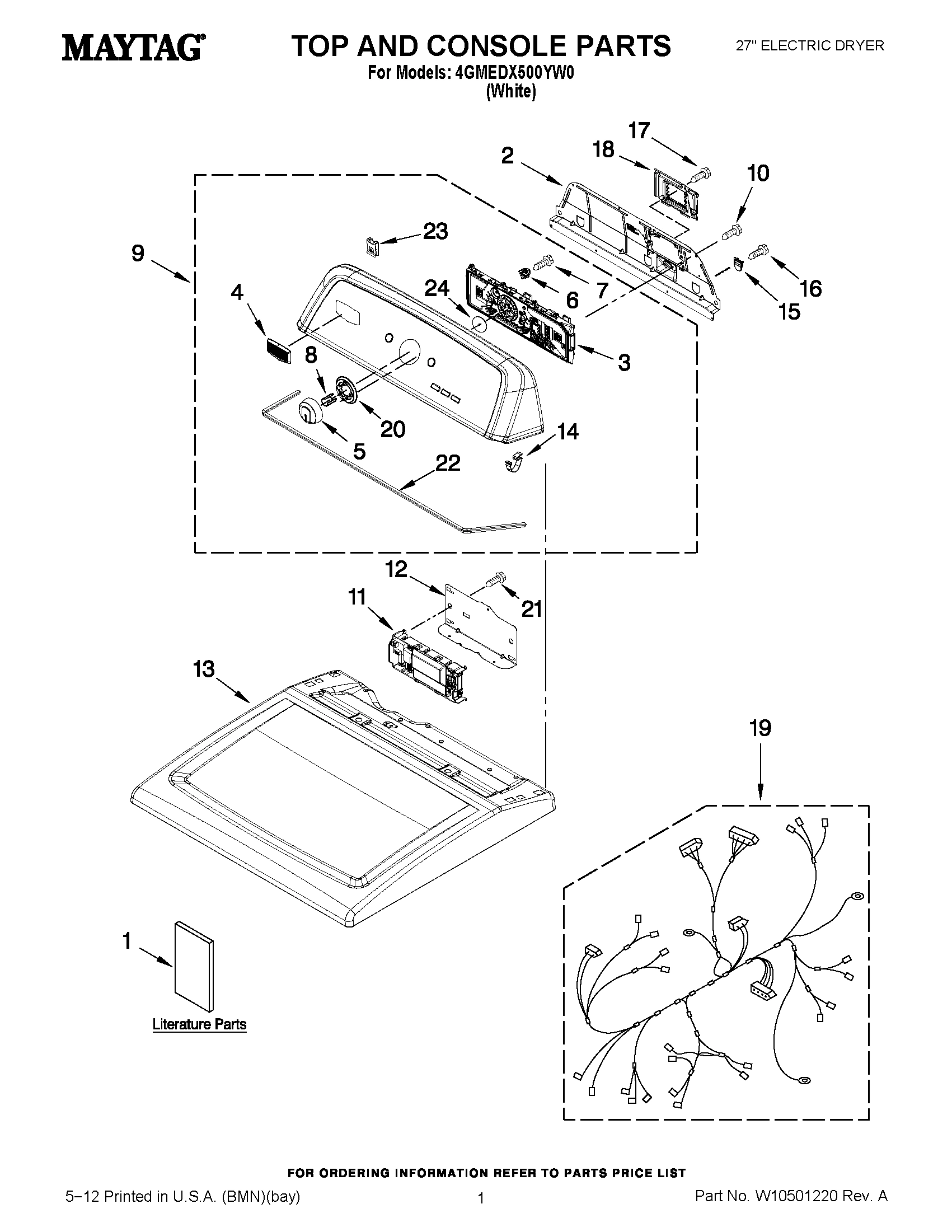

01 - TOP AND CONSOLE PARTS

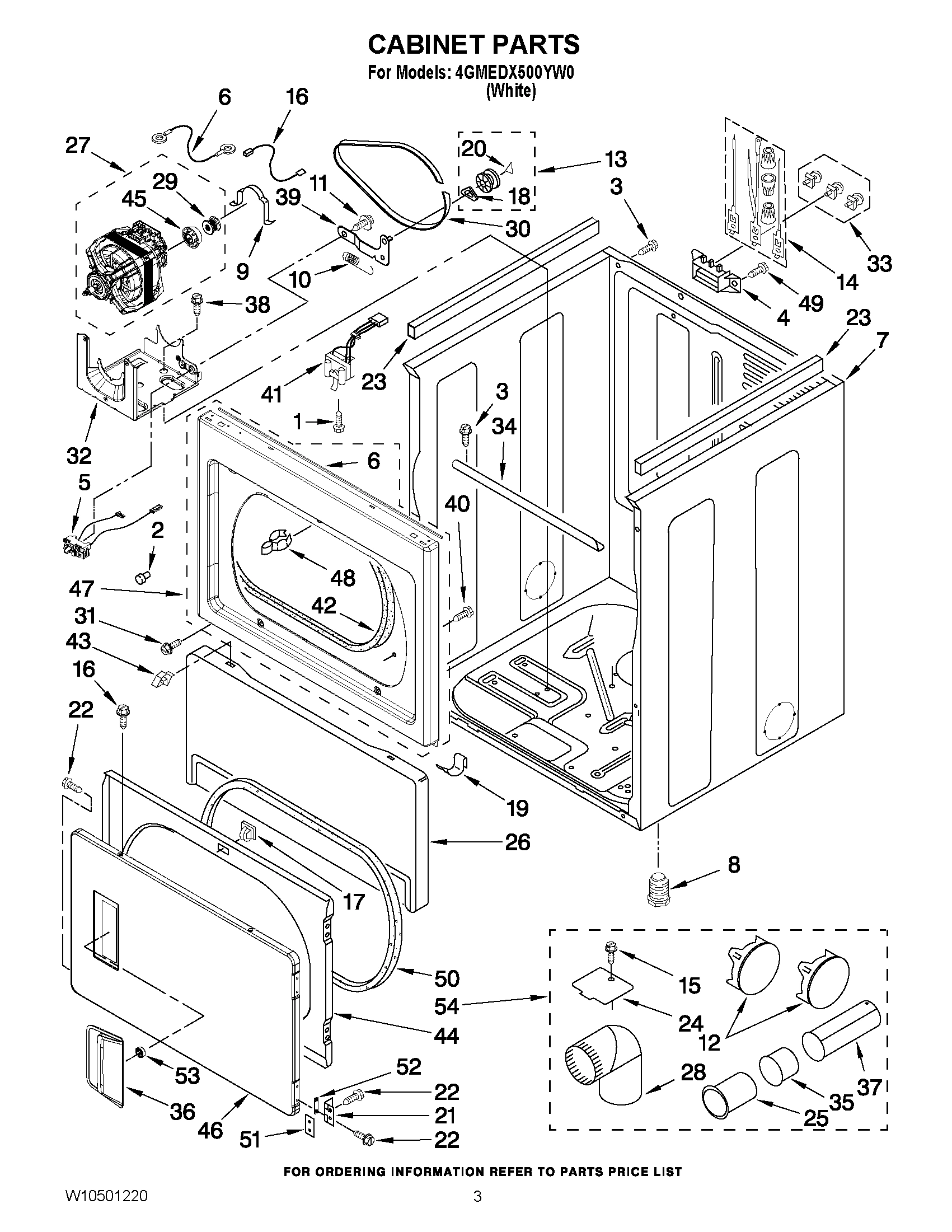

02 - CABINET PARTS
03 - BULKHEAD PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 4GMEDX500YW0 ELECTRIC DRYER
1
MAY W10366230 MAY W10366230 Contact Us For Availability
1
MAY W10417013 MAY W10417013 Contact Us For Availability
1
INSTALLATION, INSTRUCTION MAY W10461694 Contact Us For Availability
1
MAY W10462984 MAY W10462984 Contact Us For Availability
1
MAY 697773 MAY 697773 Contact Us For Availability
1
MAY W10359271 MAY W10359271 Contact Us For Availability
2
PANEL, REAR CONSOLE MAY W10096969 Contact Us For Availability
2
MAY 693152 MAY 693152 Contact Us For Availability
2
SCREW MAY 90767 Contact Us For Availability
3
MAY W10272634 MAY W10272634 Contact Us For Availability
3
SCREW MAY 3390647 Contact Us For Availability
4
BADGE ASSEMBLY MAY W10323735 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY W10153413 MAY W10153413 Contact Us For Availability
5
MAY W10251381 MAY W10251381 Contact Us For Availability
5
MAY W10411936 MAY W10411936 Contact Us For Availability
5
MAY 697354 MAY 697354 Contact Us For Availability
6
TENSIONER, FASCIA MAY W10274524 Contact Us For Availability
6
SEAL, SPILL GUARD MAY W10312811 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
MAY 8310656 MAY 8310656 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
8
CLIP, SPRING MAY 8536939 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
9
MAY W10464793 MAY W10464793 Contact Us For Availability
9
MAY W10121316 MAY W10121316 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
Shield, Blower Housing MAY W10128629 Contact Us For Availability
11
MAY W10465534 MAY W10465534 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
12
MAY W10271580 MAY W10271580 Contact Us For Availability
12
PLUG, MULTIVENT (MIDNIGHT GREY) MAY W10404617 Contact Us For Availability
12
Screw, 8-18 x 1/2 MAY 359625 Contact Us For Availability
13
MAY W10268730 MAY W10268730 Contact Us For Availability
13
MAY 3388672 MAY 3388672 Contact Us For Availability
13
MAY W10298258 MAY W10298258 Contact Us For Availability
14
MAY 8312709 MAY 8312709 Contact Us For Availability
14
TERMINAL, BRASS & TINNED (INCLUDES ILLUS. 33) MAY 279318 Contact Us For Availability
14
Heater Element MAY 3387747 Contact Us For Availability
15
PLUG, REAR PANEL MAY W10279552 Contact Us For Availability
15
MAY 488729 MAY 488729 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
16
SCREW MAY 695240 Contact Us For Availability
16
MAY W10001120 MAY W10001120 Contact Us For Availability
17
SCREW MAY 3390814 Contact Us For Availability
17
MAY 3392538 MAY 3392538 Contact Us For Availability
17
MAY 3387809 MAY 3387809 Contact Us For Availability
18
MAY W10286180 MAY W10286180 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
19
MAY W10339708 MAY W10339708 Contact Us For Availability
19
RETAINER, TOE PANEL MAY W10291934 Contact Us For Availability
19
MAY W10359272 MAY W10359272 Contact Us For Availability
20
MAY W10305134 MAY W10305134 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
20
MAY W10121334 MAY W10121334 Contact Us For Availability
21
Hinge & Pin Assembly MAY 3389247 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
MAY W10280079 MAY W10280079 Contact Us For Availability
22
MAY 342055 MAY 342055 Contact Us For Availability
22
SCREW MAY 3387230 Contact Us For Availability
23
NUT, U-TYPE MAY W10298336 Contact Us For Availability
23
FOAM SEAL MAY W10336128 Contact Us For Availability
23
MAY W10153423 MAY W10153423 Contact Us For Availability
24
MAY W10323092 MAY W10323092 Contact Us For Availability
24
COVER, PLATE MAY W10354249 Contact Us For Availability
24
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
25
EXHAUST PIPE MAY 8563747 Contact Us For Availability
25
Complete Drum Assembly MAY 8318215 Contact Us For Availability
26
SCREW, 8-10 X 1/2 MAY W10219342 Contact Us For Availability
26
Toe Panel (Includes Item. 2) (White) MAY 697215 Contact Us For Availability
27
MAY W10489550 MAY W10489550 Contact Us For Availability
27
MAY W10166807 MAY W10166807 Contact Us For Availability
28
MAY 49026 MAY 49026 Contact Us For Availability
29
PULLEY, MOTOR 60 HZ. MAY 3389729 Contact Us For Availability
29
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
30
Screw MAY 8533971 Contact Us For Availability
30
MAY W10112954 MAY W10112954 Contact Us For Availability
31
Screw MAY 693995 Contact Us For Availability
31
Screw MAY 489463 Contact Us For Availability
32
BRACKET, MOTOR MAY W10242878 Contact Us For Availability
32
MAY 8066224 MAY 8066224 Contact Us For Availability
33
TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
33
MAY W10153414 MAY W10153414 Contact Us For Availability
34
MAY W10236068 MAY W10236068 Contact Us For Availability
34
MAY 3387223 MAY 3387223 Contact Us For Availability
35
MAY W10331278 MAY W10331278 Contact Us For Availability
35
BAFFLE, DRUM DRUM LIGHT MAY 697693 Contact Us For Availability
36
MAY W10284182 MAY W10284182 Contact Us For Availability
36
SCREW MAY 3357011 Contact Us For Availability
37
MAY 8563749 MAY 8563749 Contact Us For Availability
37
MAY 697772 MAY 697772 Contact Us For Availability
38
SCREW MAY 343641 Contact Us For Availability
38
MAY W10345456 MAY W10345456 Contact Us For Availability
39
Idler Bracket MAY 3388674 Contact Us For Availability
39
MAY 697557 MAY 697557 Contact Us For Availability
40
MAY 697770 MAY 697770 Contact Us For Availability
41
MAY 3406107 MAY 3406107 Contact Us For Availability
41
MAY W10049370 MAY W10049370 Contact Us For Availability
42
MAY 3387242 MAY 3387242 Contact Us For Availability
42
Thermostat, Internal-Bias MAY 8577274 Contact Us For Availability
43
Retainer MAY 3388229 Contact Us For Availability
43
MAY 8066099 MAY 8066099 Contact Us For Availability
44
MAY W10323061 MAY W10323061 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
45
BELT RESTRAINER MAY 3393657 Contact Us For Availability
45
Lint Duct Assembly MAY 8066168 Contact Us For Availability
46
MAY W10322551 MAY W10322551 Contact Us For Availability
46
HEATER BOX, MAY 3392537 Contact Us For Availability
47
Upper Front Panel (White) MAY W10193554 Contact Us For Availability
47
Thermal Cut-Off (Includes Illus. 48) MAY 8318314 Contact Us For Availability
48
MAY 696144 MAY 696144 Contact Us For Availability
48
THERMOSTAT 250°F (122°C) MAY 3391914 Contact Us For Availability
49
MAY 3393008 MAY 3393008 Contact Us For Availability
49
Thermal Fuse MAY 3392519 Contact Us For Availability
50
MAY 3390735 MAY 3390735 Contact Us For Availability
51
Clip, Door Hinge MAY 3390902 Contact Us For Availability
52
PLUG, HINGE SCREW MAY W10191265 Contact Us For Availability
53
MAY W10294344 MAY W10294344 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) MAY W10186596 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (MERCURY SILVER) MAY W10153412 Contact Us For Availability
NI
Dry Rack MAY 3406911 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 80047 MAY 80047 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
× ![]()
