Model Whirlpool 4ET20ZKXBW00 REFRIGERATOR – Common Parts & Diagrams

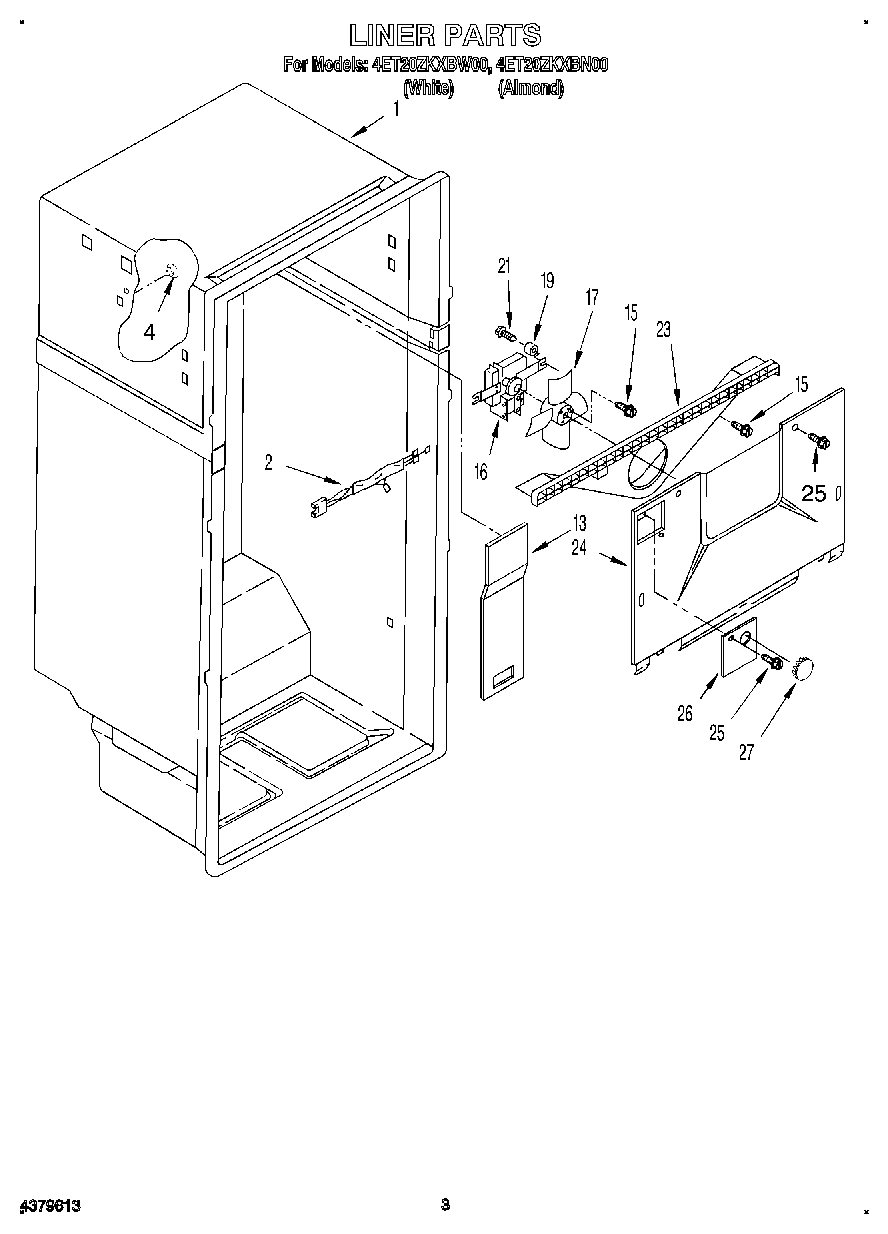

02 - LINER

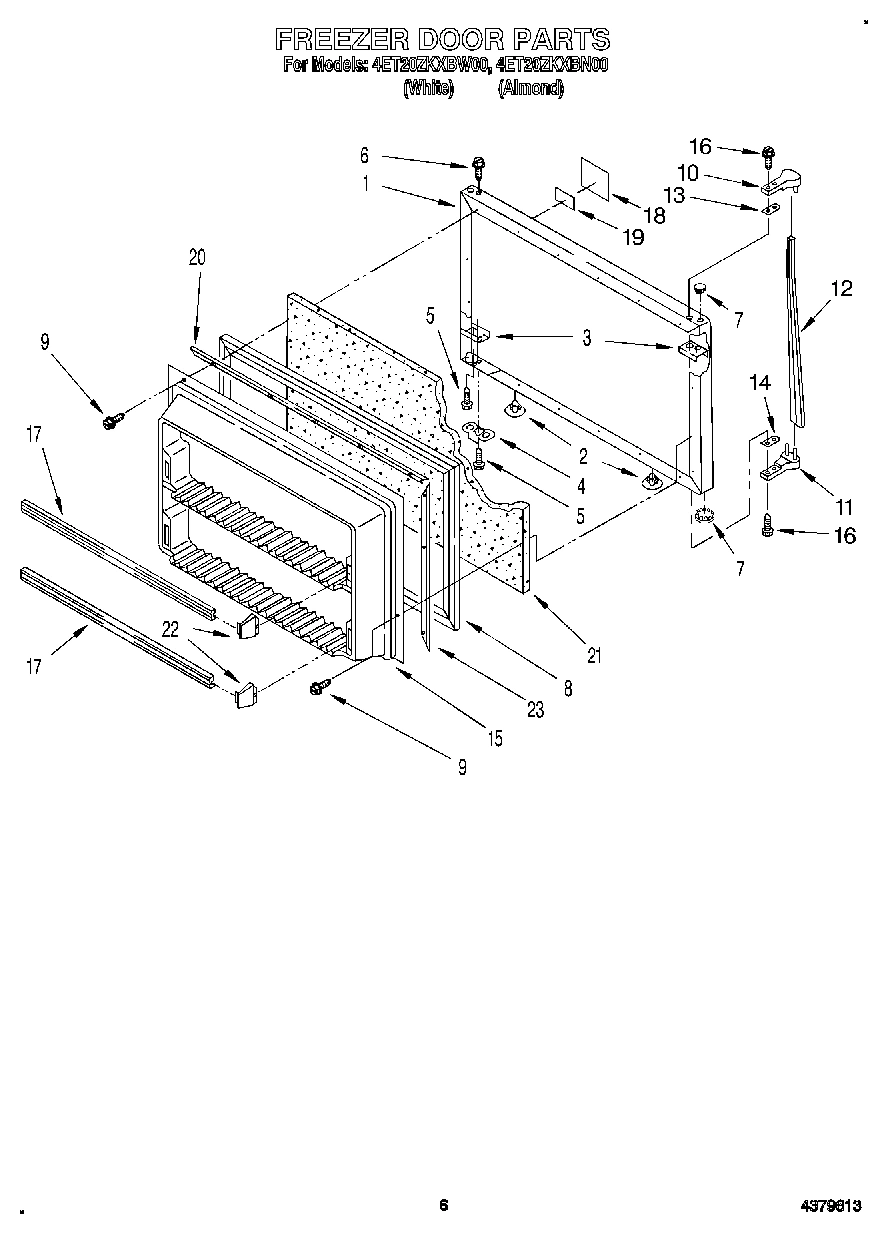

05 - FREEZER DOOR
07 - REFRIGERATOR DOOR, LIT/OPTIONAL
03 - COMPARTMENT SEPARATOR
01 - CABINET
04 - SHELF
06 - UNIT
Common parts from model Whirlpool 4ET20ZKXBW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172816 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI13642A8 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Box, Control WPL 2151992 Contact Us For Availability
2
Roller, Front WPL 2174749 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Condenser Assy. WPL 2164513 Contact Us For Availability
5
Screw, WPL 489345 Contact Us For Availability
5
Clip, Wire WPL 548745 Contact Us For Availability
7
Shelf, Cantilever WPL 2162583 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
8
Deck Rail Cover WPL 2172708 Contact Us For Availability
8
Trim, Shelf WPL 2162941 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
10
Heater, Mullion WPL 2158635 Contact Us For Availability
10
Trim, Crisper Cover WPL 2170833 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Clip, Mullion (4) WPL 1129018 Contact Us For Availability
11
Glass, Crisper Cover WPL 1106929 Contact Us For Availability
11
Spring, Relay Case WPL 2154721 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1122729 Contact Us For Availability
12
Case, Relay WPL 2154722 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Center Rail WPL 2172705 Contact Us For Availability
13
Overload (Service) WPL 2154719 Contact Us For Availability
13
Overload (Production) WPL 2158785 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
14
Spring, Overload WPL 943320 Contact Us For Availability
15
Relay WPL 2154720 Contact Us For Availability
16
Rod, Connecting WPL 1105459 Contact Us For Availability
16
Glass, Shelf WPL 2148208 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
17
Air Diffuser Assembly WPL 2160771 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
17
Running Capacitor WPL 2154717 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Trim, Shelf Front WPL 2162934 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
19
Interior Door Panel WPL 2156208 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Pan, Crisper WPL 2170935 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
20
Trim, Door Shelf WPL 2170592 Contact Us For Availability
20
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
20
Pan, Meat WPL 2170930 Contact Us For Availability
20
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Trim, Door WPL 2170584 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Compartment Door (R.S.) WPL 2170943 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2158621 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
23
Retainer, Gasket WPL 1122553 Contact Us For Availability
23
Compartment Door (L.S.) WPL 2170944 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
23
Retainer, Glass WPL 1110744 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Shelf, Full Cantilever WPL 2162582 Contact Us For Availability
25
Divider, Door Shelf WPL 2160050 Contact Us For Availability
25
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
25
Trim, Shelf WPL 2170596 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
28
Compressor (Includes Items 11 12, 13, 14, 15, WPL 2162439 Contact Us For Availability
29
Shelf Stud (2) WPL 946356 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
30
Trim, Compartment Door WPL 2164839 Contact Us For Availability
30
Support Stud (4) WPL 946355 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
31
WPL 479502 WPL 479502 Contact Us For Availability
31
Retainer, Gasket WPL 1122552 Contact Us For Availability
31
Door Reversal Instructions WPL 2172761 Contact Us For Availability
31
PAINT xEnamel, Golden Harvest (13 Oz. Spray C WPL 261891 Contact Us For Availability
31
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
31
WPL 542639 WPL 542639 Contact Us For Availability
31
WPL 799833 WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
31
Spacer WPL 2172745 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1129022 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
33
Heater, Defrost WPL 2158987 Contact Us For Availability
34
Filler, Wrap Corner (2) (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (2) (Almond) WPL 1118059 Contact Us For Availability
34
Tube, Discharge Assembly WPL 2154087 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Grille WPL 1129001 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Wiring Assembly, Intermediate WPL 2165296 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
38
Tube, Suction WPL 2154038 Contact Us For Availability
39
Grommet WPL 2162067 Contact Us For Availability
41
Air Baffle WPL 2169417 Contact Us For Availability
43
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
48
Cover, Unit WPL 2160521 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
54
Support-Evaporator (Right Side) WPL 1118805 Contact Us For Availability
54
Support-Evaporator (Left Side) WPL 2159708 Contact Us For Availability
54
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
69
Service Cord WPL 1129332 Contact Us For Availability
70
Enclosure, Term. WPL 2158579 Contact Us For Availability
72
Bushing WPL 1129449 Contact Us For Availability
73
Terminal Block WPL 1129346 Contact Us For Availability
74
Screw WPL 489346 Contact Us For Availability
76
Wiring Assy. Terminal Block WPL 2165297 Contact Us For Availability
78
Gasket WPL 2167227 Contact Us For Availability
× ![]()
