Model Whirlpool 4ET18GKXWW00 REFRIGERATOR – Common Parts & Diagrams
06 - SHELF
08 - UNIT

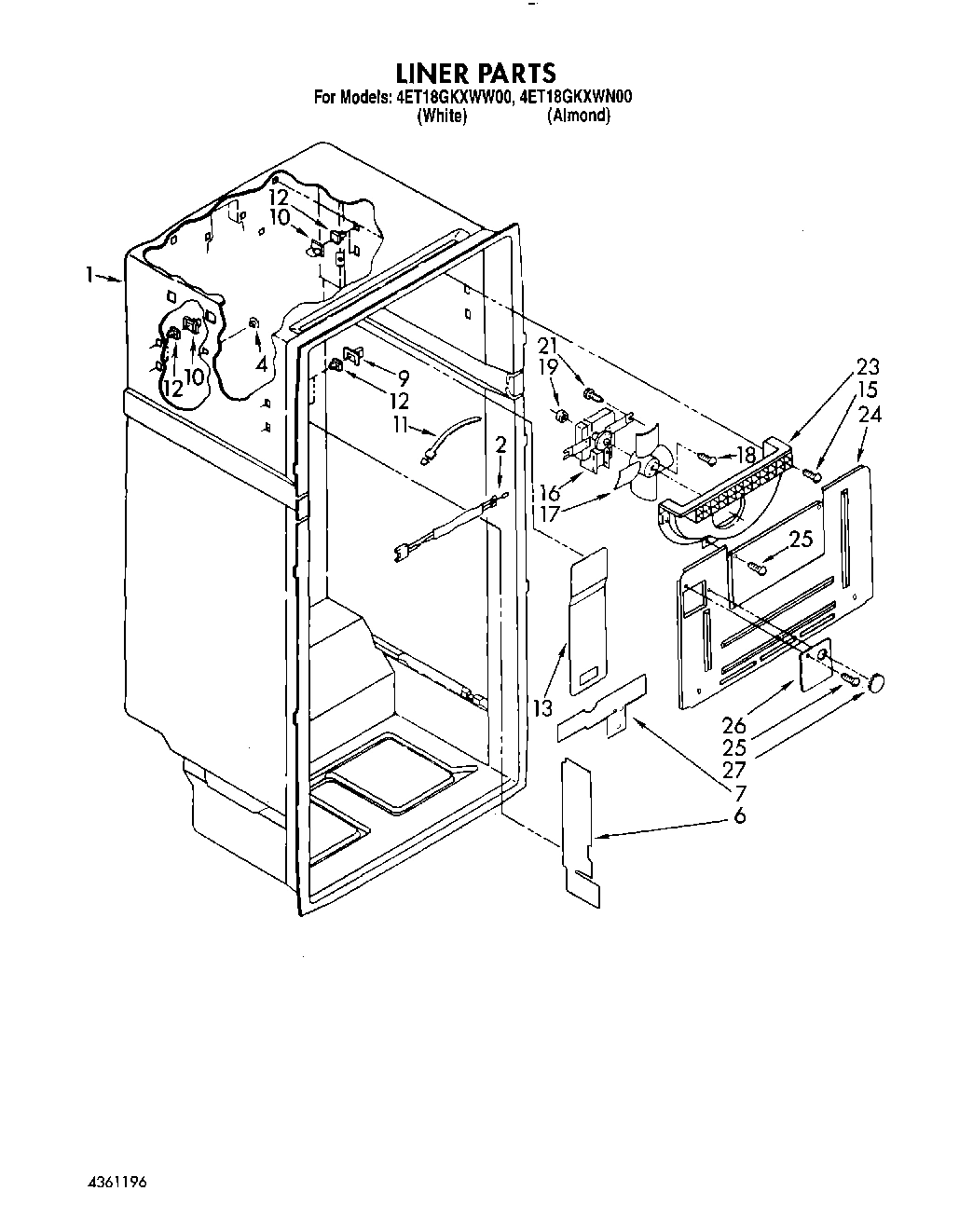

04 - LINER

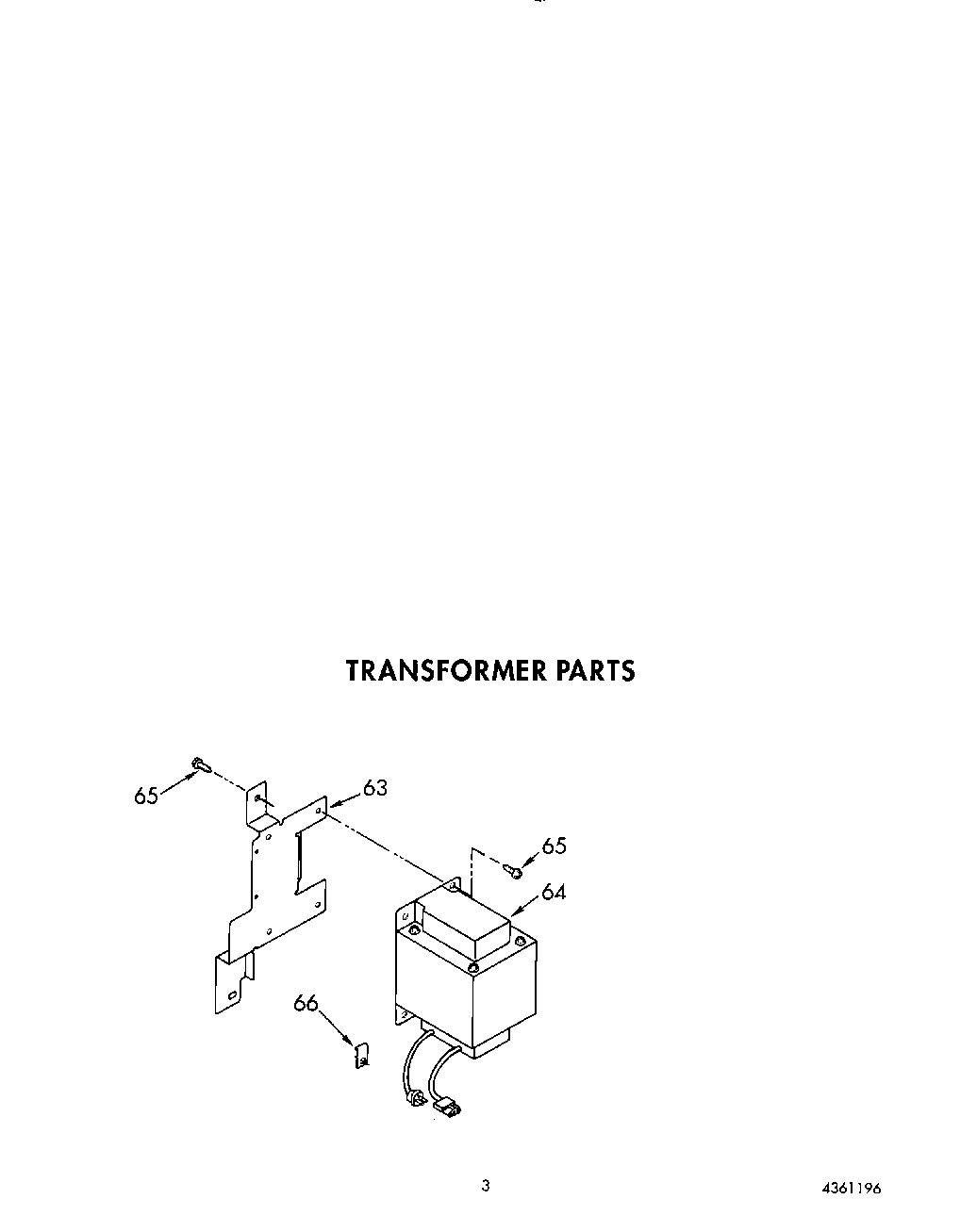

03 - TRANSFORMER
02 - CABINET
09 - REFRIGERATOR DOOR, LIT/OPTIONAL
05 - COMPARTMENT SEPARATOR

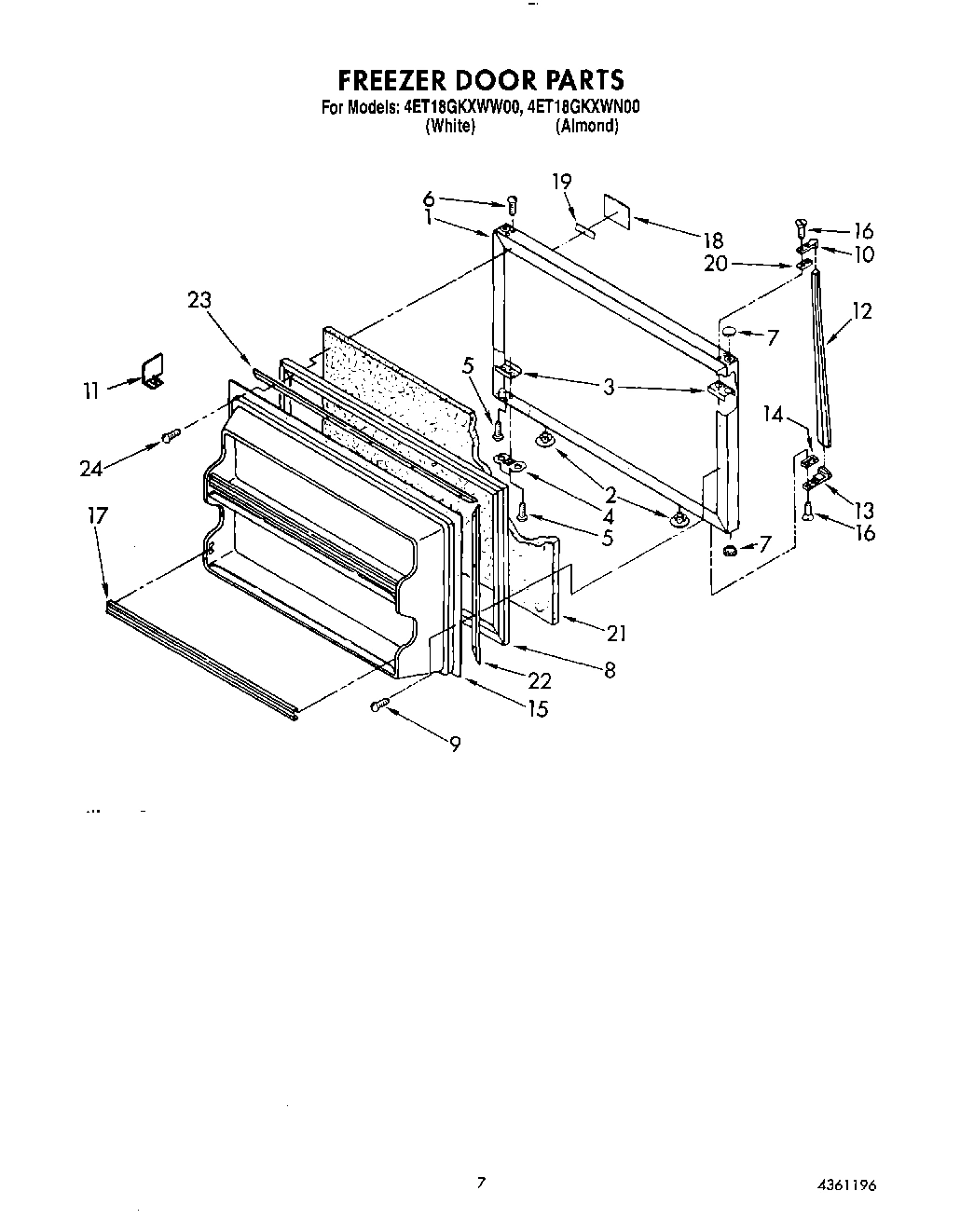

07 - FREEZER DOOR
Common parts from model Whirlpool 4ET18GKXWW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL 1122242 WPL 1122242 Contact Us For Availability
WPL LIT2158600 WPL LIT2158600 Contact Us For Availability
WPL LIT2158899 WPL LIT2158899 Contact Us For Availability
WPL LIT4361196 WPL LIT4361196 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI13541A8 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI13540A1 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1104632 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1104636 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1111796 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1104640 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1104644 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Roller, Front WPL 2152013 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Box, Control WPL 2158886 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
4
Screw, 10-32 x 1/2 WPL 488448 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Timer, Defrost (8 Hour) WPL 1127571 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Roller, Rear WPL 2152014 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
6
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
7
Top, Electric Shield WPL 1129068 Contact Us For Availability
7
Heater, Mullion WPL 1129694 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2150117 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2150124 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
10
Spacer (2) WPL 2149077 Contact Us For Availability
11
Clip, Strap WPL 1123230 Contact Us For Availability
11
Screw, 8-32 x 1/2 (2) WPL 489370 Contact Us For Availability
11
Divider WPL 2150160 Contact Us For Availability
11
Knob, Thermostat WPL 2148148 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
12
Hole Plug (2) (White) WPL 1122929 Contact Us For Availability
12
Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability
12
Handle, Center WPL 1109166 Contact Us For Availability
12
Drain Pan WPL 1108358 Contact Us For Availability
12
Handle, Center WPL 1109171 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Cover, Air Duct WPL 1118775 Contact Us For Availability
13
Center Rail (White) WPL 1110343 Contact Us For Availability
13
Center Rail (Almond) WPL 1110345 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Center, Rail Shim (2) WPL 2151428 Contact Us For Availability
14
Knob, Air Control WPL 2148149 Contact Us For Availability
15
Screw WPL 489378 Contact Us For Availability
15
Interior Door Panel WPL 1120635 Contact Us For Availability
16
Post, Cripser Cover WPL 836410 Contact Us For Availability
16
Tap Plate (2) WPL 2147312 Contact Us For Availability
16
Rod, Connecting WPL 1111272 Contact Us For Availability
17
Hinge, Top WPL 1129045 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157416 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2150125 Contact Us For Availability
18
Shim, Hinge Top WPL 2151698 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Nameplate WPL 2158902 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Interior Door Panel WPL 1120634 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Tape Strip WPL 991259 Contact Us For Availability
20
Shim, Handle WPL 943187 Contact Us For Availability
20
Screw WPL 489327 Contact Us For Availability
20
Trim, Door (2) WPL 2150118 Contact Us For Availability
21
Kit, Foam Slab WPL 876029 Contact Us For Availability
21
Screw (2) WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 1129047 Contact Us For Availability
21
Trim, Door WPL 2150119 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Compartment Door, Utility WPL 2150120 Contact Us For Availability
22
Wiring Assembly, Control Box & Cabinet WPL 2149659 Contact Us For Availability
22
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
23
Scroll, Fan WPL 1122814 Contact Us For Availability
23
Compartment Door, Butter WPL 2158904 Contact Us For Availability
23
Gasket Retainer, Top & Bottom (2) WPL 1120616 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2157281 Contact Us For Availability
24
Evaporator Cover WPL 2151658 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123882 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1123391 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Shim, Bottom WPL 943708 Contact Us For Availability
29
Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability
30
Unit Mounting Plate WPL 1118781 Contact Us For Availability
30
Washer, 7/64 WPL 489201 Contact Us For Availability
31
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
31
Exchanger, Heat WPL 1127721 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 2151421 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 2151422 Contact Us For Availability
31
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
31
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
31
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
31
WPL 542639 WPL 542639 Contact Us For Availability
31
WPL 799833 WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
31
Insulation, Center Rail WPL 1111503 Contact Us For Availability
32
Clip, Stand Off WPL 1100707 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1109364 Contact Us For Availability
32
Cover, Deck Rail (Almond) WPL 1109368 Contact Us For Availability
33
Heater, Defrost WPL 2162026 Contact Us For Availability
33
Cover, Glider Rail (White) WPL 943552 Contact Us For Availability
33
Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1119325 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1110684 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1110685 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
Hole Plug (White) WPL 1119707 Contact Us For Availability
35
Hole Plug (Almond) WPL 1119709 Contact Us For Availability
36
Hole Plug (3) (Almond) WPL 2151653 Contact Us For Availability
37
Hole Seal WPL 1129056 Contact Us For Availability
39
Cover, Wiring WPL 942845 Contact Us For Availability
44
Overload WPL 1108114 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
46
Fitting, Drain WPL 942813 Contact Us For Availability
47
Seal, Gasket WPL 1106507 Contact Us For Availability
48
Unit Mounting Rail WPL 1118783 Contact Us For Availability
49
Plug Assembly WPL 1106511 Contact Us For Availability
50
Hole Seal WPL 1120224 Contact Us For Availability
51
Evaporator Tray WPL 1101002 Contact Us For Availability
52
Clamp WPL 519405 Contact Us For Availability
55
Support, Heater WPL 1108172 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
62
Seal, Gasket WPL 1106510 Contact Us For Availability
63
Bracket, Transformer WPL 1129616 Contact Us For Availability
64
Transformer WPL 2158821 Contact Us For Availability
65
Screw WPL 489364 Contact Us For Availability
66
Clamp, Cord WPL 1129503 Contact Us For Availability
66
Clamp, Cord WPL 1129613 Contact Us For Availability
× ![]()
