Model LG 49WQ95C-W – Common Parts & Diagrams

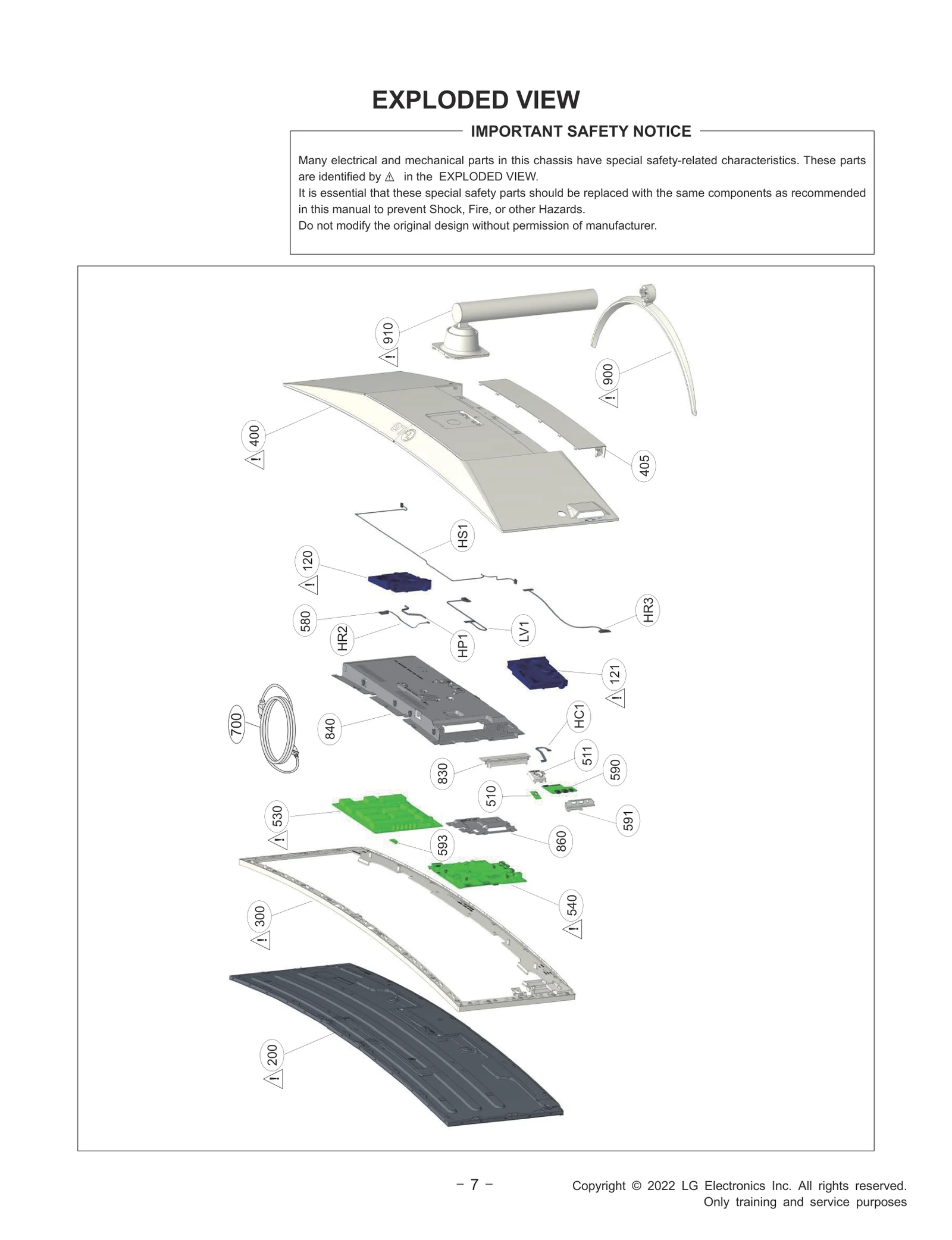

Diagram 0
Diagram 1
Common parts from model LG 49WQ95C-W
200
LCD,Module-TFT LGE EAJ65787701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ76087105 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ90541107 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR87542901 Contact Us For Availability
511
Cover LGE MCK70145801 Contact Us For Availability
530
Power Supply Assembly LGE EAY65899001 Contact Us For Availability
580
Auto SMT PCB Assembly,Sub LGE EBR86424401 Contact Us For Availability
590
PCB Assembly,Sub LGE EBR86804102 Contact Us For Availability
591
Cover LGE MCK70368602 Contact Us For Availability
700
Power Cord,Detach LGE EAD64005902 Contact Us For Availability
830
Cover LGE MCK70125001 Contact Us For Availability
860
Plate,Metal LGE MGJ67400301 Contact Us For Availability
900
Base Assembly LGE AAN30022901 Contact Us For Availability
930
Package Assembly LGE AGF79358855 Contact Us For Availability
A04
Card LGE 3840TWL061C Contact Us For Availability
A05
Cable,Assembly LGE EAD63932603 Contact Us For Availability
A06
Cable,Assembly LGE EAD64766101 Contact Us For Availability
A08
Cable,Assembly LGE EAD65912802 Contact Us For Availability
A09
Card LGE MBM65360313 Contact Us For Availability
A7
Card LGE 3840TRL039A Contact Us For Availability
A10
Card LGE MBM66977021 Contact Us For Availability
A11
Card LGE MBM67507701 Contact Us For Availability
HC1
Harness,Single LGE EAD58345803 Contact Us For Availability
HR2
Harness,Single LGE EAD52821205 Contact Us For Availability
HR3
Harness,Single LGE EAD63967303 Contact Us For Availability
HS1
Harness,Multi LGE EAD65285201 Contact Us For Availability
LV1
Harness,Single LGE EAD63967304 Contact Us For Availability
× ![]()
