Model LG 49WL95C-W – Common Parts & Diagrams

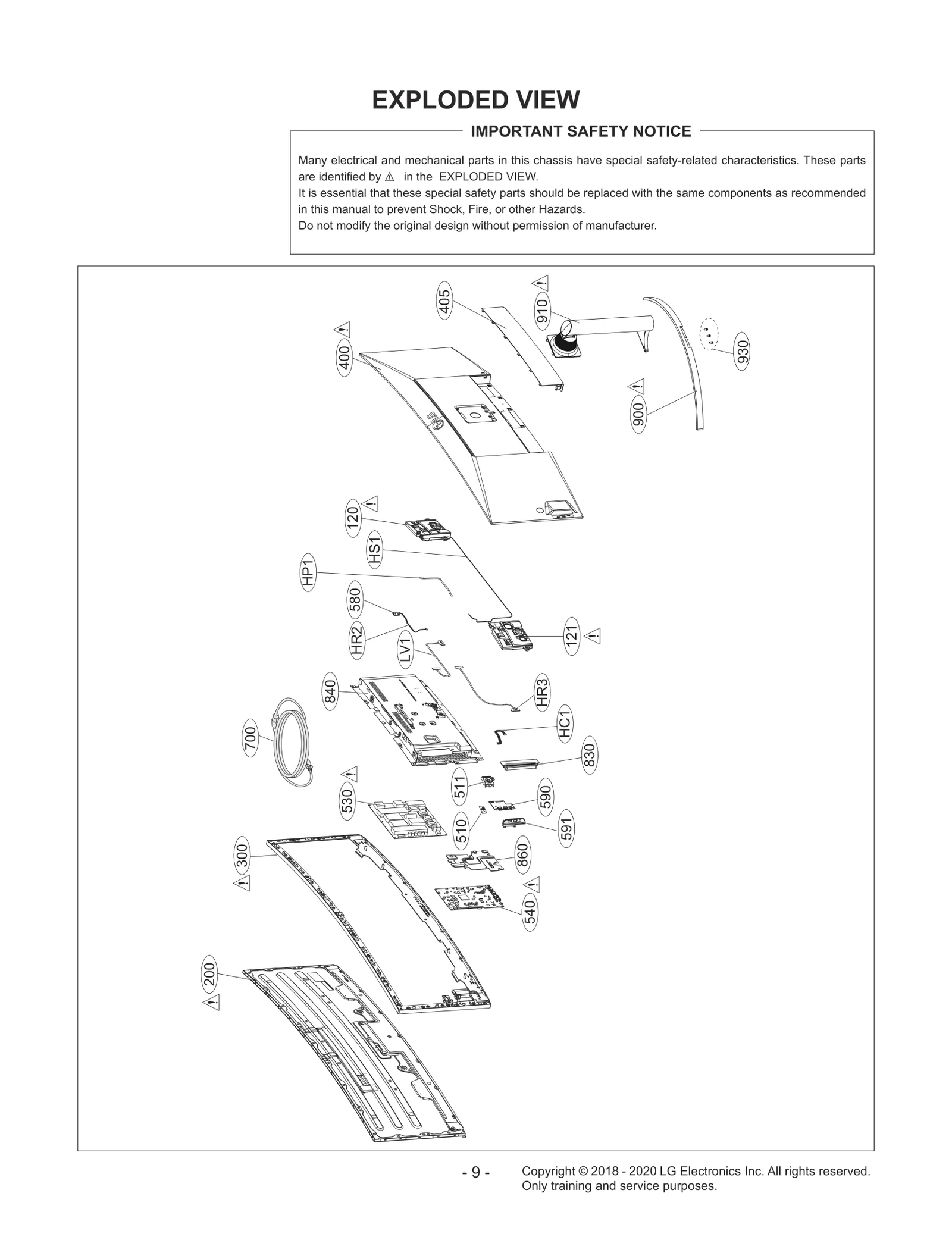

Diagram 0
Diagram 1
Common parts from model LG 49WL95C-W
200
LCD Module LGE EAJ64868301 Contact Us For Availability
300
Cabinet Assembly LGE ABJ76087101 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR87542901 Contact Us For Availability
511
Cover LGE MCK70145801 Contact Us For Availability
540
Main Board,BPR Total Assembly LGE EBU64866001 Contact Us For Availability
580
Auto SMT PCB Assembly,Sub LGE EBR86424401 Contact Us For Availability
590
PCB Assembly,Sub LGE EBR86804101 Contact Us For Availability
591
Cover LGE MCK70368602 Contact Us For Availability
700
Power Cord,Detach LGE EAD64005901 Contact Us For Availability
830
Cover LGE MCK70125001 Contact Us For Availability
840
Frame Assembly LGE ADV76987302 Contact Us For Availability
860
Plate,Metal LGE MGJ66482001 Contact Us For Availability
910
Base Assembly LGE AAN76729002 Contact Us For Availability
A1
Manual Assembly LGE AFN79112001 Contact Us For Availability
A4
Card LGE MBM65381201 Contact Us For Availability
A5
Cable,Assembly LGE EAD63932603 Contact Us For Availability
A6
Plug,Conversion LGE EAG61410704 Contact Us For Availability
A7
Card LGE MBM66977002 Contact Us For Availability
A8
Card LGE MBM65360313 Contact Us For Availability
A9
Card LGE MBM66458611 Contact Us For Availability
A10
Card LGE 3840TWL027W Contact Us For Availability
A11
Cable,Assembly LGE EAD64766101 Contact Us For Availability
HC1
Harness,Single LGE EAD58345803 Contact Us For Availability
HP1
Harness,Single LGE EAD62595401 Contact Us For Availability
HR2
Harness,Single LGE EAD52821205 Contact Us For Availability
HR3
Harness,Single LGE EAD63967303 Contact Us For Availability
HS1
Harness,Multi LGE EAD65285201 Contact Us For Availability
LV1
Harness,Single LGE EAD63967304 Contact Us For Availability
× ![]()
