Model LG 49WL900G-B – Common Parts & Diagrams

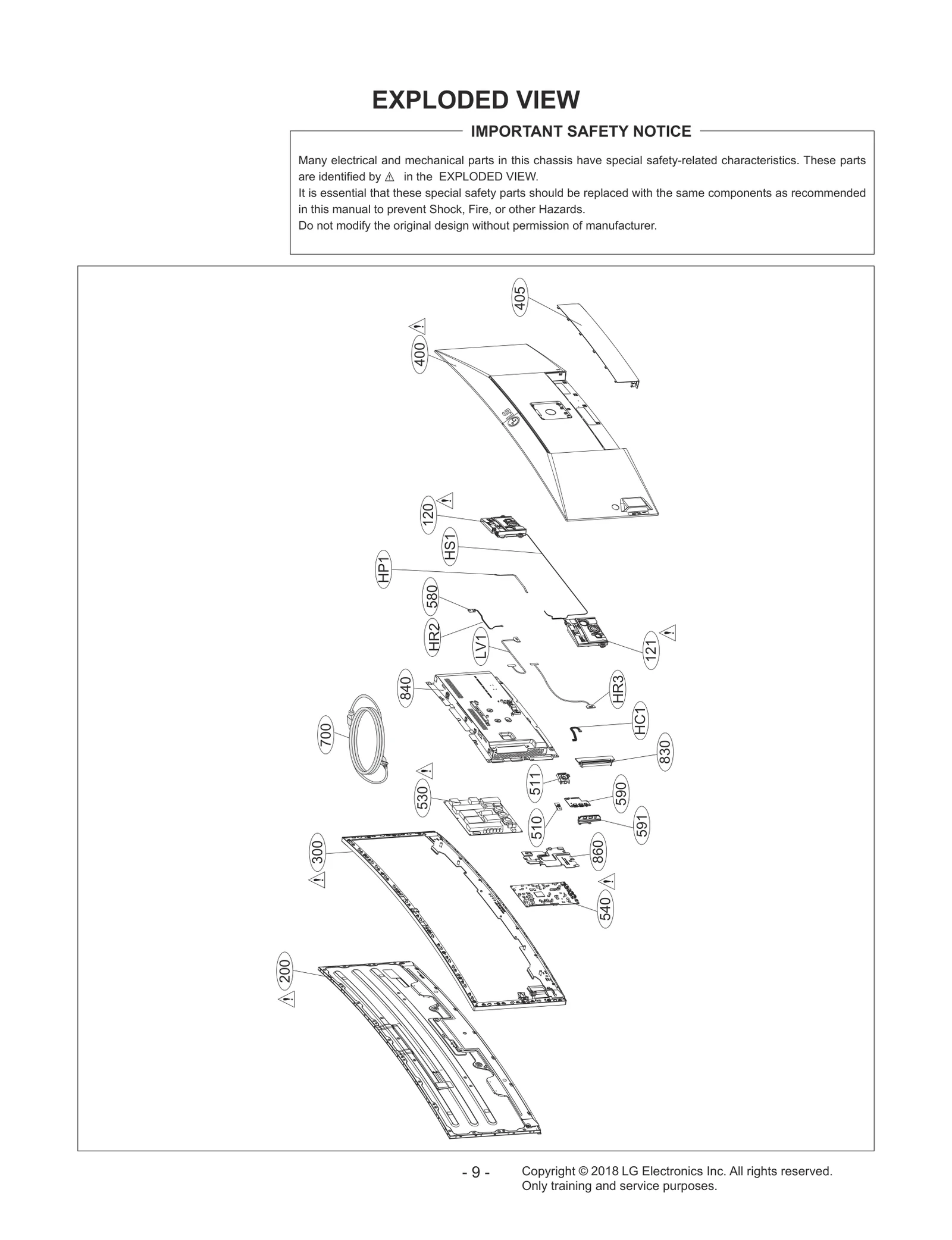

Diagram 0
Diagram 1
Common parts from model LG 49WL900G-B
200
LCD Module LGE EAJ64868301 Contact Us For Availability
300
Cabinet Assembly LGE ABJ76087101 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ90541101 Contact Us For Availability
405
Package Assembly LGE AGF78666807 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR87542901 Contact Us For Availability
511
Cover LGE MCK70145801 Contact Us For Availability
540
BPR Total Assembly LGE EBU65700301 Contact Us For Availability
580
Auto SMT PCB Assembly,Sub LGE EBR86424401 Contact Us For Availability
590
PCB Assembly,Sub LGE EBR86804101 Contact Us For Availability
591
Cover LGE MCK70368601 Contact Us For Availability
830
Cover LGE MCK70125001 Contact Us For Availability
840
Frame Assembly LGE ADV76987301 Contact Us For Availability
860
Plate,Metal LGE MGJ66482001 Contact Us For Availability
A4
Card LGE 3840TWL061C Contact Us For Availability
A5
Cable,Assembly LGE EAD63932604 Contact Us For Availability
A6
Plug,Conversion LGE EAG61410705 Contact Us For Availability
A7
Card LGE 3840TRL039A Contact Us For Availability
A8
Card LGE MBM65360313 Contact Us For Availability
A10
Cable,Assembly LGE EAD63954403 Contact Us For Availability
HC1
Harness,Single LGE EAD58345803 Contact Us For Availability
HP1
Harness,Single LGE EAD62595401 Contact Us For Availability
HR2
Harness,Single LGE EAD52821205 Contact Us For Availability
HR3
Harness,Single LGE EAD63967303 Contact Us For Availability
HS1
Harness,Multi LGE EAD65285201 Contact Us For Availability
LV1
Harness,Single LGE EAD63967304 Contact Us For Availability
× ![]()
