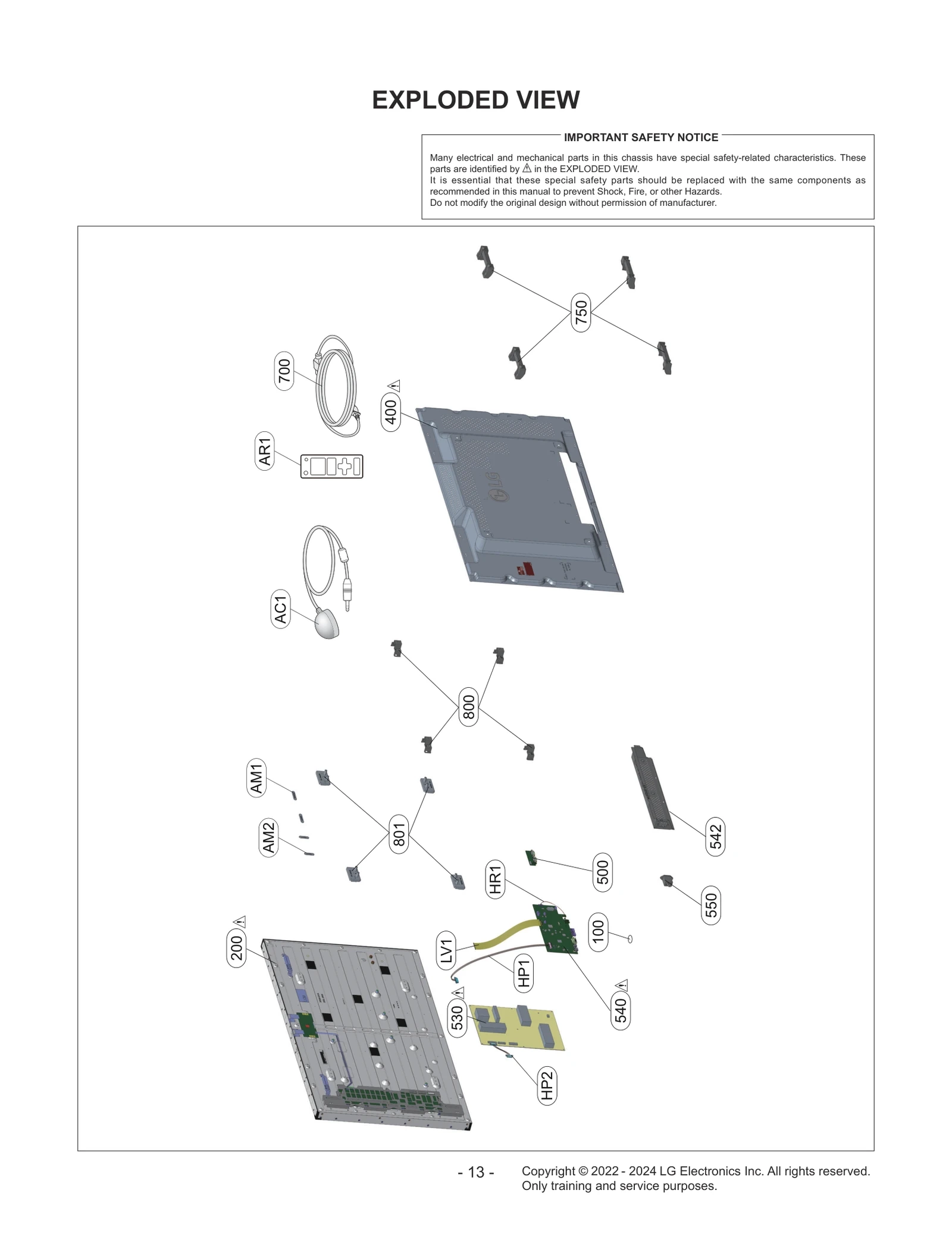

Model LG 49VL5PJ-A – Common Parts & Diagrams

100
Primary Cell Battery,Lithium
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
View on Model
100
Primary Cell Battery,Lithium
Primary Cell Battery,Lithium LGE EAC63418701 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ88483528 Contact Us For Availability
View on Model
500
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR85920601 Contact Us For Availability
View on Model
540
BPR Total Assembly
BPR Total Assembly LGE EBU66630704 Contact Us For Availability
View on Model
542
Bracket
Bracket LGE MAZ64283913 Contact Us For Availability
View on Model
550
Filter,AC Line
Filter,AC Line LGE EAM36140906 Contact Us For Availability
View on Model
750
Handle
Handle LGE MEB63954802 Contact Us For Availability
View on Model
800
Bracket
Bracket LGE MAZ65168702 Contact Us For Availability
View on Model
801
Bracket
Bracket LGE MAZ65168602 Contact Us For Availability
View on Model
AM1
Bracket
Bracket LGE MAZ65168802 Contact Us For Availability
View on Model
AM2
Bracket
Bracket LGE MAZ65168902 Contact Us For Availability
View on Model
AR1
Remote Controller Assembly
Remote Controller Assembly LGE AKB75095395 Contact Us For Availability
View on Model
HP2
Harness,Single
Harness,Single LGE EAD62122701 Contact Us For Availability
View on Model
HR1
Harness,Single
Harness,Single LGE EAD60678822 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD63788005 Contact Us For Availability
View on Model
