Model LG 49UX970H – Common Parts & Diagrams

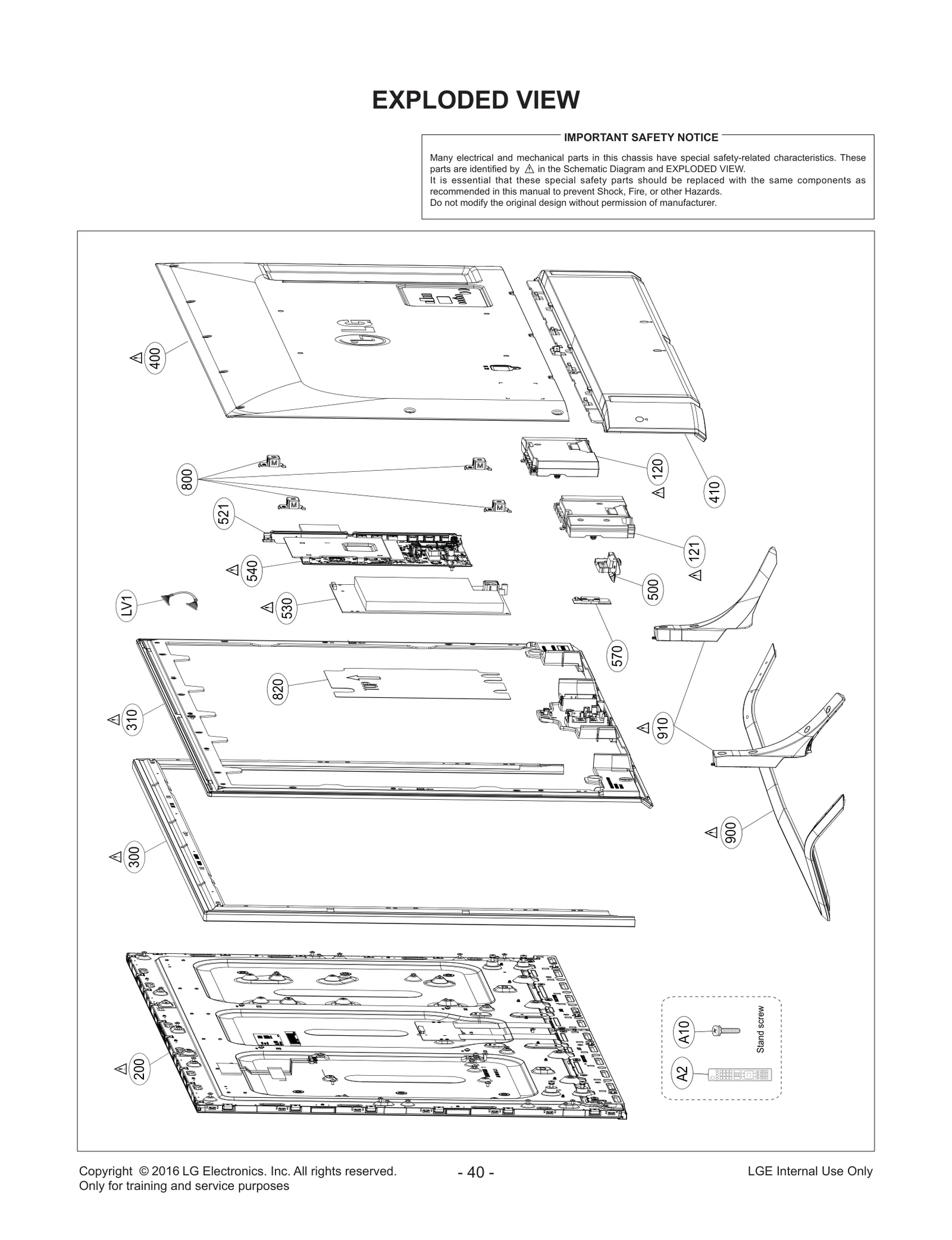

Diagram 0
Diagram 1
Common parts from model LG 49UX970H
200
LCD,Module-TFT LGE EAJ63089401 Contact Us For Availability
310
Cabinet Assembly LGE ABJ74707407 Contact Us For Availability
400
Cover Assembly LGE ACQ87728441 Contact Us For Availability
410
Cover Assembly LGE ACQ87728507 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR79942901 Contact Us For Availability
521
Bracket LGE MAZ64504201 Contact Us For Availability
530
Power Supply Assembly LGE EAY63788701 Contact Us For Availability
540
PCB Assembly LGE EBR81963101 Contact Us For Availability
800
Supporter,VESA LGE MJH64334001 Contact Us For Availability
820
Insulator LGE MEV65270802 Contact Us For Availability
910
Bracket Assembly LGE ABA75210902 Contact Us For Availability
AM1
Manual,Owners LGE MFL68925832 Contact Us For Availability
C220
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C2344
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C2502
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C6715
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C9104
Capacitor,Ceramic,Ch LGE 0CK335FK66A Contact Us For Availability
C13574
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
L9403
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LD8200
LED,Chip LGE 0DL210009GC Contact Us For Availability
Q2304
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q7105
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R4609
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R9109
Resistor,Chip LGE 0RH1602D622 Contact Us For Availability
SW13200
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
× ![]()
