Model LG 49UW970H – Common Parts & Diagrams

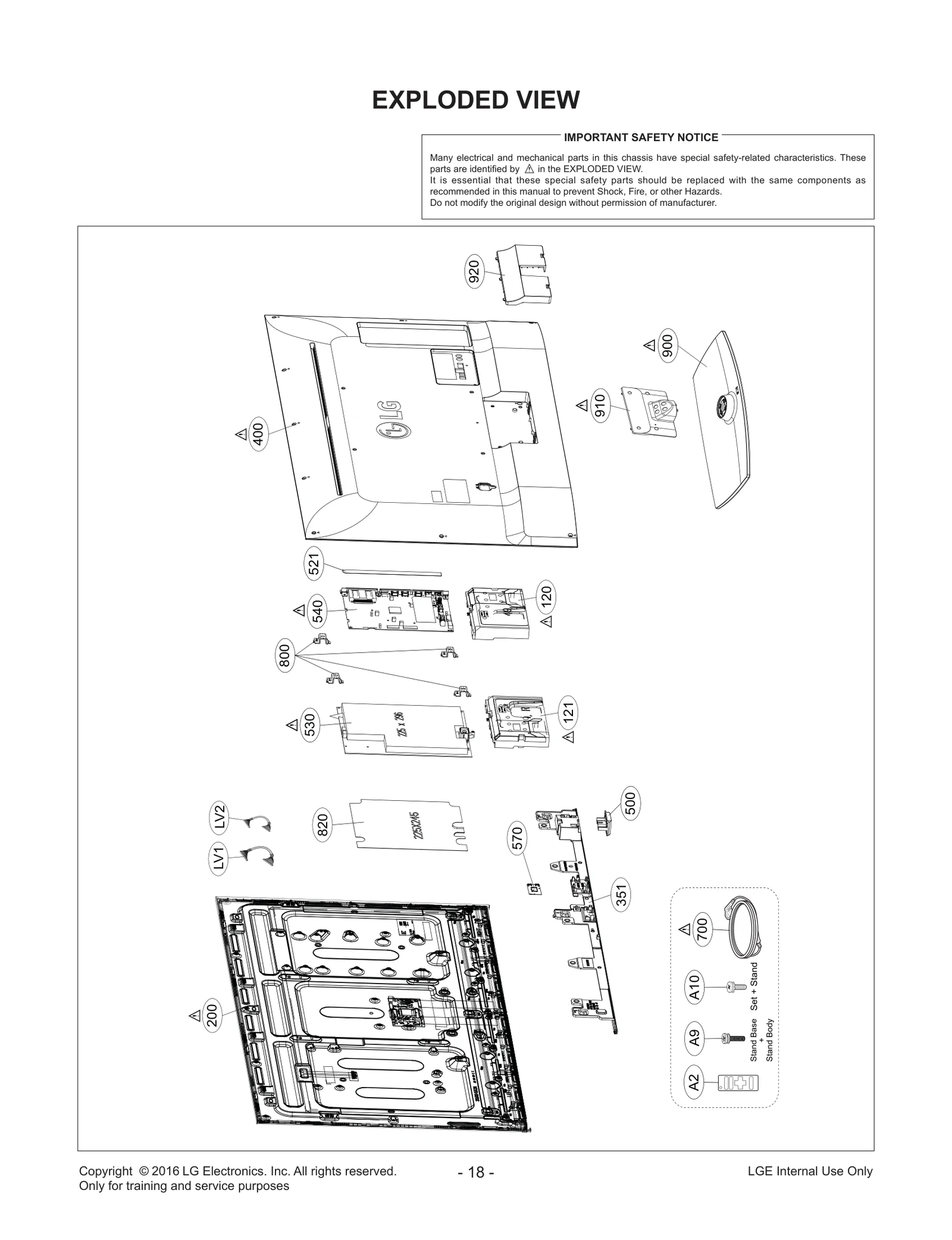

Diagram 0
Diagram 1
Common parts from model LG 49UW970H
400
Cover Assembly,Rear LGE ACQ88513430 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR81960503 Contact Us For Availability
521
Bracket LGE MAZ65130215 Contact Us For Availability
530
Power Supply Assembly LGE EAY64269131 Contact Us For Availability
540
Chassis Assembly LGE EBT64326703 Contact Us For Availability
800
Supporter,VESA LGE MJH64334001 Contact Us For Availability
820
Insulator LGE MEV65731701 Contact Us For Availability
900
Base Assembly LGE AAN75850002 Contact Us For Availability
910
Bracket LGE MAZ65336802 Contact Us For Availability
A2
Remocon kit,Package Assembly LGE AGF76692636 Contact Us For Availability
B1
Box LGE MAY67710402 Contact Us For Availability
C1002
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C5412
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C8067
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C8069
Capacitor,AL,Chip LGE 0CE476WK6DC Contact Us For Availability
CA1
Harness,Single LGE EAD63727102 Contact Us For Availability
CA2
Harness,Multi LGE EAD63727403 Contact Us For Availability
CA3
Cable,Assembly LGE EAD61273123 Contact Us For Availability
LV1
Cable,FFC LGE EAD63767601 Contact Us For Availability
LV3
Cable,FFC LGE EAD63767502 Contact Us For Availability
Q8901
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q8903
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
× ![]()
