Model LG 49UV340C – Common Parts & Diagrams

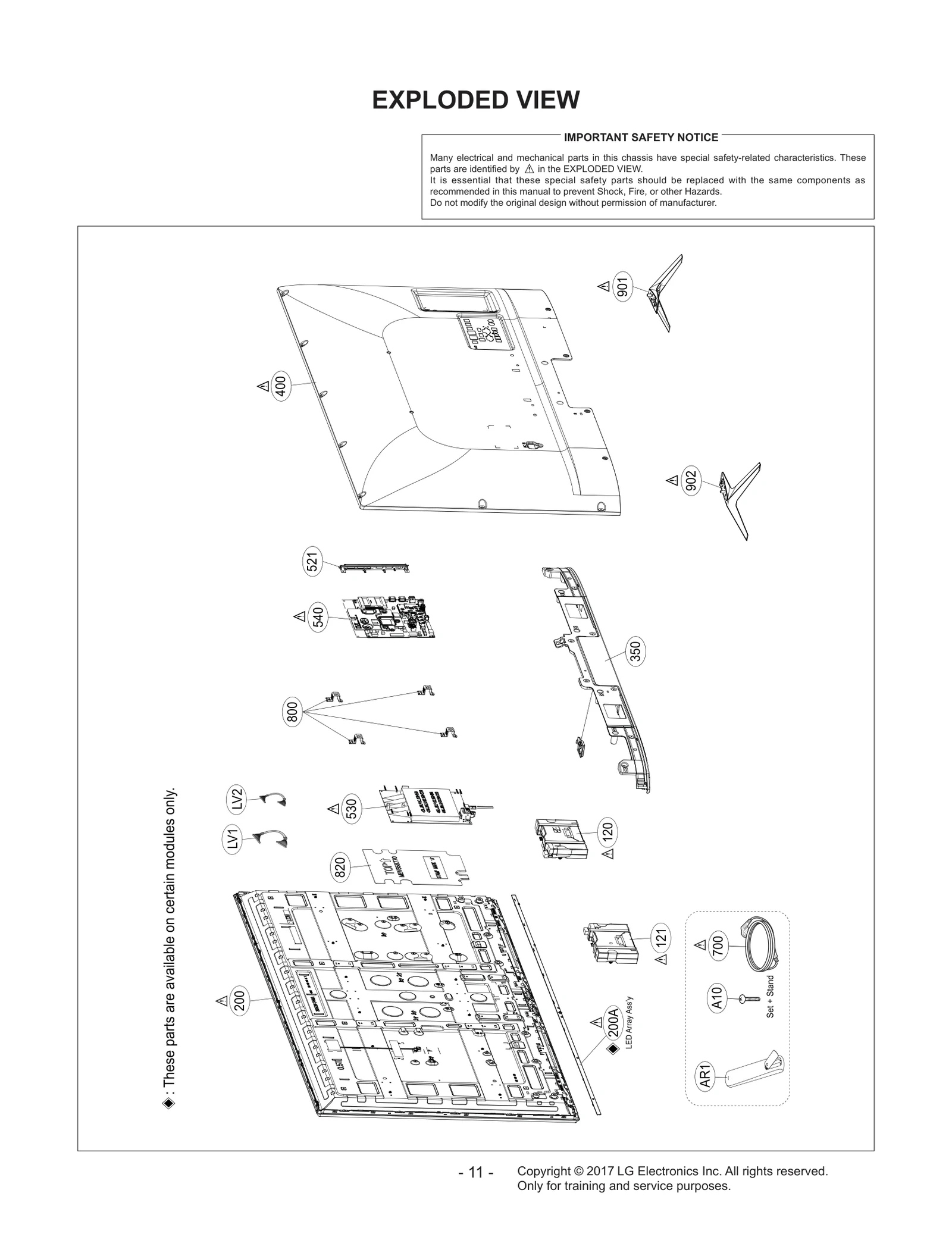

Diagram 0
Diagram 1
Common parts from model LG 49UV340C
200
LCD,Module-TFT LGE EAJ63928501 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF78687101 Contact Us For Availability
200P
LCD,Panel-TFT LGE EAJ64609401 Contact Us For Availability
200PPF
Polarizer,Local Sourcing Parts LGE CLS31240201 Contact Us For Availability
200PPR
Polarizer,Local Sourcing Parts LGE CLS31280101 Contact Us For Availability
200SL1
Source PCB,Local Sourcing Parts LGE CLS31202201 Contact Us For Availability
350
Cover Assembly,Rear LGE ACQ89142641 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ89125386 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ89125387 Contact Us For Availability
521
Bracket LGE MAZ65396431 Contact Us For Availability
540
Chassis Assembly LGE EBT65033006 Contact Us For Availability
800
Supporter,VESA LGE MJH64333102 Contact Us For Availability
901
Base Assembly LGE AAN75832023 Contact Us For Availability
901
Base Assembly LGE AAN75832039 Contact Us For Availability
902
Base Assembly LGE AAN75832024 Contact Us For Availability
B1
Box LGE MAY67711802 Contact Us For Availability
CA1
Harness,Multi LGE EAD63727302 Contact Us For Availability
CA2
Harness,Single LGE EAD63726901 Contact Us For Availability
CA3
Harness,Single LGE EAD64030003 Contact Us For Availability
LV1
Cable,FFC LGE EAD63969908 Contact Us For Availability
LV2
Cable,FFC LGE EAD63969909 Contact Us For Availability
× ![]()
