Model LG 49UH5J-H – Common Parts & Diagrams

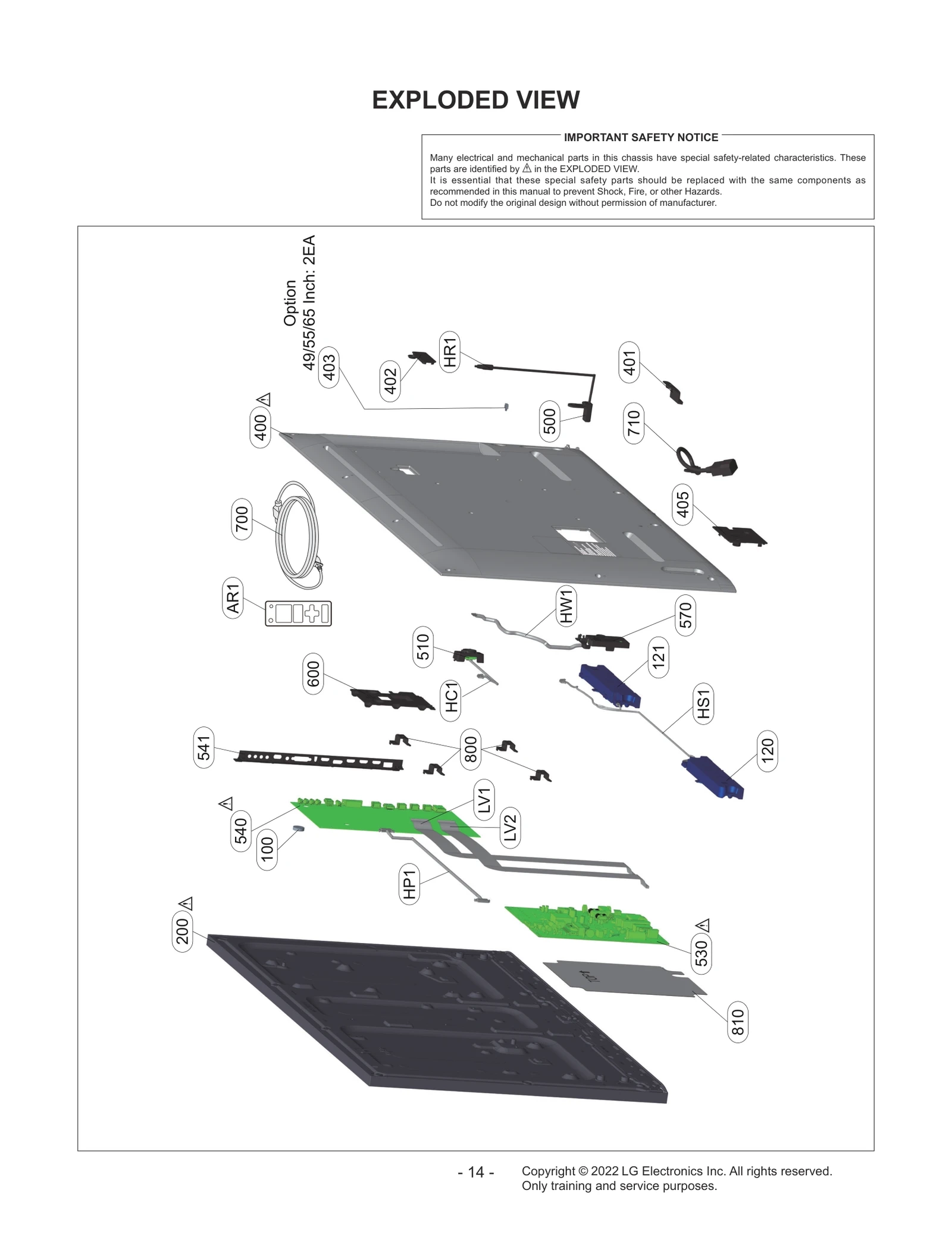

Diagram 0
Common parts from model LG 49UH5J-H
100
Primary Cell Battery,Lithium LGE EAC63418701 Contact Us For Availability
100
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
120
Speaker Assembly LGE EAB63628203 Contact Us For Availability
121
Speaker Assembly LGE EAB63628204 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65703102 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ91465565 Contact Us For Availability
401
Bracket LGE MAZ67107401 Contact Us For Availability
402
Cover LGE MCK71069901 Contact Us For Availability
403
HOLDER LGE 4930TKK067A Contact Us For Availability
405
Cover LGE MCK71090401 Contact Us For Availability
500
Chassis Assembly LGE EBT63756612 Contact Us For Availability
500
Chassis Assembly LGE EBT63756604 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR89093001 Contact Us For Availability
530
Power Supply Assembly LGE EAY65728702 Contact Us For Availability
540
BPR Total Assembly,SVC LGE EBU67091502 Contact Us For Availability
541
Bracket LGE MAZ67087610 Contact Us For Availability
800
Supporter,VESA LGE MJH64334001 Contact Us For Availability
810
Insulator LGE MEV67433301 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB76039803 Contact Us For Availability
HC1
Harness,Single LGE EAD64145102 Contact Us For Availability
HR1
Cable,Assembly LGE EAD63406601 Contact Us For Availability
HW1
Harness,Single LGE EAD64126111 Contact Us For Availability
LV1
Cable,FFC LGE EAD64666211 Contact Us For Availability
LV2
Cable,FFC LGE EAD64666212 Contact Us For Availability
× ![]()
