Model LG 49UF6400 – Common Parts & Diagrams

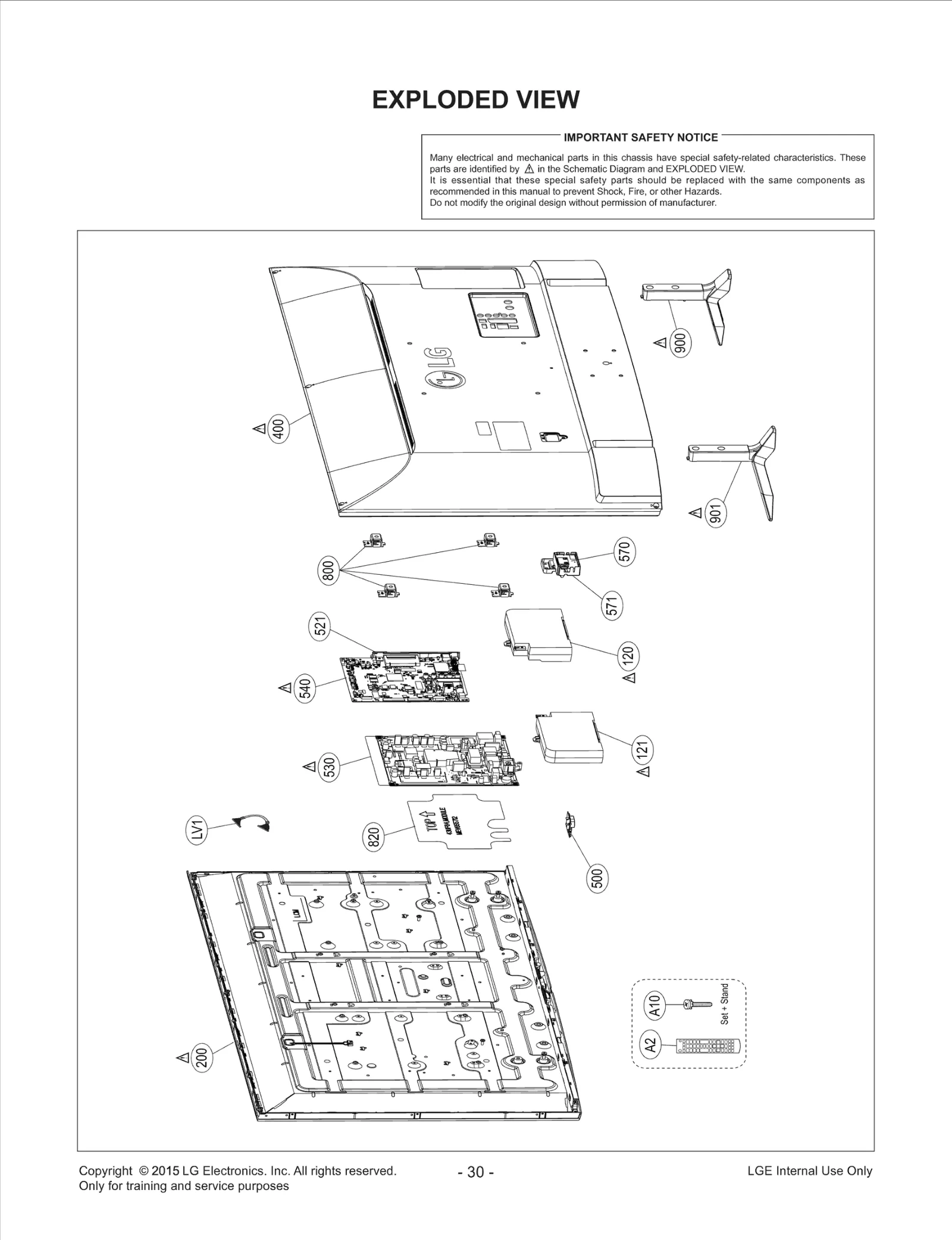

Diagram 0
Diagram 1
Common parts from model LG 49UF6400
121
Speaker Assembly LGE EAB64048601 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63547602 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR80772103 Contact Us For Availability
530
Power Supply Assembly LGE EAY64009501 Contact Us For Availability
570
Module,WLAN LGE EAT61813801 Contact Us For Availability
571
Bracket LGE MAZ64570904 Contact Us For Availability
710
Power Cord,Detach LGE EAD61909202 Contact Us For Availability
800
Supporter LGE MJH64055002 Contact Us For Availability
820
Insulator LGE MEV65414501 Contact Us For Availability
901
Base Assembly LGE AAN75349305 Contact Us For Availability
AM
Manual Assembly LGE AFN76832136 Contact Us For Availability
AM1
Manual,Owners LGE MFL68741506 Contact Us For Availability
AR408
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR3307
Resistor,Chip LGE EBC62798406 Contact Us For Availability
AR5800
Resistor,Array LGE EBC62582706 Contact Us For Availability
AR7101
Resistor,Array LGE EBC62582704 Contact Us For Availability
AR8102
Resistor,Array LGE EBC32260501 Contact Us For Availability
AR8103
Resistor,Array LGE EBC32260401 Contact Us For Availability
AR13200
Resistor,Array LGE EBC62582701 Contact Us For Availability
C215
Capacitor,Ceramic,Ch LGE EAE30281901 Contact Us For Availability
C230
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C295
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C474
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C609
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C627
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C2304
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C2325
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C2326
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C2332
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C2340
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C2343
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C2344
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C2504
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C2507
Capacitor,TA,Polymer LGE EAE62987401 Contact Us For Availability
C2511
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C3800
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C3815
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C5802
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C5815
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5819
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C6708
Capacitor,Ceramic,Chip LGE 0CK102EY48A Contact Us For Availability
C8106
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C13404
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C13451
Tantal Capacitor,Polymer LGE 0CZZB00084B Contact Us For Availability
C13617
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C14883
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
CA1
Harness,Multi LGE EAD62847627 Contact Us For Availability
D3000
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3305
Diode,Switching LGE EAH61714301 Contact Us For Availability
D4100
Diode,TVS LGE EAH61515101 Contact Us For Availability
D4302
Diode,TVS LGE EAH62735601 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN63027603 Contact Us For Availability
IC101
IC,EEPROM LGE EAN62389502 Contact Us For Availability
IC400
IC,DDR3 SDRAM LGE EAN63053202 Contact Us For Availability
IC402
IC,LDO Voltage Regulator LGE EAN63492401 Contact Us For Availability
IC404
IC,DDR3 SDRAM LGE EAN63648701 Contact Us For Availability
IC2301
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC2302
IC,DC,DC Converter LGE EAN62911301 Contact Us For Availability
IC2303
IC,DC,DC Converter LGE EAN63530101 Contact Us For Availability
IC2304
IC,DC,DC Converter LGE EAN63530001 Contact Us For Availability
IC2306
IC,Voltage Detector LGE EAN61829902 Contact Us For Availability
IC2309
FET LGE EBK61313102 Contact Us For Availability
IC2501
IC,DC,DC Converter LGE EAN62653301 Contact Us For Availability
IC2502
IC,DC,DC Converter LGE EAN62788601 Contact Us For Availability
IC5800
IC,Audio Amplifier LGE EAN62886102 Contact Us For Availability
IC13200
IC,Serial Flash Memory LGE EAN62459501 Contact Us For Availability
IC13402
IC,DC,DC Converter LGE EAN62870301 Contact Us For Availability
JK3800
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK4302
Connector,USB LGE EAG62571101 Contact Us For Availability
JK5000
Jack,Modular LGE EAG35781015 Contact Us For Availability
L2300
Filter,Bead LGE EAM61130602 Contact Us For Availability
L2307
Inductor,Wire Wound,Chip LGE EAP63025901 Contact Us For Availability
L2308
Filter,Bead LGE EAM62091201 Contact Us For Availability
L2313
Filter,Bead LGE EAM38769505 Contact Us For Availability
L5803
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L7100
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L13403
Inductor,Wire Wound,Chip LGE EAP62506413 Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6602T12004C Contact Us For Availability
P4100
Connector,Wafer LGE EAG63590904 Contact Us For Availability
Q2300
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q2502
FET LGE EBK62072501 Contact Us For Availability
Q6502
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q7105
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R108
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R137
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R139
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R183
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R185
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R201
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R403
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R413
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R611
Resistor,Chip LGE EBC35273701 Contact Us For Availability
R620
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R631
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R2302
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R2308
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R2315
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R2316
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R2323
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R2325
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R2339
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R2500
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R2510
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R2511
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R2512
Resistor,Chip LGE 0RJ6201C478 Contact Us For Availability
R2515
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R2516
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R2520
Resistor,Chip LGE 0RJ1601C478 Contact Us For Availability
R2522
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R3034
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R3301
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R3310
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R3800
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R3808
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R3817
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R4301
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R5810
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R5812
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R6506
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R6516
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R6909
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R12802
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R13007
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R13254
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R13400
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R13403
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R13406
Resistor,Chip LGE EBC34656201 Contact Us For Availability
R13407
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R13409
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R13411
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R13412
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R13415
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R13422
Resistor,Chip LGE 0RJ3601C478 Contact Us For Availability
SW3000
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TU6705
Tuner,Analog/Digital LGE EBL61540001 Contact Us For Availability
VA2303
Varistor LGE EAF61530101 Contact Us For Availability
VA3311
Varistor LGE EAF61530301 Contact Us For Availability
VA3804
Varistor LGE EAF61630101 Contact Us For Availability
VA5002
Varistor LGE EAF61530201 Contact Us For Availability
X3000
Crystal LGE EAW30067102 Contact Us For Availability
X13200
Crystal LGE EAW61645502 Contact Us For Availability
ZD2302
Diode,TVS LGE EAH62134701 Contact Us For Availability
× ![]()
