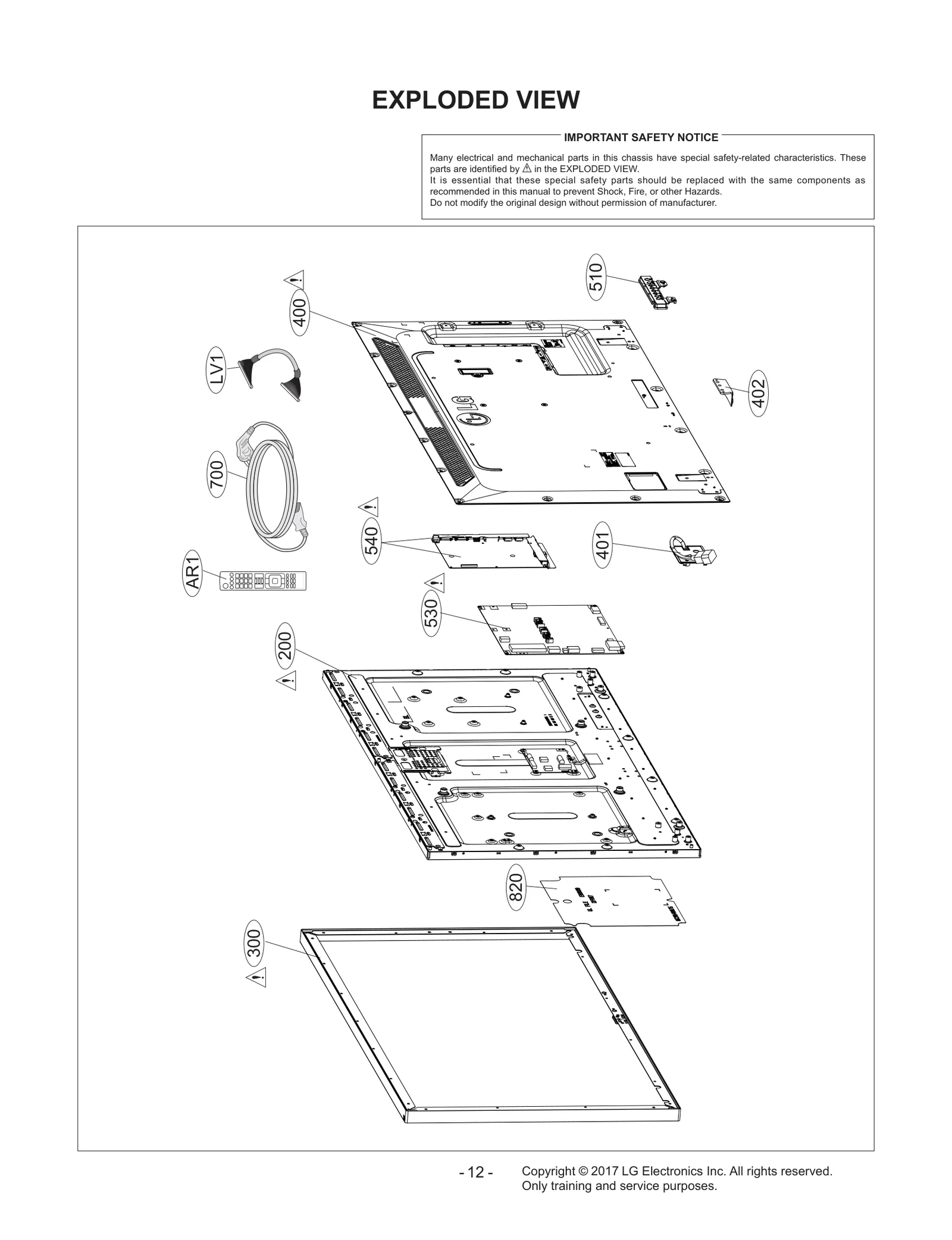

Model LG 49SH7DB-M – Common Parts & Diagrams

300
Cabinet Assembly
Cabinet Assembly LGE ABJ74547306 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ87486629 Contact Us For Availability
View on Model
401
Cover
Cover LGE MCK67169302 Contact Us For Availability
View on Model
402
Bracket
Bracket LGE MAZ64683404 Contact Us For Availability
View on Model
530
Power Supply Assembly
Power Supply Assembly LGE EAY62169608 Contact Us For Availability
View on Model
540
DMS Chassis Assembly
DMS Chassis Assembly LGE EBT63952515 Contact Us For Availability
View on Model
820
Plate Assembly
Plate Assembly LGE AGU74028103 Contact Us For Availability
View on Model
C39
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
View on Model
C301
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
View on Model
C603
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
View on Model
C1701
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
View on Model
C3615
Capacitor,Ceramic,Ch
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
View on Model
D805
DIODE,SWITCHING
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
View on Model
L601
FILTER(CIRC),EMC
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD62572211 Contact Us For Availability
View on Model
P1101
Connector,DSUB
Connector,DSUB LGE 6630TGA005S Contact Us For Availability
View on Model
R325
RESISTOR CHIP GVC-C425 1UG1 GS
RESISTOR CHIP GVC-C425 1UG1 GS LGE 0RH8201D622 Contact Us For Availability
View on Model
