Model LG 49LS75A-5B – Common Parts & Diagrams

Common parts from model LG 49LS75A-5B

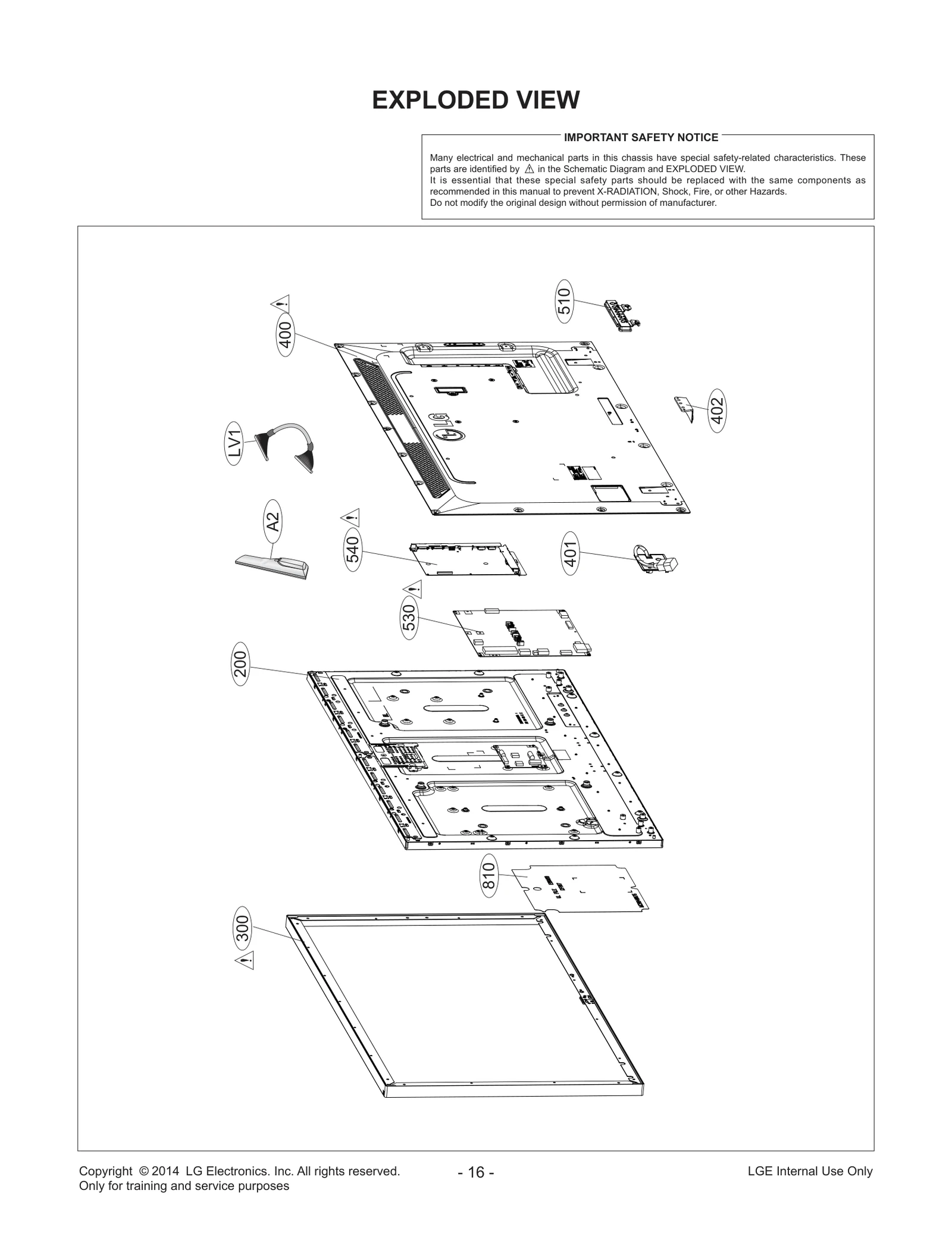

Diagram 0

Print

• This Diagram
• All Diagrams

200

LCD,Module-TFT LGE EAJ63048701 Contact Us For Availability

View on Model

300

Cabinet Assembly LGE ABJ74547303 Contact Us For Availability

View on Model

400

Cover Assembly,Rear LGE ACQ87486601 Contact Us For Availability

View on Model

401

Chassis Assembly LGE EBT62213201 Contact Us For Availability

View on Model

402

Bracket LGE MAZ64683401 Contact Us For Availability

View on Model

510

DMS Chassis Assembly Backorder LGE EBT63304301 View Details $5.31

View on Model

530

Power Supply Assembly LGE EAY62169602 Contact Us For Availability

View on Model

540

DMS Chassis Assembly LGE EBT63304101 Contact Us For Availability

View on Model

810

Plate Assembly LGE AGU74028101 Contact Us For Availability

View on Model

A1

Title LGE SAC36493502 Contact Us For Availability

View on Model

A2

Remote Controller Assembly Backorder LGE AKB73975763 View Details $22.20

View on Model

A3

Power Cord,Detach Backorder LGE EAD60810701 View Details $13.54

View on Model

A4

Cable,Assembly Backorder LGE EAD61273132 View Details $37.88

View on Model

A5

Cable,Assembly LGE EAD00926103 Contact Us For Availability

View on Model

LV1

Cable,FFC LGE EAD62046925 Contact Us For Availability

View on Model

S1

Power Cord Assembly Backorder LGE EAD61946701 View Details $10.56

View on Model

S2

Harness,Single LGE EAD52821218 Contact Us For Availability

View on Model

S3

Harness,Single LGE EAD61052417 Contact Us For Availability

View on Model

S4

Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability

View on Model

S5

Harness,Single LGE EAD62094503 Contact Us For Availability

View on Model

×
