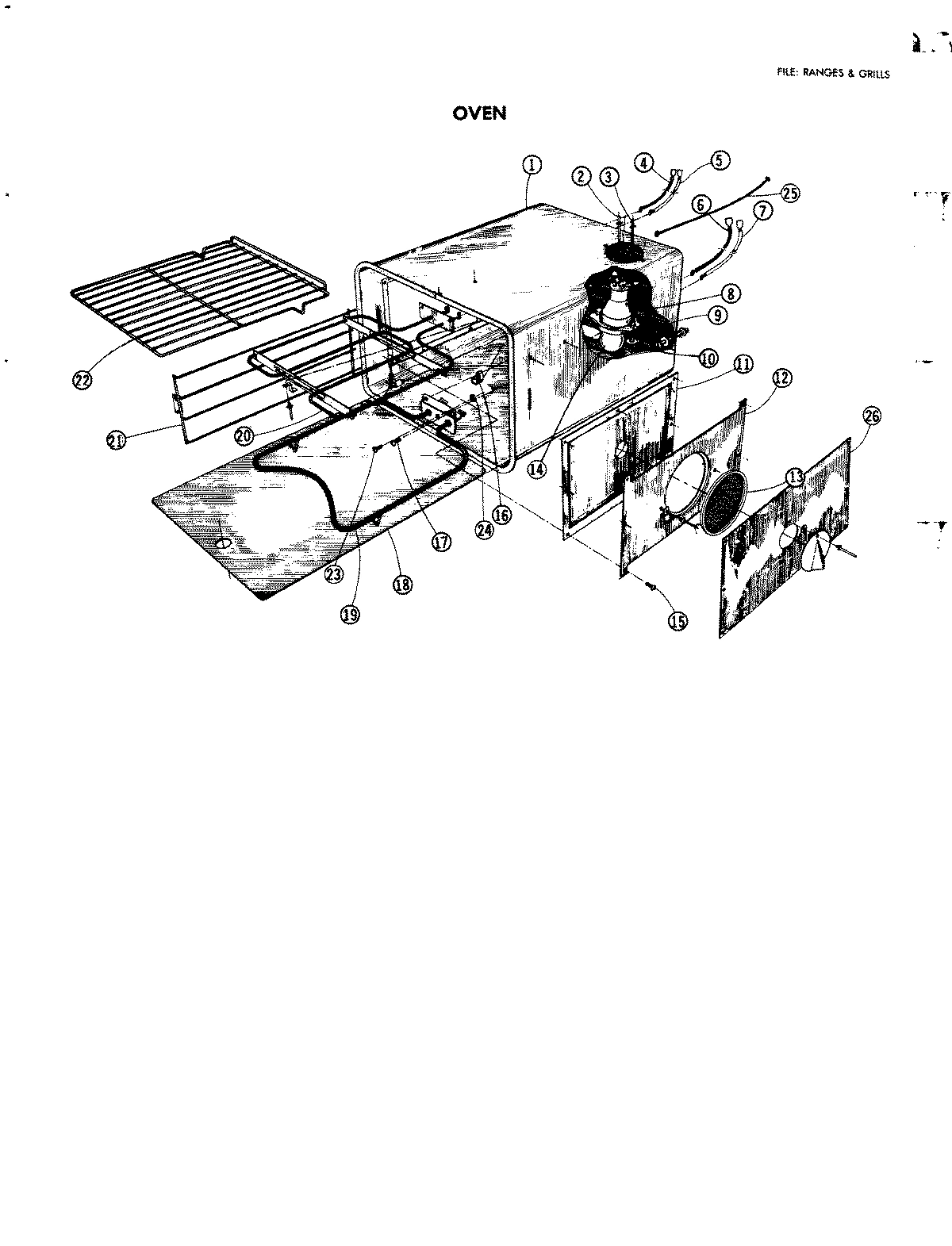

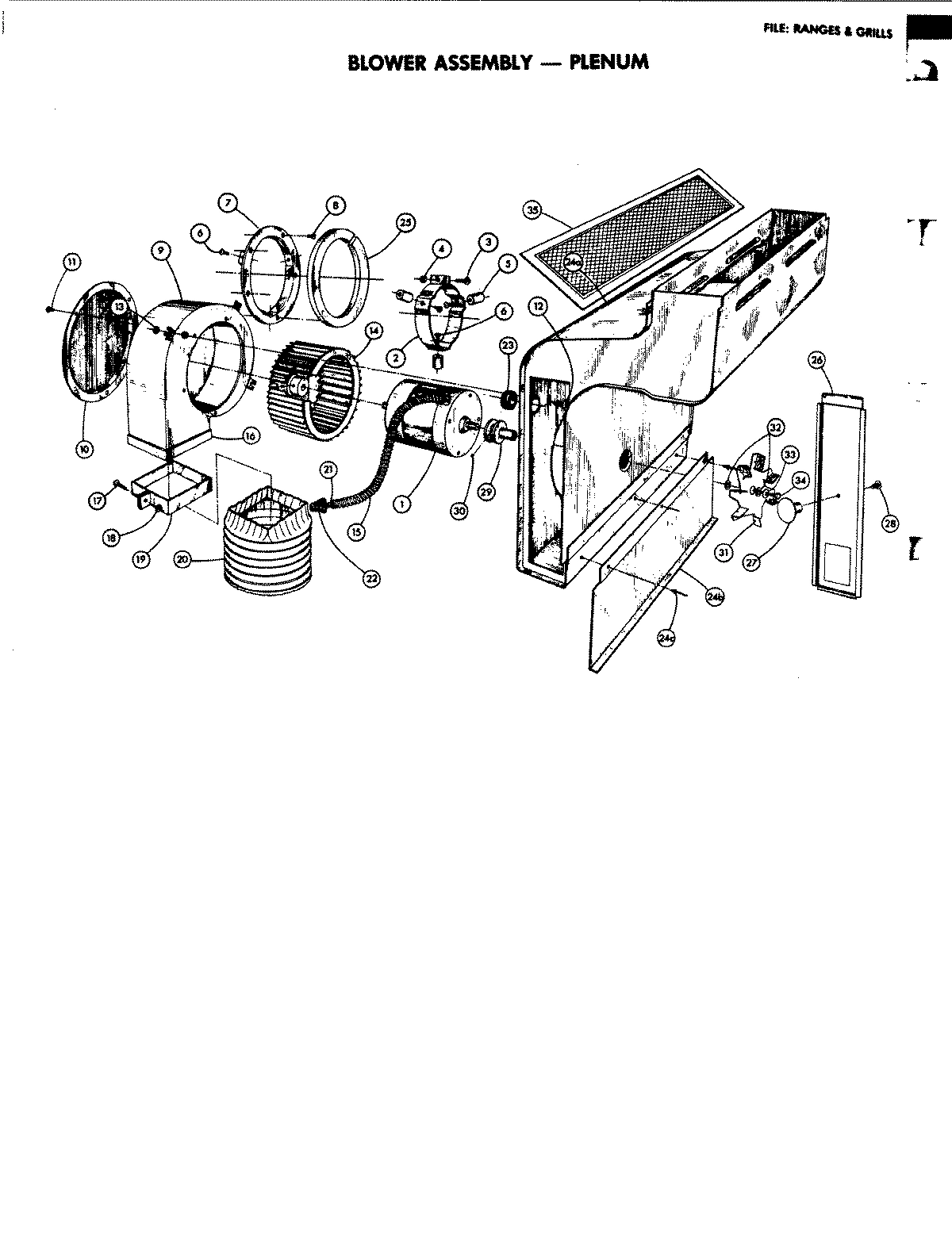

Model Whirlpool 4890 ELECTRIC RANGE – Common Parts &amp; Diagrams

1

NUT, TEE WPL 715294 Contact Us For Availability

1

SPACER WPL 715777 Contact Us For Availability

1

OVEN ASSEMBLY WPL 770455 Contact Us For Availability

1

OVEN BOLT WPL 770458 Contact Us For Availability

1

SUPPORT BRACKET WPL Y708585 Contact Us For Availability

1

JAR LID BRACKET ASSEMBLY WPL 770454 Contact Us For Availability

1

CLOCK WPL 715394 Contact Us For Availability

1

GLASS WPL 770459 Contact Us For Availability

1

CLOCK BEZEL WPL 770460 Contact Us For Availability

1

CLOCK KNOB WPL 770461 Contact Us For Availability

1

TOP ASSEMBLY WPL 700003 Contact Us For Availability

1

FILLER BRACKET WPL 715417 Contact Us For Availability

1

SCREW WPL 700141 Contact Us For Availability

2

DRAIN ASSEMBLY (RIGHT) WPL 700136 Contact Us For Availability

2

KNOB THERMO WPL Y715600 Contact Us For Availability

2

SCREW WPL Y708690 Contact Us For Availability

2

DOOR GLASS+ WPL Y700443 Contact Us For Availability

3

SCREW WPL Y707402 Contact Us For Availability

3

WIRE, WHITE WPL 715519 Contact Us For Availability

3

O-RING WPL Y700466 Contact Us For Availability

3

DRAIN NUT WPL Y715916 Contact Us For Availability

3

DRAIN ASSEMBLY (LEFT) WPL 700135 Contact Us For Availability

3

PILOT LIGHT----NA WPL 715756 Contact Us For Availability

3

GR PAN BROWN WPL 700837 Contact Us For Availability

3

DOOR HANDLE WPL Y700442 Contact Us For Availability

4

74004835 Whirlpool Clip In Stock WPL 74004835 $4.92

4

WPY707869 Whirlpool Drain Jar Backorder WPL WPY707869 $31.79

4

WIRE, BLACK WPL 715518 Contact Us For Availability

4

SCREW WPL Y707150 Contact Us For Availability

4

REVERSE PAN WPL 700852 Contact Us For Availability

4

INS TERM BLK WPL 701934 Contact Us For Availability

4

BUSHING WPL 715939 Contact Us For Availability

5

W11164114 Whirlpool Screw Backorder WPL W11164114 $2.91

5

WP59002061 Whirlpool Microwave Screw In Stock WPL WP59002061 $2.51

5

WPY700854 Whirlpool Oven Burner Knob In Stock WPL WPY700854 $10.89

5

ISOLATOR WPL 715757 Contact Us For Availability

5

WIRE, RED WPL 715516 Contact Us For Availability

6

WIRE, YELLOW WPL 715517 Contact Us For Availability

6

DIVIDER WALL WPL 715377 Contact Us For Availability

6

WASHER WPL Y707664 Contact Us For Availability

6

WASHER WPL Y700446 Contact Us For Availability

7

INLET RING WPL 715365 Contact Us For Availability

7

WIRE, BROWN WPL 715544 Contact Us For Availability

7

COVER WPL 715963 Contact Us For Availability

7

FEATURE PANEL WPL 715884 Contact Us For Availability

7

PANEL, CONTROL WPL Y700156 Contact Us For Availability

7

BRACKET WPL 708839 Contact Us For Availability

7

MOUNTING PAD WPL Y700444 Contact Us For Availability

8

WIRE, BLUE WPL 715515 Contact Us For Availability

8

SCREW WPL 707346 Contact Us For Availability

8

END CAP RH WPL 715379 Contact Us For Availability

8

END CAP LH WPL 715380 Contact Us For Availability

8

GRILL PAN WIRE WPL 700007 Contact Us For Availability

8

WIRE, RED WPL 708995 Contact Us For Availability

8

WIRE, YELLOW WPL 708997 Contact Us For Availability

8

WIRE, BLUE WPL 708998 Contact Us For Availability

8

WIRE, BLACK WPL Y708996 Contact Us For Availability

8

OVEN DOOR LINER WPL 700015 Contact Us For Availability

8

PAD, SPACER WPL 715938 Contact Us For Availability

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

9

WP5708M005-60 Whirlpool Wire Harness Backorder WPL WP5708M005-60 $51.62

9

WP5708M007-60 Whirlpool Wire Harness Backorder WPL WP5708M007-60 $55.24

9

WP5708M008-60 Whirlpool Dishwasher Wire Harne Backorder WPL WP5708M008-60 $49.03

9

WP5708M081-60 Whirlpool Wire Harness Backorder WPL WP5708M081-60 $23.70

9

SCROLL WPL 700549 Contact Us For Availability

9

RECEPTACLE, LIGHT WPL 715281 Contact Us For Availability

9

FRONT SUPPORT WPL 715352 Contact Us For Availability

9

BRACKET WPL 715406 Contact Us For Availability

9

LN BLUE WR ASSY 4800 WPL 700844 Contact Us For Availability

9

LHWR ASY KT WPL 700846 Contact Us For Availability

9

RHWR ASY KT WPL 700847 Contact Us For Availability

9

CONTACT ASSEMBLY WPL Y700004 Contact Us For Availability

9

WIRE, BLACK WPL Y701490 Contact Us For Availability

9

WIRE, RED WPL Y701491 Contact Us For Availability

9

RECEPTACLE CONTACTS WPL Y708558 Contact Us For Availability

700855K Whirlpool Oven Cooktop Burner Switch In Stock WPL 700855K $70.48

7101P345-60 Whirlpool M Screw Assembly Backorder WPL 7101P345-60 $9.59

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

COVER-BLOWER HSG. COVER WPL 700551 Contact Us For Availability

WASHER WPL 715295 Contact Us For Availability

RECEPTACLE WPL Y715120 Contact Us For Availability

GLASS SPACER WPL 787978 Contact Us For Availability

WP3188425 Whirlpool Seal Switch In Stock WPL WP3188425 $28.80

BLOWER HOUSING ASSEMBLY WPL 700137 Contact Us For Availability

SPLITTER WPL 715614 Contact Us For Availability

NEW HINGE WPL 700853 Contact Us For Availability

WIRE, RED WPL 715513 Contact Us For Availability

INNER GLASS WPL 715284 Contact Us For Availability

SCREW WPL 715959 Contact Us For Availability

FILTER RETAINER CLIP WPL 715488 Contact Us For Availability

WASHER (TEFLON) WPL 715617 Contact Us For Availability

CONTROL PANEL ASSEMBLY WPL 770456 Contact Us For Availability

FRONT CLOSURE WPL 715275 Contact Us For Availability

THERMOSTAT WPL 700158 Contact Us For Availability

WIRE, BLUE WPL 715514 Contact Us For Availability

DOOR INSULATION KIT WPL 715315 Contact Us For Availability

NUT WPL 707161 Contact Us For Availability

CONVECTIVE FILTER WPL 715526 Contact Us For Availability

BOX COVER WPL 715535 Contact Us For Availability

SELECTOR SWITCH WPL 715398 Contact Us For Availability

SWITCH, FAN WPL 715397 Contact Us For Availability

OVEN DOOR SEAL WPL 715368 Contact Us For Availability

7103P166-60 Whirlpool Nut Backorder WPL 7103P166-60 $7.05

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP486255 Whirlpool Air Conditioner Nut Backorder WPL WP486255 $2.38

WHEEL, BLOWER WPL Y700547 Contact Us For Availability

SCREW 8A WPL 715779 Contact Us For Availability

BRACKET WPL 715395 Contact Us For Availability

LOGO (KIT) WPL 700140 Contact Us For Availability

SCREW WPL 707116 Contact Us For Availability

CONDUIT WPL Y707758 Contact Us For Availability

AIR GRILL WPL 700515 Contact Us For Availability

BRACKET WPL 715838 Contact Us For Availability

WP7112P004-60 Whirlpool Thermal Clip In Stock WPL WP7112P004-60 $5.11

FOAM TAPE WPL 715749 Contact Us For Availability

CATCH, DOOR WPL 707551 Contact Us For Availability

ELEMENT, GRILL WPL 787834 Contact Us For Availability

ELEMENT COMPLETE, 240V WPL Y700531 Contact Us For Availability

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.51

SCREW WPL 715485 Contact Us For Availability

WIRE HARNESS WPL 700157 Contact Us For Availability

WIRING LABEL WPL 700474 Contact Us For Availability

WIRING LABEL WPL 700857 Contact Us For Availability

KNOB SELECTOR SWITCH WPL Y715403 Contact Us For Availability

PLATE, ROCK WPL 708929 Contact Us For Availability

700819 Whirlpool Oven Element Support Backorder WPL 700819 $29.44

OVEN BOTTOM WPL 715279 Contact Us For Availability

BUSHING WPL 708939 Contact Us For Availability

WASHER, LOCK WPL 715910 Contact Us For Availability

WP715269 Whirlpool Bake Element Backorder WPL WP715269 $67.98

NO LONGER AVAILABLE WPL 788191 Contact Us For Availability

FEATURE PANEL ASSEMBLY WPL Y700011 Contact Us For Availability

DECAL INFINITE SWITCH WPL 712217 Contact Us For Availability

GRATE WPL 707886 Contact Us For Availability

DUCT, FLEX WPL 715557 Contact Us For Availability

ELEMENT, BROIL WPL 715416 Contact Us For Availability

NO LONGER AVAILABLE WPL 788179 Contact Us For Availability

BLACK WIRE, JUNCTION BOX WPL 712172 Contact Us For Availability

RED WIRE, JUCTION BOX WPL 712173 Contact Us For Availability

DECAL, CONTROL PANEL WPL 712206 Contact Us For Availability

DECAL, CONTROL PANEL WPL 712207 Contact Us For Availability

21

BUSHING WPL 708185 Contact Us For Availability

21

RACK SUPPORT WPL 715424 Contact Us For Availability

21

BUMPER, BUTTON WPL 708361 Contact Us For Availability

22

CONNECTOR, CONDUIT WPL 707085 Contact Us For Availability

22

OVEN RACK WPL 715276 Contact Us For Availability

22

MOTOR ACCESS COVER WPL 715378 Contact Us For Availability

23

SCREW WPL 708278 Contact Us For Availability

M0282005 Whirlpool Nut Backorder WPL M0282005 $4.36

PLENUM ASSEMBLY WPL 700020 Contact Us For Availability

LOWER PLENUM WPL 715484 Contact Us For Availability

NO LONGER AVAILABLE WPL 788159 Contact Us For Availability

NO LONGER AVAILABLE WPL 788062 Contact Us For Availability

25

GASKET WPL 715364 Contact Us For Availability

25

WIRE, GREEN WPL 715733 Contact Us For Availability

25

TINNERMAN WPL 708804 Contact Us For Availability

PLENUM DOOR WPL 700138 Contact Us For Availability

DOOR WPL 708204 Contact Us For Availability

INSULATION WRAP WPL 715532 Contact Us For Availability

INSULATION BACK WPL 715533 Contact Us For Availability

NUT WPL 708934 Contact Us For Availability

27

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $29.96

27

WP71001171 Whirlpool Screw Backorder WPL WP71001171 $2.51

27

DOOR KNOB WPL 708238 Contact Us For Availability

28

SCREW WPL 707407 No Longer Available

28

BUSHING WPL Y707695 Contact Us For Availability

29

GROMMET WPL 715392 Contact Us For Availability

29

COUPLING WPL 700553 Contact Us For Availability

30

J TINNERMAN WPL 715389 Contact Us For Availability

30

SET SCREW WPL 700552 Contact Us For Availability

CONVECTIVE WHEEL WPL 715729 Contact Us For Availability

UNIT WRAP WPL 700008 Contact Us For Availability

SUPPORT RAIL WPL 715351 Contact Us For Availability

SCREW WPL 715923 Contact Us For Availability

32

FLAT WASHER WPL 715890 Contact Us For Availability

32

SIDE TRIM WPL 715731 Contact Us For Availability

33

LOCK WASHER WPL 715540 Contact Us For Availability

33

TINNERMAN WPL 715846 Contact Us For Availability

33

CLIP WPL Y708910 Contact Us For Availability

34

CAP SCREW WPL 715958 Contact Us For Availability

34

TERMINAL BLOCK WPL 700459 Contact Us For Availability

35

WP71002111 Whirlpool Grease Filter In Stock WPL WP71002111 $10.87

35

JUNCTION BOX WPL 700534 Contact Us For Availability

35

WIRING GROMMET WPL 715866 Contact Us For Availability

36

SUPPORT RAIL WPL 700622 Contact Us For Availability
