Model LG 47WV50BR-B – Common Parts & Diagrams
Diagram 0

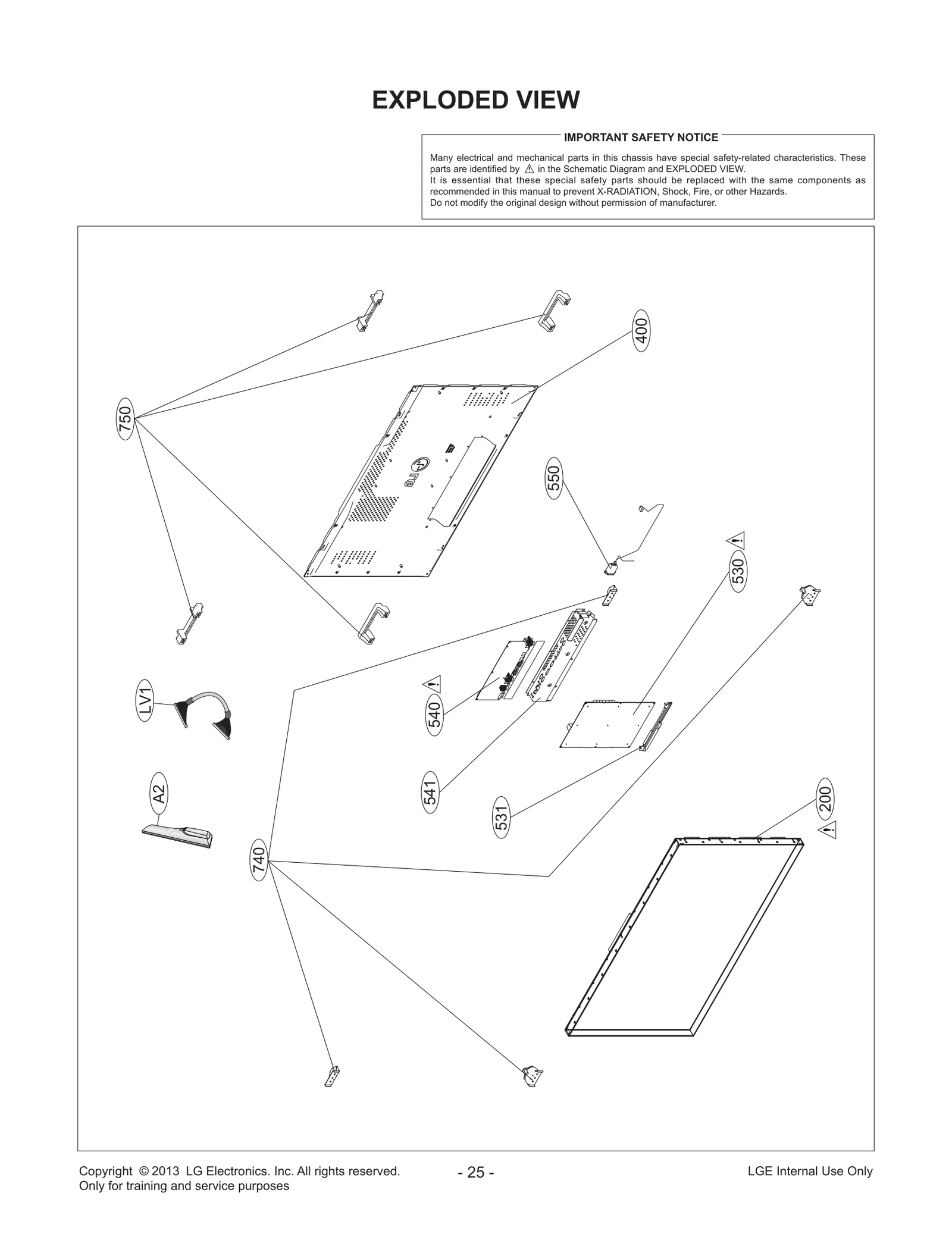

Diagram 1
Common parts from model LG 47WV50BR-B
200
LCD,Module-TFT LGE EAJ62430901 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86594901 Contact Us For Availability
530
Power Supply Assembly LGE EAY63050102 Contact Us For Availability
531
Bracket LGE MAZ63850001 Contact Us For Availability
541
Bracket LGE MAZ63847701 Contact Us For Availability
550
Filter,AC Line LGE EAM36140901 Contact Us For Availability
740
Bracket LGE MAZ63830801 Contact Us For Availability
A1
Title LGE SAC33111346 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73715642 Contact Us For Availability
A4
Cable,Assembly LGE EAD57760001 Contact Us For Availability
A6
Cable,Assembly LGE EAD61485506 Contact Us For Availability
AR402
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR421
Resistor,Array LGE EBC32260404 Contact Us For Availability
C5
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C7
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C407
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C410
Capacitor,Ceramic,Chip LGE 0CC130BKF1A Contact Us For Availability
C415
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C439
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C446
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C454
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C550
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C563
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C564
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C568
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C579
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C585
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C588
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C600
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C604
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C613
Capacitor,AL,Chip LGE 0CE476WK6DC Contact Us For Availability
C617
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C618
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
C646
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C658
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C662
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C670
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C673
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C722
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C725
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C732
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C745
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C754
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C762
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C775
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C817
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C1001
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1404
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
D403
Diode,Switching LGE 0DSON00218A Contact Us For Availability
D412
Diode,TVS LGE EAH61515101 Contact Us For Availability
D433
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D445
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D604
Diode,TVS LGE EAH39491701 Contact Us For Availability
D803
Diode,TVS LGE EAH61232601 Contact Us For Availability
IC201
S/W,Firmware LGE SAA36567101 Contact Us For Availability
IC402
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC403
S/W,Firmware LGE SAA35745108 Contact Us For Availability
IC404
S/W,Firmware LGE SAA36336221 Contact Us For Availability
IC405
Display SOC,Digital TV LGE EAN61860501 Contact Us For Availability
IC406
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC407
S/W,Firmware LGE SAA35947426 Contact Us For Availability
IC408
IC,DDR3 SDRAM LGE EAN60774101 Contact Us For Availability
IC410
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC411
IC,DC,DC Converter LGE EAN61548102 Contact Us For Availability
IC412
IC,LDO Voltage Regulator LGE EAN62576701 Contact Us For Availability
IC412
IC,LDO Voltage Regulator LGE EAN38975801 Contact Us For Availability
IC413
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC414
IC,DC,DC Converter LGE EAN61013901 Contact Us For Availability
IC415
IC,DC,DC Converter LGE EAN60922902 Contact Us For Availability
IC418
Sensor,Temperature LGE EBD38015101 Contact Us For Availability
IC419
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC420
IC,Timer LGE EAN54696201 Contact Us For Availability
IC421
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC422
IC,Audio Amplifier LGE EAN62449901 Contact Us For Availability
IC422
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC426
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC427
IC,Analog Switch LGE EAN62227502 Contact Us For Availability
IC431
IC LGE 0IPH741400E Contact Us For Availability
IC434
IC,Video Amplifier LGE EAN60815201 Contact Us For Availability
IC438
IC,Tx/Rx LGE EAN62193401 Contact Us For Availability
IC439
S/W,Firmware LGE SAA35944801 Contact Us For Availability
IC440
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC441
IC,DDR3 SDRAM LGE EAN61829203 Contact Us For Availability
IC1001
IC,STANDARD LOGIC LGE 0ISTL00031A Contact Us For Availability
IC1402
IC,Ethernet LGE EAN62219202 Contact Us For Availability
IC1403
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
JK402
Jack,Phone LGE 6612F00006G Contact Us For Availability
JK403
Jack,DIN LGE EAG39323103 Contact Us For Availability
JK404
Connector,I/O LGE EAG60823003 Contact Us For Availability
JK407
Jack,Modular LGE EAG38645702 Contact Us For Availability
JK901
Connector,BNC LGE EAG63150001 Contact Us For Availability
L301
Filter,Bead LGE EAM32500903 Contact Us For Availability
L430
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L438
Filter,Bead LGE EAM58113401 Contact Us For Availability
L470
FILTER(CIRC),EMC LGE 6200J00012A Contact Us For Availability
L482
Filter,Bead LGE EAM54407902 Contact Us For Availability
L486
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD61858750 Contact Us For Availability
P401
Connector,Wafer LGE EAG58732906 Contact Us For Availability
P408
Connector,DSUB LGE 6630TGA005S Contact Us For Availability
P409
Connector,DSUB LGE EAG43472001 Contact Us For Availability
P410
Connector,DSUB LGE 6630G00004C Contact Us For Availability
P411
Connector,Wafer LGE 6630V93270J Contact Us For Availability
Q404
FET LGE EBK60752601 Contact Us For Availability
Q405
TR,Bipolar LGE EBK61012501 Contact Us For Availability
Q410
TRANSISTOR,FETS LGE 0TFIR80016B Contact Us For Availability
Q425
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q804
FET LGE EBK42767801 Contact Us For Availability
Q1501
FET LGE EBK60752501 Contact Us For Availability
R8
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R55
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R443
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R465
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R521
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R534
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R562
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R576
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R593
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R611
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R618
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R626
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R685
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R690
Resistor,Chip LGE 0RJ5102E472 Contact Us For Availability
R702
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R703
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R707
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R710
Resistor,Chip LGE 0RJ2402D477 Contact Us For Availability
R715
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R719
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R724
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R725
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R726
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R727
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R731
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R732
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R733
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R736
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R745
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R752
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R804
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R818
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R829
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R837
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R840
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R843
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R868
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R872
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R883
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R933
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R937
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R956
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R957
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R969
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R975
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R981
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R1005
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R1006
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R1022
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1030
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R1078
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1084
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1091
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1303
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R1419
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R1425
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1502
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
S1
Harness,Single LGE EAD61052414 Contact Us For Availability
S2
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
S3
Harness,Single LGE EAD62386303 Contact Us For Availability
S4
Harness,Single LGE EAD62122701 Contact Us For Availability
SW401
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
VR402
VARISTOR LGE 6102W5V016A Contact Us For Availability
X403
RESONATOR,CRYSTAL LGE 6202TST001H Contact Us For Availability
X1401
Crystal LGE 6212AB2872B Contact Us For Availability
ZD401
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
Login and Registration Form
