Model LG 47WV30BS-B – Common Parts & Diagrams

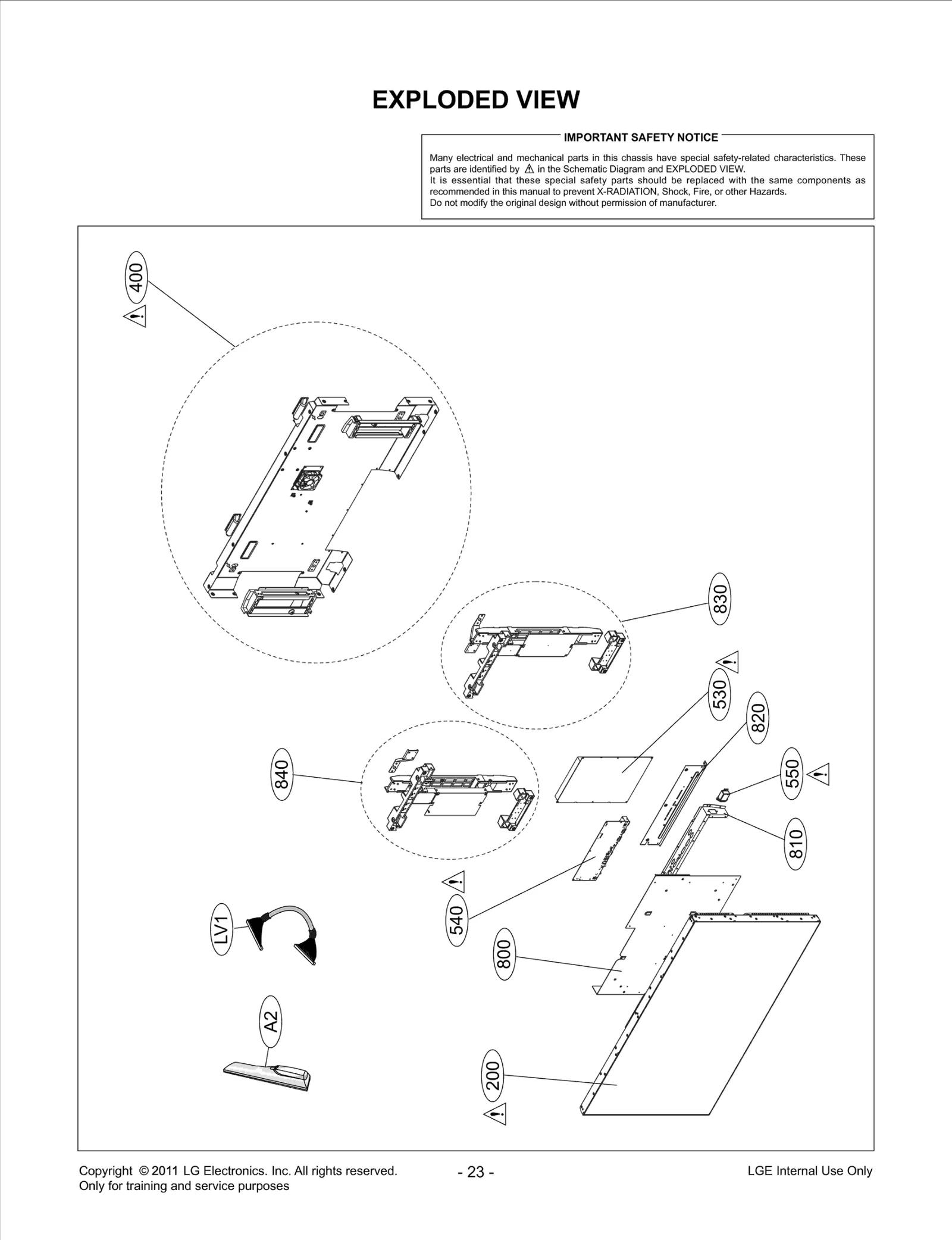

Diagram 0
Diagram 1
Common parts from model LG 47WV30BS-B
200
LCD,Module-TFT LGE EAJ62067801 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85447401 Contact Us For Availability
530
Power Supply Assembly LGE EAY60869001 Contact Us For Availability
540
PCB Assembly,Main LGE EBR73110010 Contact Us For Availability
550
Filter,AC Line LGE EAM36140901 Contact Us For Availability
800
Frame LGE MDQ62917701 Contact Us For Availability
810
Bracket LGE MAZ63107303 Contact Us For Availability
830
Bracket Assembly LGE ABA73930509 Contact Us For Availability
840
Bracket Assembly LGE ABA73930510 Contact Us For Availability
A1
Title LGE SAC33111325 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915219 Contact Us For Availability
A4
Cable,Assembly LGE 68509F0003G Contact Us For Availability
A5
Cable,Assembly LGE EAD61485506 Contact Us For Availability
A6
Cable,Assembly LGE EAD61273103 Contact Us For Availability
A7
Cable,Assembly LGE EAD57760001 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
AR103
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR1207
Resistor,Array LGE EBC32260404 Contact Us For Availability
C6
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C7
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C8
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C13
Capacitor,Ceramic,Chip LGE 0CC130BKF1A Contact Us For Availability
C203
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C244
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C249
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C258
Capacitor,Ceramic,Chip LGE EAE37992001 Contact Us For Availability
C371
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C512
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C515
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C531
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C532
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C535
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C545
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C548
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C559
Capacitor,AL,Chip LGE 0CE476WK6DC Contact Us For Availability
C606
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C707
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C719
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C724
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C725
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C732
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C852
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C854
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C903
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C915
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C928
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C929
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C1005
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C1005
Capacitor,Ceramic,Chip LGE EAE60672901 Contact Us For Availability
C1235
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1407
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1428
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
D501
Diode,Switching LGE 0DSON00218A Contact Us For Availability
D804
Diode,TVS LGE EAH42720601 Contact Us For Availability
D818
Diode,TVS LGE EAH61232601 Contact Us For Availability
D900
Diode,TVS LGE EAH39491701 Contact Us For Availability
D902
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D922
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
IC3
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC4
S/W,Firmware LGE SAA35925602 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN61855301 Contact Us For Availability
IC104
S/W,Firmware LGE SAA35634444 Contact Us For Availability
IC109
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC501
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC502
IC,DC,DC Converter LGE EAN61548102 Contact Us For Availability
IC503
IC,LDO Voltage Regulator LGE EAN38975801 Contact Us For Availability
IC504
IC,DC,DC Converter LGE EAN60660501 Contact Us For Availability
IC504
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC505
IC,DC,DC Converter LGE EAN60922901 Contact Us For Availability
IC505
IC,DC,DC Converter LGE EAN60922902 Contact Us For Availability
IC507
IC,Reset LGE EAN60670101 Contact Us For Availability
IC508
IC,DC,DC Converter LGE EAN61013901 Contact Us For Availability
IC600
IC,Timer LGE EAN54696201 Contact Us For Availability
IC601
Sensor,Temperature LGE EBD38015101 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62449901 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN60969601 Contact Us For Availability
IC702
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC802
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC803
IC,Analog Switch LGE EAN62227501 Contact Us For Availability
IC803
IC,Analog Switch LGE EAN62227502 Contact Us For Availability
IC901
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC901
IC,EEPROM LGE 0IMMRAL014E Contact Us For Availability
IC902
IC LGE 0IPH741400E Contact Us For Availability
IC903
IC,Video Amplifier LGE EAN60815201 Contact Us For Availability
IC1402
IC,LAN LGE EAN61956501 Contact Us For Availability
IC1403
S/W,Firmware LGE SAA35604906 Contact Us For Availability
JK801
JACK,DIN LGE 6612B00015A Contact Us For Availability
JK1001
Connector,BNC LGE 6630A90018E Contact Us For Availability
JK1003
Jack,RCA LGE 380-344A Contact Us For Availability
JK1401
Jack,Modular LGE EAG62892401 Contact Us For Availability
L203
Filter,Bead LGE EAM54407902 Contact Us For Availability
L501
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L503
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L517
Filter,Bead LGE EAM58113401 Contact Us For Availability
L800
FILTER(CIRC),EMC LGE 6200J00012A Contact Us For Availability
L810
Filter,Bead LGE EAM32500903 Contact Us For Availability
LD501
LED,Chip LGE EAV59914601 Contact Us For Availability
LV1
Cable,FFC LGE EAD61217807 Contact Us For Availability
P1
Connector,Wafer LGE EAG58732906 Contact Us For Availability
P501
Connector,Wafer LGE EAG60376901 Contact Us For Availability
P700
Jack,Phone LGE 6612F00006G Contact Us For Availability
P801
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
P900
Connector,DSUB LGE EAG43472001 Contact Us For Availability
P901
Connector,DSUB LGE 6630G00004C Contact Us For Availability
P902
Connector,Wafer LGE 6630V90141H Contact Us For Availability
P1302
Connector,FFC/FPC/PIC LGE EAG60692101 Contact Us For Availability
Q502
TR,Bipolar LGE EBK61012501 Contact Us For Availability
Q506
FET LGE EBK60752501 Contact Us For Availability
Q600
TRANSISTOR,FETS LGE 0TFIR80016B Contact Us For Availability
Q701
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q901
TR,Bipolar LGE 0TRKE80038A Contact Us For Availability
R22
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R24
Resistor,Chip LGE 0RJ3003E472 Contact Us For Availability
R49
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R104
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R105
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R119
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R160
Resistor,Chip LGE ERHZ0000242 Contact Us For Availability
R214
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R222
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R235
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R238
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R244
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R255
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R270
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R506
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ5102E472 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R525
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R530
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R532
Resistor,Chip LGE 0RJ2402D477 Contact Us For Availability
R535
Resistor,Chip LGE 0RH5100D622 Contact Us For Availability
R536
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R546
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R547
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R555
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R556
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R557
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R559
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R561
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R605
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R705
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R706
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R715
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R806
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R817
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R823
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R828
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R884
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R904
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R908
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R939
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R942
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R944
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R947
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R949
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R959
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R966
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R991
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R1012
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R1017
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R1018
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R1019
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R1224
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1226
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R1237
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1409
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R1416
Resistor,Chip LGE 0RJ8061C477 Contact Us For Availability
R1431
Resistor,Chip LGE 0RJ0492D477 Contact Us For Availability
R1915
Resistor,Chip LGE 0RJ0101G676 Contact Us For Availability
S1
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
S2
Harness,Single LGE 6631T20029J Contact Us For Availability
S3
Harness,Single LGE EAD60673312 Contact Us For Availability
S4
Bracket Assembly LGE ABA74048701 Contact Us For Availability
SW1
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
X1401
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
ZD801
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
Login and Registration Form
