  • LG 47VS20-BAA Parts List

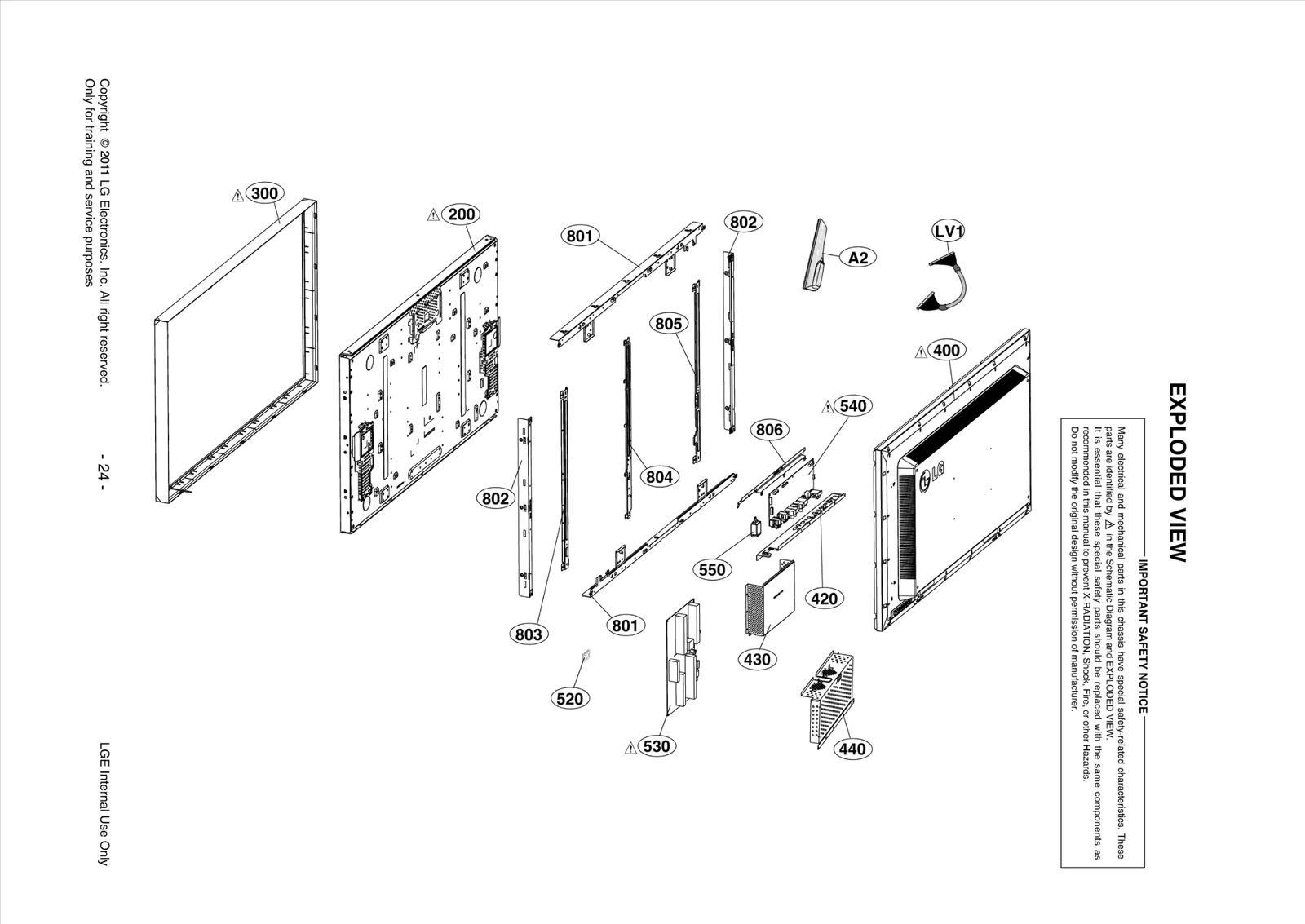

Model LG 47VS20-BAA – Common Parts & Diagrams

200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ61110001 Contact Us For Availability
View on Model
300
Cabinet Assembly
Cabinet Assembly LGE ABJ73228405 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ83111310 Contact Us For Availability
View on Model
430
Plate,Shield
Plate,Shield LGE MGJ62602502 Contact Us For Availability
View on Model
440
Plate,Shield
Plate,Shield LGE MGJ62910203 Contact Us For Availability
View on Model
520
Package Assembly
Package Assembly LGE AGF76408201 Contact Us For Availability
View on Model
540
Package Assembly
Package Assembly LGE AGF76428501 Contact Us For Availability
View on Model
801
Plate,Metal
Plate,Metal LGE MGJ62601903 Contact Us For Availability
View on Model
802
Plate,Metal
Plate,Metal LGE MGJ62601802 Contact Us For Availability
View on Model
803
Plate,Metal
Plate,Metal LGE MGJ62601502 Contact Us For Availability
View on Model
804
Plate,Metal
Plate,Metal LGE MGJ62601602 Contact Us For Availability
View on Model
805
Plate,Metal
Plate,Metal LGE MGJ62601702 Contact Us For Availability
View on Model
806
Plate,Metal
Plate,Metal LGE MGJ62601402 Contact Us For Availability
View on Model
A2
Remote Controller Assembly
Remote Controller Assembly LGE AKB72915294 Contact Us For Availability
View on Model
C1
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
View on Model
C4
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
View on Model
IC1
Receiver Module
Receiver Module LGE EAV37989901 Contact Us For Availability
View on Model
L2
Filter,Bead
Filter,Bead LGE EAM30764101 Contact Us For Availability
View on Model
L3
Filter,Bead
Filter,Bead LGE EAM38769507 Contact Us For Availability
View on Model
LD1
LED,Chip
LED,Chip LGE EAV34876201 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD61858726 Contact Us For Availability
View on Model
N/A
Label
Label LGE 3850VK0001U Contact Us For Availability
View on Model
P1
Connector,FFC/FPC/PIC
Connector,FFC/FPC/PIC LGE EAG58469801 Contact Us For Availability
View on Model
P5
CONNECTOR (CIRC),WAF
CONNECTOR (CIRC),WAF LGE 6602T20009J Contact Us For Availability
View on Model
P101
Connector,Wafer
Connector,Wafer LGE 6630V90141B Contact Us For Availability
View on Model
R2
Resistor,Chip
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
View on Model
R101
Resistor,Chip
Resistor,Chip LGE 0RH1302D622 Contact Us For Availability
View on Model
R102
RESISTOR CHIP 4.7K 1/10W 5 D.
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
View on Model
R837
Resistor,Chip
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
View on Model
SW102
SWITCH,TACT
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
View on Model
SW102
Switch,Tact
Switch,Tact LGE EBF55334201 Contact Us For Availability
View on Model
ZD4
Diode,TVS
Diode,TVS LGE EAH39491701 Contact Us For Availability
View on Model
