Model LG 47LY750H – Common Parts & Diagrams

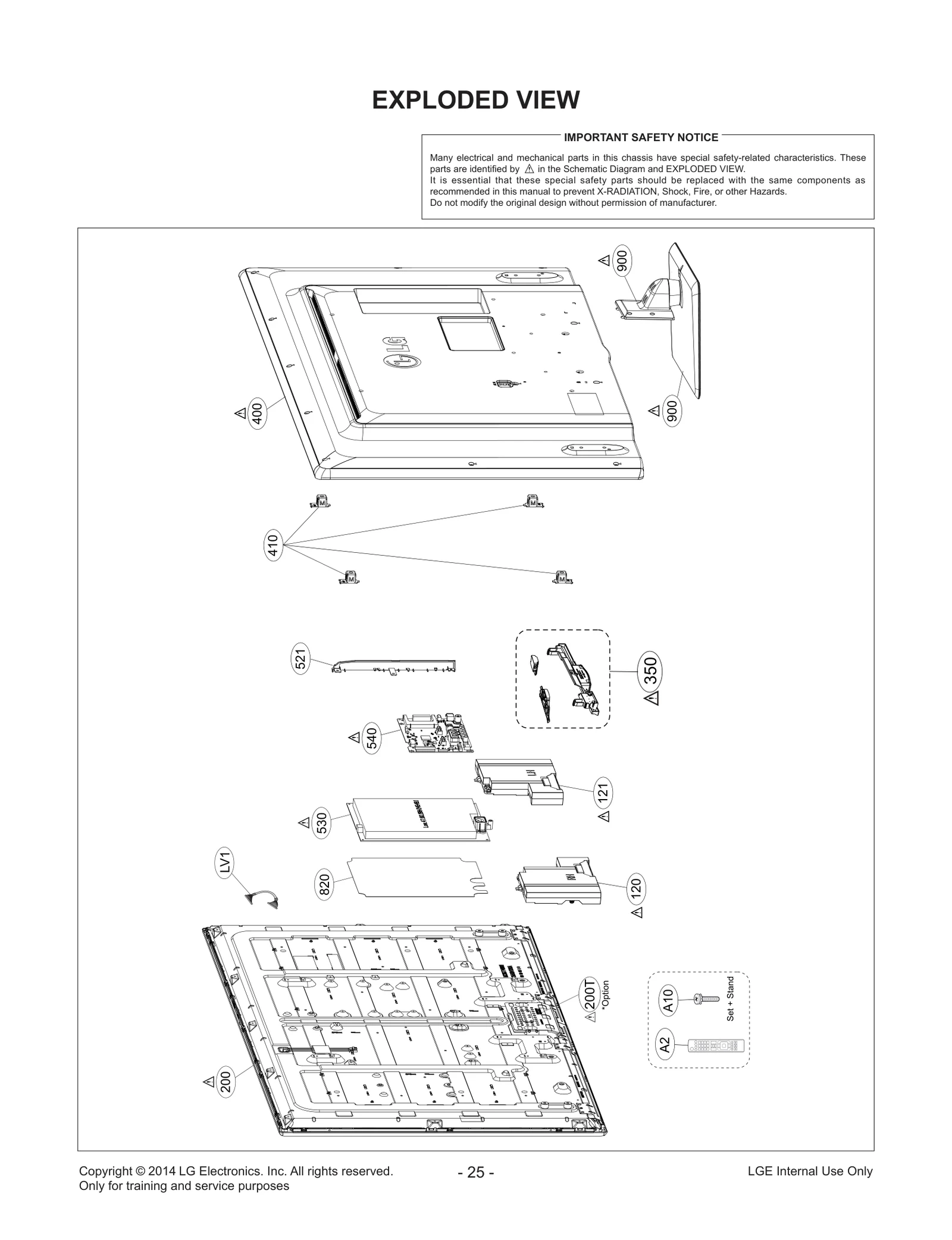

Diagram 0
Diagram 1
Common parts from model LG 47LY750H
200
LCD,Module-TFT LGE EAJ62747701 Contact Us For Availability
200T
Time Control LGE EAT63113201 Contact Us For Availability
350
Cover Assembly LGE ACQ87250816 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87134533 Contact Us For Availability
521
Bracket Assembly LGE ABA74789731 Contact Us For Availability
540
Chassis Assembly LGE EBT63112702 Contact Us For Availability
820
Insulator LGE MEV64571001 Contact Us For Availability
900
Base Assembly LGE AAN74669703 Contact Us For Availability
910
Bracket LGE MAZ64132102 Contact Us For Availability
A2
Remocon kit,Package Assembly LGE AGF76692613 Contact Us For Availability
AM
Manual Assembly LGE AFN76212012 Contact Us For Availability
AM1
Manual,Owners LGE MFL68080312 Contact Us For Availability
AR8102
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR8104
Resistor,Array LGE EBC32260401 Contact Us For Availability
B1
Box LGE MAY66245801 Contact Us For Availability
C115
Capacitor,Ceramic,Ch LGE 0CK2R7BK0DA Contact Us For Availability
C305
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C310
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C336
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C360
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C523
Capacitor,Ceramic,Chip LGE EAE62764101 Contact Us For Availability
C726
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C2401
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C2402
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C2416
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C2421
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C4329
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C4345
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C5407
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C5423
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C5430
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C8106
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C8430
Capacitor,Ceramic,Chip LGE EAE60663801 Contact Us For Availability
C8606
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C8609
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C8616
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
C8619
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C8660
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C8662
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C8671
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C8702
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C8717
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C8724
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C8729
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C8802
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C9003
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C9102
Capacitor,Ceramic,Ch LGE 0CK335FK66A Contact Us For Availability
C9105
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C9106
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C9114
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C9200
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C9210
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C9222
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C9252
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
CA1
Harness,Single LGE EAD62595401 Contact Us For Availability
CA2
Harness,Single LGE EAD61646293 Contact Us For Availability
D3302
Diode,Switching LGE EAH61714301 Contact Us For Availability
D3305
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D3322
Diode,TVS LGE EAH62135001 Contact Us For Availability
D3628
Varistor LGE EAF61530101 Contact Us For Availability
D3803
Diode,Switching LGE EAH60666101 Contact Us For Availability
D4304
Diode,TVS LGE EAH61515101 Contact Us For Availability
D8602
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D8804
Diode,TVS LGE EAH33945901 Contact Us For Availability
D9100
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
IC100
IC,EEPROM LGE EAN61925802 Contact Us For Availability
IC104
IC,EEPROM LGE EAN61548301 Contact Us For Availability
IC105
Display SOC,Digital TV LGE EAN62408001 Contact Us For Availability
IC702
IC,DDR3 SDRAM LGE EAN61829203 Contact Us For Availability
IC2403
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC2404
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC3304
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC3801
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC4303
IC,Analog Switch LGE EAN62231201 Contact Us For Availability
IC4305
IC,DC,DC Converter LGE EAN61950701 Contact Us For Availability
IC5400
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC6500
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC8100
IC,MCP,eMMC LGE EAN62886901 Contact Us For Availability
IC8600
IC,DC,DC Converter LGE EAN62206101 Contact Us For Availability
IC8601
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC8705
IC,FRAM LGE 0IMMRRA001B Contact Us For Availability
IC9000
IC,Ethernet LGE EAN62219202 Contact Us For Availability
IC9101
IC,Analog Switch LGE EAN60808401 Contact Us For Availability
IC9102
IC,DC,DC Converter LGE EAN60993001 Contact Us For Availability
IC9200
IC,Voltage Detector LGE EAN60916901 Contact Us For Availability
IC9202
IC,Video Processors LGE EAN62096701 Contact Us For Availability
JK3601
Jack,RCA LGE EAG60968108 Contact Us For Availability
JK3602
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK3803
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK4304
Connector,USB LGE EAG62571101 Contact Us For Availability
JK8700
Jack,Modular LGE EAG61453603 Contact Us For Availability
JK8701
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK8800
Jack,Modular LGE 6612E00008C Contact Us For Availability
JK9000
Jack,Modular LGE EAG35781010 Contact Us For Availability
L2403
Filter,Bead LGE EAM38769505 Contact Us For Availability
L3801
Filter,Bead LGE EAM62091201 Contact Us For Availability
L5403
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L7100
Filter,Bead LGE EAM32500903 Contact Us For Availability
L8603
Inductor,Wire Wound,Chip LGE EAP61606601 Contact Us For Availability
L8605
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L9202
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD62572203 Contact Us For Availability
P2401
Connector,Wafer LGE EAG63590901 Contact Us For Availability
P5400
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P7100
Connector,Wafer LGE 6630V93270J Contact Us For Availability
Q3304
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q3308
TRANSISTOR,BIPOLARS LGE 0TRIH80003A Contact Us For Availability
Q6501
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q8401
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q9000
FET LGE EBK61913601 Contact Us For Availability
R116
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R131
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R188
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R330
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R334
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R342
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R343
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R380
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R705
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R711
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R2402
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R2404
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R2406
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R2409
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R2415
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R2419
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R2427
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R2432
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R2434
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R2441
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R3361
Resistor,Chip LGE 0RJ6202C678 Contact Us For Availability
R3392
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R4303
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R4328
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R4330
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R4331
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R4344
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R4346
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R4352
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R5413
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R5417
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R6507
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R6518
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R8406
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R8424
Resistor,Chip LGE 0RJ1691D477 Contact Us For Availability
R8458
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R8648
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R8649
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R8674
Resistor,Chip LGE 0RH1602D622 Contact Us For Availability
R8725
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R8804
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R8807
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R9101
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R9104
Resistor,Chip LGE 0RJ0432C678 Contact Us For Availability
R9107
Resistor,Chip LGE 0RJ1503D677 Contact Us For Availability
R9118
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
R9260
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R9271
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R87044
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R87049
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R87133
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
VA3307
Varistor LGE EAF61630101 Contact Us For Availability
X100
Crystal LGE EAW61645503 Contact Us For Availability
X8400
Crystal LGE 6212AB2015C Contact Us For Availability
X8700
Crystal LGE EAW30067102 Contact Us For Availability
X9000
Crystal LGE 6212AB2872B Contact Us For Availability
ZD300
Diode,Zener LGE EAH61752501 Contact Us For Availability
× ![]()
Login and Registration Form
