Model LG 47LW5000 – Common Parts & Diagrams

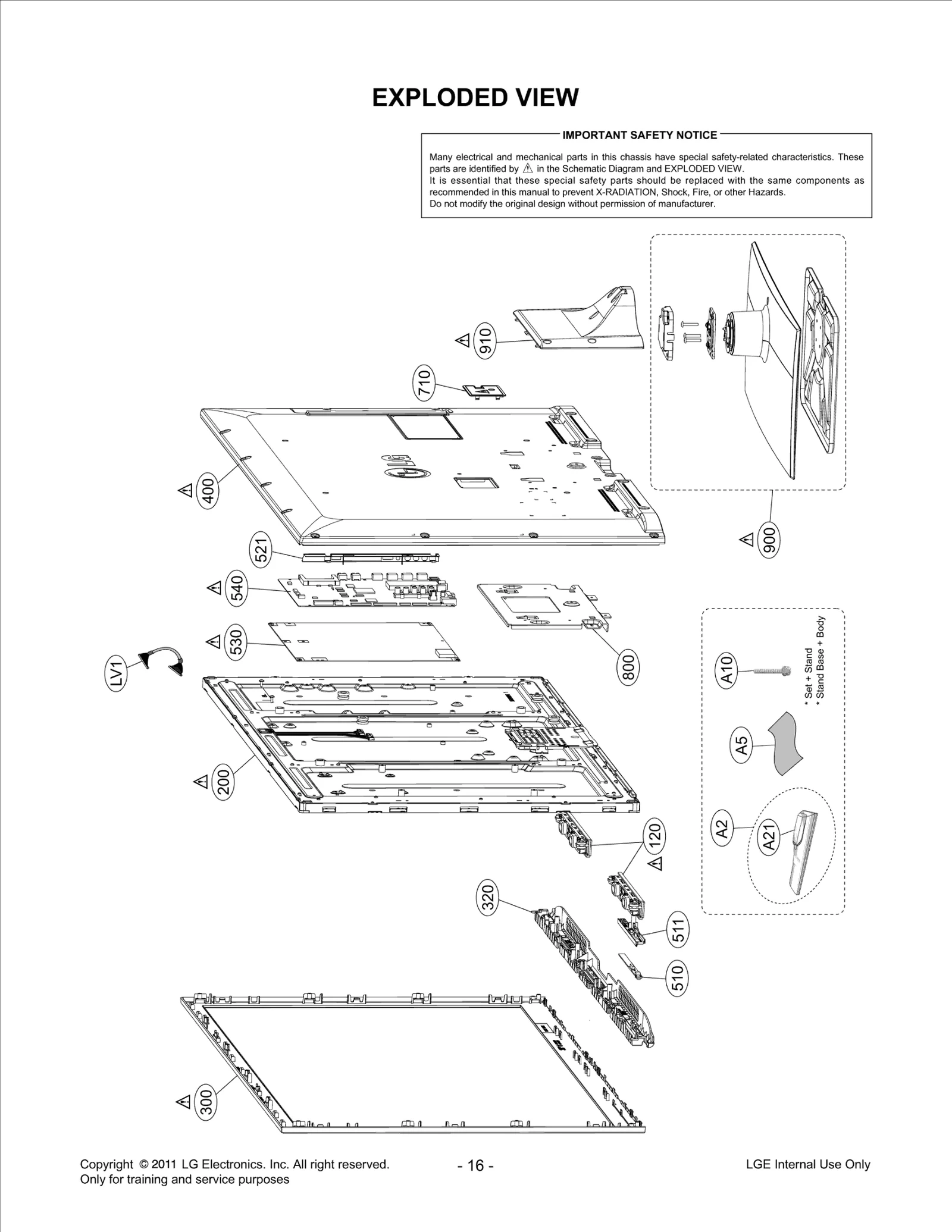

Diagram 0
Diagram 1
Common parts from model LG 47LW5000
200
LCD,Module-TFT LGE EAJ61768201 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61928101 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73228655 Contact Us For Availability
310
Decor LGE MCR63870107 Contact Us For Availability
320
Bracket LGE MAZ62727203 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ83111609 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR72671401 Contact Us For Availability
511
Bracket LGE MAZ62827902 Contact Us For Availability
521
Plate LGE MGJ62683306 Contact Us For Availability
530
Power Supply Assembly LGE EAY62169801 Contact Us For Availability
540
PCB Assembly,Main LGE EBR73927201 Contact Us For Availability
710
Bracket LGE MAZ62827604 Contact Us For Availability
800
Supporter LGE MJH62198002 Contact Us For Availability
801
Plate Assembly LGE AGU73528803 Contact Us For Availability
900
Base Assembly LGE AAN73430406 Contact Us For Availability
A1
Manual,Owners LGE MFL62882741 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915280 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A13
Accessory,3D Glasses LGE EBX61268401 Contact Us For Availability
A13
Accessory,3D Glasses LGE EBX61508301 Contact Us For Availability
AR302
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1219
Resistor,Array LGE EBC39283301 Contact Us For Availability
C215
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C243
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C249
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C253
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C402
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C415
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C420
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C448
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C460
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C466
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C467
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C491
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C521
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C522
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C532
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C535
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C1009
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C1101
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C1108
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1119
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C1128
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1643
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C1646
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1663
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C4045
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C4065
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
CA1
Harness,Single LGE EAD61646223 Contact Us For Availability
CA2
Harness,Single LGE EAD57675124 Contact Us For Availability
CA10
Harness,Single LGE EAD61653801 Contact Us For Availability
D804
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D902
Diode,TVS LGE EAH42720601 Contact Us For Availability
D1617
Diode,TVS LGE EAH39491701 Contact Us For Availability
D2403
Diode,Zener LGE 0DZKE00318A Contact Us For Availability
GAS2
Gasket LGE MDS62110205 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN61860301 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN35669102 Contact Us For Availability
IC103
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC104
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC104
IC,EEPROM LGE EAN61086701 Contact Us For Availability
IC301
IC,DDR3 SDRAM LGE EAN61829001 Contact Us For Availability
IC302
IC,NOR Flash Memory LGE EAN61868201 Contact Us For Availability
IC302
IC,Serial Flash Memory LGE EAN60915401 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC402
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN61548102 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC406
IC,DC,DC Converter LGE EAN60922902 Contact Us For Availability
IC407
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC409
IC,Reset LGE EAN60670101 Contact Us For Availability
IC411
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC804
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC1001
IC,EEPROM LGE EAN61146201 Contact Us For Availability
IC1001
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC1002
IC,Microcontrollers LGE EAN61367101 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61857201 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN55718402 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC1450
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC3703
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
JK803
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK1101
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1102
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK1103
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1104
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK1450
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1601
Jack,RCA LGE EAG60841301 Contact Us For Availability
JK1603
Jack,RCA LGE EAG60968201 Contact Us For Availability
JK3301
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK9901
Jack,Phone LGE EAG61030002 Contact Us For Availability
L205
Inductor,Multilayer,Chip LGE EAP39314712 Contact Us For Availability
L223
Filter,Bead LGE EAM32500903 Contact Us For Availability
L415
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L424
Filter,Bead LGE EAM58113401 Contact Us For Availability
L508
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
L508
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L1451
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD61652506 Contact Us For Availability
P501
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P703
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P704
Connector,Wafer LGE 6630V93270K Contact Us For Availability
P2100
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P2402
Connector,Wafer LGE 6630V90141D Contact Us For Availability
Q402
TR,Bipolar LGE EBK61012501 Contact Us For Availability
Q408
FET LGE EBK60752601 Contact Us For Availability
Q409
FET LGE EBK60752501 Contact Us For Availability
Q409
FET LGE EBK61011501 Contact Us For Availability
Q802
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q806
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1104
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q3705
TR,Bipolar LGE EBK61012701 Contact Us For Availability
R113
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R143
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R146
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R212
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R231
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R317
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R331
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R403
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R408
Resistor,Chip LGE 0RJ1100D677 Contact Us For Availability
R411
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R416
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R423
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R435
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R447
RESISTOR,METAL GLAZE LGE 0RJ1211D477 Contact Us For Availability
R448
Resistor,Chip LGE 0RJ2701D477 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R452
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R457
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R460
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R461
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R464
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R465
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R466
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R474
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R480
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R482
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R488
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R524
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R835
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R853
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R889
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R891
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R1039
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R1089
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R1226
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1237
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1621
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1672
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R2414
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R3740
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R3749
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R3752
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R4002
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
TU3702
Tuner,Analog/Digital LGE EBL60860103 Contact Us For Availability
X1002
Crystal LGE EAW30067102 Contact Us For Availability
× ![]()
Login and Registration Form
