Model LG 47LV355B – Common Parts & Diagrams

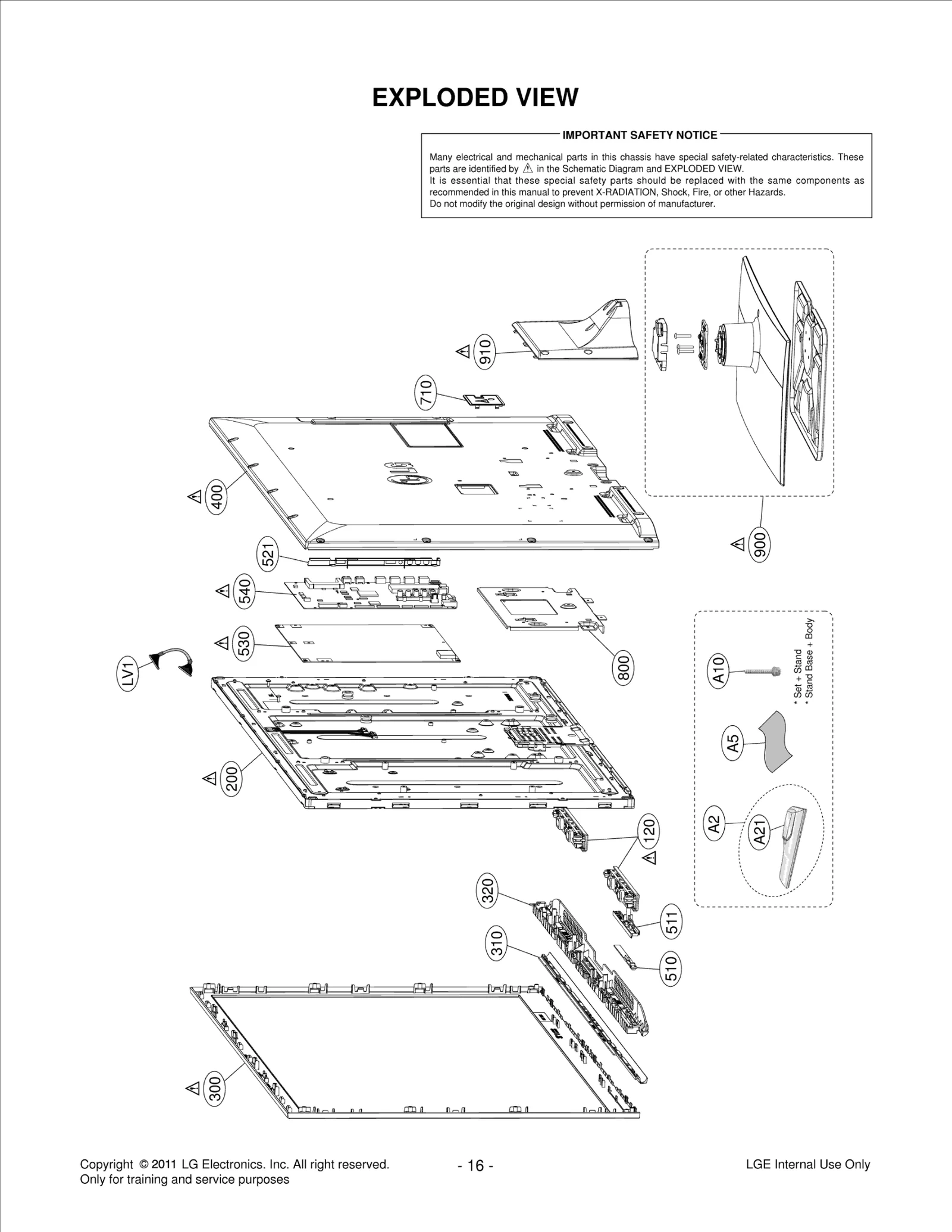

Diagram 0
Diagram 1
Common parts from model LG 47LV355B
200
LCD,Module-TFT LGE EAJ61751601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73228613 Contact Us For Availability
310
Decor LGE MCR63870105 Contact Us For Availability
320
Bracket LGE MAZ62727203 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ83111659 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR72671401 Contact Us For Availability
511
Bracket LGE MAZ62827902 Contact Us For Availability
521
Plate LGE MGJ62683329 Contact Us For Availability
530
Power Supply Assembly LGE EAY62169801 Contact Us For Availability
540
PCB Assembly LGE EBR74995201 Contact Us For Availability
710
Bracket LGE MAZ62827604 Contact Us For Availability
800
Supporter LGE MJH62198002 Contact Us For Availability
900
Base Assembly LGE AAN73430410 Contact Us For Availability
A1
Manual,Owners LGE MFL62882741 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915266 Contact Us For Availability
AR1210
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1214
Resistor,Array LGE EBC39283301 Contact Us For Availability
C120
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C222
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C239
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C248
Capacitor,Ceramic,Chip LGE EAE60685801 Contact Us For Availability
C249
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C253
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C402
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C409
Capacitor,Ceramic,Chip LGE EAE60685701 Contact Us For Availability
C410
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C422
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C448
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C466
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C467
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C475
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C520
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C528
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C530
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C534
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C1009
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C1101
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C1643
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C1663
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C1910
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C1913
CAPACITOR,FIXED ELEC LGE 0CE226WJ6DC Contact Us For Availability
C1915
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
C1920
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C3703
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C3711
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C3722
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C4045
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C4065
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C4066
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
CA4
Harness,Single LGE EAD57675124 Contact Us For Availability
CA5
Harness,Single LGE EAD61646223 Contact Us For Availability
CA10
Harness,Single LGE EAD61653801 Contact Us For Availability
CAB1
Cable,Assembly LGE EAD61077701 Contact Us For Availability
D102
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
D825
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D902
Diode,TVS LGE EAH42720601 Contact Us For Availability
D2404
Diode,Zener LGE 0DZKE00318A Contact Us For Availability
D9903
Diode,TVS LGE EAH39491701 Contact Us For Availability
GAS2
Gasket LGE MDS62110205 Contact Us For Availability
GAS5
Gasket LGE MDS62110209 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN61855201 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN60708701 Contact Us For Availability
IC103
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC104
IC,EEPROM LGE EAN61086701 Contact Us For Availability
IC402
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN61548102 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC405
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC406
IC,DC,DC Converter LGE EAN60922902 Contact Us For Availability
IC407
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC408
IC,Reset LGE EAN60670101 Contact Us For Availability
IC410
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC801
IC,EEPROM LGE EAN60997601 Contact Us For Availability
IC1001
IC,EEPROM LGE EAN61146201 Contact Us For Availability
IC1002
IC,Microcontrollers LGE EAN61367101 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61570701 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC1450
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC1900
IC,Gate LGE 0ILNRON009B Contact Us For Availability
IC1901
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC3703
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
JK803
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK1101
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1103
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1104
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK1105
Jack,Modular LGE 6612E00043A Contact Us For Availability
JK1450
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1603
Jack,RCA LGE EAG60968201 Contact Us For Availability
JK1990
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK9901
Jack,Phone LGE EAG61030002 Contact Us For Availability
L223
Filter,Bead LGE EAM32500903 Contact Us For Availability
L407
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L413
Filter,Bead LGE EAM58113401 Contact Us For Availability
L422
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L508
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L10056
Inductor,Wire Wound,Chip LGE EAP61606601 Contact Us For Availability
LV1
Cable,FFC LGE EAD61668629 Contact Us For Availability
P501
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P703
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P1001
Connector,Wafer LGE 6602T12004L Contact Us For Availability
P2100
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P2402
Connector,Wafer LGE 6630V90141D Contact Us For Availability
P3904
Connector,Wafer LGE 6602T12004B Contact Us For Availability
Q102
FET LGE EBK60752501 Contact Us For Availability
Q407
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q806
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R143
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R156
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R166
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R258
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R402
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R403
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R404
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R407
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R409
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R414
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R415
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R416
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R417
Resistor,Chip LGE 0RJ1100D677 Contact Us For Availability
R419
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R432
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R442
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R447
RESISTOR,METAL GLAZE LGE 0RJ1211D477 Contact Us For Availability
R448
Resistor,Chip LGE 0RJ2701D477 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R457
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R460
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R461
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R474
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R482
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R523
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R837
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R854
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R881
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R887
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R1015
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R1047
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R1103
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1204
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1210
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R1226
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1236
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1654
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1901
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R1906
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R1910
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1980
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R2413
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R3104
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R3735
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R3741
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R3749
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R3751
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R3753
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R4003
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R4026
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R10068
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
X1002
Crystal LGE EAW30067102 Contact Us For Availability
× ![]()
