Model LG 47LS5700 – Common Parts & Diagrams

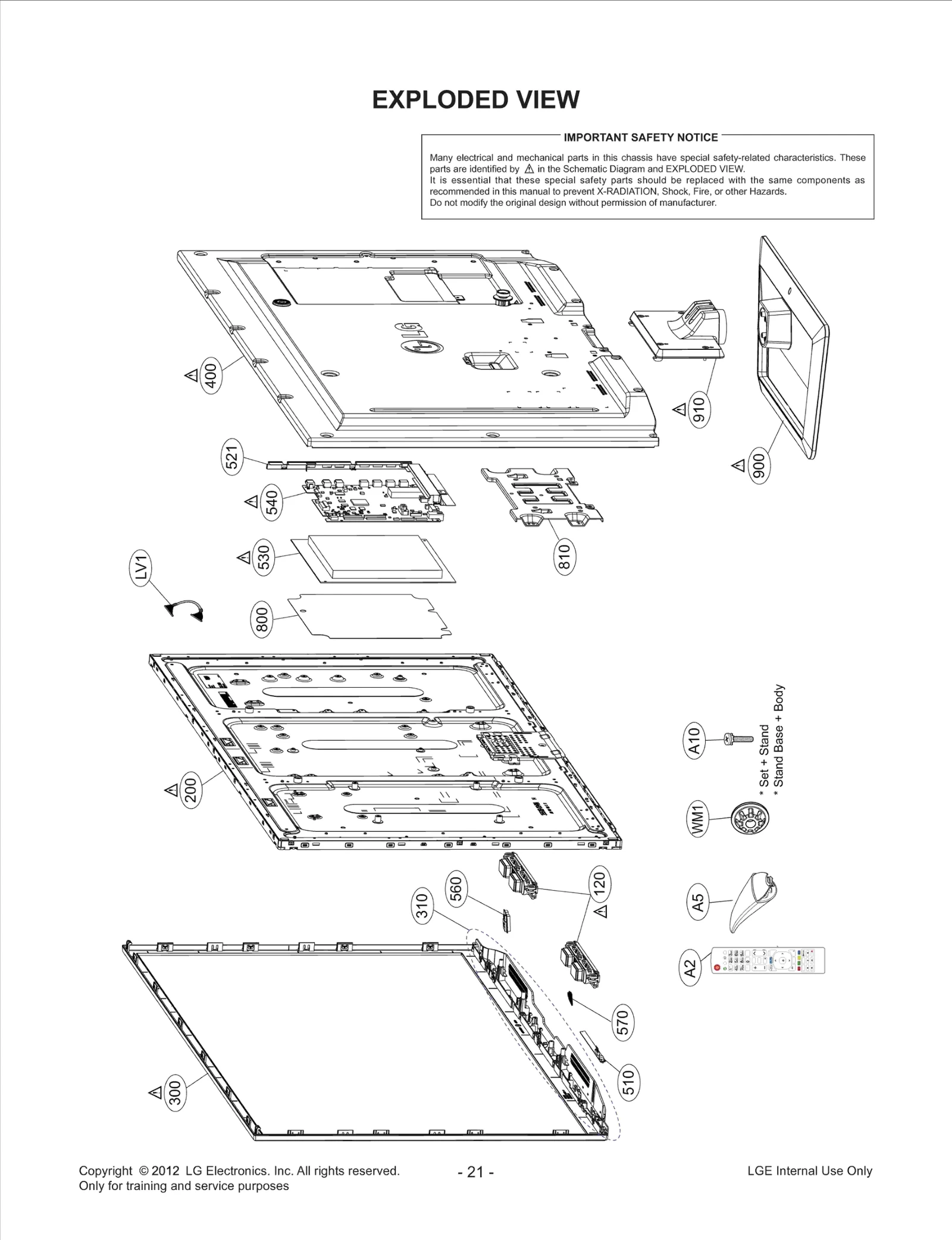

Diagram 0
Diagram 1
Common parts from model LG 47LS5700
120
Speaker,Full Range LGE EAB62648903 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62109601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73648239 Contact Us For Availability
310
Bracket LGE MAZ63309506 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85718273 Contact Us For Availability
521
Plate Assembly LGE AGU73908208 Contact Us For Availability
530
Power Supply Assembly LGE EAY62512501 Contact Us For Availability
540
BPR Total Assembly LGE EBU61743017 Contact Us For Availability
800
Plate Assembly LGE AGU73827902 Contact Us For Availability
810
Supporter LGE MJH62615601 Contact Us For Availability
900
Base Assembly LGE AAN73950811 Contact Us For Availability
A5
Remote Controller Assembly LGE AKB73656002 Contact Us For Availability
A10
Screw Assembly, stand LGE FAB30016106 Contact Us For Availability
C108
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C305
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C312
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C341
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C348
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C361
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C375
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C384
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C400
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE EAE62764101 Contact Us For Availability
C2401
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C2421
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C2428
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C2431
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C2435
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C3633
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C4310
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C4332
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C4341
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C4800
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C5423
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C5431
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5435
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
LV1
Cable,FFC LGE EAD62046903 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R134
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R311
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R320
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R335
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R343
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R379
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R500
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R708
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R717
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R2402
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R2404
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R2407
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R2409
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R2415
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R2417
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R2419
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R2427
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R2432
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R2434
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R2439
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R2441
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R3028
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R3331
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R3601
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R4125
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R4300
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R4336
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R4339
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R4343
Resistor,Chip LGE 0RJ8200C478 Contact Us For Availability
R5409
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R5417
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R6520
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R8102
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
× ![]()
