Model LG 47LM8600 – Common Parts & Diagrams

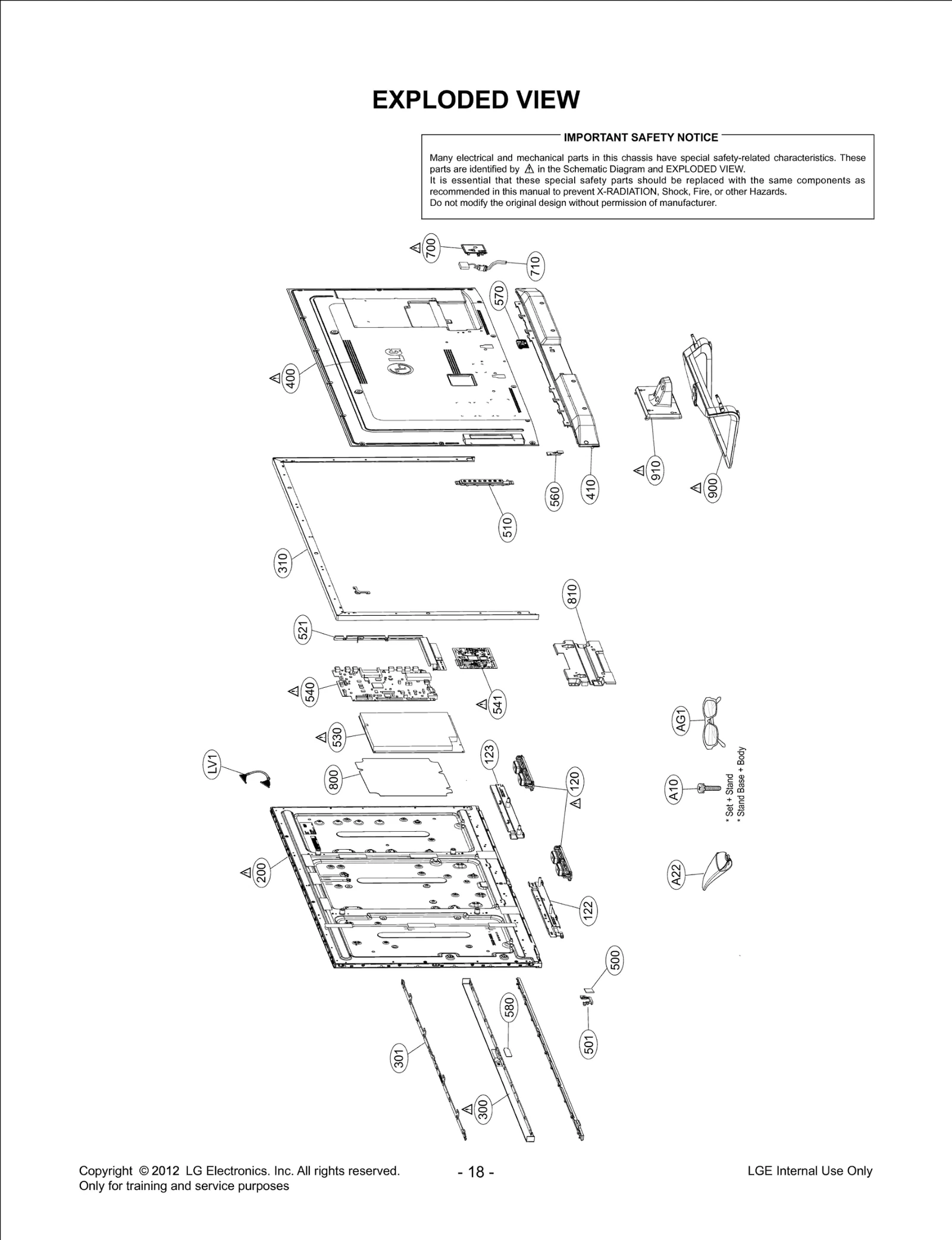

Diagram 0
Diagram 1
Common parts from model LG 47LM8600
200
LCD,Module-TFT LGE EAJ62128701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73787402 Contact Us For Availability
301
Decor LGE MCR64615802 Contact Us For Availability
310
Cabinet Assembly LGE ABJ73787502 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85743520 Contact Us For Availability
410
Cover LGE MCK66961702 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR74560902 Contact Us For Availability
501
Indicator LGE MES62719002 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR74785904 Contact Us For Availability
521
Plate Assembly LGE AGU73908212 Contact Us For Availability
530
Power Supply Assembly LGE EAY62512702 Contact Us For Availability
540
BPR Total Assembly LGE EBU61780002 Contact Us For Availability
541
PCB Assembly,Main LGE EBR75301301 Contact Us For Availability
710
Bracket LGE MAZ63412604 Contact Us For Availability
800
Plate Assembly LGE AGU73827902 Contact Us For Availability
810
Supporter LGE MJH62633602 Contact Us For Availability
900
Base Assembly LGE AAN74052106 Contact Us For Availability
A1
Manual,Owners LGE MFL67468151 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73615313 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A21
Cover,Rear LGE MCK62976101 Contact Us For Availability
A22
Remote Controller Assembly LGE AKB73596402 Contact Us For Availability
AG1
AG-F310---3D Glasses LGE EBX61668501 Contact Us For Availability
AR4800
Resistor,Array LGE EBC32260601 Contact Us For Availability
C151
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C303
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C393
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C398
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C512
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C514
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C517
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C525
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C528
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C537
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
C553
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C580
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C630
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C2302
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C2306
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C2373
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C3634
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C4334
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C4342
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5202
Capacitor,Ceramic,Chip LGE 0CC560BK41A Contact Us For Availability
C5408
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C5422
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C5429
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5434
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C8106
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C9339
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C9357
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
CA1
Harness,Single LGE EAD56480837 Contact Us For Availability
CA2
Harness,Single LGE EAD62094403 Contact Us For Availability
CA13
Harness,Single LGE EAD61653801 Contact Us For Availability
CA14
Harness,Single LGE EAD52821203 Contact Us For Availability
CA15
Harness,Single LGE EAD61052411 Contact Us For Availability
CA16
Harness,Single LGE EAD60732903 Contact Us For Availability
CA18
Harness,Single LGE EAD61646224 Contact Us For Availability
CA19
Harness,Single LGE EAD60678814 Contact Us For Availability
D501
Diode,Rectifier LGE EAH61515701 Contact Us For Availability
D505
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D2350
Varistor LGE EAF61530301 Contact Us For Availability
D3000
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3620
Diode,Switching LGE EAH61714301 Contact Us For Availability
D3801
Varistor LGE EAF61530101 Contact Us For Availability
D5002
Varistor LGE EAF61530201 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN62328801 Contact Us For Availability
IC101
IC,Serial Flash Memory LGE EAN38551603 Contact Us For Availability
IC101
IC,Serial Flash Memory LGE EAN39050404 Contact Us For Availability
IC201
IC,DDR3 SDRAM LGE EAN61829001 Contact Us For Availability
IC300
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC400
Display SOC,Digital TV LGE EAN62396801 Contact Us For Availability
IC401
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC500
IC,PMIC LGE EAN62348701 Contact Us For Availability
IC501
IC,CMOS LGE EAN62409701 Contact Us For Availability
IC701
IC,DDR3 SDRAM LGE EAN61829202 Contact Us For Availability
IC2307
IC,Reset LGE EAN60670101 Contact Us For Availability
IC3200
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC3202
IC,Analog Switch LGE EAN62231201 Contact Us For Availability
IC8100
IC,MCP,eMMC LGE EAN62328201 Contact Us For Availability
IC9301
IC,Serial Flash Memory LGE EAN61009404 Contact Us For Availability
IC9301
IC,Serial Flash Memory LGE EAN61008501 Contact Us For Availability
IC9500
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
JK3200
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK3601
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK3800
Jack,Phone LGE EAG61030006 Contact Us For Availability
JK3801
Jack,Phone LGE EAG61030007 Contact Us For Availability
JK4303
Connector,USB LGE EAG62571101 Contact Us For Availability
L101
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L320
Filter,Bead LGE EAM54407902 Contact Us For Availability
L501
Inductor,Wire Wound,Chip LGE ELCP0009409 Contact Us For Availability
L505
Inductor,Wire Wound,Chip LGE EAP61006801 Contact Us For Availability
L506
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
L2303
Filter,Bead LGE EAM32500903 Contact Us For Availability
L2317
Inductor,Wire Wound,Chip LGE EAP61746701 Contact Us For Availability
L4307
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L5211
Inductor,Multilayer,Chip LGE ELCH0005825 Contact Us For Availability
L9502
Filter,Bead LGE EAM58113401 Contact Us For Availability
LV1
Harness,Single LGE EAD62107402 Contact Us For Availability
M317
Gasket LGE MDS62110205 Contact Us For Availability
M319
Gasket LGE MDS62110217 Contact Us For Availability
P102
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P602
Connector,FFC/FPC/PIC LGE EAG63211801 Contact Us For Availability
P7200
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P7600
Connector,Wafer LGE 6630V90141C Contact Us For Availability
Q500
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q600
FET LGE EBK42767801 Contact Us For Availability
Q2301
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q2305
FET LGE EBK60752501 Contact Us For Availability
Q3001
FET LGE EBK61731301 Contact Us For Availability
R105
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R107
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R110
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R111
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R134
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R150
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R175
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R183
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R183
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R216
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R306
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R308
Resistor,Chip LGE EBC35293401 Contact Us For Availability
R314
Resistor,Chip LGE 0RJ3601C478 Contact Us For Availability
R315
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R413
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R417
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R515
Resistor,Chip LGE EBC60972101 Contact Us For Availability
R517
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R534
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R535
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R549
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R558
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R560
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R565
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R601
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R602
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R626
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R708
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R2306
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R2309
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R2313
RESISTOR,METAL GLAZE LGE 0RJ9101C478 Contact Us For Availability
R2317
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R2319
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R2321
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R2346
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R2347
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R2363
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R2378
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R3028
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R3029
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R3200
Resistor,Chip LGE 0RJ6202D677 Contact Us For Availability
R3206
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R3241
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R3641
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R4205
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R4336
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R4338
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R5414
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R6520
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R6531
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R8911
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R9329
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R9336
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R9407
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
SW103
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TH500
Thermistor,NTC LGE 6322A00028A Contact Us For Availability
X400
Crystal LGE EAW61663701 Contact Us For Availability
ZD9500
Diode,Zener LGE EAH61752501 Contact Us For Availability
× ![]()
Login and Registration Form
