Model LG 47LM7600 – Common Parts & Diagrams

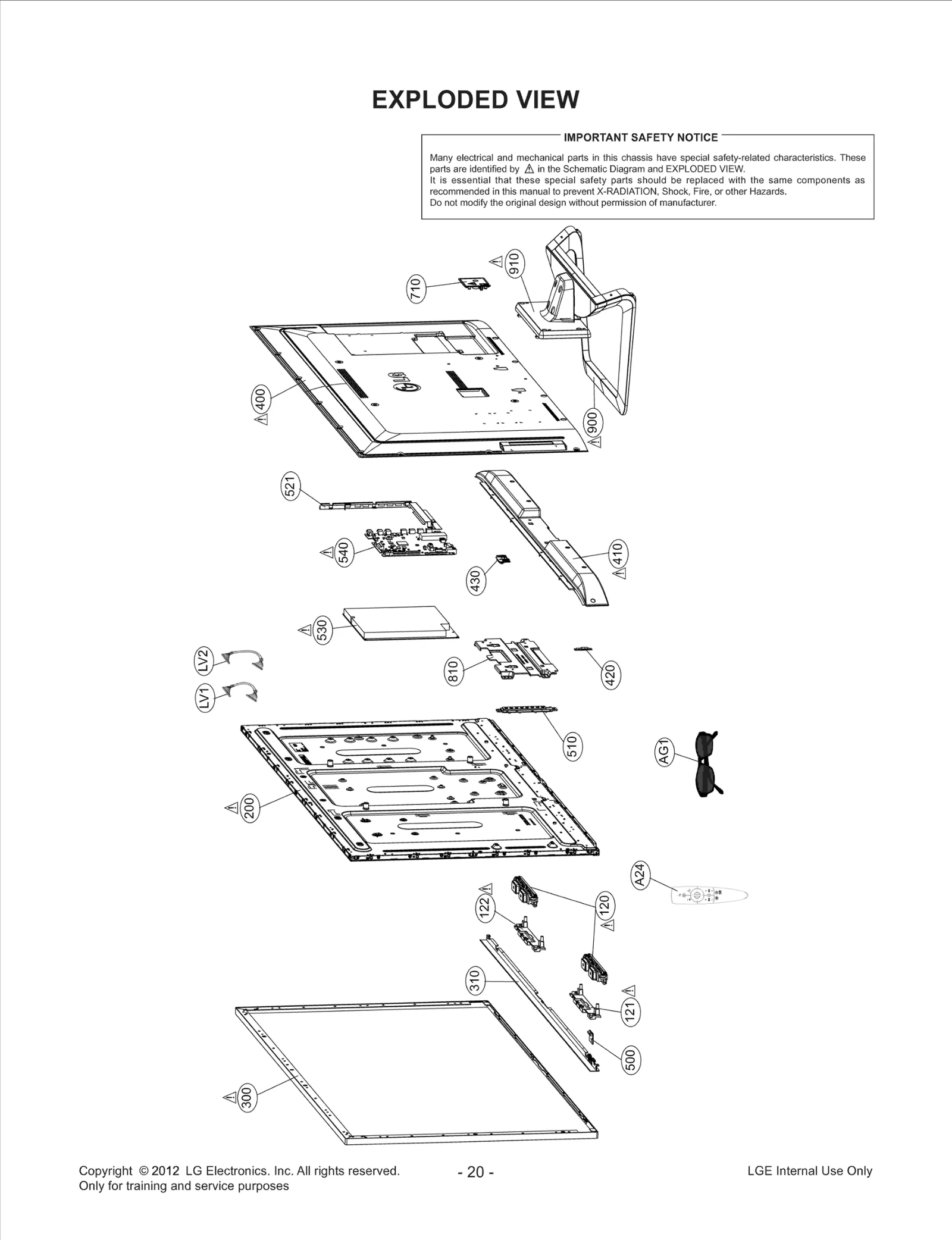

Diagram 0
Diagram 1
Common parts from model LG 47LM7600
122
Bracket LGE MAZ63415402 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62128701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73669102 Contact Us For Availability
310
Cabinet Assembly LGE ABJ73767902 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85743513 Contact Us For Availability
410
Cover LGE MCK66948302 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR74785904 Contact Us For Availability
521
Plate Assembly LGE AGU73908208 Contact Us For Availability
530
Power Supply Assembly LGE EAY62512702 Contact Us For Availability
540
BPR Total Assembly LGE EBU61749105 Contact Us For Availability
710
Bracket LGE MAZ63412604 Contact Us For Availability
800
Plate Assembly LGE AGU73827902 Contact Us For Availability
810
Supporter LGE MJH62633602 Contact Us For Availability
900
Base Assembly LGE AAN74052106 Contact Us For Availability
A1
Manual,Owners LGE MFL67468133 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73615313 Contact Us For Availability
A23
Cover,Rear LGE MCK62976101 Contact Us For Availability
A24
Remote Controller Assembly LGE AKB73596502 Contact Us For Availability
AG1
AG-F310---3D Glasses LGE EBX61668501 Contact Us For Availability
AR100
Resistor,Array LGE EBC32260401 Contact Us For Availability
AR4800
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR8100
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C113
Capacitor,Ceramic,Chip LGE EAE37992001 Contact Us For Availability
C310
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C337
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C360
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C375
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C378
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C398
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE EAE62764101 Contact Us For Availability
C2400
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C2421
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C2424
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C2435
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C2439
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C3634
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C4107
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C4324
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C4332
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C4336
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C4341
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C5430
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5435
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C7723
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C7744
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C7748
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C7754
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C8103
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
CA1
Harness,Single LGE EAD61646224 Contact Us For Availability
CA1
Harness,Single LGE EAD62094403 Contact Us For Availability
CA2
Harness,Single LGE EAD60678814 Contact Us For Availability
CA2
Harness,Single LGE EAD56480837 Contact Us For Availability
CA2
Harness,Single LGE EAD61653805 Contact Us For Availability
D301
Varistor LGE EAF61630101 Contact Us For Availability
D3000
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3301
Diode,Switching LGE EAH61714301 Contact Us For Availability
D3800
Varistor LGE EAF61530101 Contact Us For Availability
D4106
Varistor LGE EAF61530301 Contact Us For Availability
D4304
Diode,Rectifier LGE EAH61515701 Contact Us For Availability
D5002
Varistor LGE EAF61530201 Contact Us For Availability
D7703
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
IC100
IC,EEPROM LGE EAN61925802 Contact Us For Availability
IC104
IC,EEPROM LGE EAN61548301 Contact Us For Availability
IC105
Display SOC,Digital TV LGE EAN62408001 Contact Us For Availability
IC702
IC,DDR3 SDRAM LGE EAN61829201 Contact Us For Availability
IC2402
IC,Reset LGE EAN60670101 Contact Us For Availability
IC2403
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC2404
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC2405
IC,DC,DC Converter LGE EAN61950701 Contact Us For Availability
IC4303
IC,Analog Switch LGE EAN62231201 Contact Us For Availability
IC4305
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC4306
IC,DC,DC Converter LGE EAN62409001 Contact Us For Availability
IC5400
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC6503
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC7700
IC,PMIC LGE EAN62348701 Contact Us For Availability
IC7701
IC,CMOS LGE EAN62409701 Contact Us For Availability
JK3303
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK3601
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK3602
Jack,Fiber Optic LGE EAG37842004 Contact Us For Availability
JK3602
Jack,Fiber Optic LGE EAG37842007 Contact Us For Availability
JK3603
Connector,DSUB LGE EAG62012201 Contact Us For Availability
JK3800
Jack,Phone LGE EAG61030006 Contact Us For Availability
JK3801
Jack,Phone LGE EAG61030007 Contact Us For Availability
JK4302
Connector,USB LGE EAG62571101 Contact Us For Availability
JK5000
Jack,Modular LGE EAG62012403 Contact Us For Availability
JK5000
Jack,Modular LGE EAG62012402 Contact Us For Availability
L300
Filter,Bead LGE EAM54407902 Contact Us For Availability
L2408
Filter,Bead LGE EAM32500903 Contact Us For Availability
L2409
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L4308
Inductor,Wire Wound,Chip LGE EAP32842803 Contact Us For Availability
L5402
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L7701
Inductor,Wire Wound,Chip LGE ELCP0009409 Contact Us For Availability
L7703
Inductor,Wire Wound,Chip LGE EAP61006801 Contact Us For Availability
L7704
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
LV2
Cable,FFC LGE EAD62087802 Contact Us For Availability
M501
Gasket LGE MDS62110209 Contact Us For Availability
M506
Gasket LGE MDS62110217 Contact Us For Availability
P3000
Connector,Wafer LGE EAG58732902 Contact Us For Availability
P3801
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P4800
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P5400
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P7702
Connector,FFC/FPC/PIC LGE EAG63211801 Contact Us For Availability
Q2407
FET LGE EBK60752501 Contact Us For Availability
Q3001
FET LGE EBK61731301 Contact Us For Availability
Q6501
TR,Bipolar LGE EBK61012701 Contact Us For Availability
R105
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R107
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R111
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R128
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R129
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R172
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R188
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R310
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R320
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R332
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R335
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R343
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R346
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R356
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R500
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R716
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R733
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R2404
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R2406
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R2409
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R2415
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R2417
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R2426
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R2427
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R2432
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R2434
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R3028
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R3029
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R4125
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R4300
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R4336
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R4339
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R4343
Resistor,Chip LGE 0RJ8200C478 Contact Us For Availability
R5404
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R5414
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R5418
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R6521
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R7700
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R7706
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R7718
Resistor,Chip LGE EBC60972101 Contact Us For Availability
R7722
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R7736
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
SW100
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TH7700
Thermistor,NTC LGE 6322A00028A Contact Us For Availability
X100
RESONATOR,CRYSTAL LGE 6202TST001H Contact Us For Availability
X3000
Crystal LGE EAW58239602 Contact Us For Availability
ZD301
Diode,Zener LGE EAH61752501 Contact Us For Availability
× ![]()
