Model LG 47LM6200 – Common Parts & Diagrams

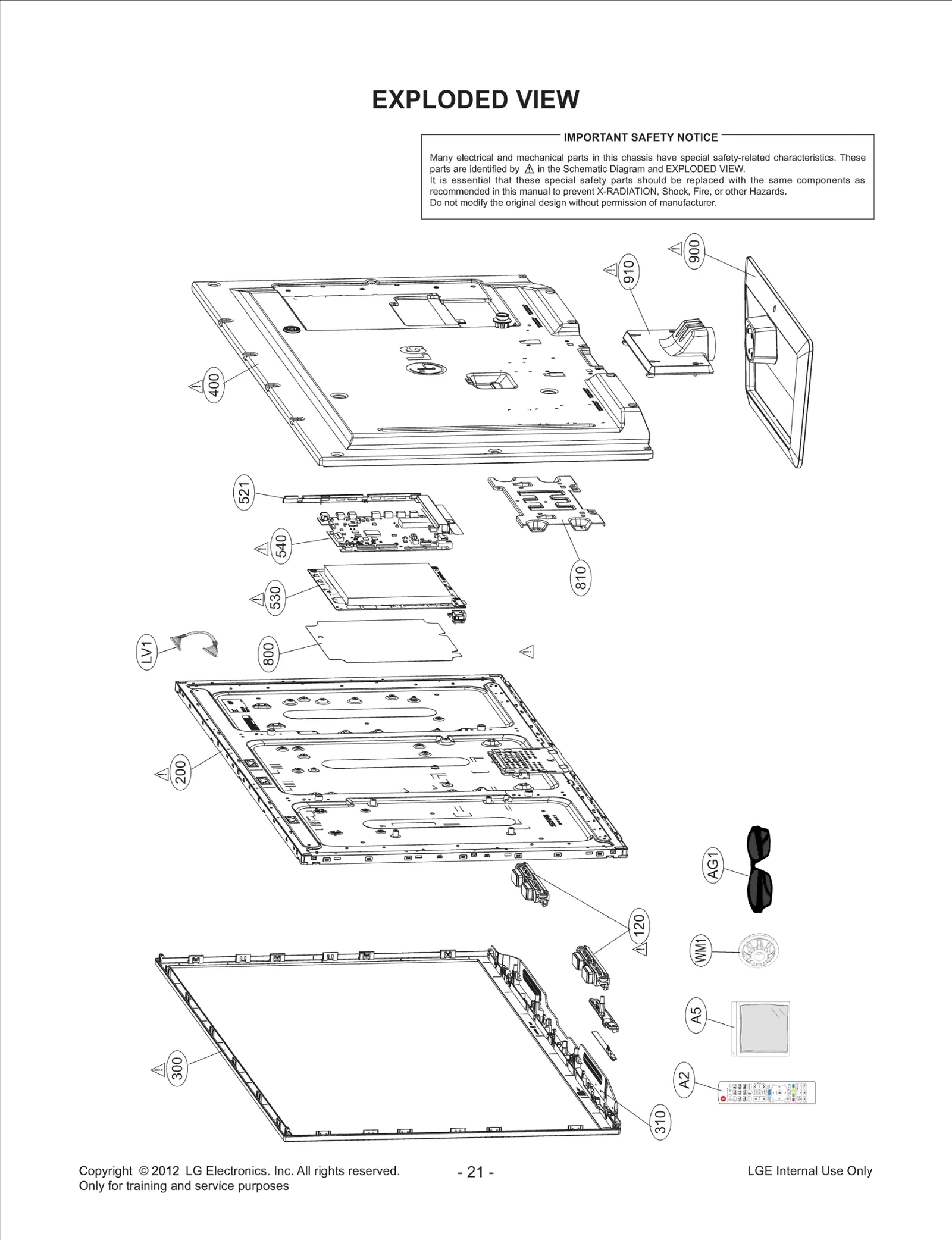

Diagram 0
Diagram 1
Common parts from model LG 47LM6200
300
Cover Assembly LGE ACQ85737242 Contact Us For Availability
310
Bracket Assembly LGE ABA74208513 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85736720 Contact Us For Availability
521
Plate Assembly LGE AGU73908208 Contact Us For Availability
540
BPR Total Assembly LGE EBU61765311 Contact Us For Availability
800
Plate Assembly LGE AGU73827902 Contact Us For Availability
900
Base Assembly LGE AAN74052107 Contact Us For Availability
A1
Manual,Owners LGE MFL67468132 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73615313 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A21
Cover,Rear LGE MCK62976101 Contact Us For Availability
A24
Remote Controller Assembly LGE AKB73596502 Contact Us For Availability
AG1
AG-F310---3D Glasses LGE EBX61668501 Contact Us For Availability
AR100
Resistor,Array LGE EBC32260401 Contact Us For Availability
AR4800
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR8100
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C113
Capacitor,Ceramic,Chip LGE EAE37992001 Contact Us For Availability
C333
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C360
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C370
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C378
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C398
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C523
Capacitor,Ceramic,Chip LGE EAE62764101 Contact Us For Availability
C702
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C735
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C2400
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C2435
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C2439
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C3633
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C4323
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C4340
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C5407
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C5408
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C5422
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C5431
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5433
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C5435
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C5438
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C6551
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C8106
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
CA12
Harness,Single LGE EAD60678815 Contact Us For Availability
CA13
Harness,Single LGE EAD56480836 Contact Us For Availability
CA14
Harness,Single LGE EAD62094403 Contact Us For Availability
CA17
Harness,Single LGE EAD61646249 Contact Us For Availability
D302
Varistor LGE EAF61630101 Contact Us For Availability
D3000
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3303
Diode,Switching LGE EAH61714301 Contact Us For Availability
D4101
Varistor LGE EAF61530101 Contact Us For Availability
D4106
Varistor LGE EAF61530301 Contact Us For Availability
D4304
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D5001
Varistor LGE EAF61530201 Contact Us For Availability
IC100
IC,EEPROM LGE EAN61925802 Contact Us For Availability
IC104
IC,EEPROM LGE EAN61548301 Contact Us For Availability
IC105
Display SOC,Digital TV LGE EAN62408001 Contact Us For Availability
IC703
IC,DDR3 SDRAM LGE EAN61829201 Contact Us For Availability
IC2402
IC,Reset LGE EAN60670101 Contact Us For Availability
IC2403
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC2404
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC2405
IC,DC,DC Converter LGE EAN61950701 Contact Us For Availability
IC4303
IC,Analog Switch LGE EAN62231201 Contact Us For Availability
IC4305
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC4306
IC,DC,DC Converter LGE EAN62409001 Contact Us For Availability
IC5400
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC6503
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
JK3300
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK3601
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK3602
Jack,Fiber Optic LGE EAG37842004 Contact Us For Availability
JK3603
Connector,DSUB LGE EAG62012201 Contact Us For Availability
JK3800
Jack,Phone LGE EAG61030006 Contact Us For Availability
JK3801
Jack,Phone LGE EAG61030007 Contact Us For Availability
JK4303
Connector,USB LGE EAG62571101 Contact Us For Availability
JK5000
Jack,Modular LGE EAG62012403 Contact Us For Availability
JK5000
Jack,Modular LGE EAG62012402 Contact Us For Availability
L304
Filter,Bead LGE EAM54407902 Contact Us For Availability
L2406
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L4308
Inductor,Wire Wound,Chip LGE EAP32842803 Contact Us For Availability
L5402
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L7100
Filter,Bead LGE EAM32500903 Contact Us For Availability
LV1
Cable,FFC LGE EAD62046903 Contact Us For Availability
M501
Gasket LGE MDS62110209 Contact Us For Availability
M505
Gasket LGE MDS62110217 Contact Us For Availability
P4301
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P4800
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P5400
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P7100
Connector,Wafer LGE 6630V93270J Contact Us For Availability
Q2407
FET LGE EBK60752501 Contact Us For Availability
Q3001
FET LGE EBK61731301 Contact Us For Availability
Q6500
TR,Bipolar LGE EBK61012701 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R117
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R131
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R177
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R311
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R315
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R320
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R335
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R337
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R363
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R500
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R707
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R716
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R2404
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R2407
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R2409
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R2427
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R2432
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R2433
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R2434
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R2439
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R2441
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R3024
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R3028
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R3029
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R3301
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R3317
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R4125
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R4300
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R4336
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R4339
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R4343
Resistor,Chip LGE 0RJ8200C478 Contact Us For Availability
R5404
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R5412
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R5416
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R6521
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R8116
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
X100
RESONATOR,CRYSTAL LGE 6202TST001H Contact Us For Availability
X3000
Crystal LGE EAW58239602 Contact Us For Availability
ZD306
Diode,Zener LGE EAH61752501 Contact Us For Availability
× ![]()
