Model LG 47LH40 – Common Parts & Diagrams

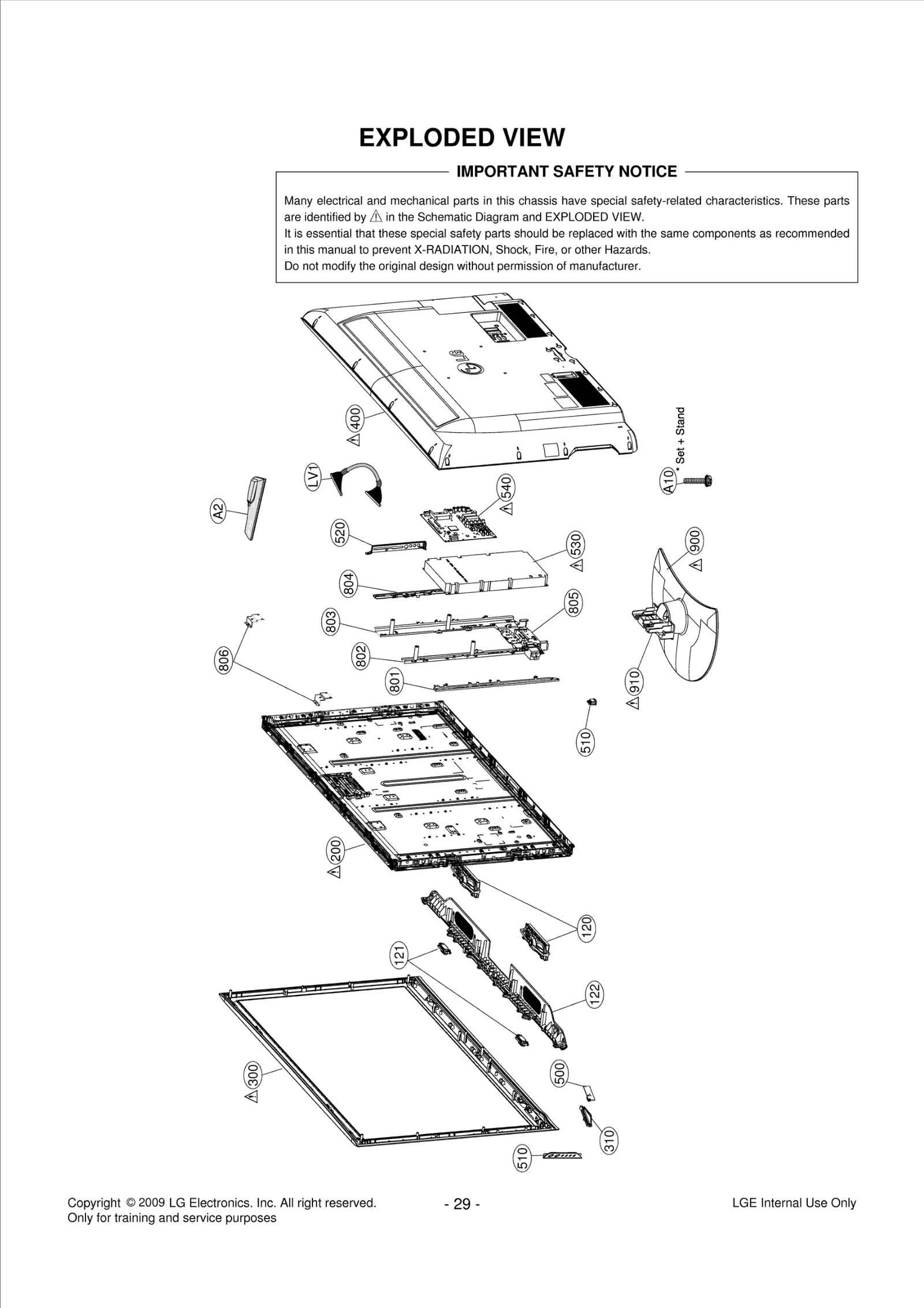

Diagram 0
Diagram 1
Common parts from model LG 47LH40
2
Tape,Polyester LGE RAB33015603 Contact Us For Availability
120
Speaker,Full Range LGE EAB58534501 Contact Us For Availability
121
Speaker,Tweeter LGE EAB58536001 Contact Us For Availability
122
Bracket LGE MAZ57141808 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60659701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ69906121 Contact Us For Availability
310
Bracket Assembly LGE ABA68170102 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ75455115 Contact Us For Availability
500
PCB Assembly,Front LGE EBR59216901 Contact Us For Availability
500
PCB Assembly,Front LGE EBR59216902 Contact Us For Availability
510
PCB Assembly LGE EBR61099801 Contact Us For Availability
520
Bracket Assembly LGE ABA69568702 Contact Us For Availability
530
Power Supply Assembly LGE EAY57681601 Contact Us For Availability
540
BPR Total Assembly LGE EBU60676706 Contact Us For Availability
550
PCB Assembly LGE EBR61099401 Contact Us For Availability
801
Supporter LGE MJH57145201 Contact Us For Availability
802
Supporter LGE MJH57145001 Contact Us For Availability
804
Supporter LGE MJH57145301 Contact Us For Availability
805
Supporter LGE MJH57145401 Contact Us For Availability
806
Plate,Metal LGE MGJ40350203 Contact Us For Availability
A1
Manual,Owners LGE MFL58558507 Contact Us For Availability
A2
Remote Controller LGE MKJ42519621 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A12
Cover,Rear LGE MCK57142002 Contact Us For Availability
A21
Cover LGE 3550V00590A Contact Us For Availability
B1
Box LGE MAY61895602 Contact Us For Availability
B2
Box LGE MAY32943880 Contact Us For Availability
C2139
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
CA1
Harness,Single LGE EAD35908415 Contact Us For Availability
CA2
Harness,Single LGE EAD60673304 Contact Us For Availability
CA5
Harness,Single LGE EAD35983003 Contact Us For Availability
CA7
Harness,Single LGE EAD60676308 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN38563401 Contact Us For Availability
IC800
IC,Serial Flash Memory LGE EAN50547501 Contact Us For Availability
JK1201
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK1201
Connector,DSUB LGE 6630TGA004P Contact Us For Availability
JK1203
Connector,DSUB LGE 6630G00001D Contact Us For Availability
JK1205
JACK,PHONE LGE 6612F00099A Contact Us For Availability
JK1205
Jack,Phone LGE 6612F00099F Contact Us For Availability
LV1
Cable,FFC LGE EAD60691201 Contact Us For Availability
P3000
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
R2202
Resistor,Chip LGE 0RH5101D422 Contact Us For Availability
R3002
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R3007
Resistor,Carbon Film LGE 0RD1801F609 Contact Us For Availability
SW3008
SWITCH TACT LGE 140-313B Contact Us For Availability
× ![]()
