Model LG 47LG20-UM – Common Parts & Diagrams

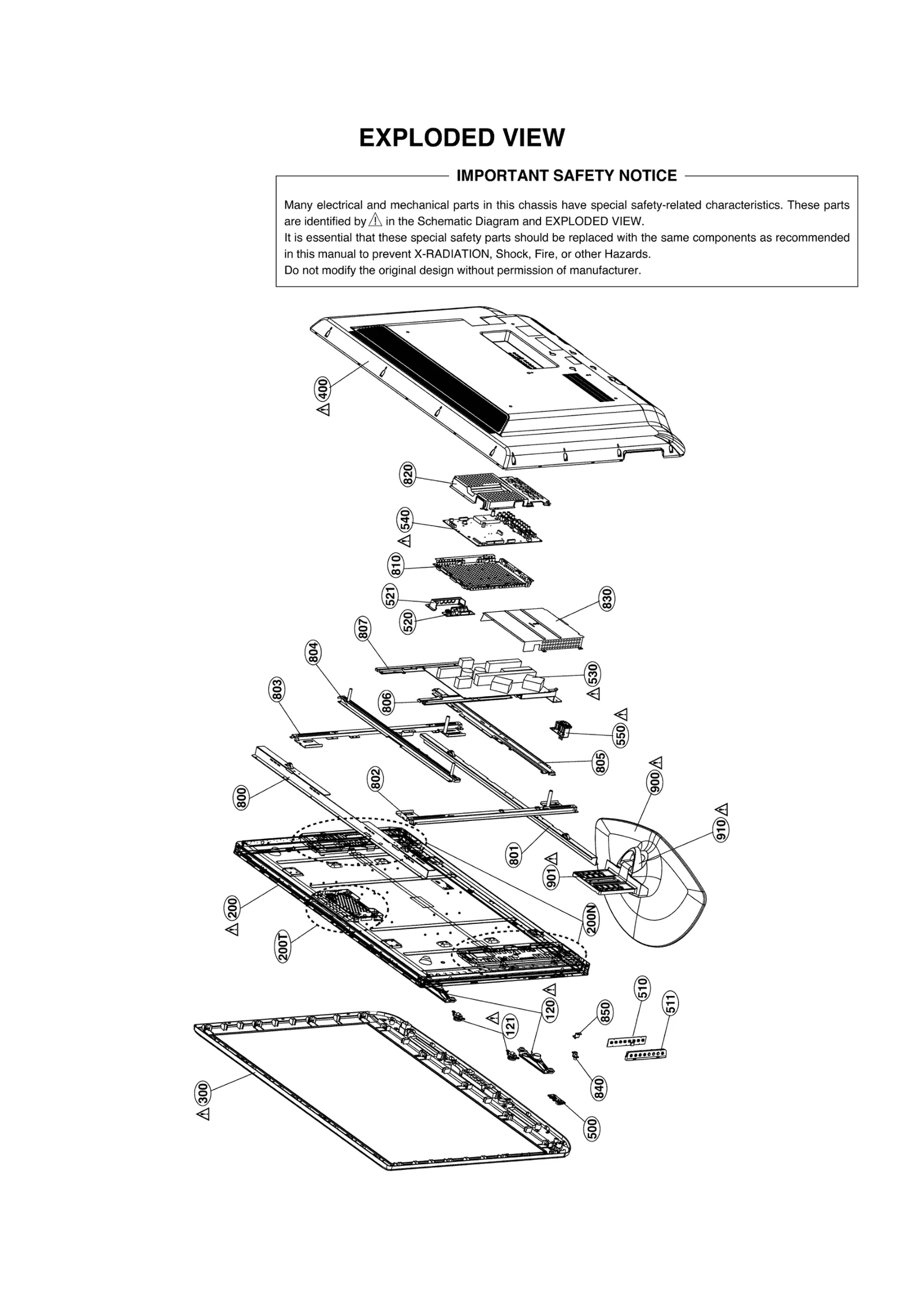

Diagram 0
Diagram 1
Common parts from model LG 47LG20-UM
120
Speaker,Full Range LGE EAB38761001 Contact Us For Availability
121
Speaker,Tweeter LGE EAB33893101 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ41865401 Contact Us For Availability
200N
Inverter Assembly LGE EAY56799401 Contact Us For Availability
200T
Time Control LGE EAT56804901 Contact Us For Availability
300
Cabinet Assembly LGE ABJ65882702 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ65882901 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR42821604 Contact Us For Availability
510
PCB Assembly LGE EBR42824701 Contact Us For Availability
511
Bracket Assembly LGE ABA56902101 Contact Us For Availability
520
PCB Assembly,Sub LGE EBR43310401 Contact Us For Availability
521
Bracket Assembly LGE ABA57467501 Contact Us For Availability
530
SMPS,AC/DC LGE EAY32816901 Contact Us For Availability
540
Main Total Assembly LGE EBU42853609 Contact Us For Availability
550
Supporter LGE MJH49414801 Contact Us For Availability
800
Plate,Metal LGE MGJ55136601 Contact Us For Availability
801
Plate,Metal LGE MGJ55136701 Contact Us For Availability
802
Plate,Metal LGE MGJ55136901 Contact Us For Availability
803
Plate,Metal LGE MGJ55136801 Contact Us For Availability
804
Plate,Metal LGE MGJ55137701 Contact Us For Availability
805
Plate,Metal LGE MGJ55137901 Contact Us For Availability
806
Plate,Metal LGE MGJ55137501 Contact Us For Availability
807
Plate,Metal LGE MGJ55137101 Contact Us For Availability
810
Plate,Shield LGE MGJ39860903 Contact Us For Availability
820
Plate,Shield LGE MGJ39304004 Contact Us For Availability
830
Plate,Shield LGE MGJ41175002 Contact Us For Availability
840
Indicator LGE MES49984401 Contact Us For Availability
850
Indicator LGE MES49984301 Contact Us For Availability
900
Base Assembly LGE AAN65883001 Contact Us For Availability
901
Supporter LGE MJH55138201 Contact Us For Availability
910
Bracket LGE MAZ55135101 Contact Us For Availability
A2
Remote Controller LGE MKJ40653825 Contact Us For Availability
AR200
Resistor,Array LGE 0RJ1001C687 Contact Us For Availability
AR380
Resistor,Array LGE EBC37094001 Contact Us For Availability
B102
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
C1
Harness,Single LGE 6631900010L Contact Us For Availability
C2
CONNECTOR ASSEMBLY LGE 6631900012E Contact Us For Availability
C4
Harness,Single LGE EAD38067201 Contact Us For Availability
C5
Harness,Single LGE EAD38898901 Contact Us For Availability
C6
Harness,Single LGE 6631900048B Contact Us For Availability
C7
Harness,Single LGE 6631T20032V Contact Us For Availability
C8
Harness,Single LGE 6631900049E Contact Us For Availability
C9
Harness,Single LGE EAD39295705 Contact Us For Availability
C103
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
C106
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
C107
Capacitor,AL,Chip LGE 0CE477SF6DC Contact Us For Availability
C228
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C232
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C239
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C250
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C277
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C310
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C338
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C357
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C388
Capacitor,Ceramic,Ch LGE EAE32479401 Contact Us For Availability
C404
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C406
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C409
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C429
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C500
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C513
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C519
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C544
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C570
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C572
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C576
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C682
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C738
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C743
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C813
Capacitor,AL,Chip LGE EAE30840401 Contact Us For Availability
C837
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C841
Capacitor,AL,Chip LGE EAE30840201 Contact Us For Availability
C851
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C857
Capacitor,Ceramic,Chip LGE 0CC561CK41A Contact Us For Availability
C858
Capacitor,Ceramic,Chip LGE 0CK153CK51A Contact Us For Availability
C859
CAPACITOR,FIXED CERA LGE 0CK476FD67A Contact Us For Availability
C871
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C897
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C9022
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
D401
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D800
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D801
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
IC102
IC,EEPROM LGE 0IMMRCS012D Contact Us For Availability
IC201
IC,Analog Switch LGE EAN30267601 Contact Us For Availability
IC301
IC,DDR SDRAM LGE EAN41786801 Contact Us For Availability
IC301
IC,DDR SDRAM LGE 0IMMRHY057E Contact Us For Availability
IC304
IC,POWER MANAGEMENT LGE 0IPMG78391A Contact Us For Availability
IC401
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC403
IC,MICRO CONTROLLER LGE 0IMCRAL021A Contact Us For Availability
IC405
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC406
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC407
S/W,Firmware LGE SAA31723202 Contact Us For Availability
IC408
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC500
IC,Bus Controller LGE 0IPRP00665A Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN32404602 Contact Us For Availability
IC502
IC,PERIPHERALS LGE 0IPRPCI013A Contact Us For Availability
IC503
IC,BiCMOS LGE EAN33624801 Contact Us For Availability
IC600
IC,Analog Switch LGE EAN39310001 Contact Us For Availability
IC701
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC803
IC,LDO Voltage Regul LGE 0IPMGS1006B Contact Us For Availability
IC805
IC,DC,DC Converter LGE EAN31513601 Contact Us For Availability
IC806
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
IC808
IC,PERIPHERALS LGE 0IPRPFA015B Contact Us For Availability
J101
JACK,RCA LGE 6612J10033A Contact Us For Availability
JK500
Jack,RCA LGE EAG35542202 Contact Us For Availability
JK501
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK601
Jack,DIN LGE 6612B00015C Contact Us For Availability
JK701
Jack,Complex LGE 6612J00062H Contact Us For Availability
JK705
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
L204
Filter,Bead LGE 6210VC0006A Contact Us For Availability
L209
Filter,Bead LGE EAM30764101 Contact Us For Availability
L514
Filter,Bead LGE EAM38769505 Contact Us For Availability
L708
Filter,LCR LGE EAM31315201 Contact Us For Availability
L804
Filter,Bead LGE EAM42641602 Contact Us For Availability
L805
FILTER(CIRC),EMC LGE 6200J000123 Contact Us For Availability
L807
COIL,CHOKE LGE 6140TBZ047B Contact Us For Availability
LD803
LED LGE 0DL233309AC Contact Us For Availability
LV1
Harness,Single LGE 6631900133E Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P104
Connector,Wafer LGE 6602T25008B Contact Us For Availability
P202
Connector,Wafer LGE 6602T20008D Contact Us For Availability
P402
JACK,PHONE LGE 6612F00099A Contact Us For Availability
P500
WAFER LGE 6602T25009C Contact Us For Availability
P700
Connector,Wafer LGE 6602T20008N Contact Us For Availability
P800
WAFER LGE 6602T25008J Contact Us For Availability
P801
WAFER LGE 6602T25008M Contact Us For Availability
P900
Conector,Wafer LGE 6630V93270A Contact Us For Availability
Q600
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q612
TR,Bipolar LGE 0TR102009AM Contact Us For Availability
Q614
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
R102
Resistor,Chip LGE 0RH3001D622 Contact Us For Availability
R103
Inductor,Multilayer,Chip LGE EAP43580902 Contact Us For Availability
R105
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R106
RESISTOR CHIP GVC-C425 1UG1 GS LGE 0RH8201D622 Contact Us For Availability
R107
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R108
Resistor,Chip LGE 0RH9100D622 Contact Us For Availability
R188
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R206
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R212
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R219
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R230
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R232
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R236
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R241
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R332
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R403
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R428
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R431
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R493
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R507
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R516
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R541
Resistor,Chip LGE 0RJ1100D677 Contact Us For Availability
R553
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R554
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R555
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R639
RESISTOR,METAL GLAZE LGE 0RJ1203D677 Contact Us For Availability
R691
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R722
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R736
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R773
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R789
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R793
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R820
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R840
RESISTOR,METAL GLAZE LGE 0RJ4300D677 Contact Us For Availability
R841
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R2152
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R2408
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R2440
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R2444
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R2610
Resistor,Chip LGE EBC37049601 Contact Us For Availability
R2620
Resistor,Chip LGE 0RJ0342D477 Contact Us For Availability
R2638
Resistor,Chip LGE 0RJ0272C678 Contact Us For Availability
R2643
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
R2671
Resistor,Chip LGE 0RJ4990C478 Contact Us For Availability
R3605
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R3609
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R3612
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R7024
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
SW104
SWITCH TACT LGE 140-313B Contact Us For Availability
TU801
Tuner,Analog/Digital LGE EBL39544401 Contact Us For Availability
VR608
VARISTOR LGE 6102W5V016A Contact Us For Availability
X200
Crystal LGE 6212AA2600B Contact Us For Availability
ZD600
Diode,Zener LGE 0DZDI00078A Contact Us For Availability
ZD707
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
ZD721
DIODE,ZENERS LGE 0DZRM00218A Contact Us For Availability
× ![]()
Login and Registration Form
