Model LG 47LD450C – Common Parts & Diagrams

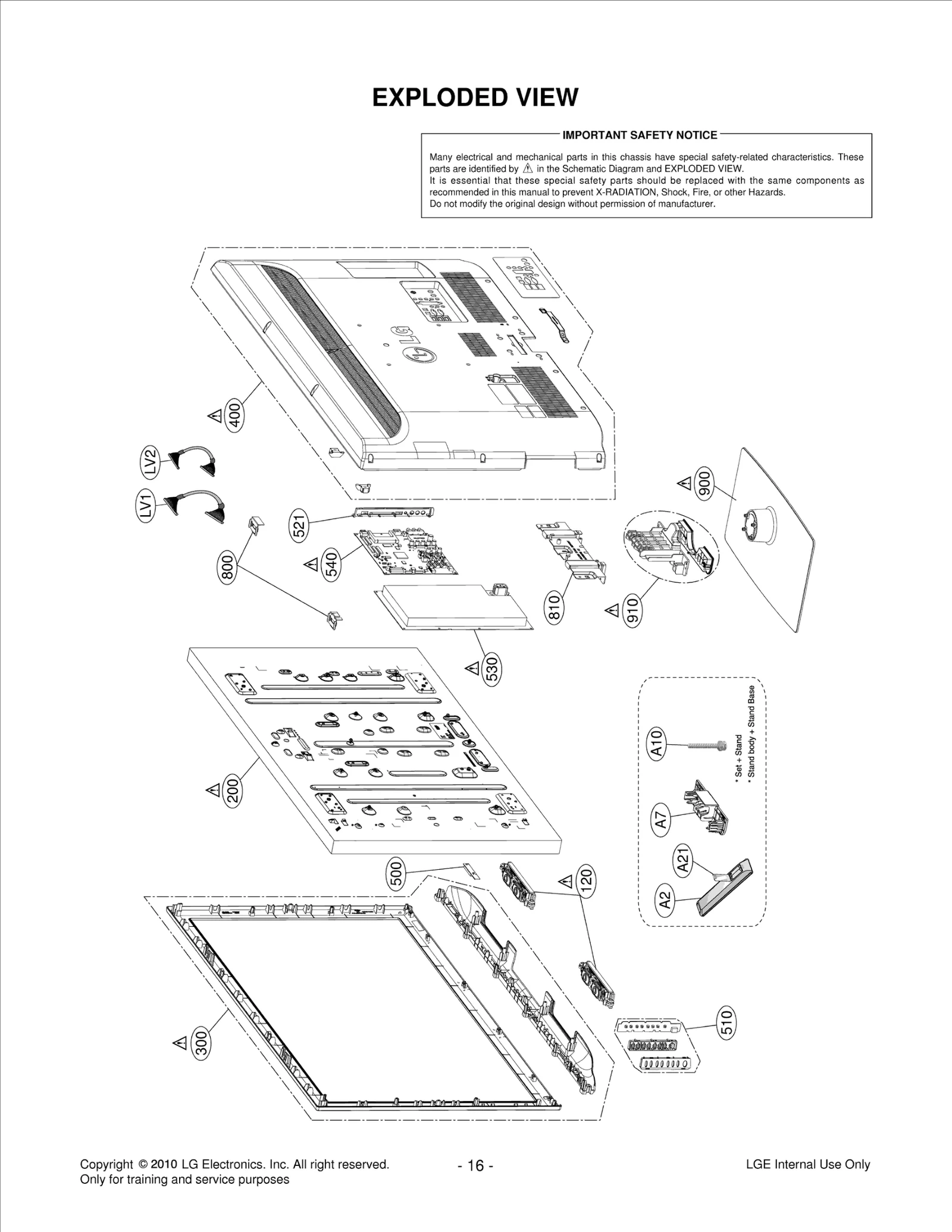

Diagram 0
Diagram 1
Common parts from model LG 47LD450C
120
Speaker,Full Range LGE EAB60961401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60869701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72925907 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ75177221 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR64965801 Contact Us For Availability
510
PCB Assembly LGE EBR66100201 Contact Us For Availability
521
Bracket Assembly LGE ABA73009523 Contact Us For Availability
530
Power Supply Assembly LGE EAY60869502 Contact Us For Availability
540
PCB Assembly,Main LGE EBR70520501 Contact Us For Availability
800
Supporter LGE MJH61887802 Contact Us For Availability
810
Supporter LGE MJH61879501 Contact Us For Availability
900
Base Assembly LGE AAN73010510 Contact Us For Availability
910
Bracket Assembly LGE ABA73009310 Contact Us For Availability
A1
Manual,Owners LGE MFL62882708 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A10
Screw Assembly, stand LGE FAB30016106 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
C120
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C214
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C253
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C405
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C465
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C471
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C532
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C554
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C555
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C559
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C565
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
C602
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C611
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C621
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C633
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C641
CAPACITOR,FIXED CERA LGE 0CC151CK41A Contact Us For Availability
C653
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C659
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C702
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C708
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C712
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C1101
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C1107
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1452
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C4065
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C5003
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C5013
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C5031
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
CA1
Harness,Single LGE EAD35983006 Contact Us For Availability
CA1
Harness,Single LGE EAD60958519 Contact Us For Availability
CA2
Harness,Single LGE EAD60676308 Contact Us For Availability
CA11
Harness,Single LGE EAD35908414 Contact Us For Availability
D603
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D608
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
D609
Diode,Switching LGE 0DSON00218A Contact Us For Availability
D1107
Diode,TVS LGE EAH33945901 Contact Us For Availability
D3305
Diode,TVS LGE EAH39491701 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN60920202 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN60762401 Contact Us For Availability
IC104
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC405
IC,DC,DC Converter LGE EAN60660501 Contact Us For Availability
IC406
IC,DC,DC Converter LGE EAN60922901 Contact Us For Availability
IC408
IC,Reset LGE EAN60670101 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN60969601 Contact Us For Availability
IC502
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC600
IC,DC,DC Converter LGE EAN60985901 Contact Us For Availability
IC601
IC,PMIC LGE EAN60985801 Contact Us For Availability
IC603
IC,PMIC LGE EAN60924401 Contact Us For Availability
IC1001
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN60899901 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN60970401 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC1450
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC5001
IC,POWER MANAGEMENT LGE 0IPMG00048A Contact Us For Availability
JK802
Jack,DIN LGE EAG59023303 Contact Us For Availability
JK1101
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1104
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK1105
Jack,Modular LGE 6612E00043A Contact Us For Availability
JK3802
Jack,RCA LGE EAG61008003 Contact Us For Availability
L223
Filter,Bead LGE EAM32500903 Contact Us For Availability
L416
Filter,Bead LGE EAM58113401 Contact Us For Availability
L421
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L509
Filter,Bead LGE EAM58042501 Contact Us For Availability
L3305
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
P501
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P702
Connector,FFC/FPC/PIC LGE EAG61008601 Contact Us For Availability
P2401
Connector,Wafer LGE 6630V90141H Contact Us For Availability
P3000
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
Q102
FET LGE EBK60752501 Contact Us For Availability
Q802
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q805
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R131
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R135
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R154
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R402
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R435
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ2402D477 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R460
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R474
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R519
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R549
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R600
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R606
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R607
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R609
Resistor,Chip LGE 0RJ5103C478 Contact Us For Availability
R610
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R611
Resistor,Chip LGE 0RJ2203C478 Contact Us For Availability
R612
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R613
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R618
Resistor,Chip LGE 0RJ0102E472 Contact Us For Availability
R619
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R622
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R635
Resistor,Chip LGE 0RJ1803C478 Contact Us For Availability
R643
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
R651
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R657
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R700
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R713
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R835
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R837
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R853
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R1203
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R1228
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R2414
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R2430
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R3002
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R3004
Resistor,Carbon Film LGE 0RD1801F609 Contact Us For Availability
R3301
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R3811
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R3818
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R3827
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R5018
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R5025
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
SW3005
SWITCH TACT LGE 140-313B Contact Us For Availability
TH700
Thermistor,NTC LGE 6322A00028A Contact Us For Availability
TU5001
Tuner,Analog/Digital LGE EBL60720401 Contact Us For Availability
× ![]()
