Model LG 47LC7DF – Common Parts & Diagrams

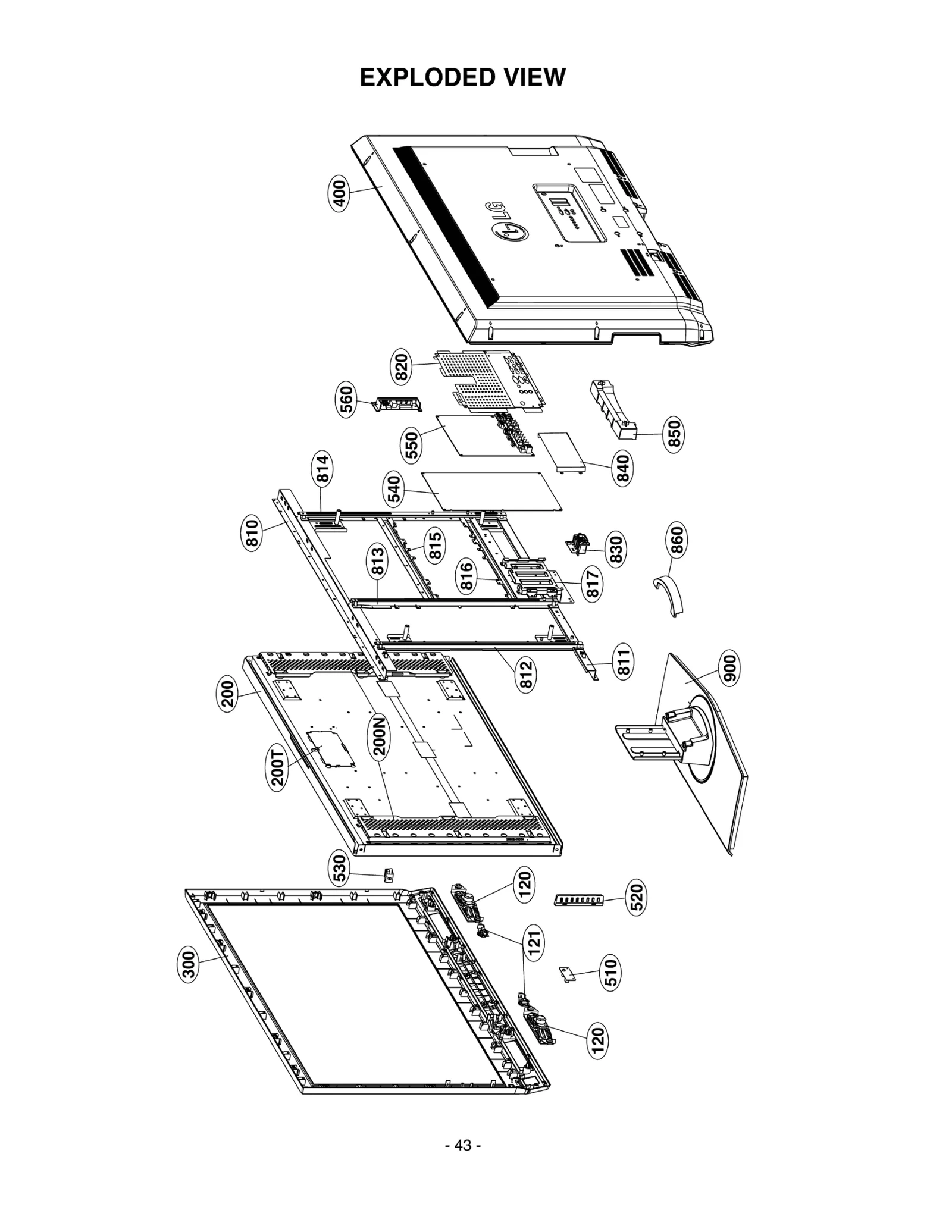

Diagram 0
Diagram 1
Common parts from model LG 47LC7DF
1
Remote Controller LGE MKJ39927801 Contact Us For Availability
2
Remote Controller LGE MKJ39927802 Contact Us For Availability
3
Remote Controller LGE MKJ39927803 Contact Us For Availability
4
Remote Controller LGE MKJ39927805 Contact Us For Availability
5
Remote Controller LGE MKJ39927808 Contact Us For Availability
6
Remote Controller LGE MKJ39927809 Contact Us For Availability
7
Remote Controller LGE MKJ39927812 Contact Us For Availability
8
Remote Controller LGE MKJ39927814 Contact Us For Availability
121
Speaker,Tweeter LGE EAB33893101 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ35565901 Contact Us For Availability
200N
Inverter Assembly LGE EAY48910501 Contact Us For Availability
200T
Time Control LGE EAT40319601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ32682606 Contact Us For Availability
400
Cover Assembly LGE ACQ32083406 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR36136201 Contact Us For Availability
520
PCB Assembly,Sub LGE EBR36136801 Contact Us For Availability
530
Sensor,Ambient Light LGE 6500VR0003E Contact Us For Availability
540
SMPS,AC/DC LGE EAY32816901 Contact Us For Availability
550
Main Total Assembly LGE EBU36130601 Contact Us For Availability
560
PCB Assembly,Sub LGE EBR36136101 Contact Us For Availability
810
Plate,Metal LGE MGJ32889304 Contact Us For Availability
811
Plate,Metal LGE MGJ32889604 Contact Us For Availability
812
Plate,Metal LGE MGJ32890003 Contact Us For Availability
813
Plate,Metal LGE MGJ32897004 Contact Us For Availability
814
Plate,Metal LGE MGJ32889802 Contact Us For Availability
815
Plate,Metal LGE MGJ32897104 Contact Us For Availability
816
Plate,Metal LGE MGJ32897204 Contact Us For Availability
817
Plate,Metal LGE MGJ32897302 Contact Us For Availability
820
Plate,Shield LGE MGJ32918107 Contact Us For Availability
830
PCB Assembly,Sub LGE EBR36524801 Contact Us For Availability
840
Plate,Shield LGE MGJ37663503 Contact Us For Availability
850
Bracket LGE MAZ34946201 Contact Us For Availability
860
Bracket LGE MAZ37752001 Contact Us For Availability
900
Base Assembly LGE AAN32161605 Contact Us For Availability
A1
Manual,Owners LGE MFL35930208 Contact Us For Availability
A2
Remote Controller LGE 6710900011Z Contact Us For Availability
A4
Holder LGE 341-746B Contact Us For Availability
A21
Cover LGE 3550V00684B Contact Us For Availability
AR100
Resistor,Array LGE EBC32260901 Contact Us For Availability
AR202
Resistor,Array LGE EBC33751901 Contact Us For Availability
AR453
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR601
Resistor,Array LGE EBC32260501 Contact Us For Availability
AR656
RESISTOR,METAL GLAZE LGE 0RJ0222C687 Contact Us For Availability
B103
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
C1
Harness,Single LGE 5240VE0001T Contact Us For Availability
C3
CONNECTOR ASSEMBLY LGE 6631900012E Contact Us For Availability
C4
Harness,Single LGE 6631900097N Contact Us For Availability
C5
Harness,Single LGE 6631900098N Contact Us For Availability
C6
Harness,Single LGE 6631900133E Contact Us For Availability
C7
CONNECTOR ASSEMBLY LGE 6631T20032B Contact Us For Availability
C9
CONNECTOR ASSEMBLY LGE 6631T20037D Contact Us For Availability
C10
CONNECTOR ASSEMBLY LGE 6631T20037E Contact Us For Availability
C11
CONNECTOR ASSEMBLY LGE 6631T20041B Contact Us For Availability
C12
CONNECTOR ASSEMBLY LGE 6631T25020L Contact Us For Availability
C13
Cable,Assembly LGE 68509A0004E Contact Us For Availability
C14
CORD,A/V LGE 6852TAZ010F Contact Us For Availability
C16
Harness,Single LGE EAD36184801 Contact Us For Availability
C17
Harness,Single LGE EAD36548901 Contact Us For Availability
C105
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
C107
Capacitor,AL,Chip LGE 0CE477SF6DC Contact Us For Availability
C108
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
C300
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C315
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C323
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C331
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C335
CAPACITOR,FIXED CERA LGE 0CK105EJ56A Contact Us For Availability
C337
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C339
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C344
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C349
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C351
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C421
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C495
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C509
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C513
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C548
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C556
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C564
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C584
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C590
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C605
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C686
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C725
Capacitor,AL,Chip LGE EAE32720101 Contact Us For Availability
C726
Capacitor,AL,Chip LGE EAE30840301 Contact Us For Availability
C727
Capacitor,AL,Chip LGE EAE30840401 Contact Us For Availability
C737
CAPACITOR,FIXED ELEC LGE 0CE337WH6DC Contact Us For Availability
C2131
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C5019
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C5030
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C5033
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C5041
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C5047
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C6017
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C6023
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
D300
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D301
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
F1
Filter,AC Line LGE EAM36140902 Contact Us For Availability
IC101
IC,Video Processors LGE EAN32808701 Contact Us For Availability
IC200
IC,DDR2 SDRAM LGE EAN33624401 Contact Us For Availability
IC201
IC,CMOS LGE EAN33931901 Contact Us For Availability
IC207
IC,MICRO CONTROLLER LGE 0IMCRAL021A Contact Us For Availability
IC300
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC301
IC,POWER MANAGEMENT LGE 0IMCRSJ001B Contact Us For Availability
IC304
IC,PWM Controller LGE EAN33573001 Contact Us For Availability
IC305
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC306
IC,PERIPHERALS LGE 0IPRP00009A Contact Us For Availability
IC310
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC402
IC,A/D Converter LGE 0IPRP00696C Contact Us For Availability
IC403
IC,Analog Switch LGE EAN32724701 Contact Us For Availability
IC404
IC,MEMORIES LGE 0IMMRCS012B Contact Us For Availability
IC407
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC409
IC,Analog Switch LGE EAN35942401 Contact Us For Availability
IC501
IC,Receiver LGE 0IPRPCI017A Contact Us For Availability
IC505
IC,Audio Amplifier LGE EAN32404601 Contact Us For Availability
IC508
IC,MICRO CONTROLLER LGE 0IMCRMN028C Contact Us For Availability
IC601
IC,Tx/Rx LGE EAN32174001 Contact Us For Availability
IC602
IC,POWER MANAGEMENT LGE 0IPMGSH019A Contact Us For Availability
IC700
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
IC704
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC712
IC,DC,DC Converter LGE EAN32013101 Contact Us For Availability
J1
Jack,Fiber Optic LGE EAG32151101 Contact Us For Availability
J101
JACK,RCA LGE 6612J10033A Contact Us For Availability
J405
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
J501
Jack,RCA LGE EAG35542202 Contact Us For Availability
J600
Jack,Complex LGE 6612J10024A Contact Us For Availability
J702
JACK,PHONE LGE 6612F00099A Contact Us For Availability
J704
Jack,RCA LGE 6612J10043A Contact Us For Availability
J705
Jack,Complex LGE 6612J00062H Contact Us For Availability
L100
Inductor,Wire Wound, LGE EAP32632801 Contact Us For Availability
L501
INDUCTOR,CHIP LGE 0LCML00020B Contact Us For Availability
L510
Inductor,Wire Wound, LGE EAP32842805 Contact Us For Availability
L708
LGE 0LC2220101A LGE 0LC2220101A Contact Us For Availability
L723
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
L742
Filter,LCR LGE EAM33010401 Contact Us For Availability
L752
Filter,LCR LGE EAM37276902 Contact Us For Availability
LED1
LED LGE 0DLBE0138AA Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P101
Harness,Single LGE EAD36608901 Contact Us For Availability
P101
Harness,Single LGE 6631900048B Contact Us For Availability
P105
Connector,Wafer LGE 6602T20008D Contact Us For Availability
P501
Harness,Single LGE EAD30301901 Contact Us For Availability
P502
Connector,Wafer LGE 6602T25008B Contact Us For Availability
P600
Conector,Wafer LGE 6630V93270A Contact Us For Availability
P700
Connector,Wafer LGE 6602T20008N Contact Us For Availability
P701
WAFER LGE 6602T25008M Contact Us For Availability
P702
WAFER LGE 6602T25008J Contact Us For Availability
P703
CONNECTOR ASSEMBLY LGE 6631900010N Contact Us For Availability
Q102
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q510
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q513
TR,Bipolar LGE 0TR102009AM Contact Us For Availability
Q702
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
R104
Resistor,Chip LGE 0RH9100D622 Contact Us For Availability
R105
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R106
RESISTOR CHIP GVC-C425 1UG1 GS LGE 0RH8201D622 Contact Us For Availability
R107
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R136
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R148
Resistor,Chip LGE EBC33834501 Contact Us For Availability
R149
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R216
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ4302D677 Contact Us For Availability
R304
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R305
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R308
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R319
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R321
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R323
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R346
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R350
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R373
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R400
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R405
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R415
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R422
RESISTOR,METAL GLAZE LGE 0RJ9101D477 Contact Us For Availability
R425
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R434
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R523
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R525
Resistor,Chip LGE 0RJ1100D677 Contact Us For Availability
R540
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R559
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R646
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R662
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R671
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R716
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R720
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R737
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R771
RESISTOR,METAL GLAZE LGE 0RJ2203D677 Contact Us For Availability
R4001
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R4025
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R4060
Resistor,Chip LGE 0RJ2702D677 Contact Us For Availability
R4095
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R4105
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R5005
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R5016
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R5018
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R5024
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R5036
RESISTOR,METAL GLAZE LGE 0RJ0392D677 Contact Us For Availability
R5038
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R5055
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R5063
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R5070
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R5076
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R5078
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R5080
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R6045
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
SW1
S/W,Firmware LGE SAA30643717 Contact Us For Availability
SW2
S/W,Firmware LGE SAA30652414 Contact Us For Availability
SW106
SWITCH TACT LGE 140-313B Contact Us For Availability
TU600
Tuner,Analog/Digital LGE EBL34917003 Contact Us For Availability
VR406
VARISTOR LGE 6102W5V016A Contact Us For Availability
X100
Crystal LGE EAW30352304 Contact Us For Availability
X400
RESONATOR,CRYSTAL LGE 6202VDT002B Contact Us For Availability
X500
Crystal LGE 6202VDT002H Contact Us For Availability
X601
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
ZD502
DIODE,ZENERS LGE 0DZRM00248A Contact Us For Availability
× ![]()
Login and Registration Form
