Model LG 47LB6000 – Common Parts & Diagrams

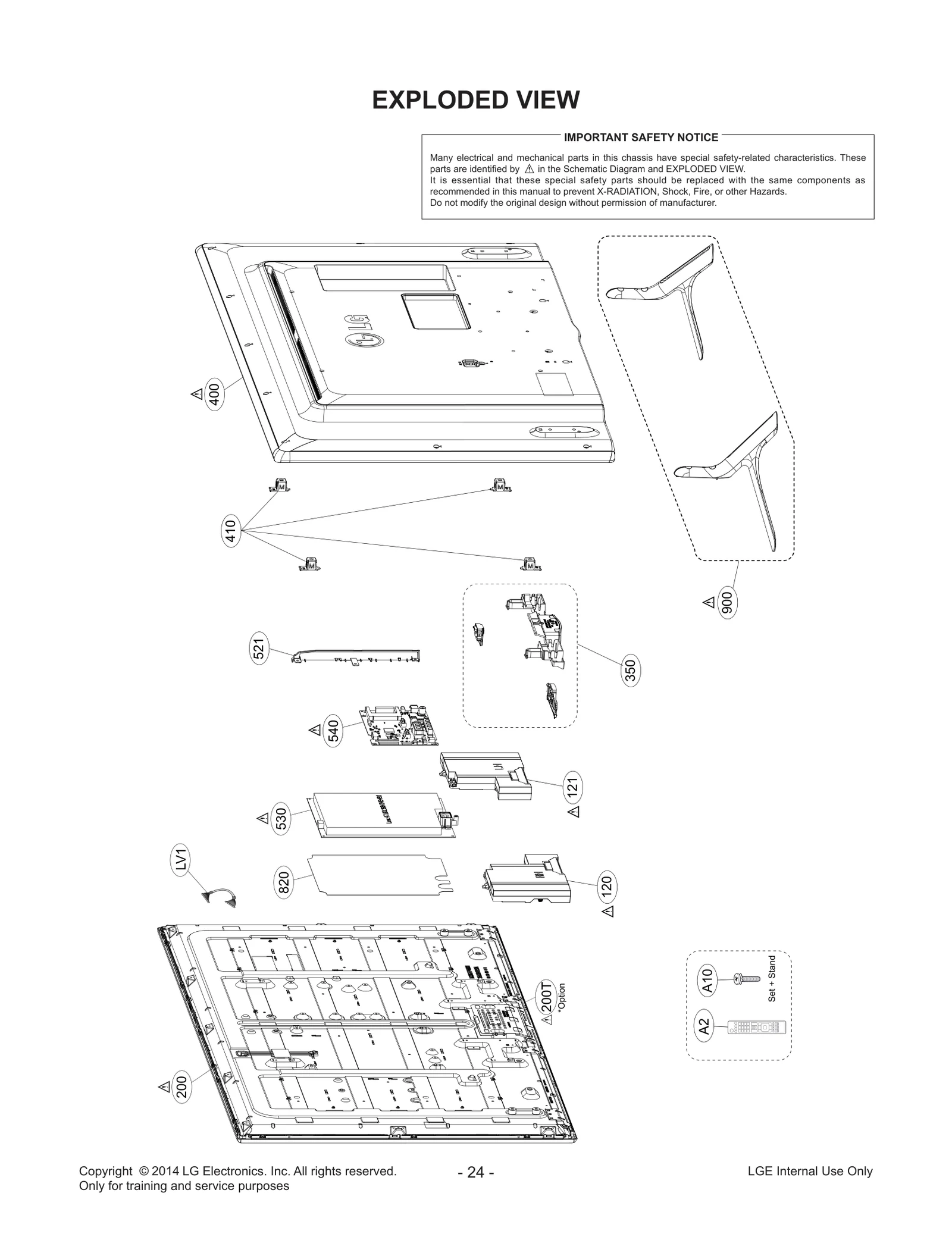

Diagram 0
Diagram 1
Common parts from model LG 47LB6000
2
Screw,Taptite LGE FAB31639801 Contact Us For Availability
3
Screw,Machine LGE FAB31843205 Contact Us For Availability
121
Speaker Assembly LGE EAB62972101 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63007701 Contact Us For Availability
200T
Time Control LGE EAT63113201 Contact Us For Availability
350
Cover Assembly LGE ACQ86682629 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87134517 Contact Us For Availability
540
Chassis Assembly LGE EBT62841577 Contact Us For Availability
820
Insulator LGE MEV64571001 Contact Us For Availability
A2
Remocon kit,Package Assembly LGE AGF76631012 Contact Us For Availability
AM
Manual Assembly LGE AFN76115307 Contact Us For Availability
AM1
Manual,Owners LGE MFL67987207 Contact Us For Availability
AR104
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C120
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C203
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C204
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C209
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C233
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C237
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C238
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C244
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C248
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C411
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C416
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C419
Capacitor,Ceramic,Chip LGE 0CK393CK56A Contact Us For Availability
C423
Capacitor,Ceramic,Chip LGE 0CC271BK4AA Contact Us For Availability
C427
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C428
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C433
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C434
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C704
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C1605
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C1610
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C4604
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5601
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C5611
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C5613
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C5615
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C5617
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C5629
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C5630
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C5640
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
CA2
Harness,Single LGE EAD61646293 Contact Us For Availability
D401
Diode,Schottky LGE EAH40478101 Contact Us For Availability
D802
Diode,Switching LGE EAH61714301 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62887201 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN35669103 Contact Us For Availability
IC104
IC,EEPROM LGE EAN62389502 Contact Us For Availability
IC400
IC,DC,DC Converter LGE EAN62911301 Contact Us For Availability
IC401
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN62911401 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC1300
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC1300
IC,Serial Flash Memory LGE EAN55718402 Contact Us For Availability
IC5600
IC,Audio Amplifier LGE EAN62494901 Contact Us For Availability
JK700
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1001
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1702
Jack,RCA LGE EAG60968213 Contact Us For Availability
L401
Filter,Bead LGE EAM62091201 Contact Us For Availability
L403
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L405
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L407
Inductor,Wire Wound,Chip LGE EAP62326501 Contact Us For Availability
L408
Filter,Bead LGE EAM38769505 Contact Us For Availability
L5605
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
LV1
Cable,FFC LGE EAD62572202 Contact Us For Availability
P401
Connector,Wafer LGE EAG63590901 Contact Us For Availability
P1100
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P5600
Connector,Wafer LGE EAG61091601 Contact Us For Availability
Q401
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q406
FET LGE EBK61913601 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R119
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R136
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R215
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R238
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R408
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R421
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R422
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R431
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R435
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R450
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R451
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R466
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R701
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R807
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R813
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R817
Resistor,Chip LGE ERHZ0000461 Contact Us For Availability
R1102
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1209
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1607
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R1611
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R1704
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1706
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1707
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R4604
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R5608
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R5610
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
VA1701
Varistor LGE EAF61530101 Contact Us For Availability
ZD401
Diode,TVS LGE EAH62134701 Contact Us For Availability
× ![]()
