Model LG 47LA6900 – Common Parts & Diagrams

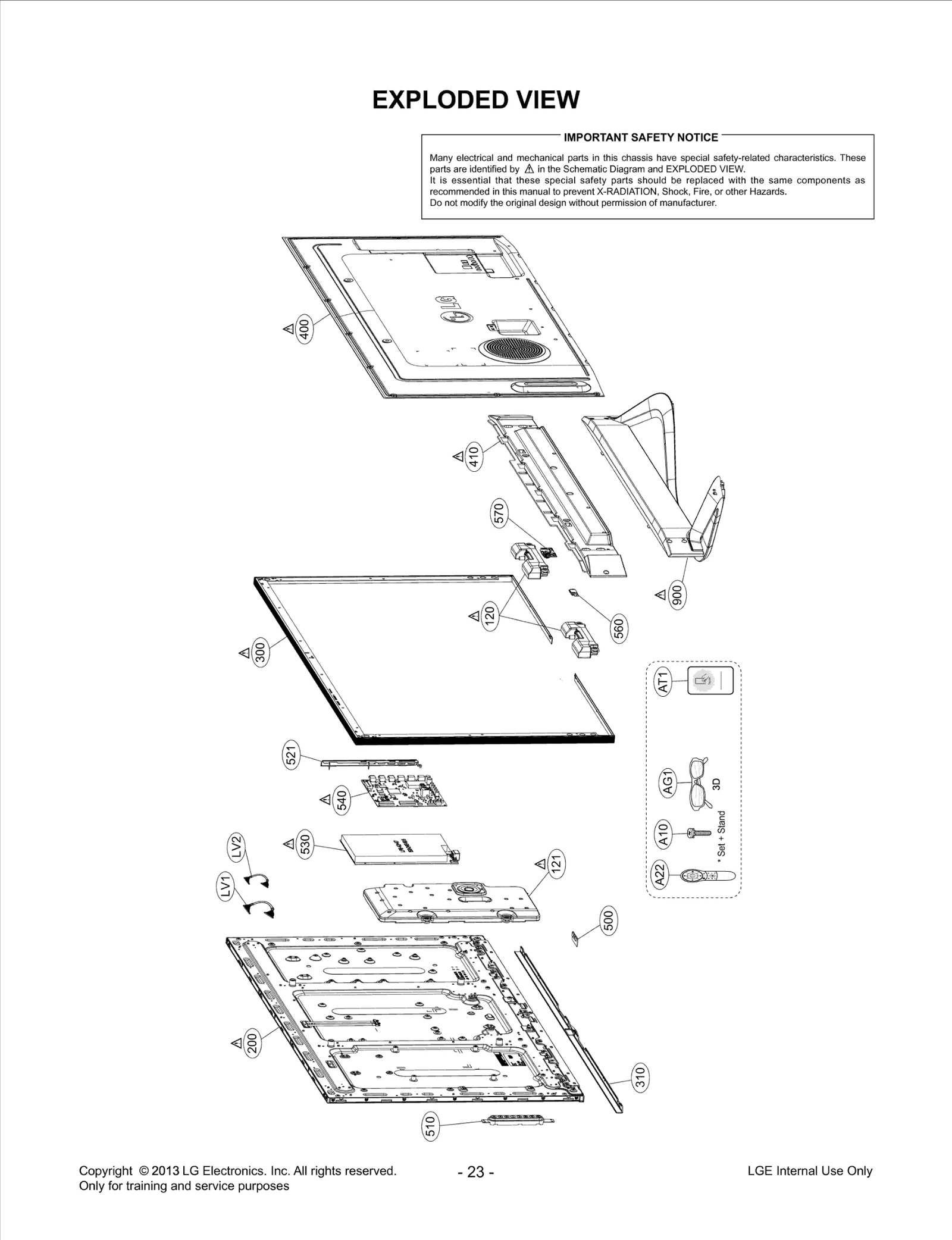

Diagram 0
Diagram 1
Common parts from model LG 47LA6900
200
LCD,Module-TFT LGE EAJ62388001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73967403 Contact Us For Availability
310
Cabinet Assembly LGE ABJ73989802 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86290511 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR76405604 Contact Us For Availability
521
Plate LGE MGJ63501105 Contact Us For Availability
530
Power Supply Assembly LGE EAY62810901 Contact Us For Availability
540
Chassis Assembly LGE EBT62393521 Contact Us For Availability
570
Module,WLAN LGE EAT61813801 Contact Us For Availability
910
Supporter LGE MJH62953402 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73757502 Contact Us For Availability
A22
Remocon kit,Package Assembly LGE AGF76633201 Contact Us For Availability
AG1
Accessory,3D Glasses LGE EBX61668503 Contact Us For Availability
AR4100
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR8102
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AT1
Accessory,Wireless LGE EBX61849401 Contact Us For Availability
C115
Capacitor,Ceramic,Ch LGE 0CK2R7BK0DA Contact Us For Availability
C310
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C332
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C355
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C375
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C377
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C379
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C501
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C505
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C506
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C509
Capacitor,Ceramic,Chip LGE EAE62764101 Contact Us For Availability
C2400
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C2405
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C2416
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C2421
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C2424
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C2433
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C2435
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C4123
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C4337
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C5412
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C5431
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5434
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C6109
Capacitor,Ceramic,Chip LGE EAE30276501 Contact Us For Availability
C6529
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C6554
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C7713
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C7726
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C7755
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C7800
Capacitor,AL,Chip LGE 0CZZQE3016A Contact Us For Availability
C8103
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
CA1
Harness,Multi LGE EAD62357001 Contact Us For Availability
CA2
Harness,Multi LGE EAD62353202 Contact Us For Availability
CA3
Harness,Single LGE EAD61052407 Contact Us For Availability
CA4
Harness,Single LGE EAD60732904 Contact Us For Availability
D100
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D3313
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3314
Diode,Switching LGE EAH61714301 Contact Us For Availability
D7700
Diode,Rectifier LGE EAH61515701 Contact Us For Availability
IC100
IC,EEPROM LGE EAN62389501 Contact Us For Availability
IC105
Display SOC,Digital TV LGE EAN62651401 Contact Us For Availability
IC701
IC,DDR3 SDRAM LGE EAN62571101 Contact Us For Availability
IC702
IC,DDR3 SDRAM LGE EAN61829203 Contact Us For Availability
IC2400
IC,DC,DC Converter LGE EAN62653301 Contact Us For Availability
IC2402
IC,Reset LGE EAN60670101 Contact Us For Availability
IC2403
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC2404
IC,DC,DC Converter LGE EAN62653501 Contact Us For Availability
IC2405
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC3301
IC,Analog Switch LGE EAN62573101 Contact Us For Availability
IC3304
IC,Receiver LGE EAN62458601 Contact Us For Availability
IC4306
IC,Analog Switch LGE EAN62649001 Contact Us For Availability
IC5400
IC,Audio Amplifier LGE EAN62653101 Contact Us For Availability
IC6100
IC,Audio Amplifier LGE EAN62668301 Contact Us For Availability
IC6400
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC6503
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC7700
IC,PMIC LGE EAN62348701 Contact Us For Availability
IC7701
IC,CMOS LGE EAN62409701 Contact Us For Availability
IC8100
IC,MCP,eMMC LGE EAN62570501 Contact Us For Availability
JK3602
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK3800
Jack,RCA LGE EAG60968211 Contact Us For Availability
JK4300
Connector,USB LGE EAG62571101 Contact Us For Availability
JK5000
Jack,Modular LGE EAG35781010 Contact Us For Availability
L2407
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L2408
Filter,Bead LGE EAM32500903 Contact Us For Availability
L2411
Inductor,Wire Wound,Chip LGE EAP62026301 Contact Us For Availability
L5404
Inductor,Wire Wound,Chip LGE EAP62326601 Contact Us For Availability
L7701
Inductor,Wire Wound,Chip LGE ELCP0009409 Contact Us For Availability
L7702
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
L7703
Inductor,Wire Wound,Chip LGE EAP61006801 Contact Us For Availability
LV2
Cable,FFC LGE EAD62352601 Contact Us For Availability
P4100
Connector,Wafer LGE EAG61091503 Contact Us For Availability
P5400
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P7702
Connector,FFC/FPC/PIC LGE EAG63211801 Contact Us For Availability
Q2401
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q2407
FET LGE EBK60752501 Contact Us For Availability
Q2408
TRANSISTOR,FETS LGE 0TFON80004C Contact Us For Availability
Q3001
FET LGE EBK61731301 Contact Us For Availability
Q3309
FET LGE EBK61913601 Contact Us For Availability
Q3314
FET LGE EBK62091801 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R179
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R188
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R335
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R343
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R354
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R716
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R721
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R2402
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R2404
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R2409
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R2419
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R2432
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R2433
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R2438
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R2441
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R2455
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R2459
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R3033
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R3034
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R3035
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R3301
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R3356
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R3371
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R3376
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R3379
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R3380
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R3389
Resistor,Chip LGE 0RJ0511C478 Contact Us For Availability
R3700
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R3812
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R5412
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R5416
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R6531
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R7700
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R7705
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R7718
Resistor,Chip LGE EBC60972101 Contact Us For Availability
R7722
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R7729
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R7736
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R7739
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
SW3000
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TH7700
Thermistor,NTC LGE 6322A00028A Contact Us For Availability
X100
Crystal LGE EAW61645503 Contact Us For Availability
X3000
Crystal LGE EAW58239602 Contact Us For Availability
ZD304
Varistor LGE EAF61630101 Contact Us For Availability
ZD3804
Varistor LGE EAF61530201 Contact Us For Availability
× ![]()
