Model LG 47GA7900 – Common Parts & Diagrams

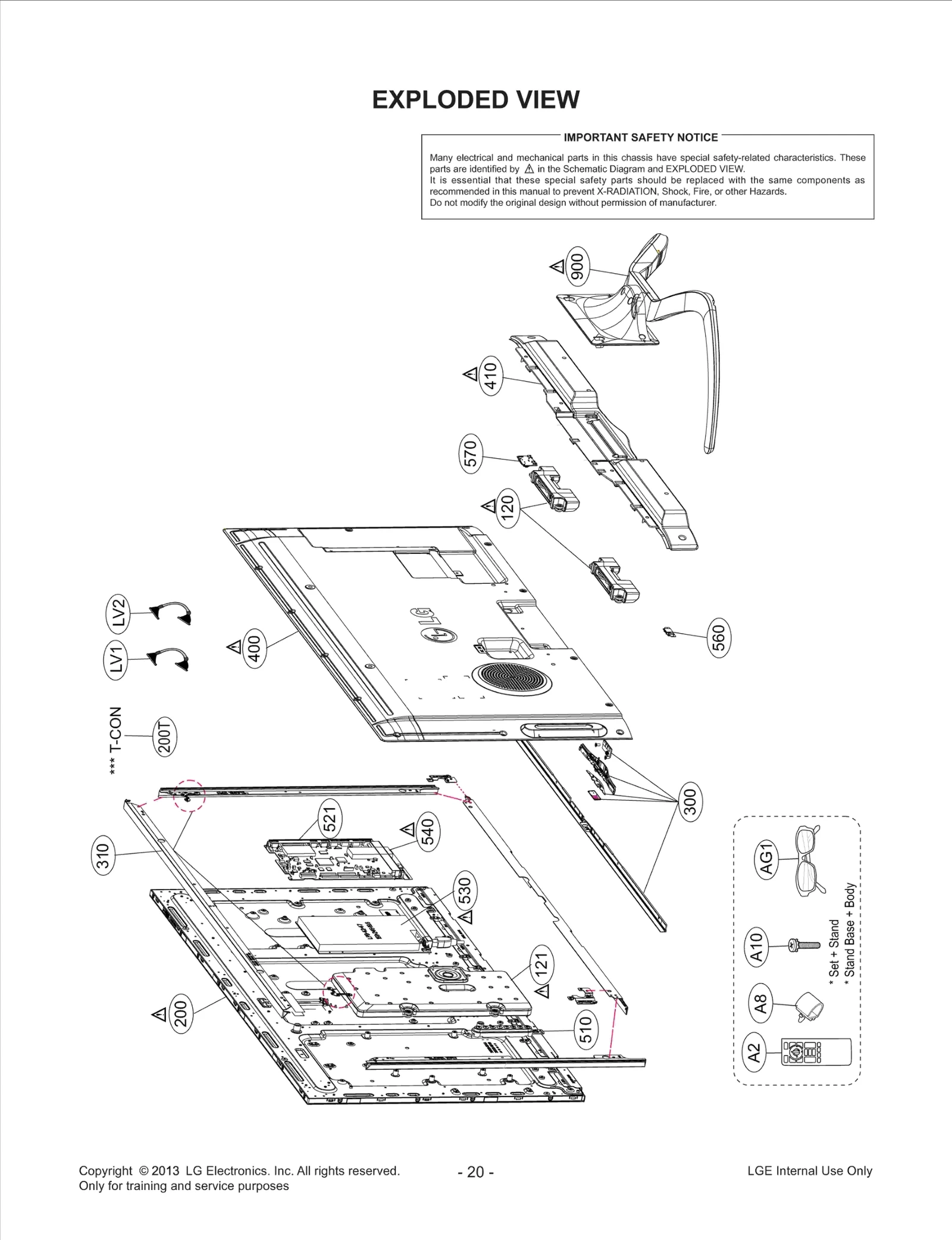

Diagram 0
Diagram 1
Common parts from model LG 47GA7900
200T
PCB Assembly,Main LGE EBR77041102 Contact Us For Availability
310
Cabinet Assembly LGE ABJ73988402 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86283906 Contact Us For Availability
410
Cover Assembly,Rear LGE ACQ86472804 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR76405604 Contact Us For Availability
521
Plate Assembly LGE AGU74150709 Contact Us For Availability
530
Power Supply Assembly LGE EAY62810901 Contact Us For Availability
540
Chassis Assembly LGE EBT62348103 Contact Us For Availability
570
Module,WLAN LGE EAT61813801 Contact Us For Availability
900
Base Assembly LGE AAN74311006 Contact Us For Availability
910
Bracket LGE MAZ63710402 Contact Us For Availability
A2
Package Assembly LGE AGF76820701 Contact Us For Availability
A2S
Remote Controller Assembly LGE AKB73736002 Contact Us For Availability
A8
Bracket LGE MAZ63343701 Contact Us For Availability
AG1
Accessory,3D Glasses LGE EBX61668503 Contact Us For Availability
AM
Manual,Owners LGE MFL67468182 Contact Us For Availability
AR4100
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR9701
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
B1
Box LGE MAY65951601 Contact Us For Availability
B2
Box LGE MAY65490728 Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C318
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C349
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C435
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C438
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C514
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C521
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C530
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C535
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
C536
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C557
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C577
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C617
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C630
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C2302
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C2308
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C2321
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C2347
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C2375
Capacitor,Ceramic,Chip LGE EAE30276501 Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C4332
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C4334
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C5206
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C5209
Capacitor,Ceramic,Chip LGE 0CC560BK41A Contact Us For Availability
C5406
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C5422
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C5430
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5434
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C5438
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C6401
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C6505
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C8107
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C9633
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C9808
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C9818
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
CA1
Cable,Assembly LGE EAD61273112 Contact Us For Availability
CA2
Cable,Assembly LGE EAD61077707 Contact Us For Availability
CA3
Cable,Assembly LGE EAD61077708 Contact Us For Availability
CA4
Harness,Single LGE EAD60732910 Contact Us For Availability
CA6
Harness,Multi LGE EAD62357015 Contact Us For Availability
CA7
Harness,Multi LGE EAD62353209 Contact Us For Availability
CA8
Harness,Single LGE EAD61052414 Contact Us For Availability
D501
Diode,Rectifier LGE EAH61515701 Contact Us For Availability
D504
Diode,TVS LGE EAH60667401 Contact Us For Availability
D506
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D3000
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3206
Diode,Schottky LGE EAH40478101 Contact Us For Availability
D3207
Varistor LGE EAF61530101 Contact Us For Availability
D3214
Diode,TVS LGE EAH61232601 Contact Us For Availability
D4302
Diode,TVS LGE EAH61515101 Contact Us For Availability
D4304
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D5002
Varistor LGE EAF61530201 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN62349001 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62348901 Contact Us For Availability
IC102
IC,EEPROM LGE EAN62389501 Contact Us For Availability
IC400
Display SOC,Digital TV LGE EAN62396801 Contact Us For Availability
IC401
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC500
IC,PMIC LGE EAN62348701 Contact Us For Availability
IC501
IC,CMOS LGE EAN62409701 Contact Us For Availability
IC702
IC,DDR3 SDRAM LGE EAN61829003 Contact Us For Availability
IC704
IC,DDR3 SDRAM LGE EAN62577301 Contact Us For Availability
IC2302
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC2306
IC,DC,DC Converter LGE EAN62653301 Contact Us For Availability
IC2307
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
IC2307
IC,Reset LGE EAN60670101 Contact Us For Availability
IC3200
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC3201
IC,Analog Switch LGE EAN62388401 Contact Us For Availability
IC3202
IC,Analog Switch LGE EAN62231201 Contact Us For Availability
IC4305
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC4306
IC,DC,DC Converter LGE EAN62409001 Contact Us For Availability
IC5200
IC,Ethernet LGE EAN62219201 Contact Us For Availability
IC5400
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC6400
IC,Audio Amplifier LGE EAN60724701 Contact Us For Availability
IC6503
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC8100
IC,MCP,eMMC LGE EAN62570401 Contact Us For Availability
IC9601
IC,Serial Flash Memory LGE EAN60915401 Contact Us For Availability
IC9801
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC9803
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC11002
IC,Microcontrollers LGE EAN62349201 Contact Us For Availability
JK3602
Jack,Fiber Optic LGE EAG37842007 Contact Us For Availability
JK3602
Jack,Fiber Optic LGE EAG37842004 Contact Us For Availability
JK3700
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK3700
Jack,Phone LGE EAG61030009 Contact Us For Availability
JK3800
Jack,Phone LGE EAG61030006 Contact Us For Availability
JK3801
Jack,Phone LGE EAG61030007 Contact Us For Availability
JK3801
Jack,Phone LGE EAG61030012 Contact Us For Availability
JK4302
Connector,USB LGE EAG62571101 Contact Us For Availability
JK5000
Jack,Modular LGE EAG62012402 Contact Us For Availability
L320
Filter,Bead LGE EAM54407902 Contact Us For Availability
L502
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
L503
Inductor,Wire Wound,Chip LGE ELCP0009409 Contact Us For Availability
L504
Inductor,Multilayer,Chip LGE EAP39314710 Contact Us For Availability
L505
Inductor,Wire Wound,Chip LGE EAP61006801 Contact Us For Availability
L600
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L2313
Inductor,Wire Wound,Chip LGE EAP32842803 Contact Us For Availability
L2317
Inductor,Wire Wound,Chip LGE EAP61746701 Contact Us For Availability
L5211
Inductor,Multilayer,Chip LGE ELCH0005825 Contact Us For Availability
L5211
Inductor,Multilayer,Chip LGE EAP62328101 Contact Us For Availability
L5405
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L9603
Filter,Bead LGE EAM32500903 Contact Us For Availability
L9804
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
LV1
Cable,FFC LGE EAD62046903 Contact Us For Availability
LV2
Cable,FFC LGE EAD62047003 Contact Us For Availability
M311
Gasket LGE MDS62110216 Contact Us For Availability
M316
Gasket LGE MDS62110217 Contact Us For Availability
P600
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P601
Connector,Wafer LGE 6630V93270K Contact Us For Availability
P602
Connector,FFC/FPC/PIC LGE EAG63211801 Contact Us For Availability
P4100
Connector,Wafer LGE EAG61091503 Contact Us For Availability
P5400
Connector,Wafer LGE EAG61091601 Contact Us For Availability
Q400
FET LGE EBK42767801 Contact Us For Availability
Q500
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q2305
FET LGE EBK60752501 Contact Us For Availability
Q3001
FET LGE EBK61731301 Contact Us For Availability
Q5201
FET LGE EBK61913601 Contact Us For Availability
Q6500
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q11001
TR,Bipolar LGE EBK42831501 Contact Us For Availability
Q11002
FET LGE EBK60752601 Contact Us For Availability
R104
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R184
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R201
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R419
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R515
Resistor,Chip LGE EBC60972101 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R519
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R523
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R534
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R535
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R535
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R549
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R559
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R560
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R609
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R614
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R629
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R705
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R712
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R714
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R715
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R738
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R2302
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R2308
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R2321
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R2342
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R2344
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R2347
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R2349
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R2363
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R2364
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R2365
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R2378
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R2379
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R3002
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R3028
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R3029
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R3200
Resistor,Chip LGE 0RJ6202D677 Contact Us For Availability
R3206
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R3233
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R3237
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R3243
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R3700
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R4108
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R4206
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R4300
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R4336
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R4339
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R4343
Resistor,Chip LGE 0RJ8200C478 Contact Us For Availability
R5202
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R5215
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R5411
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R6520
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R6531
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R7111
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R9632
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R9706
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R9707
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R9720
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R9802
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R9804
Resistor,Chip LGE ERHZ0000242 Contact Us For Availability
R9810
Resistor,Chip LGE 0RJ4301D477 Contact Us For Availability
R9812
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R11015
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
SW3000
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TH500
Thermistor,NTC LGE 6322A00028A Contact Us For Availability
TU6500
Tuner,Analog/Digital LGE EBL61239904 Contact Us For Availability
VA3211
Varistor LGE EAF61530301 Contact Us For Availability
X400
Crystal LGE EAW61663701 Contact Us For Availability
X3000
Crystal LGE EAW58239602 Contact Us For Availability
X5200
Crystal LGE EAW61903501 Contact Us For Availability
X9600
Crystal LGE EAW61645502 Contact Us For Availability
× ![]()
Login and Registration Form
