Model LG 47G2 – Common Parts & Diagrams

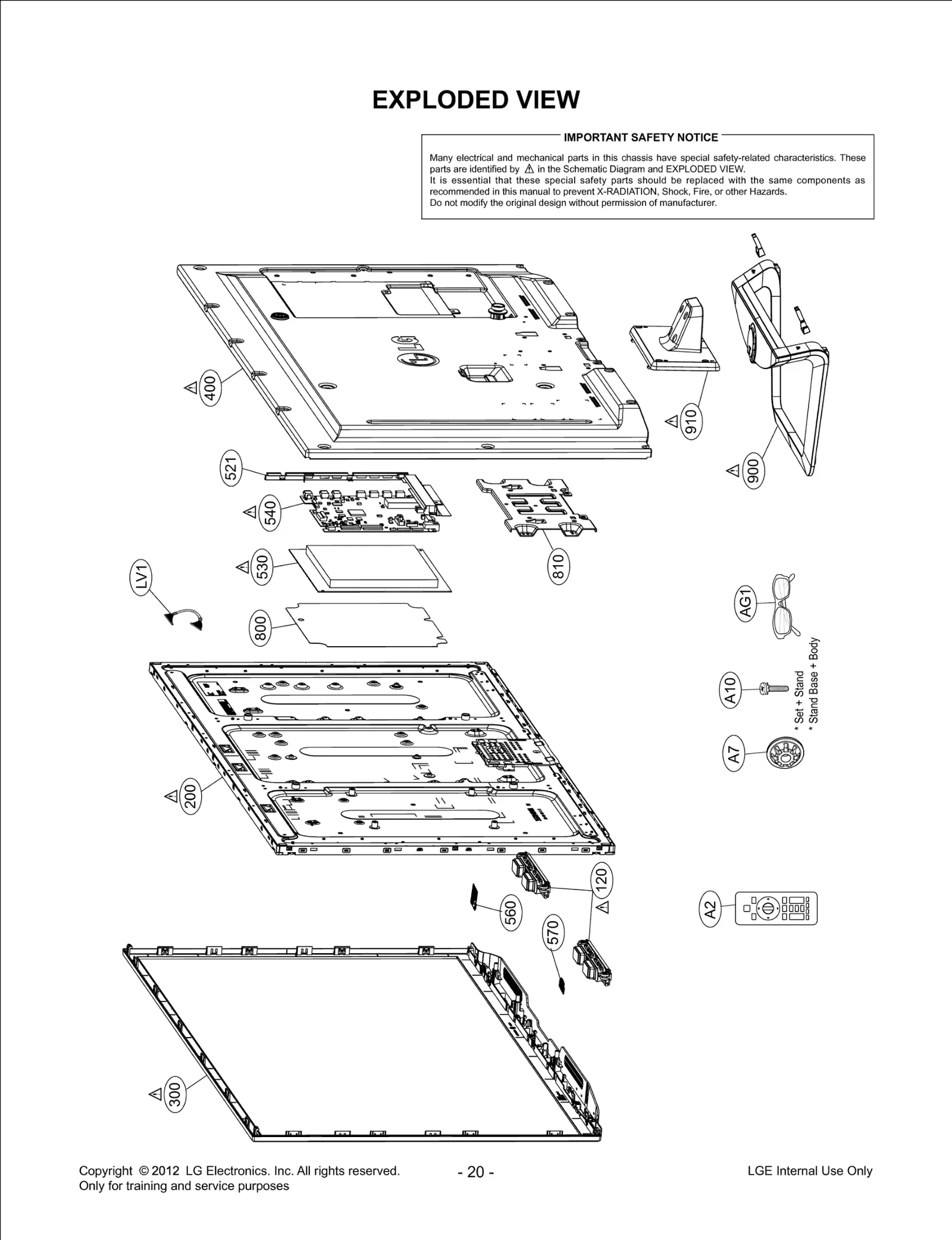

Diagram 0
Diagram 1
Common parts from model LG 47G2
300
Cover Assembly LGE ACQ85737244 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85736726 Contact Us For Availability
521
Plate Assembly LGE AGU73908209 Contact Us For Availability
540
PCB Assembly,Main LGE EBR75142502 Contact Us For Availability
800
Plate Assembly LGE AGU73827902 Contact Us For Availability
900
Base Assembly LGE AAN74052106 Contact Us For Availability
A1
Manual,Owners LGE MFL67468122 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73597001 Contact Us For Availability
AG1
AG-F310---3D Glasses LGE EBX61668501 Contact Us For Availability
AR4800
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR8100
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C349
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C504
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C514
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C557
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C630
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C735
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C2302
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C2330
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C2331
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C2332
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C2375
Capacitor,Ceramic,Chip LGE EAE30276501 Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C3220
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C3633
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C4332
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C5200
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C5202
Capacitor,Ceramic,Chip LGE 0CC560BK41A Contact Us For Availability
C5401
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C5406
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C5423
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C5431
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5433
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C5434
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C6551
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C9633
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C9635
Capacitor,Ceramic,Chip LGE 0CC130BKF1A Contact Us For Availability
C9808
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C9818
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C11004
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
CA1
Harness,Single LGE EAD60678815 Contact Us For Availability
CA2
Harness,Single LGE EAD61052411 Contact Us For Availability
CA3
Harness,Single LGE EAD56480836 Contact Us For Availability
CA4
Harness,Single LGE EAD62094403 Contact Us For Availability
CA6
Harness,Single LGE EAD61646224 Contact Us For Availability
CAB2
Cable,Assembly LGE EAD61273112 Contact Us For Availability
D505
Diode,TVS LGE EAH60667401 Contact Us For Availability
D2350
Varistor LGE EAF61530301 Contact Us For Availability
D3000
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3206
Diode,Schottky LGE EAH40478101 Contact Us For Availability
D3620
Diode,Switching LGE EAH61714301 Contact Us For Availability
D4101
Varistor LGE EAF61530101 Contact Us For Availability
D4302
Diode,TVS LGE EAH61515101 Contact Us For Availability
D4304
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D5001
Varistor LGE EAF61530201 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN62349001 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62348901 Contact Us For Availability
IC102
IC,EEPROM LGE EAN62389501 Contact Us For Availability
IC702
IC,DDR3 SDRAM LGE EAN61829001 Contact Us For Availability
IC703
IC,DDR3 SDRAM LGE EAN61829202 Contact Us For Availability
IC2302
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC2306
IC,DC,DC Converter LGE EAN61950701 Contact Us For Availability
IC2308
IC,Reset LGE EAN60670101 Contact Us For Availability
IC3200
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC3201
IC,Analog Switch LGE EAN62388401 Contact Us For Availability
IC4303
IC,Analog Switch LGE EAN62231201 Contact Us For Availability
IC4305
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC4306
IC,DC,DC Converter LGE EAN62409001 Contact Us For Availability
IC5200
IC,Ethernet LGE EAN62219201 Contact Us For Availability
IC5400
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC6503
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC9601
IC,Serial Flash Memory LGE EAN60915401 Contact Us For Availability
IC9802
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC9803
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
JK3601
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK3602
Jack,Fiber Optic LGE EAG37842004 Contact Us For Availability
JK3602
Jack,Fiber Optic LGE EAG37842007 Contact Us For Availability
JK3603
Connector,DSUB LGE EAG62012201 Contact Us For Availability
JK3800
Jack,Phone LGE EAG61030006 Contact Us For Availability
JK3801
Jack,Phone LGE EAG61030007 Contact Us For Availability
JK4302
Connector,USB LGE EAG62571101 Contact Us For Availability
JK5000
Jack,Modular LGE EAG62012402 Contact Us For Availability
JK5000
Jack,Modular LGE EAG62012403 Contact Us For Availability
L502
Filter,Bead LGE EAM54407902 Contact Us For Availability
L504
Inductor,Multilayer,Chip LGE EAP39314710 Contact Us For Availability
L2317
Inductor,Wire Wound,Chip LGE EAP61746701 Contact Us For Availability
L4307
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L4308
Inductor,Wire Wound,Chip LGE EAP32842803 Contact Us For Availability
L5211
Inductor,Multilayer,Chip LGE ELCH0005825 Contact Us For Availability
L5404
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L9603
Filter,Bead LGE EAM32500903 Contact Us For Availability
LV1
Cable,FFC LGE EAD62046903 Contact Us For Availability
M316
Gasket LGE MDS62110217 Contact Us For Availability
P3000
Connector,Wafer LGE EAG58732902 Contact Us For Availability
P4301
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P4800
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P5400
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P7100
Connector,Wafer LGE 6630V93270J Contact Us For Availability
Q103
FET LGE EBK42767801 Contact Us For Availability
Q2301
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q2305
FET LGE EBK60752501 Contact Us For Availability
Q3001
FET LGE EBK61731301 Contact Us For Availability
Q11001
TR,Bipolar LGE EBK42831501 Contact Us For Availability
Q11002
FET LGE EBK60752601 Contact Us For Availability
R104
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R112
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R181
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R184
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R187
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R201
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R300
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R513
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R515
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R529
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R548
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R560
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R565
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R609
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R627
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R629
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R707
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R2313
RESISTOR,METAL GLAZE LGE 0RJ9101C478 Contact Us For Availability
R2317
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R2321
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R2322
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R2342
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R2344
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R2346
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R2347
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R2349
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R2350
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R2357
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R2363
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R2364
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R2365
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R2378
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R2379
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R3028
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R3029
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R3200
Resistor,Chip LGE 0RJ6202D677 Contact Us For Availability
R3206
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R3209
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R3233
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R4125
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R4203
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R4300
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R4301
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R4336
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R4343
Resistor,Chip LGE 0RJ8200C478 Contact Us For Availability
R5206
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R5412
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R6520
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R6531
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R9633
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R9637
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R9704
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R9706
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R9708
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R9801
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R9802
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R9804
Resistor,Chip LGE ERHZ0000242 Contact Us For Availability
R9807
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R9808
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R9810
Resistor,Chip LGE 0RJ4301D477 Contact Us For Availability
R9812
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R11015
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R11020
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
SW3000
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
X500
Crystal LGE EAW61645502 Contact Us For Availability
X3000
Crystal LGE EAW58239602 Contact Us For Availability
X9600
Crystal LGE EAW43548908 Contact Us For Availability
× ![]()
Login and Registration Form
