Model Whirlpool 4775 ELECTRIC RANGE – Common Parts & Diagrams
05 - OVEN DOOR-SEE THRU BLACK GLASS
02 - BLOWER ASSEMBLY/PLENUM

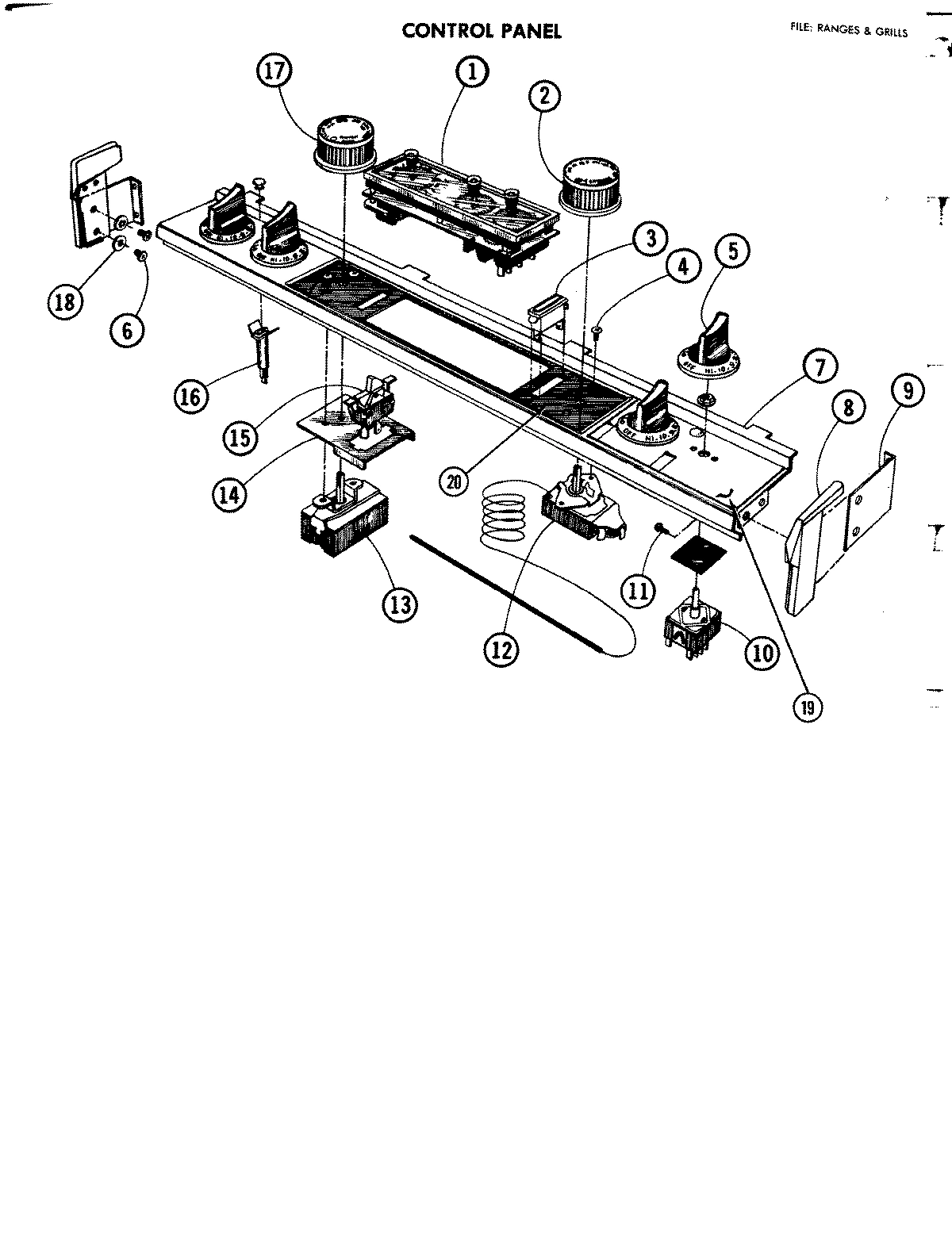

03 - CONTROL PANEL

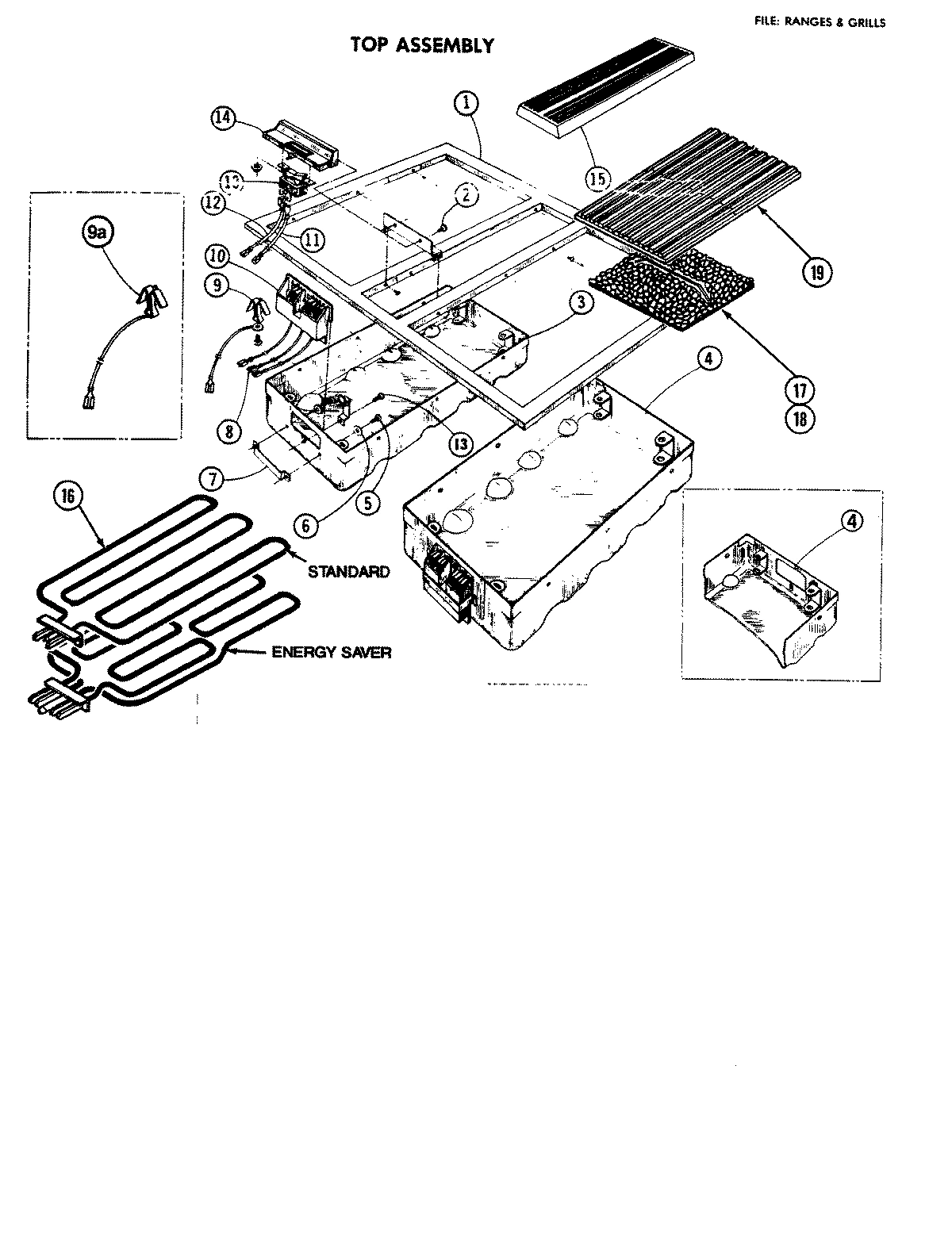

06 - TOP ASSEMBLY

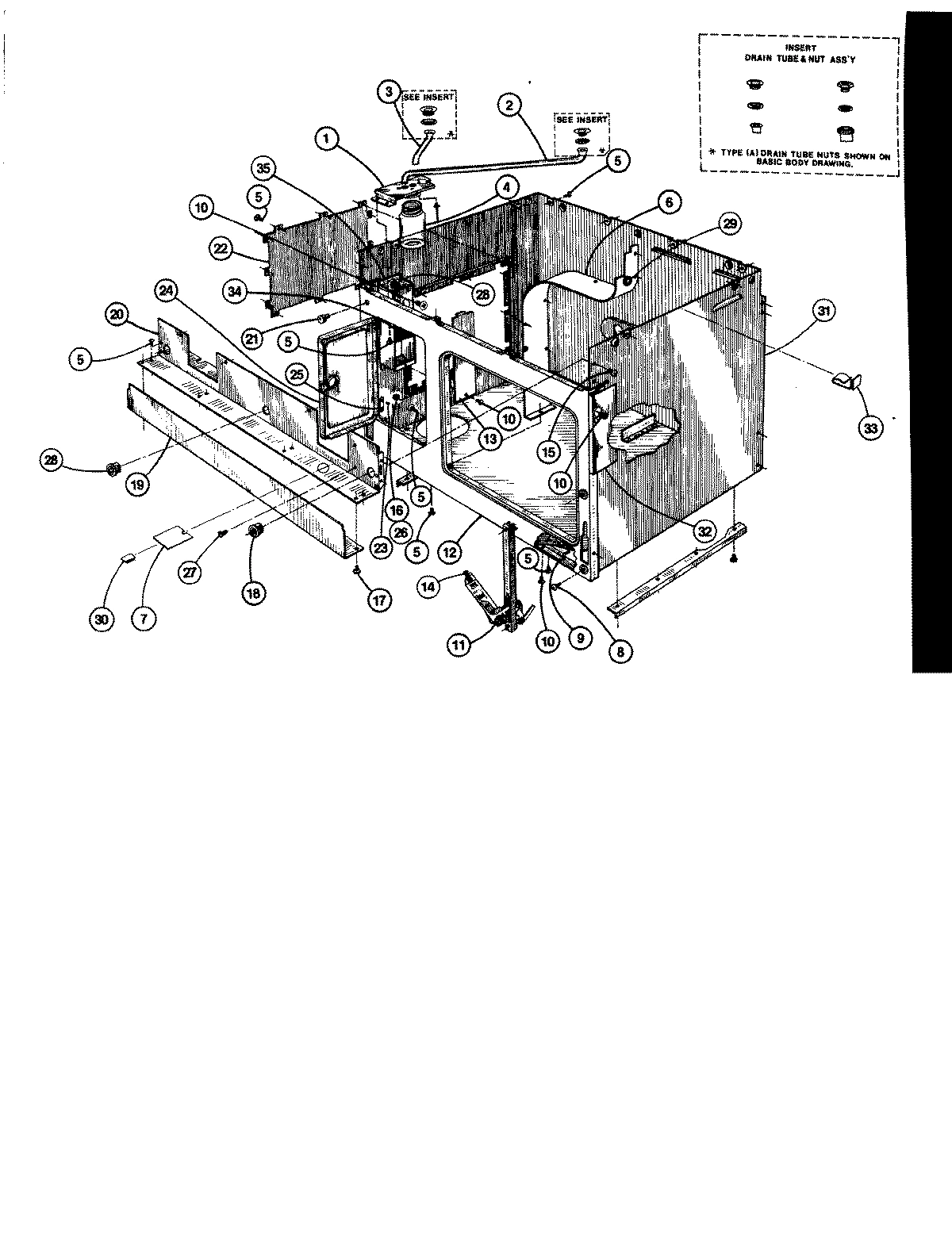

01 - BASIC BODY

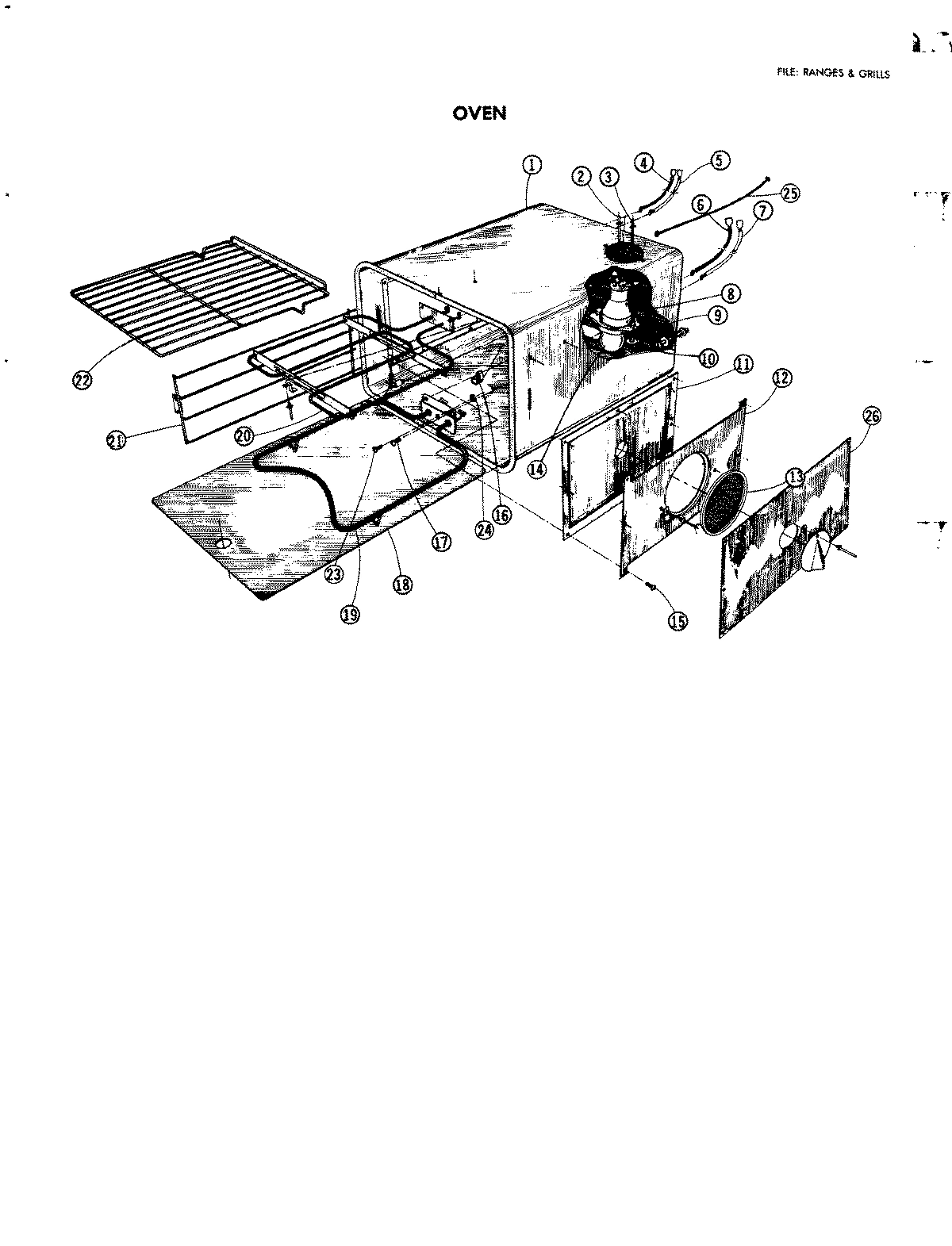

04 - OVEN
Common parts from model Whirlpool 4775 ELECTRIC RANGE
1
SCREW WPL 708781 Contact Us For Availability
1
MOTOR WPL 715362 Contact Us For Availability
1
CLOCK WPL 715394 Contact Us For Availability
1
GLASS WPL 770459 Contact Us For Availability
1
CLOCK BEZEL WPL 770460 Contact Us For Availability
1
CLOCK KNOB WPL 770461 Contact Us For Availability
1
TOP ASSEMBLY WPL 700003 Contact Us For Availability
1
FILLER BRACKET WPL 715417 Contact Us For Availability
1
JAR LID BRACKET ASSEMBLY WPL 770454 Contact Us For Availability
1
NUT, TEE WPL 715294 Contact Us For Availability
1
SPACER WPL 715777 Contact Us For Availability
1
OVEN ASSEMBLY WPL 770455 Contact Us For Availability
1
OVEN BOLT WPL 770458 Contact Us For Availability
1
SUPPORT BRACKET WPL Y708585 Contact Us For Availability
2
OUTER GLASS WPL 715283 Contact Us For Availability
2
KNOB THERMO WPL Y715600 Contact Us For Availability
2
SCREW WPL Y708690 Contact Us For Availability
2
DRAIN TUBE ASSEMBLY WPL Y700001 Contact Us For Availability
2
WIRE, WHITE WPL 715519 Contact Us For Availability
3
DOOR HANDLE WPL 715289 Contact Us For Availability
3
SCREW WPL Y707402 Contact Us For Availability
3
PILOT LIGHT----NA WPL 715756 Contact Us For Availability
3
GRILL PAN ASSEMBLY (LT) WPL 700005 Contact Us For Availability
3
O-RING WPL 715137 Contact Us For Availability
3
DRAIN TUBE NUT WPL 715801 Contact Us For Availability
3
DRAIN TUBE (LEFT) WPL 700000 Contact Us For Availability
3
WIRE, BLACK WPL 715518 Contact Us For Availability
4
GRILL PAN ASSEMBLY (RT) WPL 700006 Contact Us For Availability
4
WIRE, RED WPL 715516 Contact Us For Availability
5
ISOLATOR WPL 715757 Contact Us For Availability
5
WIRE, YELLOW WPL 715517 Contact Us For Availability
6
WASHER WPL Y707664 Contact Us For Availability
6
DIVIDER WALL WPL 715377 Contact Us For Availability
6
WIRE, BROWN WPL 715544 Contact Us For Availability
7
INLET RING WPL 715365 Contact Us For Availability
7
FEATURE PANEL WPL 715884 Contact Us For Availability
7
CONTROL PANEL WPL Y700012 Contact Us For Availability
7
BRACKET WPL 708839 Contact Us For Availability
7
COVER WPL 715963 Contact Us For Availability
7
WIRE, BLUE WPL 715515 Contact Us For Availability
8
OVEN DOOR LINER WPL 700015 Contact Us For Availability
8
PAD, SPACER WPL 715938 Contact Us For Availability
8
END CAP RH WPL 715379 Contact Us For Availability
8
END CAP LH WPL 715380 Contact Us For Availability
8
GRILL PAN WIRE WPL 700007 Contact Us For Availability
8
WIRE, RED WPL 708995 Contact Us For Availability
8
WIRE, YELLOW WPL 708997 Contact Us For Availability
8
WIRE, BLUE WPL 708998 Contact Us For Availability
8
WIRE, BLACK WPL Y708996 Contact Us For Availability
8
SCREW WPL 707346 Contact Us For Availability
8
RECEPTACLE, LIGHT WPL 715281 Contact Us For Availability
9
NO LONGER AVAILABLE WPL 788178 Contact Us For Availability
9
BRACKET WPL 715406 Contact Us For Availability
9
CONTACT ASSEMBLY WPL Y700004 Contact Us For Availability
9
RECEPTACLE CONTACTS WPL Y708558 Contact Us For Availability
9
FRONT SUPPORT WPL 715352 Contact Us For Availability
10
GLASS SPACER WPL 787978 Contact Us For Availability
10
RECEPTACLE WPL Y715120 Contact Us For Availability
10
WASHER WPL 715295 Contact Us For Availability
11
INNER GLASS WPL 715284 Contact Us For Availability
11
WIRE, RED WPL 715513 Contact Us For Availability
11
NEW HINGE WPL 700853 Contact Us For Availability
11
BLOWER HOUSING ASSEMBLY WPL 700137 Contact Us For Availability
11
SPLITTER WPL 715614 Contact Us For Availability
12
DOOR INSULATION KIT WPL 715315 Contact Us For Availability
12
SCREW WPL 715959 Contact Us For Availability
12
THERMOSTAT WPL 700158 Contact Us For Availability
12
WIRE, BLUE WPL 715514 Contact Us For Availability
12
FRONT CLOSURE WPL 715275 Contact Us For Availability
12
FILTER RETAINER CLIP WPL 715488 Contact Us For Availability
12
WASHER (TEFLON) WPL 715617 Contact Us For Availability
12
CONTROL PANEL ASSEMBLY WPL 770456 Contact Us For Availability
13
OVEN DOOR SEAL WPL 715368 Contact Us For Availability
13
NUT WPL 707161 Contact Us For Availability
13
SELECTOR SWITCH WPL 715398 Contact Us For Availability
13
SWITCH, FAN WPL 715397 Contact Us For Availability
13
BOX COVER WPL 715535 Contact Us For Availability
13
CONVECTIVE FILTER WPL 715526 Contact Us For Availability
14
BLOWER WHEEL----NA WPL 715363 Contact Us For Availability
14
BRACKET WPL 715395 Contact Us For Availability
14
LOGO (KIT) WPL 700140 Contact Us For Availability
14
SCREW 8A WPL 715779 Contact Us For Availability
15
BRACKET WPL 715838 Contact Us For Availability
15
SCREW WPL 707116 Contact Us For Availability
15
CONDUIT WPL Y707758 Contact Us For Availability
15
AIR GRILL WPL 715476 Contact Us For Availability
16
FOAM TAPE WPL 715749 Contact Us For Availability
16
CATCH, DOOR WPL 707551 Contact Us For Availability
17
SCREW WPL 715485 Contact Us For Availability
17
WIRE HARNESS WPL 715510 Contact Us For Availability
17
WIRING LABEL WPL 715573 Contact Us For Availability
17
KNOB SELECTOR SWITCH WPL Y715403 Contact Us For Availability
17
PLATE, ROCK WPL 708929 Contact Us For Availability
18
WASHER, LOCK WPL 715910 Contact Us For Availability
18
BUSHING WPL 708939 Contact Us For Availability
18
OVEN BOTTOM WPL 715279 Contact Us For Availability
19
NO LONGER AVAILABLE WPL 788191 Contact Us For Availability
19
DECAL INFINITE SWITCH WPL 712217 Contact Us For Availability
19
GRATE WPL 707886 Contact Us For Availability
19
FEATURE PANEL ASSEMBLY WPL 700010 Contact Us For Availability
20
DUCT, FLEX WPL 715557 Contact Us For Availability
20
BLACK WIRE, JUNCTION BOX WPL 712172 Contact Us For Availability
20
RED WIRE, JUCTION BOX WPL 712173 Contact Us For Availability
20
DECAL, CONTROL PANEL WPL 712206 Contact Us For Availability
20
DECAL, CONTROL PANEL WPL 712207 Contact Us For Availability
20
NO LONGER AVAILABLE WPL 788179 Contact Us For Availability
20
ELEMENT, BROIL WPL 715416 Contact Us For Availability
21
BUSHING WPL 708185 Contact Us For Availability
21
BUMPER, BUTTON WPL 708361 Contact Us For Availability
21
RACK SUPPORT WPL 715424 Contact Us For Availability
22
CONNECTOR, CONDUIT WPL 707085 Contact Us For Availability
22
MOTOR ACCESS COVER WPL 715378 Contact Us For Availability
22
OVEN RACK WPL 715276 Contact Us For Availability
23
SCREW WPL Y707150 Contact Us For Availability
23
SCREW WPL 708278 Contact Us For Availability
24
PLENUM ASSEMBLY WPL 700020 Contact Us For Availability
24
NO LONGER AVAILABLE WPL 788159 Contact Us For Availability
24
NO LONGER AVAILABLE WPL 788062 Contact Us For Availability
25
GASKET WPL 715364 Contact Us For Availability
25
TINNERMAN WPL 708804 Contact Us For Availability
25
WIRE, GREEN WPL 715733 Contact Us For Availability
26
PLENUM DOOR WPL 700138 Contact Us For Availability
26
NUT WPL 708934 Contact Us For Availability
26
INSULATION WRAP WPL 715532 Contact Us For Availability
26
INSULATION BACK WPL 715533 Contact Us For Availability
27
DOOR KNOB WPL 708238 Contact Us For Availability
28
SCREW WPL 707407 No Longer Available
28
BUSHING WPL Y707695 Contact Us For Availability
29
GROMMET WPL 715392 Contact Us For Availability
29
CONVECTION WHEEL WPL Y700002 Contact Us For Availability
30
J TINNERMAN WPL 715389 Contact Us For Availability
30
SCREW, 1/4X20ST WPL 715804 Contact Us For Availability
31
COUPLING WPL 715891 Contact Us For Availability
31
CONVECTIVE WHEEL WPL 715729 Contact Us For Availability
31
UNIT WRAP WPL 700008 Contact Us For Availability
31
SUPPORT RAIL WPL 715351 Contact Us For Availability
31
SCREW WPL 715923 Contact Us For Availability
32
FLAT WASHER WPL 715890 Contact Us For Availability
32
SIDE TRIM WPL 715731 Contact Us For Availability
33
LOCK WASHER WPL 715540 Contact Us For Availability
34
CAP SCREW WPL 715958 Contact Us For Availability
35
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
35
WIRING GROMMET WPL 715866 Contact Us For Availability
36
SUPPORT RAIL WPL 700622 Contact Us For Availability
× ![]()
